5cnu

Crystal structure of the dATP inhibited E. coli class Ia ribonucleotide reductase complex bound to ADP and dGTP at 3.40 Angstroms resolution

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonucleoside-diphosphate reductase 1 subunit alpha

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Ribonucleoside-diphosphate reductase 1 subunit beta × 4 （P69924） 2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 4 MAGNESIUM ION × 8 ADENOSINE-5'-DIPHOSPHATE × 4 2'-DEOXYADENOSINE-5'-DIPHOSPHATE × 4 MU-OXO-DIIRON × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RIR1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–761； UniProt 1–761 Author chain B； PDBConstruct 1–761； UniProt 1–761 Author chain C； PDBConstruct 1–761； UniProt 1–761 Author chain D； PDBConstruct 1–761； UniProt 1–761

Ribonucleoside-diphosphate reductase 1 subunit beta

Escherichia coli (strain K12)

UniProt P69924

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Ribonucleoside-diphosphate reductase 1 subunit alpha × 4 （P00452） 2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 4 MAGNESIUM ION × 8 ADENOSINE-5'-DIPHOSPHATE × 4 2'-DEOXYADENOSINE-5'-DIPHOSPHATE × 4 MU-OXO-DIIRON × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RIR2_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–375； UniProt 2–376 Author chain F； PDBConstruct 1–375； UniProt 2–376 Author chain G； PDBConstruct 1–375； UniProt 2–376 Author chain H； PDBConstruct 1–375； UniProt 2–376

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5cnu
Deposition date deposition_date	2015-07-18
Structure title title	Crystal structure of the dATP inhibited E. coli class Ia ribonucleotide reductase complex bound to ADP and dGTP at 3.40 Angstroms resolution
Keywords keywords	allostery, substrate specificity, ribonucleotide reductase, nucleotide metabolism, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5cnu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5cnu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

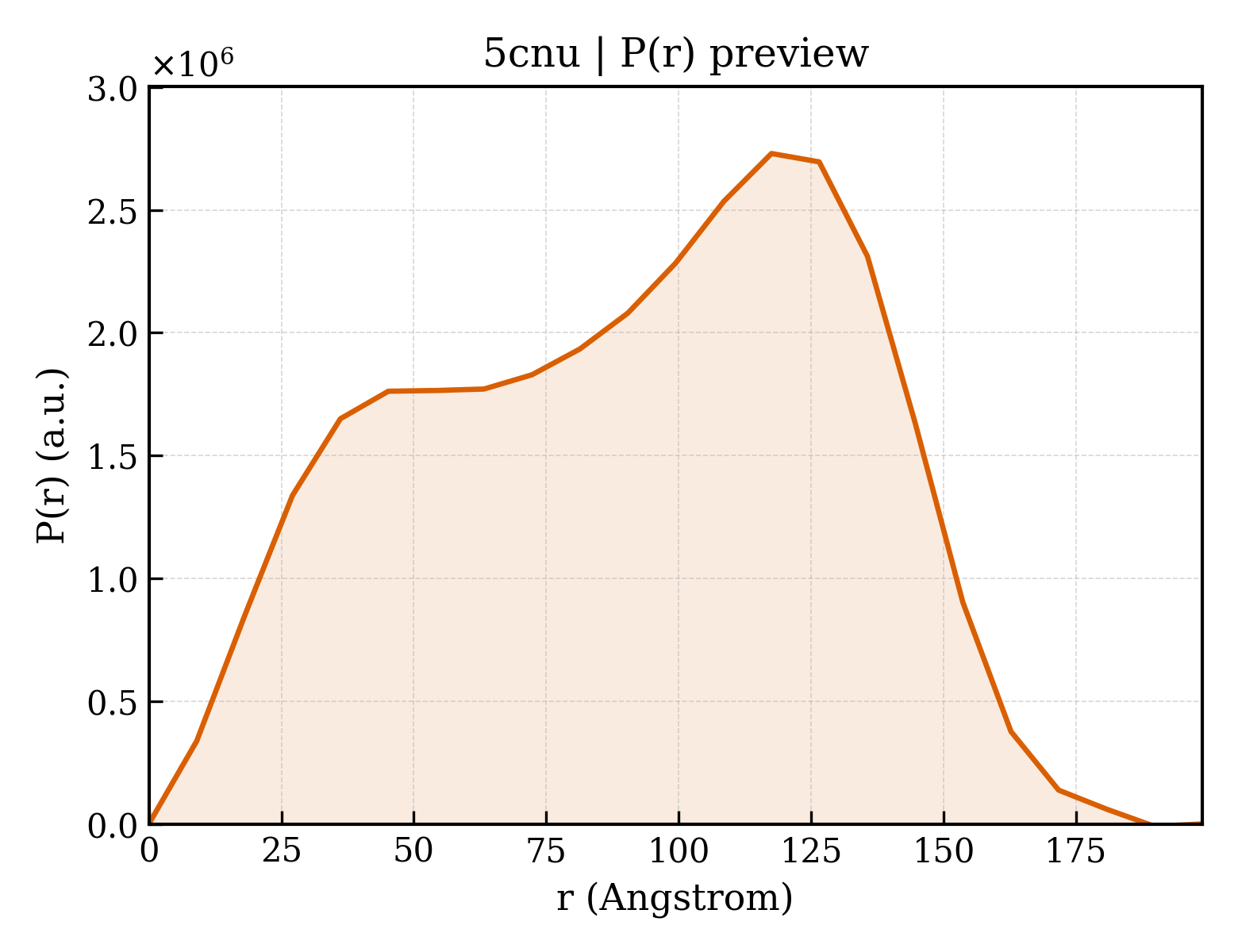

5cnu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	70.50 Å
Rg (electron density)	70.03 Å
Total Rg	70.16 Å
Atom count	35261
Residues	4352
Excluded volume	625230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5cnu__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Ribonucleoside-diphosphate reductase 1 subunit alpha
Molecular weight formula_weight	85877.1 kDa
EC 编号 ec_number	1.17.4.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	35355

MNQNLLVTKRDGSTERINLDKIHRVLDWAAEGLHNVSISQVELRSHIQFYDGIKTSDIHETIIKAAADLISRDAPDYQYLAARLAIFHLRKKAYGQFEPPALYDHVVKMVEMGKYDNHLLEDYTEEEFKQMDTFIDHDRDMTFSYAAVKQLEGKYLVQNRVTGEIYESAQFLYILVAACLFSNYPRETRLQYVKRFYDAVSTFKISLPTPIMSGVRTPTRQFSSCVLIECGDSLDSINATSSAIVKYVSQRAGIGINAGRIRALGSPIRGGEAFHTGCIPFYKHFQTAVKSCSQGGVRGGAATLFYPMWHLEVESLLVLKNNRGVEGNRVRHMDYGVQINKLMYTRLLKGEDITLFSPSDVPGLYDAFFADQEEFERLYTKYEKDDSIRKQRVKAVELFSLMMQERASTGRIYIQNVDHCNTHSPFDPAIAPVRQSNLCLEIALPTKPLNDVNDENGEIALCTLSAFNLGAINNLDELEELAILAVRALDALLDYQDYPIPAAKRGAMGRRTLGIGVINFAYYLAKHGKRYSDGSANNLTHKTFEAIQYYLLKASNELAKEQGACPWFNETTYAKGILPIDTYKKDLDTIANEPLHYDWEALRESIKTHGLRNSTLSALMPSETSSQISNATNGIEPPRGYVSIKASKDGILRQVVPDYEHLHDAYELLWEMPGNDGYLQLVGIMQKFIDQSISANTNYDPSRFPSGKVPMQQLLKDLLTAYKFGVKTLYYQNTRDGAEDAQDDLVPSIQDDGCESGACKI

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ribonucleoside-diphosphate reductase 1 subunit beta
Molecular weight formula_weight	43426.9 kDa
EC 编号 ec_number	1.17.4.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

AYTTFSQTKNDQLKEPMFFGQPVNVARYDQQKYDIFEKLIEKQLSFFWRPEEVDVSRDRIDYQALPEHEKHIFISNLKYQTLLDSIQGRSPNVALLPLISIPELETWVETWAFSETIHSRSYTHIIRNIVNDPSVVFDDIVTNEQIQKRAEGISSYYDELIEMTSYWHLLGEGTHTVNGKTVTVSLRELKKKLYLCLMSVNALEAIRFYVSFACSFAFAERELMEGNAKIIRLIARDEALHLTGTQHMLNLLRSGADDPEMAEIAEECKQECYDLFVQAAQQEKDWADYLFRDGSMIGLNKDILCQYVEYITNIRMQAVGLDLPFQTRSNPIPWINTWLVSDNVQVAPQEVEVSSYLVGQIDSEVDTDDLSNFQL

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	2'-DEOXYADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	411.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	MU-OXO-DIIRON
Molecular weight formula_weight	127.7 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	94

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	5cnuA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	5cnuB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	5cnuC02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	5cnuD02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	5cnuE00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	5cnuF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	5cnuG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	5cnuH00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

▶

Unit-cell length a length_a	274.340 Å
Unit-cell length b length_b	157.009 Å
Unit-cell length c length_c	166.039 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.72 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	49.653 Å
R factor r_factor	0.1864
R_work r_work	0.1846
R_free r_free	0.2205
