SAXSdb — 6rvw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription attenuation protein MtrB

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 264	GOLD ION × 120	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTRB_GEOSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AA； PDBConstruct 1–74； UniProt 1–74 Author chain AB； PDBConstruct 1–74； UniProt 1–74 Author chain AC； PDBConstruct 1–74； UniProt 1–74 Author chain AD； PDBConstruct 1–74； UniProt 1–74 Author chain AE； PDBConstruct 1–74； UniProt 1–74 Author chain AF； PDBConstruct 1–74； UniProt 1–74 Author chain AG； PDBConstruct 1–74； UniProt 1–74 Author chain AH； PDBConstruct 1–74； UniProt 1–74 Author chain AI； PDBConstruct 1–74； UniProt 1–74 Author chain AJ； PDBConstruct 1–74； UniProt 1–74 Author chain AK； PDBConstruct 1–74； UniProt 1–74 Author chain BA； PDBConstruct 1–74； UniProt 1–74 Author chain BB； PDBConstruct 1–74； UniProt 1–74 Author chain BC； PDBConstruct 1–74； UniProt 1–74 Author chain BD； PDBConstruct 1–74； UniProt 1–74 Author chain BE； PDBConstruct 1–74； UniProt 1–74 Author chain BF； PDBConstruct 1–74； UniProt 1–74 Author chain BG； PDBConstruct 1–74； UniProt 1–74 Author chain BH； PDBConstruct 1–74； UniProt 1–74 Author chain BI； PDBConstruct 1–74； UniProt 1–74 Author chain BJ； PDBConstruct 1–74； UniProt 1–74 Author chain BK； PDBConstruct 1–74； UniProt 1–74 Author chain CA； PDBConstruct 1–74； UniProt 1–74 Author chain CB； PDBConstruct 1–74； UniProt 1–74 Author chain CC； PDBConstruct 1–74； UniProt 1–74 Author chain CD； PDBConstruct 1–74； UniProt 1–74 Author chain CE； PDBConstruct 1–74； UniProt 1–74 Author chain CF； PDBConstruct 1–74； UniProt 1–74 Author chain CG； PDBConstruct 1–74； UniProt 1–74 Author chain CH； PDBConstruct 1–74； UniProt 1–74 Author chain CI； PDBConstruct 1–74； UniProt 1–74 Author chain CJ； PDBConstruct 1–74； UniProt 1–74 Author chain CK； PDBConstruct 1–74； UniProt 1–74 Author chain DA； PDBConstruct 1–74； UniProt 1–74 Author chain DB； PDBConstruct 1–74； UniProt 1–74 Author chain DC； PDBConstruct 1–74； UniProt 1–74 Author chain DD； PDBConstruct 1–74； UniProt 1–74 Author chain DE； PDBConstruct 1–74； UniProt 1–74 Author chain DF； PDBConstruct 1–74； UniProt 1–74 Author chain DG； PDBConstruct 1–74； UniProt 1–74 Author chain DH； PDBConstruct 1–74； UniProt 1–74 Author chain DI； PDBConstruct 1–74； UniProt 1–74 Author chain DJ； PDBConstruct 1–74； UniProt 1–74 Author chain DK； PDBConstruct 1–74； UniProt 1–74 Author chain EA； PDBConstruct 1–74； UniProt 1–74 Author chain EB； PDBConstruct 1–74； UniProt 1–74 Author chain EC； PDBConstruct 1–74； UniProt 1–74 Author chain ED； PDBConstruct 1–74； UniProt 1–74 Author chain EE； PDBConstruct 1–74； UniProt 1–74 Author chain EF； PDBConstruct 1–74； UniProt 1–74 Author chain EG； PDBConstruct 1–74； UniProt 1–74 Author chain EH； PDBConstruct 1–74； UniProt 1–74 Author chain EI； PDBConstruct 1–74； UniProt 1–74 Author chain EJ； PDBConstruct 1–74； UniProt 1–74 Author chain EK； PDBConstruct 1–74； UniProt 1–74 Author chain FA； PDBConstruct 1–74； UniProt 1–74 Author chain FB； PDBConstruct 1–74； UniProt 1–74 Author chain FC； PDBConstruct 1–74； UniProt 1–74 Author chain FD； PDBConstruct 1–74； UniProt 1–74 Author chain FE； PDBConstruct 1–74； UniProt 1–74 Author chain FF； PDBConstruct 1–74； UniProt 1–74 Author chain FG； PDBConstruct 1–74； UniProt 1–74 Author chain FH； PDBConstruct 1–74； UniProt 1–74 Author chain FI； PDBConstruct 1–74； UniProt 1–74 Author chain FJ； PDBConstruct 1–74； UniProt 1–74 Author chain FK； PDBConstruct 1–74； UniProt 1–74 Author chain GA； PDBConstruct 1–74； UniProt 1–74 Author chain GB； PDBConstruct 1–74； UniProt 1–74 Author chain GC； PDBConstruct 1–74； UniProt 1–74 Author chain GD； PDBConstruct 1–74； UniProt 1–74 Author chain GE； PDBConstruct 1–74； UniProt 1–74 Author chain GF； PDBConstruct 1–74； UniProt 1–74 Author chain GG； PDBConstruct 1–74； UniProt 1–74 Author chain GH； PDBConstruct 1–74； UniProt 1–74 Author chain GI； PDBConstruct 1–74； UniProt 1–74 Author chain GJ； PDBConstruct 1–74； UniProt 1–74 Author chain GK； PDBConstruct 1–74； UniProt 1–74 Author chain HA； PDBConstruct 1–74； UniProt 1–74 Author chain HB； PDBConstruct 1–74； UniProt 1–74 Author chain HC； PDBConstruct 1–74； UniProt 1–74 Author chain HD； PDBConstruct 1–74； UniProt 1–74 Author chain HE； PDBConstruct 1–74； UniProt 1–74 Author chain HF； PDBConstruct 1–74； UniProt 1–74 Author chain HG； PDBConstruct 1–74； UniProt 1–74 Author chain HH； PDBConstruct 1–74； UniProt 1–74 Author chain HI； PDBConstruct 1–74； UniProt 1–74 Author chain HJ； PDBConstruct 1–74； UniProt 1–74 Author chain HK； PDBConstruct 1–74； UniProt 1–74 Author chain IA； PDBConstruct 1–74； UniProt 1–74 Author chain IB； PDBConstruct 1–74； UniProt 1–74 Author chain IC； PDBConstruct 1–74； UniProt 1–74 Author chain ID； PDBConstruct 1–74； UniProt 1–74 Author chain IE； PDBConstruct 1–74； UniProt 1–74 Author chain IF； PDBConstruct 1–74； UniProt 1–74 Author chain IG； PDBConstruct 1–74； UniProt 1–74 Author chain IH； PDBConstruct 1–74； UniProt 1–74 Author chain II； PDBConstruct 1–74； UniProt 1–74 Author chain IJ； PDBConstruct 1–74； UniProt 1–74 Author chain IK； PDBConstruct 1–74； UniProt 1–74 Author chain JA； PDBConstruct 1–74； UniProt 1–74 Author chain JB； PDBConstruct 1–74； UniProt 1–74 Author chain JC； PDBConstruct 1–74； UniProt 1–74 Author chain JD； PDBConstruct 1–74； UniProt 1–74 Author chain JE； PDBConstruct 1–74； UniProt 1–74 Author chain JF； PDBConstruct 1–74； UniProt 1–74 Author chain JG； PDBConstruct 1–74； UniProt 1–74 Author chain JH； PDBConstruct 1–74； UniProt 1–74 Author chain JI； PDBConstruct 1–74； UniProt 1–74 Author chain JJ； PDBConstruct 1–74； UniProt 1–74 Author chain JK； PDBConstruct 1–74； UniProt 1–74 Author chain KA； PDBConstruct 1–74； UniProt 1–74 Author chain KB； PDBConstruct 1–74； UniProt 1–74 Author chain KC； PDBConstruct 1–74； UniProt 1–74 Author chain KD； PDBConstruct 1–74； UniProt 1–74 Author chain KE； PDBConstruct 1–74； UniProt 1–74 Author chain KF； PDBConstruct 1–74； UniProt 1–74 Author chain KG； PDBConstruct 1–74； UniProt 1–74 Author chain KH； PDBConstruct 1–74； UniProt 1–74 Author chain KI； PDBConstruct 1–74； UniProt 1–74 Author chain KJ； PDBConstruct 1–74； UniProt 1–74 Author chain KK； PDBConstruct 1–74； UniProt 1–74 Author chain LA； PDBConstruct 1–74； UniProt 1–74 Author chain LB； PDBConstruct 1–74； UniProt 1–74 Author chain LC； PDBConstruct 1–74； UniProt 1–74 Author chain LD； PDBConstruct 1–74； UniProt 1–74 Author chain LE； PDBConstruct 1–74； UniProt 1–74 Author chain LF； PDBConstruct 1–74； UniProt 1–74 Author chain LG； PDBConstruct 1–74； UniProt 1–74 Author chain LH； PDBConstruct 1–74； UniProt 1–74 Author chain LI； PDBConstruct 1–74； UniProt 1–74 Author chain LJ； PDBConstruct 1–74； UniProt 1–74 Author chain LK； PDBConstruct 1–74； UniProt 1–74 Author chain MA； PDBConstruct 1–74； UniProt 1–74 Author chain MB； PDBConstruct 1–74； UniProt 1–74 Author chain MC； PDBConstruct 1–74； UniProt 1–74 Author chain MD； PDBConstruct 1–74； UniProt 1–74 Author chain ME； PDBConstruct 1–74； UniProt 1–74 Author chain MF； PDBConstruct 1–74； UniProt 1–74 Author chain MG； PDBConstruct 1–74； UniProt 1–74 Author chain MH； PDBConstruct 1–74； UniProt 1–74 Author chain MI； PDBConstruct 1–74； UniProt 1–74 Author chain MJ； PDBConstruct 1–74； UniProt 1–74 Author chain MK； PDBConstruct 1–74； UniProt 1–74 Author chain NA； PDBConstruct 1–74； UniProt 1–74 Author chain NB； PDBConstruct 1–74； UniProt 1–74 Author chain NC； PDBConstruct 1–74； UniProt 1–74 Author chain ND； PDBConstruct 1–74； UniProt 1–74 Author chain NE； PDBConstruct 1–74； UniProt 1–74 Author chain NF； PDBConstruct 1–74； UniProt 1–74 Author chain NG； PDBConstruct 1–74； UniProt 1–74 Author chain NH； PDBConstruct 1–74； UniProt 1–74 Author chain NI； PDBConstruct 1–74； UniProt 1–74 Author chain NJ； PDBConstruct 1–74； UniProt 1–74 Author chain NK； PDBConstruct 1–74； UniProt 1–74 Author chain OA； PDBConstruct 1–74； UniProt 1–74 Author chain OB； PDBConstruct 1–74； UniProt 1–74 Author chain OC； PDBConstruct 1–74； UniProt 1–74 Author chain OD； PDBConstruct 1–74； UniProt 1–74 Author chain OE； PDBConstruct 1–74； UniProt 1–74 Author chain OF； PDBConstruct 1–74； UniProt 1–74 Author chain OG； PDBConstruct 1–74； UniProt 1–74 Author chain OH； PDBConstruct 1–74； UniProt 1–74 Author chain OI； PDBConstruct 1–74； UniProt 1–74 Author chain OJ； PDBConstruct 1–74； UniProt 1–74 Author chain OK； PDBConstruct 1–74； UniProt 1–74 Author chain PA； PDBConstruct 1–74； UniProt 1–74 Author chain PB； PDBConstruct 1–74； UniProt 1–74 Author chain PC； PDBConstruct 1–74； UniProt 1–74 Author chain PD； PDBConstruct 1–74； UniProt 1–74 Author chain PE； PDBConstruct 1–74； UniProt 1–74 Author chain PF； PDBConstruct 1–74； UniProt 1–74 Author chain PG； PDBConstruct 1–74； UniProt 1–74 Author chain PH； PDBConstruct 1–74； UniProt 1–74 Author chain PI； PDBConstruct 1–74； UniProt 1–74 Author chain PJ； PDBConstruct 1–74； UniProt 1–74 Author chain PK； PDBConstruct 1–74； UniProt 1–74 Author chain QA； PDBConstruct 1–74； UniProt 1–74 Author chain QB； PDBConstruct 1–74； UniProt 1–74 Author chain QC； PDBConstruct 1–74； UniProt 1–74 Author chain QD； PDBConstruct 1–74； UniProt 1–74 Author chain QE； PDBConstruct 1–74； UniProt 1–74 Author chain QF； PDBConstruct 1–74； UniProt 1–74 Author chain QG； PDBConstruct 1–74； UniProt 1–74 Author chain QH； PDBConstruct 1–74； UniProt 1–74 Author chain QI； PDBConstruct 1–74； UniProt 1–74 Author chain QJ； PDBConstruct 1–74； UniProt 1–74 Author chain QK； PDBConstruct 1–74； UniProt 1–74 Author chain RA； PDBConstruct 1–74； UniProt 1–74 Author chain RB； PDBConstruct 1–74； UniProt 1–74 Author chain RC； PDBConstruct 1–74； UniProt 1–74 Author chain RD； PDBConstruct 1–74； UniProt 1–74 Author chain RE； PDBConstruct 1–74； UniProt 1–74 Author chain RF； PDBConstruct 1–74； UniProt 1–74 Author chain RG； PDBConstruct 1–74； UniProt 1–74 Author chain RH； PDBConstruct 1–74； UniProt 1–74 Author chain RI； PDBConstruct 1–74； UniProt 1–74 Author chain RJ； PDBConstruct 1–74； UniProt 1–74 Author chain RK； PDBConstruct 1–74； UniProt 1–74 Author chain SA； PDBConstruct 1–74； UniProt 1–74 Author chain SB； PDBConstruct 1–74； UniProt 1–74 Author chain SC； PDBConstruct 1–74； UniProt 1–74 Author chain SD； PDBConstruct 1–74； UniProt 1–74 Author chain SE； PDBConstruct 1–74； UniProt 1–74 Author chain SF； PDBConstruct 1–74； UniProt 1–74 Author chain SG； PDBConstruct 1–74； UniProt 1–74 Author chain SH； PDBConstruct 1–74； UniProt 1–74 Author chain SI； PDBConstruct 1–74； UniProt 1–74 Author chain SJ； PDBConstruct 1–74； UniProt 1–74 Author chain SK； PDBConstruct 1–74； UniProt 1–74 Author chain TA； PDBConstruct 1–74； UniProt 1–74 Author chain TB； PDBConstruct 1–74； UniProt 1–74 Author chain TC； PDBConstruct 1–74； UniProt 1–74 Author chain TD； PDBConstruct 1–74； UniProt 1–74 Author chain TE； PDBConstruct 1–74； UniProt 1–74 Author chain TF； PDBConstruct 1–74； UniProt 1–74 Author chain TG； PDBConstruct 1–74； UniProt 1–74 Author chain TH； PDBConstruct 1–74； UniProt 1–74 Author chain TI； PDBConstruct 1–74； UniProt 1–74 Author chain TJ； PDBConstruct 1–74； UniProt 1–74 Author chain TK； PDBConstruct 1–74； UniProt 1–74 Author chain UA； PDBConstruct 1–74； UniProt 1–74 Author chain UB； PDBConstruct 1–74； UniProt 1–74 Author chain UC； PDBConstruct 1–74； UniProt 1–74 Author chain UD； PDBConstruct 1–74； UniProt 1–74 Author chain UE； PDBConstruct 1–74； UniProt 1–74 Author chain UF； PDBConstruct 1–74； UniProt 1–74 Author chain UG； PDBConstruct 1–74； UniProt 1–74 Author chain UH； PDBConstruct 1–74； UniProt 1–74 Author chain UI； PDBConstruct 1–74； UniProt 1–74 Author chain UJ； PDBConstruct 1–74； UniProt 1–74 Author chain UK； PDBConstruct 1–74； UniProt 1–74 Author chain VA； PDBConstruct 1–74； UniProt 1–74 Author chain VB； PDBConstruct 1–74； UniProt 1–74 Author chain VC； PDBConstruct 1–74； UniProt 1–74 Author chain VD； PDBConstruct 1–74； UniProt 1–74 Author chain VE； PDBConstruct 1–74； UniProt 1–74 Author chain VF； PDBConstruct 1–74； UniProt 1–74 Author chain VG； PDBConstruct 1–74； UniProt 1–74 Author chain VH； PDBConstruct 1–74； UniProt 1–74 Author chain VI； PDBConstruct 1–74； UniProt 1–74 Author chain VJ； PDBConstruct 1–74； UniProt 1–74 Author chain VK； PDBConstruct 1–74； UniProt 1–74 Author chain WA； PDBConstruct 1–74； UniProt 1–74 Author chain WB； PDBConstruct 1–74； UniProt 1–74 Author chain WC； PDBConstruct 1–74； UniProt 1–74 Author chain WD； PDBConstruct 1–74； UniProt 1–74 Author chain WE； PDBConstruct 1–74； UniProt 1–74 Author chain WF； PDBConstruct 1–74； UniProt 1–74 Author chain WG； PDBConstruct 1–74； UniProt 1–74 Author chain WH； PDBConstruct 1–74； UniProt 1–74 Author chain WI； PDBConstruct 1–74； UniProt 1–74 Author chain WJ； PDBConstruct 1–74； UniProt 1–74 Author chain WK； PDBConstruct 1–74； UniProt 1–74 Author chain XA； PDBConstruct 1–74； UniProt 1–74 Author chain XB； PDBConstruct 1–74； UniProt 1–74 Author chain XC； PDBConstruct 1–74； UniProt 1–74 Author chain XD； PDBConstruct 1–74； UniProt 1–74 Author chain XE； PDBConstruct 1–74； UniProt 1–74 Author chain XF； PDBConstruct 1–74； UniProt 1–74 Author chain XG； PDBConstruct 1–74； UniProt 1–74 Author chain XH； PDBConstruct 1–74； UniProt 1–74 Author chain XI； PDBConstruct 1–74； UniProt 1–74 Author chain XJ； PDBConstruct 1–74； UniProt 1–74 Author chain XK； PDBConstruct 1–74； UniProt 1–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6rvw
Deposition date deposition_date	2019-06-03
Structure title title	Structure of right-handed protein cage consisting of 24 eleven-membered ring proteins held together by gold (I) bridges.
Keywords keywords	TRAP; protein cage; gold binding; snub cube, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6rvw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

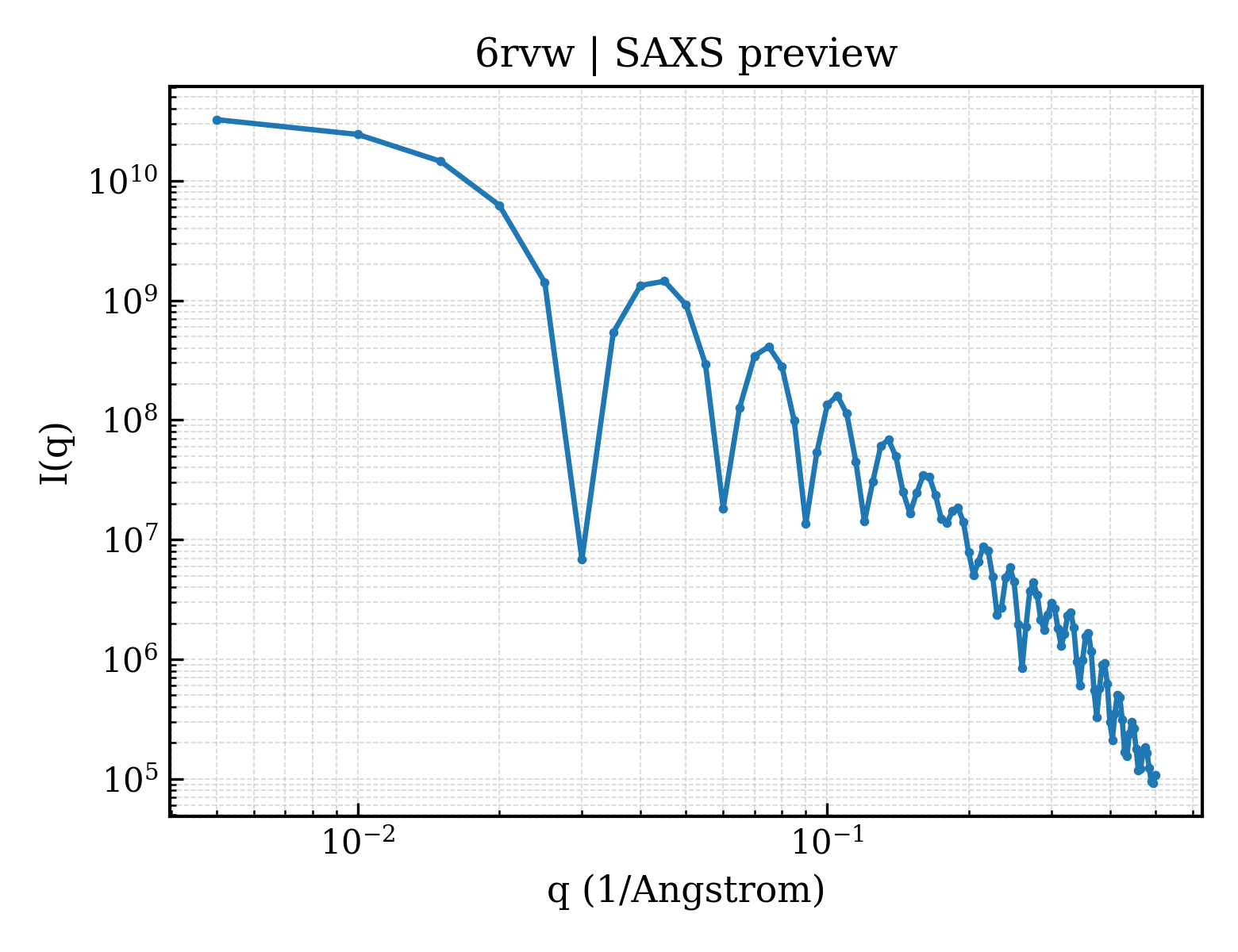

6rvw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

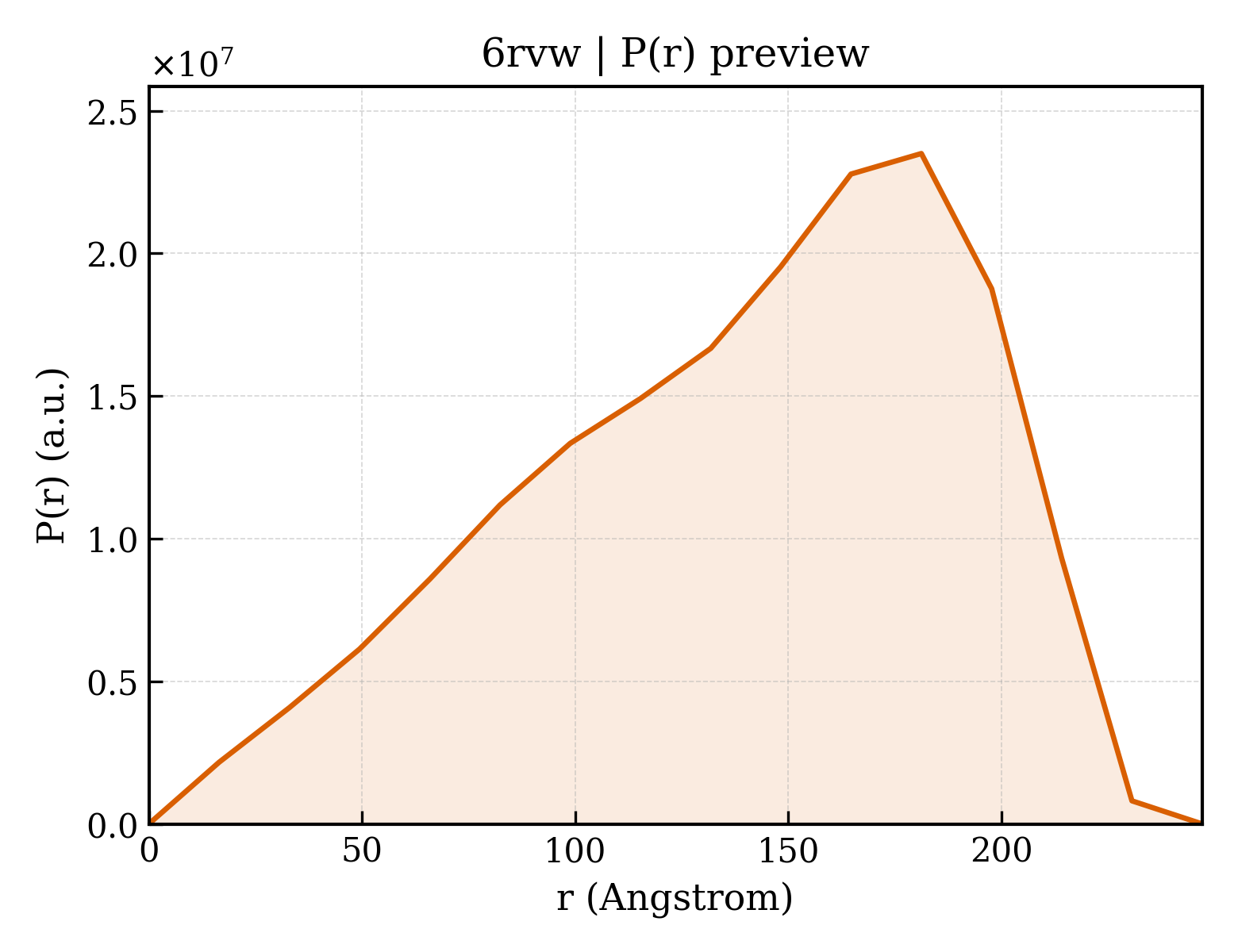

6rvw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	104.60 Å
Total Rg	104.90 Å
Atom count	110208
Residues	14520
Excluded volume	1972500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6rvw__assembly_1__model_1`	264-meric （264）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Transcription attenuation protein MtrB
Molecular weight formula_weight	8161.2 kDa
Mutation mutation	K35C, R64S
Source method src_method	man
Copy count entity_count	264

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	;AA,AB,AC,AD,AE,AF,AG,AH,AI,AJ,AK,BA,BB,BC,BD,BE,BF,BG,BH,BI,BJ,BK,CA,CB,CC,CD,CE,CF,CG,CH,CI,CJ,CK,DA,DB,DC,DD,DE,DF,DG,DH,DI,DJ,DK,EA,EB,EC,ED,EE,EF,EG,EH,EI,EJ,EK,FA,FB,FC,FD,FE,FF,FG,FH,FI,FJ,FK,GA,GB,GC,GD,GE,GF,GG,GH,GI,GJ,GK,HA,HB,HC,HD,HE,HF,HG,HH,HI,HJ,HK,IA,IB,IC,ID,IE,IF,IG,IH,II,IJ,IK,JA,JB,JC,JD,JE,JF,JG,JH,JI,JJ,JK,KA,KB,KC,KD,KE,KF,KG,KH,KI,KJ,KK,LA,LB,LC,LD,LE,LF,LG,LH,LI,LJ,LK,MA,MB,MC,MD,ME,MF,MG,MH,MI,MJ,MK,NA,NB,NC,ND,NE,NF,NG,NH,NI,NJ,NK,OA,OB,OC,OD,OE,OF,OG,OH,OI,OJ,OK,PA,PB,PC,PD,PE,PF,PG,PH,PI,PJ,PK,QA,QB,QC,QD,QE,QF,QG,QH,QI,QJ,QK,RA,RB,RC,RD,RE,RF,RG,RH,RI,RJ,RK,SA,SB,SC,SD,SE,SF,SG,SH,SI,SJ,SK,TA,TB,TC,TD,TE,TF,TG,TH,TI,TJ,TK,UA,UB,UC,UD,UE,UF,UG,UH,UI,UJ,UK,VA,VB,VC,VD,VE,VF,VG,VH,VI,VJ,VK,WA,WB,WC,WD,WE,WF,WG,WH,WI,WJ,WK,XA,XB,XC,XD,XE,XF,XG,XH,XI,XJ,XK ;
Atom count atom_count	110208

MYTNSDFVVIKALEDGVNVIGLTRGADTRFHHSECLDKGEVLIAQFTEHTSAIKVRGKAYIQTSHGVIESEGKK

Source Source

Source organism organism	Geobacillus stearothermophilus
Common name common_name	Bacillus stearothermophilus
NCBI taxonomy ID ncbi_taxonomy_id	1422
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GOLD ION
Molecular weight formula_weight	197.0 kDa
Source method src_method	syn
Copy count entity_count	120

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	94388

Structure of right-handed protein cage consisting of 24 eleven-membered ring proteins held together by gold (I) bridges.
