SAXSdb — 7cgb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Flagellar hook protein FlgE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 22	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FLGE_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain DL； PDBConstruct 1–403； UniProt 1–403 Author chain DM； PDBConstruct 1–403； UniProt 1–403 Author chain DN； PDBConstruct 1–403； UniProt 1–403 Author chain DO； PDBConstruct 1–403； UniProt 1–403 Author chain DP； PDBConstruct 1–403； UniProt 1–403 Author chain DQ； PDBConstruct 1–403； UniProt 1–403 Author chain DR； PDBConstruct 1–403； UniProt 1–403 Author chain DS； PDBConstruct 1–403； UniProt 1–403 Author chain DT； PDBConstruct 1–403； UniProt 1–403 Author chain DU； PDBConstruct 1–403； UniProt 1–403 Author chain DV； PDBConstruct 1–403； UniProt 1–403 Author chain DW； PDBConstruct 1–403； UniProt 1–403 Author chain DX； PDBConstruct 1–403； UniProt 1–403 Author chain DY； PDBConstruct 1–403； UniProt 1–403 Author chain DZ； PDBConstruct 1–403； UniProt 1–403 Author chain EA； PDBConstruct 1–403； UniProt 1–403 Author chain EB； PDBConstruct 1–403； UniProt 1–403 Author chain EC； PDBConstruct 1–403； UniProt 1–403 Author chain ED； PDBConstruct 1–403； UniProt 1–403 Author chain EE； PDBConstruct 1–403； UniProt 1–403 Author chain EF； PDBConstruct 1–403； UniProt 1–403 Author chain EG； PDBConstruct 1–403； UniProt 1–403

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7cgb
Deposition date deposition_date	2020-07-01
Structure title title	Cryo-EM structure of the flagellar hook from Salmonella
Keywords keywords	Hook, FlgE, Hook-basal body, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7cgb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7cgb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

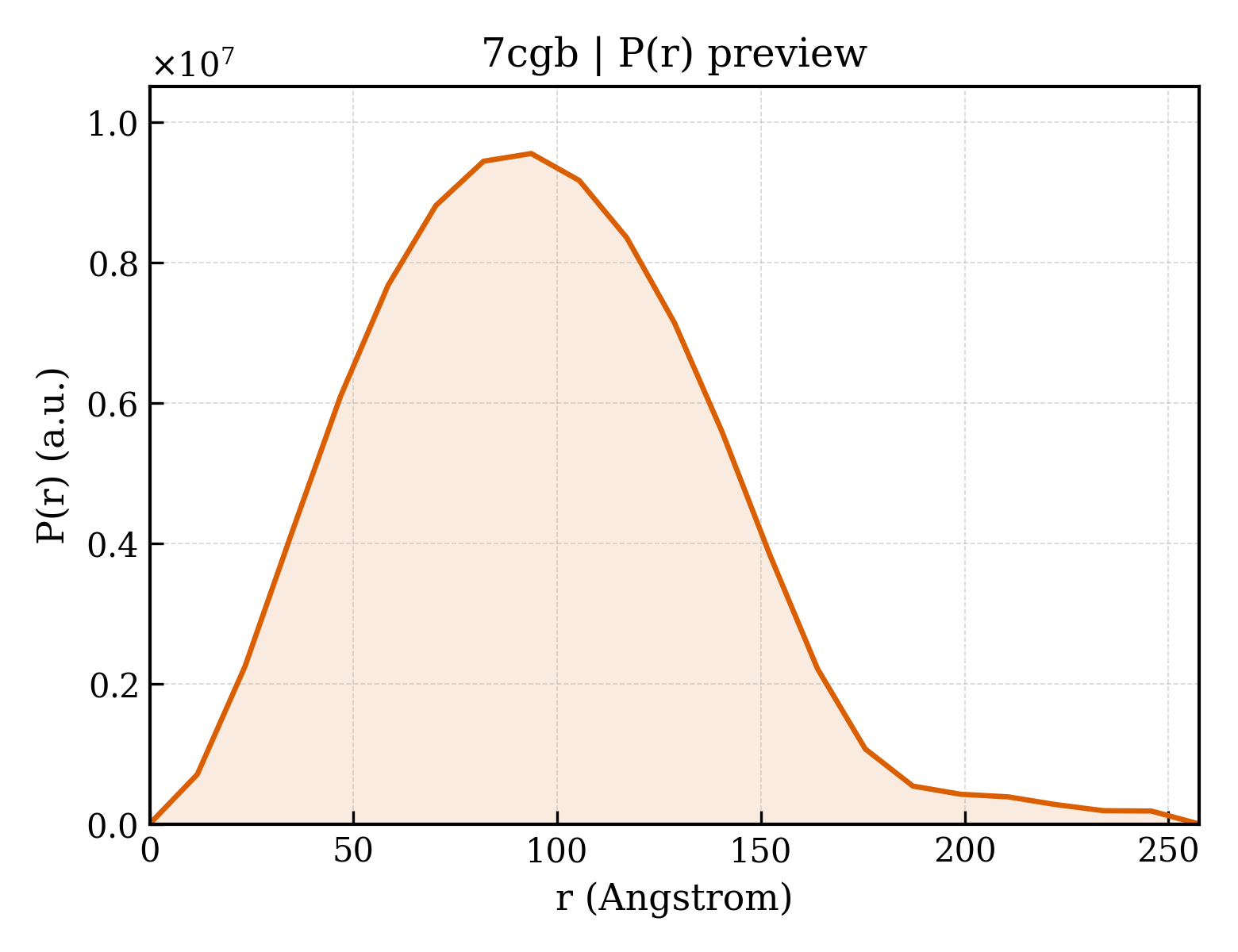

7cgb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	70.58 Å
Rg (electron density)	70.20 Å
Total Rg	70.30 Å
Atom count	64834
Residues	8822
Excluded volume	1134600 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7cgb__assembly_1__model_1`	22-meric （22）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	148517

Description description	Flagellar hook protein FlgE
Molecular weight formula_weight	42233.2 kDa
Source method src_method	nat
Copy count entity_count	22

Polymer type type	polypeptide(L)
Chain IDs strand_id	DL,DM,DN,DO,DP,DQ,DR,DS,DT,DU,DV,DW,DX,DY,DZ,EA,EB,EC,ED,EE,EF,EG
Atom count atom_count	64834
