SAXSdb — 7mnp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding nuclear protein Ran

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	E3 SUMO-protein ligase RanBP2 × 1 （P49792） GUANOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1 ZINC ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	E3 SUMO-protein ligase RanBP2 × 1 （P49792） GUANOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1 ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAN_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–217； UniProt 1–216 Author chain C； PDBConstruct 2–217； UniProt 1–216

E3 SUMO-protein ligase RanBP2

Homo sapiens

UniProt P49792

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GTP-binding nuclear protein Ran × 1 （P62826） GUANOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1 ZINC ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	GTP-binding nuclear protein Ran × 1 （P62826） GUANOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1 ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBP2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–42； UniProt 1407–1443 Author chain D； PDBConstruct 6–42； UniProt 1407–1443

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7mnp
Deposition date deposition_date	2021-05-01
Structure title title	Crystal Structure of the ZnF2 of Nucleoporin NUP358/RanBP2 in complex with Ran-GDP
Keywords keywords	NUCLEAR PORE COMPLEX COMPONENT, NUCLEOCYTOPLASMIC TRANSPORT, TRANSPORT PROTEIN, ZINC FINGER; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7mnp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

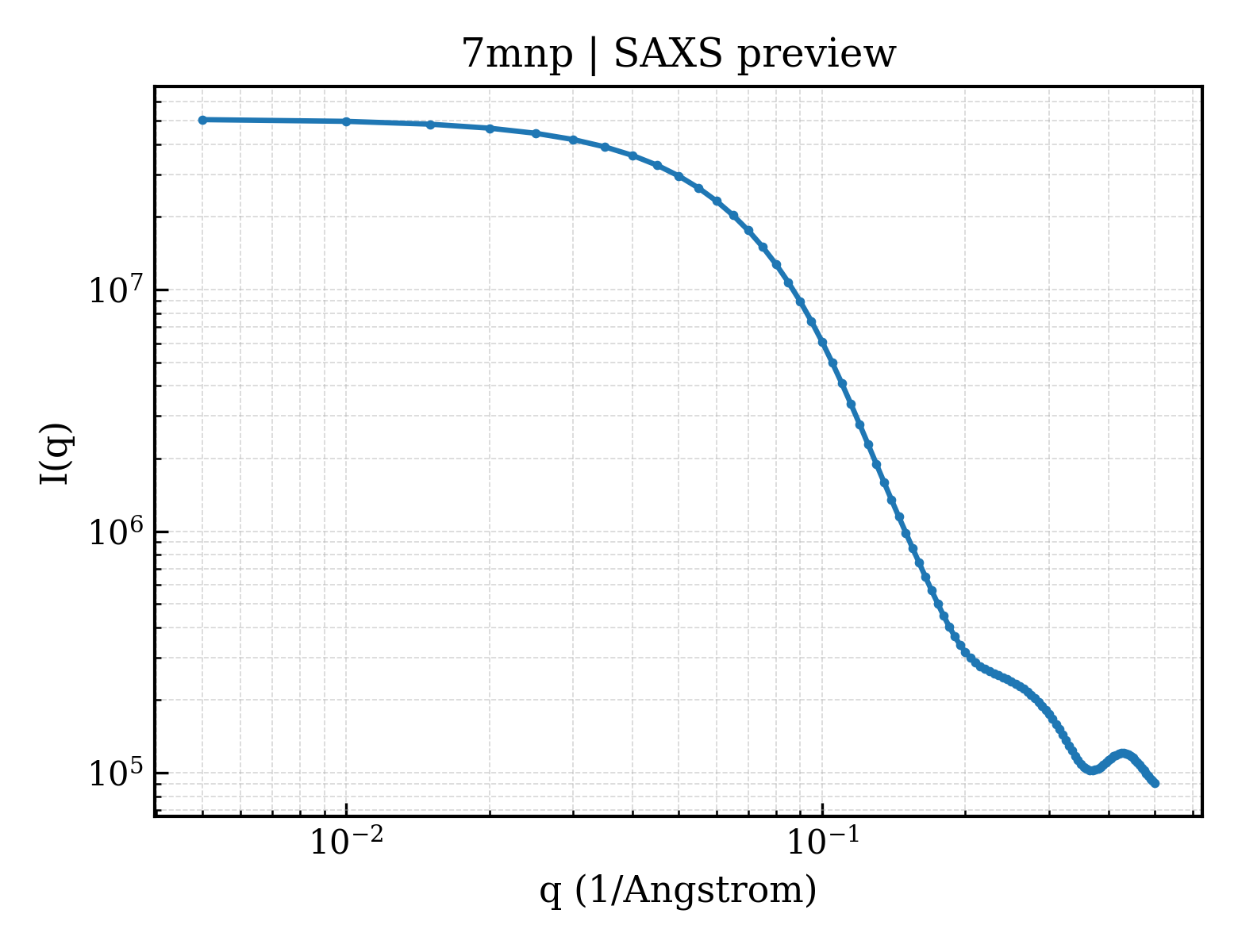

7mnp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7mnp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.13 Å
Rg (electron density)	17.97 Å
Total Rg	18.99 Å
Atom count	3875
Residues	240
Excluded volume	34649 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7mnp__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7mnp__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	GTP-binding nuclear protein Ran
Molecular weight formula_weight	24483.1 kDa
Mutation mutation	F35S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	8131

SMAAQGEPQVQFKLVLVGDGGTGKTTFVKRHLTGESEKKYVATLGVEVHPLVFHTNRGPIKFNVWDTAGQEKFGGLRDGYYIQAQCAIIMFDVTSRVTYKNVPNWHRDLVRVCENIPIVLCGNKVDIKDRKVKAKSIVFHRKKNLQYYDISAKSNYNFEKPFLWLARKLIGDPNLEFVAMPALAPPEVVMDPALAAQYEHDLEVAQTTALPDEDDDL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	E3 SUMO-protein ligase RanBP2
Molecular weight formula_weight	4610.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GPLGSRFALVTPKKEGHWDCSICLVRNEPTVSRCIACQNTKS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	266

▶

Unit-cell length a length_a	60.230 Å
Unit-cell length b length_b	79.840 Å
Unit-cell length c length_c	108.750 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.050 Å
Low-resolution limit resolution_low	29.020 Å
R factor r_factor	0.1960
R_work r_work	0.1941
R_free r_free	0.2314

Crystal Structure of the ZnF2 of Nucleoporin NUP358/RanBP2 in complex with Ran-GDP
