8gcj

PCNA

Method: X-RAY DIFFRACTION D_max: 141.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proliferating cell nuclear antigen

Homo sapiens

UniProt P12004

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–261 Chain C； UniProt 1–261 Chain E； UniProt 1–261	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；289.15 K；0.2 M Magnesium chloride hexahydrate, 0.1 M HEPES pH 7.5, 25% w/v Polyethylene glycol 3,350	Resolution 2.85 Å R-free 0.278
2	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–261 Chain D； UniProt 1–261 Chain F； UniProt 1–261	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；289.15 K；0.2 M Magnesium chloride hexahydrate, 0.1 M HEPES pH 7.5, 25% w/v Polyethylene glycol 3,350	Resolution 2.85 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8GCJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AXC HUMAN PCNA Deposited 1997-10-14	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å R-free 0.289
1U76 Crystal structure of hPCNA bound to residues 452-466 of the DNA polymerase-delta-p66 subunit Deposited 2004-08-02	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.278
1U7B Crystal structure of hPCNA bound to residues 331-350 of the flap endonuclease-1 (FEN1) Deposited 2004-08-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.88 Å R-free 0.265
1UL1 Crystal structure of the human FEN1-PCNA complex Deposited 2003-09-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；283 K；6% PEG1000, 50mM MES, 50mM Sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 283K	Resolution 2.90 Å R-free 0.284
1VYJ Structural and biochemical studies of human PCNA complexes provide the basis for association with CDK/cyclin and rationale for inhibitor design Deposited 2004-04-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；2.7M AS, HEPES PH8, pH 8.00	Resolution 2.80 Å R-free 0.256
1VYJ Structural and biochemical studies of human PCNA complexes provide the basis for association with CDK/cyclin and rationale for inhibitor design Deposited 2004-04-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 1–261（261 aa） Chain I 1–261（261 aa） Chain K 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；2.7M AS, HEPES PH8, pH 8.00	Resolution 2.80 Å R-free 0.256
1VYM NATIVE HUMAN PCNA Deposited 2004-05-03	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；20% PEG3350, 0.2M MAGNESIUM ACETATE, pH 7.00	Resolution 2.30 Å R-free 0.279
1W60 NATIVE HUMAN PCNA Deposited 2004-08-11	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；35% PEGMME 2K, 0.1M NA ACETATE (PH4.6), 0.2M AS., pH 4.60	Resolution 3.15 Å R-free 0.278
1W60 NATIVE HUMAN PCNA Deposited 2004-08-11	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；35% PEGMME 2K, 0.1M NA ACETATE (PH4.6), 0.2M AS., pH 4.60	Resolution 3.15 Å R-free 0.278
2ZVK Crystal structure of PCNA in complex with DNA polymerase eta fragment Deposited 2008-11-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.6；293 K；pH3.6, HANGING DROP VAPOR DIFFUSION, temperature 293K	Resolution 2.70 Å R-free 0.286
2ZVL Crystal structure of PCNA in complex with DNA polymerase kappa fragment Deposited 2008-11-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	SO4 SULFATE ION × 2 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP VAPOR DIFFUSION；pH 5.2；293 K；pH5.2, HANGING DROP VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.289
2ZVL Crystal structure of PCNA in complex with DNA polymerase kappa fragment Deposited 2008-11-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–261（261 aa） Chain E 1–261（261 aa） Chain F 1–261（261 aa）	Not recorded	SO4 SULFATE ION × 2 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP VAPOR DIFFUSION；pH 5.2；293 K；pH5.2, HANGING DROP VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.289
2ZVM Crystal structure of PCNA in complex with DNA polymerase iota fragment Deposited 2008-11-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP VAPOR DIFFUSION；pH 6.4；293 K；pH6.4, HANGING DROP VAPOR DIFFUSION, temperature 293K	Resolution 2.30 Å R-free 0.251
3JA9 Structure of native human PCNA Deposited 2015-05-19	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50mM Tris-HCl, 5mM MgCl2	Resolution 22.00 Å
3P87 Structure of human PCNA bound to RNASEH2B PIP box peptide Deposited 2010-10-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；3M NaCl, 0.1M citrate, pH 3.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.99 Å R-free 0.248
3P87 Structure of human PCNA bound to RNASEH2B PIP box peptide Deposited 2010-10-13	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain D 1–261（261 aa） Chain F 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；3M NaCl, 0.1M citrate, pH 3.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.99 Å R-free 0.248
3P87 Structure of human PCNA bound to RNASEH2B PIP box peptide Deposited 2010-10-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa） Chain E 1–261（261 aa） Chain F 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；3M NaCl, 0.1M citrate, pH 3.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.99 Å R-free 0.248
3TBL Structure of Mono-ubiquitinated PCNA: Implications for DNA Polymerase Switching and Okazaki Fragment Maturation Deposited 2011-08-07	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；0.9 to 1.3 M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.90 Å R-free 0.293
3VKX Structure of PCNA Deposited 2011-11-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa）	Not recorded	T3 3,5,3'TRIIODOTHYRONINE × 3 SO4 SULFATE ION × 18 CL CHLORIDE ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å R-free 0.249
3WGW Structure of PCNA bound to a small molecule inhibitor Deposited 2013-08-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa）	Not recorded	T2B 4-{4-[(2S)-2-amino-3-hydroxypropyl]-2,6-diiodophenoxy}phenol × 6 SO4 SULFATE ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.221
3WGW Structure of PCNA bound to a small molecule inhibitor Deposited 2013-08-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 1–261（261 aa）	Not recorded	T2B 4-{4-[(2S)-2-amino-3-hydroxypropyl]-2,6-diiodophenoxy}phenol × 3 SO4 SULFATE ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.221
4D2G Crystal structure of human PCNA in complex with p15 peptide Deposited 2014-05-09	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 40% PEG 300 IN 0.1 MM PHOSPHATE-CITRATE PH 4.2	Resolution 2.65 Å R-free 0.250
4RJF Crystal structure of the human sliding clamp at 2.0 angstrom resolution Deposited 2014-10-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.08M strontium chloride hexahydrate, 0.02M magnesium chloride hexahydrate, 0.04M sodium cacodylate trihydrate (pH7.0), 20% v/v (+/-)-2-methyl-2,4-pentanediol and 0.012M spermine tetrahydrochloride, final [PCNA] = 11.6mg/mL = 0.40mM, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.01 Å R-free 0.189
4RJF Crystal structure of the human sliding clamp at 2.0 angstrom resolution Deposited 2014-10-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.08M strontium chloride hexahydrate, 0.02M magnesium chloride hexahydrate, 0.04M sodium cacodylate trihydrate (pH7.0), 20% v/v (+/-)-2-methyl-2,4-pentanediol and 0.012M spermine tetrahydrochloride, final [PCNA] = 11.6mg/mL = 0.40mM, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.01 Å R-free 0.189
4RJF Crystal structure of the human sliding clamp at 2.0 angstrom resolution Deposited 2014-10-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.08M strontium chloride hexahydrate, 0.02M magnesium chloride hexahydrate, 0.04M sodium cacodylate trihydrate (pH7.0), 20% v/v (+/-)-2-methyl-2,4-pentanediol and 0.012M spermine tetrahydrochloride, final [PCNA] = 11.6mg/mL = 0.40mM, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.01 Å R-free 0.189
4ZTD Crystal Structure of Human PCNA in complex with a TRAIP peptide Deposited 2015-05-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–254（253 aa） Fragment：UNP residues 2-254 Chain B 2–254（253 aa） Fragment：UNP residues 2-254 Chain C 2–254（253 aa） Fragment：UNP residues 2-254	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；16% PEG 6K in 0.1mM magnesium acetate, MES buffer pH 6.5	Resolution 2.20 Å R-free 0.234
5E0T Human PCNA mutant - S228I Deposited 2015-09-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Mutation：S228I Mutation：S228I Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；100mM sodium acetate, pH4.5, 2M ammonium sulfate	Resolution 2.67 Å R-free 0.226
5E0T Human PCNA mutant - S228I Deposited 2015-09-29	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Mutation：S228I Mutation：S228I Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；100mM sodium acetate, pH4.5, 2M ammonium sulfate	Resolution 2.67 Å R-free 0.226
5E0U Human PCNA variant (S228I) complexed with p21 at 1.9 Angstroms Deposited 2015-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–261（261 aa）	Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100mM HEPES pH 7.5, 25% PEG 3350	Resolution 1.93 Å R-free 0.221
5E0U Human PCNA variant (S228I) complexed with p21 at 1.9 Angstroms Deposited 2015-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–261（261 aa）	Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100mM HEPES pH 7.5, 25% PEG 3350	Resolution 1.93 Å R-free 0.221
5E0U Human PCNA variant (S228I) complexed with p21 at 1.9 Angstroms Deposited 2015-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–261（261 aa）	Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100mM HEPES pH 7.5, 25% PEG 3350	Resolution 1.93 Å R-free 0.221
5E0V Human PCNA variant (S228I) complexed with FEN1 at 2.1 Angstroms Deposited 2015-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–261（261 aa）	Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；2.35 M ammonium sulfate, 100 mM sodium acetate pH 4.6, 40% (v/v) -1,3-Butanediol	Resolution 2.07 Å R-free 0.229
5E0V Human PCNA variant (S228I) complexed with FEN1 at 2.1 Angstroms Deposited 2015-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–261（261 aa）	Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；2.35 M ammonium sulfate, 100 mM sodium acetate pH 4.6, 40% (v/v) -1,3-Butanediol	Resolution 2.07 Å R-free 0.229
5IY4 Crystal structure of human PCNA in complex with the PIP box of DVC1 Deposited 2016-03-24	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；289 K；0.1 M Sodium citrate tribasic dehydrates (pH 5.0), 30% v/v Jeffamine ED-2001 (pH 7.0)	Resolution 2.94 Å R-free 0.270
5MAV Crystal structure of human PCNA in complex with PARG (poly(ADP-ribose) glycohydrolase) peptide. Deposited 2016-11-06	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295.15 K；0.1 M Tris-HCl pH 7.5, 20% PEG 3350, 0.2 M ammonium acetate	Resolution 2.58 Å R-free 0.291
5MAV Crystal structure of human PCNA in complex with PARG (poly(ADP-ribose) glycohydrolase) peptide. Deposited 2016-11-06	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain D 1–261（261 aa） Chain F 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295.15 K；0.1 M Tris-HCl pH 7.5, 20% PEG 3350, 0.2 M ammonium acetate	Resolution 2.58 Å R-free 0.291
5MLO Crystal structure of human PCNA in complex with ZRANB3 PIP box peptide Deposited 2016-12-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	NA SODIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM NaCl + 8% (v/v) DMSO + 31% pentaerythitol propoxylate (5/4 PO/OH)	Resolution 1.96 Å R-free 0.259
5MLW Crystal structure of human PCNA in complex with ZRANB3 APIM motif peptide Deposited 2016-12-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；100 mM lithium sulfate + 30% (w/v) polyvinylpyrrolidone + 100 mM HEPES pH 7.0	Resolution 2.45 Å R-free 0.264
5MOM Crystal Structure of PCNA encoding the hypomorphic mutation S228I Deposited 2016-12-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Mutation：S228I Mutation：S228I Mutation：S228I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M NaAcO, 2M (NH4)2SO4	Resolution 2.27 Å R-free 0.216
5YCO Complex structure of PCNA with UHRF2 Deposited 2017-09-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	GOL GLYCEROL × 3 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2 M ammonium sulfate, 0.1 M Tris pH 8.0	Resolution 2.20 Å R-free 0.220
5YCO Complex structure of PCNA with UHRF2 Deposited 2017-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–261（261 aa）	Not recorded	GOL GLYCEROL × 3 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2 M ammonium sulfate, 0.1 M Tris pH 8.0	Resolution 2.20 Å R-free 0.220
5YD8 Crystal structure of human PCNA in complex with APIM of human ZRANB3 Deposited 2017-09-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Y 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350	Resolution 2.30 Å R-free 0.265
5YD8 Crystal structure of human PCNA in complex with APIM of human ZRANB3 Deposited 2017-09-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350	Resolution 2.30 Å R-free 0.265
5YD8 Crystal structure of human PCNA in complex with APIM of human ZRANB3 Deposited 2017-09-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Z 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350	Resolution 2.30 Å R-free 0.265
6CBI PCNA in complex with inhibitor Deposited 2018-02-03	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；289 K；2M ammonium sulfate 0.1M Tris pH8.0	Resolution 2.75 Å R-free 0.252
6CBI PCNA in complex with inhibitor Deposited 2018-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–261（261 aa） Chain D 1–261（261 aa） Chain F 1–261（261 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；289 K；2M ammonium sulfate 0.1M Tris pH8.0	Resolution 2.75 Å R-free 0.252
6EHT Modulation of PCNA sliding surface by p15PAF suggests a suppressive mechanism for cisplatin-induced DNA lesion bypass by pol eta holoenzyme Deposited 2017-09-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain A 1–254（254 aa） Chain B 1–254（254 aa） Chain C 1–255（255 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10% polyethylene glycol 3350 0.1 M sodium acetate pH 4.5	Resolution 3.20 Å R-free 0.327
6FCM Crystal structure of human PCNA Deposited 2017-12-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；19 to 23% PEG 3350, 0.2 to 0.3 M NaCl, 0.1 M Tris-HCl pH 8.5	Resolution 2.80 Å R-free 0.276
6FCN Crystal structure of human PCNA soaked with p47phox(106-127) peptide Deposited 2017-12-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；19 to 23% PEG 3350, 0.2 to 0.3 M NaCl, 0.1 M Tris-HCl pH 8.5 12h prior to crystal freezing, 100 uM of p47phox(106-127) peptide was added to the crystallization drop	Resolution 3.22 Å R-free 0.272
6GIS Structural basis of human clamp sliding on DNA Deposited 2018-05-15	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 3 PDB declaration: pentameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Mutation：H from His tag Mutation：H from His tag Mutation：H from His tag	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；11% PEG 3350 0.1M Sodium acetate ph 4.5	Resolution 2.82 Å R-free 0.284
6GWS Crystal structure of human PCNA in complex with three p15 peptides Deposited 2018-06-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；28% PEG 400, 0.2 M CaCl2, 0.1 M Hepes	Resolution 2.90 Å R-free 0.263
6HVO Crystal structure of human PCNA in complex with three peptides of p12 subunit of human polymerase delta Deposited 2018-10-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；Bis Tris 6.5 , Li2SO4 (0.2M), PEG 3350 24%	Resolution 2.10 Å R-free 0.244
6K3A Crystal structure of human PCNA in complex with DNMT1 PIP box motif. Deposited 2019-05-17	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；1.6M sodium citrate	Resolution 2.30 Å R-free 0.264
6QC0 PCNA complex with Cdt2 C-terminal PIP-box peptide Deposited 2018-12-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10% (w/v) PEG 6000 100 mM MES/HCl	Resolution 3.50 Å R-free 0.252
6QCG PCNA complex with Cdt1 N-terminal PIP-box peptide Deposited 2018-12-28	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；300 K；15% (w/v) PEG 400, 100 mM calcium acetate, 100 mM MES/HCl	Resolution 3.40 Å R-free 0.253
6QCG PCNA complex with Cdt1 N-terminal PIP-box peptide Deposited 2018-12-28	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–261（261 aa） Chain E 1–261（261 aa） Chain F 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；300 K；15% (w/v) PEG 400, 100 mM calcium acetate, 100 mM MES/HCl	Resolution 3.40 Å R-free 0.253
6S1M Human polymerase delta holoenzyme Conformer 1 Deposited 2019-06-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain E 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	ZN ZINC ION × 1 SF4 IRON/SULFUR CLUSTER × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.27 Å
6S1N Human polymerase delta holoenzyme Conformer 2 Deposited 2019-06-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain E 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	ZN ZINC ION × 1 SF4 IRON/SULFUR CLUSTER × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.86 Å
6S1O Human polymerase delta holoenzyme Conformer 3 Deposited 2019-06-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain E 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	ZN ZINC ION × 1 SF4 IRON/SULFUR CLUSTER × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.10 Å
6TNY Processive human polymerase delta holoenzyme Deposited 2019-12-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain E 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	ZN ZINC ION × 1 SF4 IRON/SULFUR CLUSTER × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
6TNZ Human polymerase delta-FEN1-PCNA toolbelt Deposited 2019-12-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain E 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	ZN ZINC ION × 1 SF4 IRON/SULFUR CLUSTER × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.05 Å
6VVO Structure of the human clamp loader (Replication Factor C, RFC) bound to the sliding clamp (Proliferating Cell Nuclear Antigen, PCNA) Deposited 2020-02-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7EFA Crystal structure of the complex between the C-terminal domain of mouse MUTYH and human PCNA Deposited 2021-03-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG8000, imidazole	Resolution 2.70 Å R-free 0.286
7KQ0 PCNA bound to peptide mimetic Deposited 2020-11-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–259（259 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.18M magnesium acetate, 20% poly(ethylene) glycol 3350	Resolution 2.40 Å R-free 0.201
7KQ0 PCNA bound to peptide mimetic Deposited 2020-11-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–259（259 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.18M magnesium acetate, 20% poly(ethylene) glycol 3350	Resolution 2.40 Å R-free 0.201
7KQ0 PCNA bound to peptide mimetic Deposited 2020-11-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–259（259 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.18M magnesium acetate, 20% poly(ethylene) glycol 3350	Resolution 2.40 Å R-free 0.201
7KQ1 PCNA bound to truncated peptide mimetic Deposited 2020-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–259（259 aa） Chain C 1–259（259 aa） Chain E 1–259（259 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；0.1M sodium malonate and 8% poly(ethylene)glycol 3350	Resolution 3.30 Å R-free 0.267
7M5L PCNA bound to peptide mimetic with linker Deposited 2021-03-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Not recorded	TME PROPANE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.18M magnesium acetate, 19.2% poly(ethylene) glycol 3350	Resolution 3.00 Å R-free 0.275
7M5M PCNA bound to peptide mimetic Deposited 2021-03-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–259（259 aa） Chain B 1–259（259 aa） Chain C 1–259（259 aa）	Not recorded	NBU N-BUTANE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.18M Magnesium acetate, 19.5% poly(ethylene) glycol 3350	Resolution 3.00 Å R-free 0.274
7M5N PCNA bound to peptide mimetic with linker Deposited 2021-03-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–259（259 aa） Chain B 1–259（259 aa） Chain C 1–259（259 aa）	Not recorded	8VH 1,3-dimethylbenzene × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.18M magnesium acetate, 19.3% poly(ethylene) glycol 3350	Resolution 3.11 Å R-free 0.309
7NV0 Human Pol Kappa holoenzyme with wt PCNA Deposited 2021-03-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7NV1 Human Pol Kappa holoenzyme with Ub-PCNA Deposited 2021-03-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å
7QNZ human Lig1-DNA-PCNA complex reconstituted in absence of ATP Deposited 2021-12-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: heptameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.58 Å
7QO1 complex of DNA ligase I and FEN1 on PCNA and DNA Deposited 2021-12-23	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: octameric	Chain B 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8B8T Open conformation of the complex of DNA ligase I on PCNA and DNA in the presence of ATP Deposited 2022-10-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–255（255 aa） Chain F 1–255（255 aa） Chain G 1–255（255 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8COB Crystal structure of human PCNA in complex with ERCC6L2 PIP box peptide Deposited 2023-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain C 1–261（261 aa） Chain E 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；25% (w/v) PEG3350, 100 mM BIS-TRIS pH 5.5	Resolution 2.73 Å R-free 0.255
8E84 Human PCNA mutant- C148S Deposited 2022-08-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–261（261 aa）	Mutation：C148S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；175 mM Magnesium Acetate, 20% PEG 3350	Resolution 3.10 Å R-free 0.292
8E84 Human PCNA mutant- C148S Deposited 2022-08-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–261（261 aa）	Mutation：C148S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；175 mM Magnesium Acetate, 20% PEG 3350	Resolution 3.10 Å R-free 0.292
8E84 Human PCNA mutant- C148S Deposited 2022-08-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–261（261 aa）	Mutation：C148S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；175 mM Magnesium Acetate, 20% PEG 3350	Resolution 3.10 Å R-free 0.292
8F5Q Crystal structure of human PCNA in complex with the PIP box of FBH1 Deposited 2022-11-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–259（259 aa） Chain C 1–259（259 aa） Chain E 1–259（259 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.1 M HEPES, pH 7.5, 0.2 M magnesium chloride, 30% PEG400	Resolution 1.90 Å R-free 0.266
8GL9 Co-crystal structure of caPCNA bound to AOH1160 derivative 1LE Deposited 2023-03-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	CL CHLORIDE ION × 6 ZQW N~2~-(naphthalene-1-carbonyl)-N-(2-phenoxyphenyl)-L-alpha-glutamine × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M sodium cacodylate, 0.2 M sodium chloride, 2.0 M ammonium sulfate	Resolution 2.81 Å R-free 0.240
8GL9 Co-crystal structure of caPCNA bound to AOH1160 derivative 1LE Deposited 2023-03-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 1–261（261 aa）	Not recorded	CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M sodium cacodylate, 0.2 M sodium chloride, 2.0 M ammonium sulfate	Resolution 2.81 Å R-free 0.240
8GLA Co-crystal structure of caPCNA bound to the AOH1996 derivative, AOH1996-1LE Deposited 2023-03-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	ZQZ N-[2-(3-methoxyphenoxy)phenyl]-N~2~-(naphthalene-1-carbonyl)-L-alpha-glutamine × 6 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M sodium cacodylate pH 6.5, 0.2 M sodium chloride, 2.0 M ammonium sulfate	Resolution 3.77 Å R-free 0.260
8GLA Co-crystal structure of caPCNA bound to the AOH1996 derivative, AOH1996-1LE Deposited 2023-03-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 1–261（261 aa）	Not recorded	CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M sodium cacodylate pH 6.5, 0.2 M sodium chloride, 2.0 M ammonium sulfate	Resolution 3.77 Å R-free 0.260
8UI7 Cryo-EM map of human clmap-clamp loader ATAD5-RFC-gapped PCNA complex in intermediate state 3 Deposited 2023-10-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 3 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8UI8 Cryo-EM map of human clamp-clamp loader ATAD5-RFC-two PCNAs complex in intermediate state 3 Deposited 2023-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 3 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8UI9 Cryo-EM map of human clamp-clamp loader ATAD5-RFC-cracked PCNA complex in intermediate state 2 Deposited 2023-10-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8UII Cryo-EM map of human clamp-clamp loader ATAD5-RFC-closed PCNA complex in intermediate state 1 Deposited 2023-10-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8UMT Atomic model of the human CTF18-RFC-PCNA binary complex in the three-subunit binding state (state 2) Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 3 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.33 Å
8UMU Atomic model of the human CTF18-RFC-PCNA binary complex in the four-subunit binding state (state 3) Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 3 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
8UMV Atomic model of the human CTF18-RFC-PCNA-DNA ternary complex with narrow PCNA opening state I (state 5) Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.75 Å
8UMW Atomic model of the human CTF18-RFC-PCNA-DNA ternary complex in the five-subunit binding state (state 4) Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.93 Å
8UMY Atomic model of the human CTF18-RFC-PCNA-DNA ternary complex with narrow PCNA opening state II (state 6) Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
8UN0 Atomic model of the human CTF18-RFC-PCNA-DNA ternary complex with cracked and closed PCNA (state 7) Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8YJH Structure of the human endogenous PCNA-FEN1 complex - State A Deposited 2024-03-01	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.68 Å
8YJL Structure of the human endogenous PCNA-FEN1 complex - State B Deposited 2024-03-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJQ Structure of the human endogenous PCNA-FEN1 complex - State C Deposited 2024-03-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJR Structure of the human endogenous PCNA-FEN1 complex - State D Deposited 2024-03-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJS Structure of the human endogenous PCNA-FEN1 complex - State E Deposited 2024-03-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8YJU Structure of the human endogenous PCNA-FEN1 complex - State F Deposited 2024-03-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.78 Å
8YJV Structure of the human endogenous PCNA-FEN1 complex - State G Deposited 2024-03-03	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8YJW Structure of the human endogenous PCNA-FEN1 complex - State H Deposited 2024-03-03	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8YJZ Structure of the human endogenous PCNA-FEN1-RNase H2 complex - State D Deposited 2024-03-03	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: decameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.15 Å
8ZWO Structure of CTF18-PCNA with ATP Deposited 2024-06-13	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM Tris-HCl, 200 mM NaCl, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
9B8S Human polymerase epsilon bound to PCNA and DNA in the nucleotide exchange state Deposited 2024-03-31	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.01 Å
9B8T Human polymerase epsilon bound to PCNA and DNA in the nucleotide bound state Deposited 2024-03-31	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	TTP THYMIDINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
9CG4 Cryo-EM structure of FAN1, PCNA and DNA substrate with (CAG)2 extrusion in intermediate state Deposited 2024-06-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
9CHM Cryo-EM structure of FAN1 R507H and PCNA in intermediate state Deposited 2024-07-01	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
9CL7 Cryo-EM structure of FAN1-PCNA-DNA in final state Deposited 2024-07-10	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.83 Å
9CMA Cryo-EM structure of FAN1 R507H-PCNA-DNA in final state Deposited 2024-07-13	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.97 Å
9EOA Cryo_EM structure of human FAN1 in complex with 5' flap DNA substrate and PCNA Deposited 2024-03-14	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: heptameric	Chain F 1–256（256 aa） Chain G 1–256（256 aa） Chain H 1–256（256 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.27 Å
9F6D Human DNA polymerase epsilon bound to DNA and PCNA (open conformation) Deposited 2024-05-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9F6E Human DNA polymerase epsilon bound to DNA and PCNA (ajar conformation) Deposited 2024-05-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å
9F6F Human DNA polymerase epsilon bound to DNA and PCNA (closed conformation) Deposited 2024-05-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 DDS 2',3'-dideoxyadenosine triphosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9GY0 Cryo_EM structure of human FAN1 R507H mutant in complex with 5' flap DNA substrate and PCNA Deposited 2024-10-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: heptameric	Chain E 1–261（261 aa） Chain F 1–261（261 aa） Chain G 1–261（261 aa）	Not recorded	CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.42 Å
9IIN Structure of CTF18-PCNA with ATP and Mg2+ Deposited 2024-06-20	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–261（261 aa） Chain G 1–261（261 aa） Chain H 1–261（261 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM Tris-HCl, 200 mM NaCl, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9N3L Co-crystal structure of PCNA bound to HSP90alpha inhibitor, SNX2112 Deposited 2025-01-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–261（261 aa）	Not recorded	E0G 4-[6,6-dimethyl-4-oxidanylidene-3-(trifluoromethyl)-5,7-dihydroindazol-1-yl]-2-[(4-oxidanylcyclohexyl)amino]benzamide × 3 CL CHLORIDE ION × 6 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M sodium cacodylate pH 6.5, 0.2M sodium chloride, 2.0M ammonium sulfate	Resolution 1.90 Å R-free 0.233
9NE6 Human polymerase epsilon bound to PCNA and DNA with an in-situ-generated mismatch in the mismatch-editing state Deposited 2025-02-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
9NE7 Human polymerase epsilon bound to PCNA and DNA with an in-situ-generated mismatch in the Pol-backtracking state Deposited 2025-02-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
9NE8 Human polymerase epsilon bound to PCNA and DNA with an in-situ-generated mismatch in the mismatch-locking state Deposited 2025-02-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9NE9 Human polymerase epsilon bound to PCNA and DNA with a pre-existing mismatch in the blocked conformation I Deposited 2025-02-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 2 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
9NEA Human polymerase epsilon bound to PCNA and DNA with a pre-existing mismatch in the blocked conformation II Deposited 2025-02-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.81 Å
9SRI Human DNA polymerase epsilon bound to DNA blunt end Deposited 2025-09-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–261（261 aa） Chain C 1–261（261 aa） Chain D 1–261（261 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9UIQ Structure of CTF18-PCNA with ATP Deposited 2025-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–257（257 aa） Chain G 1–257（257 aa） Chain H 1–257（257 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM Tris-HCl, 200 mM NaCl, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9VGW Crystal structure of human PCNA in complex with REV1 PIP-box Deposited 2025-06-15	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–261（261 aa） Chain B 1–261（261 aa） Chain C 1–261（261 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；ammonium sulfate	Resolution 2.70 Å R-free 0.261

101 other PDB entries and 125 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PCNA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–261； UniProt 1–261 Author chain B； PDBConstruct 1–261； UniProt 1–261 Author chain C； PDBConstruct 1–261； UniProt 1–261 Author chain D； PDBConstruct 1–261； UniProt 1–261 Author chain E； PDBConstruct 1–261； UniProt 1–261 Author chain F； PDBConstruct 1–261； UniProt 1–261

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

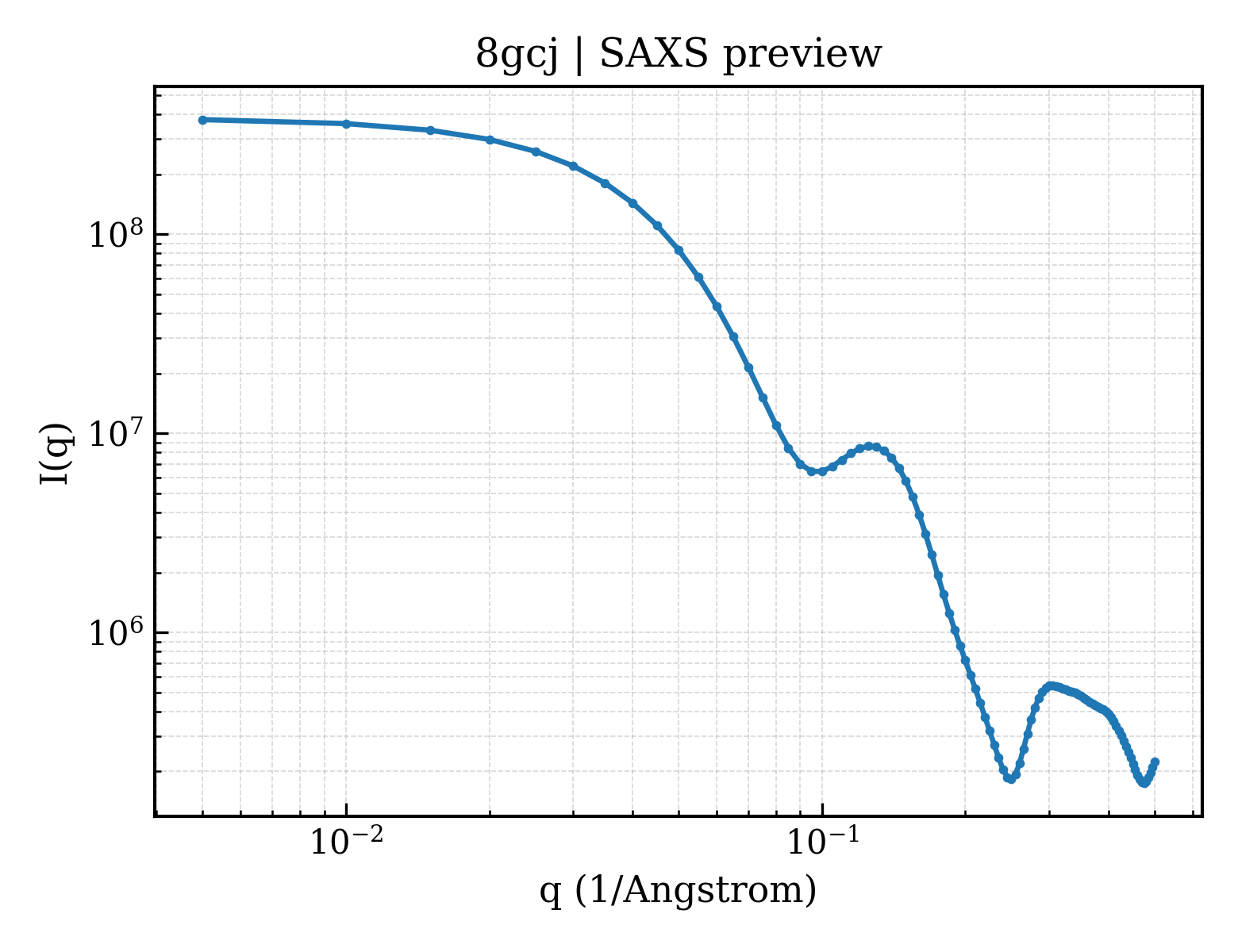

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gcj
Deposition date deposition_date	2023-03-01
Structure title title	PCNA
Keywords keywords	PCNA, DNA replication, replication; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.79 Å
Radius of gyration Rg (electron density) rg_electron	42.10 Å
Forward intensity I(0) i0	381925000.00
Molecular weight molecular_weight	158840.0 kDa
Excluded volume excluded_volume	198690 Å³
Envelope volume envelope_volume	301220 Å³
Hydration-shell volume shell_volume	61076 Å³
Envelope diameter envelope_diameter	145.0 Å
Shell Rg shell_rg	46.25 Å
Envelope Rg envelope_rg	40.60 Å
Shape Rg shape_rg	42.10 Å
Total Rg total_rg	42.35 Å
Total atoms total_atoms	11146
Residues n_residues	1514
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

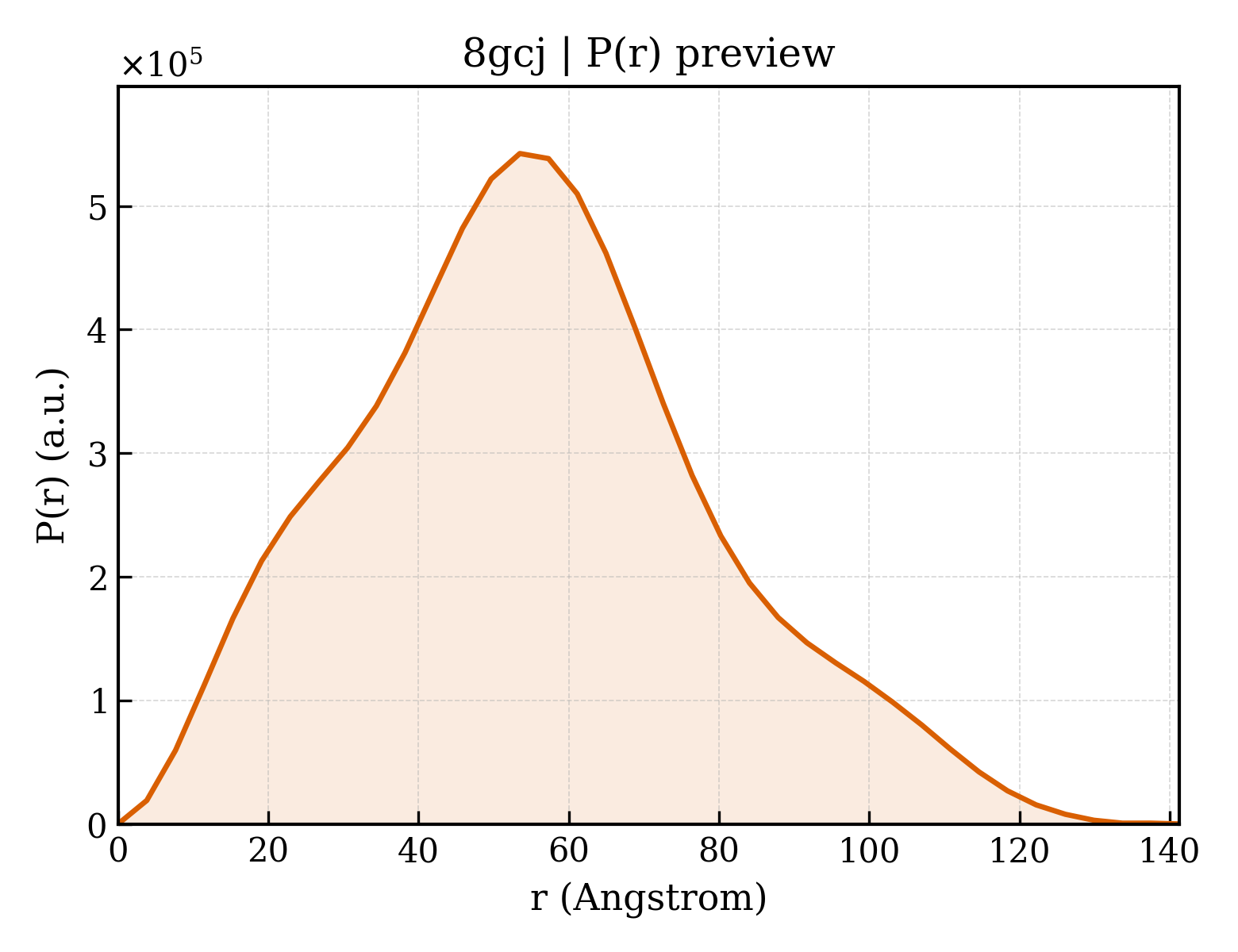

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	141.3 Å
Rg (real space) rg_real	42.74 Å
Rg uncertainty (real space) rg_real_error	1.21 Å
I(0) (real space) i0_real	3.8190e+08
I(0) uncertainty (real space) i0_real_error	6.8270e+06
Rg (reciprocal space) rg_reciprocal	42.79 Å
I(0) (reciprocal space) i0_reciprocal	381900000.0000
Solution quality estimate total_estimate	0.8424
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	53.5 Å
Skewness Skewness skewness	0.311
Kurtosis Kurtosis kurtosis	-0.215
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	25590000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.703; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.840

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	147.104 Å
Unit-cell length b length_b	85.186 Å
Unit-cell length c length_c	149.806 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.87 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	48.390 Å
R factor r_factor	0.2336
R_work r_work	0.2311
R_free r_free	0.2775

Description description	Proliferating cell nuclear antigen
Molecular weight formula_weight	28795.8 kDa
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,F,B,D
Atom count atom_count	11280

PCNA

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proliferating cell nuclear antigen

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123

fit	/app/data/saxs_computation/gc/8gcj/8gcj.fit
pddf	/app/data/pr_computation/gc/8gcj/8gcj.pr.out
profile	/app/data/saxs_computation/gc/8gcj/8gcj.dat
