SAXSdb — 8r5a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription attenuation protein MtrB

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 264	COBALT (II) ION × 120	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTRB_GEOSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 0； PDBConstruct 1–74； UniProt 1–74 Author chain 0A； PDBConstruct 1–74； UniProt 1–74 Author chain 0B； PDBConstruct 1–74； UniProt 1–74 Author chain 0C； PDBConstruct 1–74； UniProt 1–74 Author chain 1； PDBConstruct 1–74； UniProt 1–74 Author chain 1A； PDBConstruct 1–74； UniProt 1–74 Author chain 1B； PDBConstruct 1–74； UniProt 1–74 Author chain 1C； PDBConstruct 1–74； UniProt 1–74 Author chain 2； PDBConstruct 1–74； UniProt 1–74 Author chain 2A； PDBConstruct 1–74； UniProt 1–74 Author chain 2B； PDBConstruct 1–74； UniProt 1–74 Author chain 2C； PDBConstruct 1–74； UniProt 1–74 Author chain 3； PDBConstruct 1–74； UniProt 1–74 Author chain 3A； PDBConstruct 1–74； UniProt 1–74 Author chain 3B； PDBConstruct 1–74； UniProt 1–74 Author chain 3C； PDBConstruct 1–74； UniProt 1–74 Author chain 4； PDBConstruct 1–74； UniProt 1–74 Author chain 4A； PDBConstruct 1–74； UniProt 1–74 Author chain 4B； PDBConstruct 1–74； UniProt 1–74 Author chain 4C； PDBConstruct 1–74； UniProt 1–74 Author chain 5； PDBConstruct 1–74； UniProt 1–74 Author chain 5A； PDBConstruct 1–74； UniProt 1–74 Author chain 5B； PDBConstruct 1–74； UniProt 1–74 Author chain 5C； PDBConstruct 1–74； UniProt 1–74 Author chain 6； PDBConstruct 1–74； UniProt 1–74 Author chain 6A； PDBConstruct 1–74； UniProt 1–74 Author chain 6B； PDBConstruct 1–74； UniProt 1–74 Author chain 6C； PDBConstruct 1–74； UniProt 1–74 Author chain 7； PDBConstruct 1–74； UniProt 1–74 Author chain 7A； PDBConstruct 1–74； UniProt 1–74 Author chain 7B； PDBConstruct 1–74； UniProt 1–74 Author chain 7C； PDBConstruct 1–74； UniProt 1–74 Author chain 8； PDBConstruct 1–74； UniProt 1–74 Author chain 8A； PDBConstruct 1–74； UniProt 1–74 Author chain 8B； PDBConstruct 1–74； UniProt 1–74 Author chain 8C； PDBConstruct 1–74； UniProt 1–74 Author chain 9； PDBConstruct 1–74； UniProt 1–74 Author chain 9A； PDBConstruct 1–74； UniProt 1–74 Author chain 9B； PDBConstruct 1–74； UniProt 1–74 Author chain 9C； PDBConstruct 1–74； UniProt 1–74 Author chain A； PDBConstruct 1–74； UniProt 1–74 Author chain AA； PDBConstruct 1–74； UniProt 1–74 Author chain AB； PDBConstruct 1–74； UniProt 1–74 Author chain AC； PDBConstruct 1–74； UniProt 1–74 Author chain AD； PDBConstruct 1–74； UniProt 1–74 Author chain B； PDBConstruct 1–74； UniProt 1–74 Author chain BA； PDBConstruct 1–74； UniProt 1–74 Author chain BB； PDBConstruct 1–74； UniProt 1–74 Author chain BC； PDBConstruct 1–74； UniProt 1–74 Author chain BD； PDBConstruct 1–74； UniProt 1–74 Author chain C； PDBConstruct 1–74； UniProt 1–74 Author chain CA； PDBConstruct 1–74； UniProt 1–74 Author chain CB； PDBConstruct 1–74； UniProt 1–74 Author chain CC； PDBConstruct 1–74； UniProt 1–74 Author chain CD； PDBConstruct 1–74； UniProt 1–74 Author chain D； PDBConstruct 1–74； UniProt 1–74 Author chain DA； PDBConstruct 1–74； UniProt 1–74 Author chain DB； PDBConstruct 1–74； UniProt 1–74 Author chain DC； PDBConstruct 1–74； UniProt 1–74 Author chain DD； PDBConstruct 1–74； UniProt 1–74 Author chain E； PDBConstruct 1–74； UniProt 1–74 Author chain EA； PDBConstruct 1–74； UniProt 1–74 Author chain EB； PDBConstruct 1–74； UniProt 1–74 Author chain EC； PDBConstruct 1–74； UniProt 1–74 Author chain ED； PDBConstruct 1–74； UniProt 1–74 Author chain F； PDBConstruct 1–74； UniProt 1–74 Author chain FA； PDBConstruct 1–74； UniProt 1–74 Author chain FB； PDBConstruct 1–74； UniProt 1–74 Author chain FC； PDBConstruct 1–74； UniProt 1–74 Author chain FD； PDBConstruct 1–74； UniProt 1–74 Author chain G； PDBConstruct 1–74； UniProt 1–74 Author chain GA； PDBConstruct 1–74； UniProt 1–74 Author chain GB； PDBConstruct 1–74； UniProt 1–74 Author chain GC； PDBConstruct 1–74； UniProt 1–74 Author chain GD； PDBConstruct 1–74； UniProt 1–74 Author chain H； PDBConstruct 1–74； UniProt 1–74 Author chain HA； PDBConstruct 1–74； UniProt 1–74 Author chain HB； PDBConstruct 1–74； UniProt 1–74 Author chain HC； PDBConstruct 1–74； UniProt 1–74 Author chain HD； PDBConstruct 1–74； UniProt 1–74 Author chain I； PDBConstruct 1–74； UniProt 1–74 Author chain IA； PDBConstruct 1–74； UniProt 1–74 Author chain IB； PDBConstruct 1–74； UniProt 1–74 Author chain IC； PDBConstruct 1–74； UniProt 1–74 Author chain ID； PDBConstruct 1–74； UniProt 1–74 Author chain J； PDBConstruct 1–74； UniProt 1–74 Author chain JA； PDBConstruct 1–74； UniProt 1–74 Author chain JB； PDBConstruct 1–74； UniProt 1–74 Author chain JC； PDBConstruct 1–74； UniProt 1–74 Author chain JD； PDBConstruct 1–74； UniProt 1–74 Author chain K； PDBConstruct 1–74； UniProt 1–74 Author chain KA； PDBConstruct 1–74； UniProt 1–74 Author chain KB； PDBConstruct 1–74； UniProt 1–74 Author chain KC； PDBConstruct 1–74； UniProt 1–74 Author chain KD； PDBConstruct 1–74； UniProt 1–74 Author chain L； PDBConstruct 1–74； UniProt 1–74 Author chain LA； PDBConstruct 1–74； UniProt 1–74 Author chain LB； PDBConstruct 1–74； UniProt 1–74 Author chain LC； PDBConstruct 1–74； UniProt 1–74 Author chain LD； PDBConstruct 1–74； UniProt 1–74 Author chain M； PDBConstruct 1–74； UniProt 1–74 Author chain MA； PDBConstruct 1–74； UniProt 1–74 Author chain MB； PDBConstruct 1–74； UniProt 1–74 Author chain MC； PDBConstruct 1–74； UniProt 1–74 Author chain MD； PDBConstruct 1–74； UniProt 1–74 Author chain N； PDBConstruct 1–74； UniProt 1–74 Author chain NA； PDBConstruct 1–74； UniProt 1–74 Author chain NB； PDBConstruct 1–74； UniProt 1–74 Author chain NC； PDBConstruct 1–74； UniProt 1–74 Author chain ND； PDBConstruct 1–74； UniProt 1–74 Author chain O； PDBConstruct 1–74； UniProt 1–74 Author chain OA； PDBConstruct 1–74； UniProt 1–74 Author chain OB； PDBConstruct 1–74； UniProt 1–74 Author chain OC； PDBConstruct 1–74； UniProt 1–74 Author chain OD； PDBConstruct 1–74； UniProt 1–74 Author chain P； PDBConstruct 1–74； UniProt 1–74 Author chain PA； PDBConstruct 1–74； UniProt 1–74 Author chain PB； PDBConstruct 1–74； UniProt 1–74 Author chain PC； PDBConstruct 1–74； UniProt 1–74 Author chain PD； PDBConstruct 1–74； UniProt 1–74 Author chain Q； PDBConstruct 1–74； UniProt 1–74 Author chain QA； PDBConstruct 1–74； UniProt 1–74 Author chain QB； PDBConstruct 1–74； UniProt 1–74 Author chain QC； PDBConstruct 1–74； UniProt 1–74 Author chain QD； PDBConstruct 1–74； UniProt 1–74 Author chain R； PDBConstruct 1–74； UniProt 1–74 Author chain RA； PDBConstruct 1–74； UniProt 1–74 Author chain RB； PDBConstruct 1–74； UniProt 1–74 Author chain RC； PDBConstruct 1–74； UniProt 1–74 Author chain S； PDBConstruct 1–74； UniProt 1–74 Author chain SA； PDBConstruct 1–74； UniProt 1–74 Author chain SB； PDBConstruct 1–74； UniProt 1–74 Author chain SC； PDBConstruct 1–74； UniProt 1–74 Author chain T； PDBConstruct 1–74； UniProt 1–74 Author chain TA； PDBConstruct 1–74； UniProt 1–74 Author chain TB； PDBConstruct 1–74； UniProt 1–74 Author chain TC； PDBConstruct 1–74； UniProt 1–74 Author chain U； PDBConstruct 1–74； UniProt 1–74 Author chain UA； PDBConstruct 1–74； UniProt 1–74 Author chain UB； PDBConstruct 1–74； UniProt 1–74 Author chain UC； PDBConstruct 1–74； UniProt 1–74 Author chain V； PDBConstruct 1–74； UniProt 1–74 Author chain VA； PDBConstruct 1–74； UniProt 1–74 Author chain VB； PDBConstruct 1–74； UniProt 1–74 Author chain VC； PDBConstruct 1–74； UniProt 1–74 Author chain W； PDBConstruct 1–74； UniProt 1–74 Author chain WA； PDBConstruct 1–74； UniProt 1–74 Author chain WB； PDBConstruct 1–74； UniProt 1–74 Author chain WC； PDBConstruct 1–74； UniProt 1–74 Author chain XA； PDBConstruct 1–74； UniProt 1–74 Author chain XB； PDBConstruct 1–74； UniProt 1–74 Author chain XC； PDBConstruct 1–74； UniProt 1–74 Author chain Y； PDBConstruct 1–74； UniProt 1–74 Author chain YA； PDBConstruct 1–74； UniProt 1–74 Author chain YB； PDBConstruct 1–74； UniProt 1–74 Author chain YC； PDBConstruct 1–74； UniProt 1–74 Author chain Z； PDBConstruct 1–74； UniProt 1–74 Author chain ZA； PDBConstruct 1–74； UniProt 1–74 Author chain ZB； PDBConstruct 1–74； UniProt 1–74 Author chain ZC； PDBConstruct 1–74； UniProt 1–74 Author chain a； PDBConstruct 1–74； UniProt 1–74 Author chain aA； PDBConstruct 1–74； UniProt 1–74 Author chain aB； PDBConstruct 1–74； UniProt 1–74 Author chain aC； PDBConstruct 1–74； UniProt 1–74 Author chain b； PDBConstruct 1–74； UniProt 1–74 Author chain bA； PDBConstruct 1–74； UniProt 1–74 Author chain bB； PDBConstruct 1–74； UniProt 1–74 Author chain bC； PDBConstruct 1–74； UniProt 1–74 Author chain c； PDBConstruct 1–74； UniProt 1–74 Author chain cA； PDBConstruct 1–74； UniProt 1–74 Author chain cB； PDBConstruct 1–74； UniProt 1–74 Author chain cC； PDBConstruct 1–74； UniProt 1–74 Author chain d； PDBConstruct 1–74； UniProt 1–74 Author chain dA； PDBConstruct 1–74； UniProt 1–74 Author chain dB； PDBConstruct 1–74； UniProt 1–74 Author chain dC； PDBConstruct 1–74； UniProt 1–74 Author chain e； PDBConstruct 1–74； UniProt 1–74 Author chain eA； PDBConstruct 1–74； UniProt 1–74 Author chain eB； PDBConstruct 1–74； UniProt 1–74 Author chain eC； PDBConstruct 1–74； UniProt 1–74 Author chain f； PDBConstruct 1–74； UniProt 1–74 Author chain fA； PDBConstruct 1–74； UniProt 1–74 Author chain fB； PDBConstruct 1–74； UniProt 1–74 Author chain fC； PDBConstruct 1–74； UniProt 1–74 Author chain g； PDBConstruct 1–74； UniProt 1–74 Author chain gA； PDBConstruct 1–74； UniProt 1–74 Author chain gB； PDBConstruct 1–74； UniProt 1–74 Author chain gC； PDBConstruct 1–74； UniProt 1–74 Author chain h； PDBConstruct 1–74； UniProt 1–74 Author chain hA； PDBConstruct 1–74； UniProt 1–74 Author chain hB； PDBConstruct 1–74； UniProt 1–74 Author chain hC； PDBConstruct 1–74； UniProt 1–74 Author chain i； PDBConstruct 1–74； UniProt 1–74 Author chain iA； PDBConstruct 1–74； UniProt 1–74 Author chain iB； PDBConstruct 1–74； UniProt 1–74 Author chain iC； PDBConstruct 1–74； UniProt 1–74 Author chain j； PDBConstruct 1–74； UniProt 1–74 Author chain jA； PDBConstruct 1–74； UniProt 1–74 Author chain jB； PDBConstruct 1–74； UniProt 1–74 Author chain jC； PDBConstruct 1–74； UniProt 1–74 Author chain k； PDBConstruct 1–74； UniProt 1–74 Author chain kA； PDBConstruct 1–74； UniProt 1–74 Author chain kB； PDBConstruct 1–74； UniProt 1–74 Author chain kC； PDBConstruct 1–74； UniProt 1–74 Author chain l； PDBConstruct 1–74； UniProt 1–74 Author chain lA； PDBConstruct 1–74； UniProt 1–74 Author chain lB； PDBConstruct 1–74； UniProt 1–74 Author chain lC； PDBConstruct 1–74； UniProt 1–74 Author chain m； PDBConstruct 1–74； UniProt 1–74 Author chain mA； PDBConstruct 1–74； UniProt 1–74 Author chain mB； PDBConstruct 1–74； UniProt 1–74 Author chain mC； PDBConstruct 1–74； UniProt 1–74 Author chain n； PDBConstruct 1–74； UniProt 1–74 Author chain nA； PDBConstruct 1–74； UniProt 1–74 Author chain nB； PDBConstruct 1–74； UniProt 1–74 Author chain nC； PDBConstruct 1–74； UniProt 1–74 Author chain o； PDBConstruct 1–74； UniProt 1–74 Author chain oA； PDBConstruct 1–74； UniProt 1–74 Author chain oB； PDBConstruct 1–74； UniProt 1–74 Author chain oC； PDBConstruct 1–74； UniProt 1–74 Author chain p； PDBConstruct 1–74； UniProt 1–74 Author chain pA； PDBConstruct 1–74； UniProt 1–74 Author chain pB； PDBConstruct 1–74； UniProt 1–74 Author chain pC； PDBConstruct 1–74； UniProt 1–74 Author chain q； PDBConstruct 1–74； UniProt 1–74 Author chain qA； PDBConstruct 1–74； UniProt 1–74 Author chain qB； PDBConstruct 1–74； UniProt 1–74 Author chain qC； PDBConstruct 1–74； UniProt 1–74 Author chain r； PDBConstruct 1–74； UniProt 1–74 Author chain rA； PDBConstruct 1–74； UniProt 1–74 Author chain rB； PDBConstruct 1–74； UniProt 1–74 Author chain rC； PDBConstruct 1–74； UniProt 1–74 Author chain s； PDBConstruct 1–74； UniProt 1–74 Author chain sA； PDBConstruct 1–74； UniProt 1–74 Author chain sB； PDBConstruct 1–74； UniProt 1–74 Author chain sC； PDBConstruct 1–74； UniProt 1–74 Author chain t； PDBConstruct 1–74； UniProt 1–74 Author chain tA； PDBConstruct 1–74； UniProt 1–74 Author chain tB； PDBConstruct 1–74； UniProt 1–74 Author chain tC； PDBConstruct 1–74； UniProt 1–74 Author chain u； PDBConstruct 1–74； UniProt 1–74 Author chain uA； PDBConstruct 1–74； UniProt 1–74 Author chain uB； PDBConstruct 1–74； UniProt 1–74 Author chain uC； PDBConstruct 1–74； UniProt 1–74 Author chain v； PDBConstruct 1–74； UniProt 1–74 Author chain vA； PDBConstruct 1–74； UniProt 1–74 Author chain vB； PDBConstruct 1–74； UniProt 1–74 Author chain vC； PDBConstruct 1–74； UniProt 1–74 Author chain w； PDBConstruct 1–74； UniProt 1–74 Author chain wA； PDBConstruct 1–74； UniProt 1–74 Author chain wB； PDBConstruct 1–74； UniProt 1–74 Author chain wC； PDBConstruct 1–74； UniProt 1–74 Author chain x； PDBConstruct 1–74； UniProt 1–74 Author chain xA； PDBConstruct 1–74； UniProt 1–74 Author chain xB； PDBConstruct 1–74； UniProt 1–74 Author chain xC； PDBConstruct 1–74； UniProt 1–74 Author chain y； PDBConstruct 1–74； UniProt 1–74 Author chain yA； PDBConstruct 1–74； UniProt 1–74 Author chain yB； PDBConstruct 1–74； UniProt 1–74 Author chain yC； PDBConstruct 1–74； UniProt 1–74 Author chain z； PDBConstruct 1–74； UniProt 1–74 Author chain zA； PDBConstruct 1–74； UniProt 1–74 Author chain zB； PDBConstruct 1–74； UniProt 1–74 Author chain zC； PDBConstruct 1–74； UniProt 1–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8r5a
Deposition date deposition_date	2023-11-16
Structure title title	Structure of the Co(II) triggered TRAP (S33HK35H) protein cage (dextro form)
Keywords keywords	TRAP protein, protein cage, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8r5a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

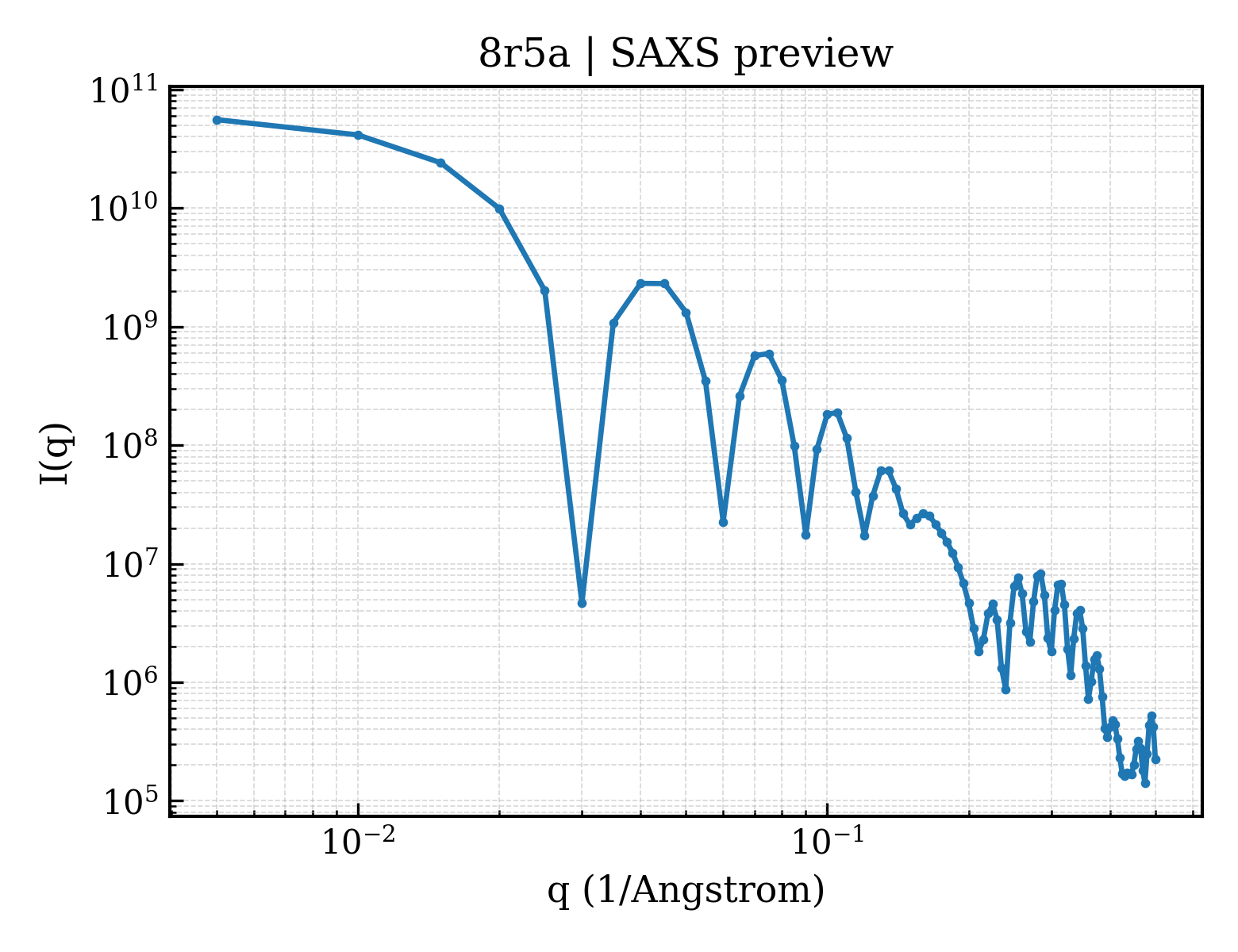

8r5a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

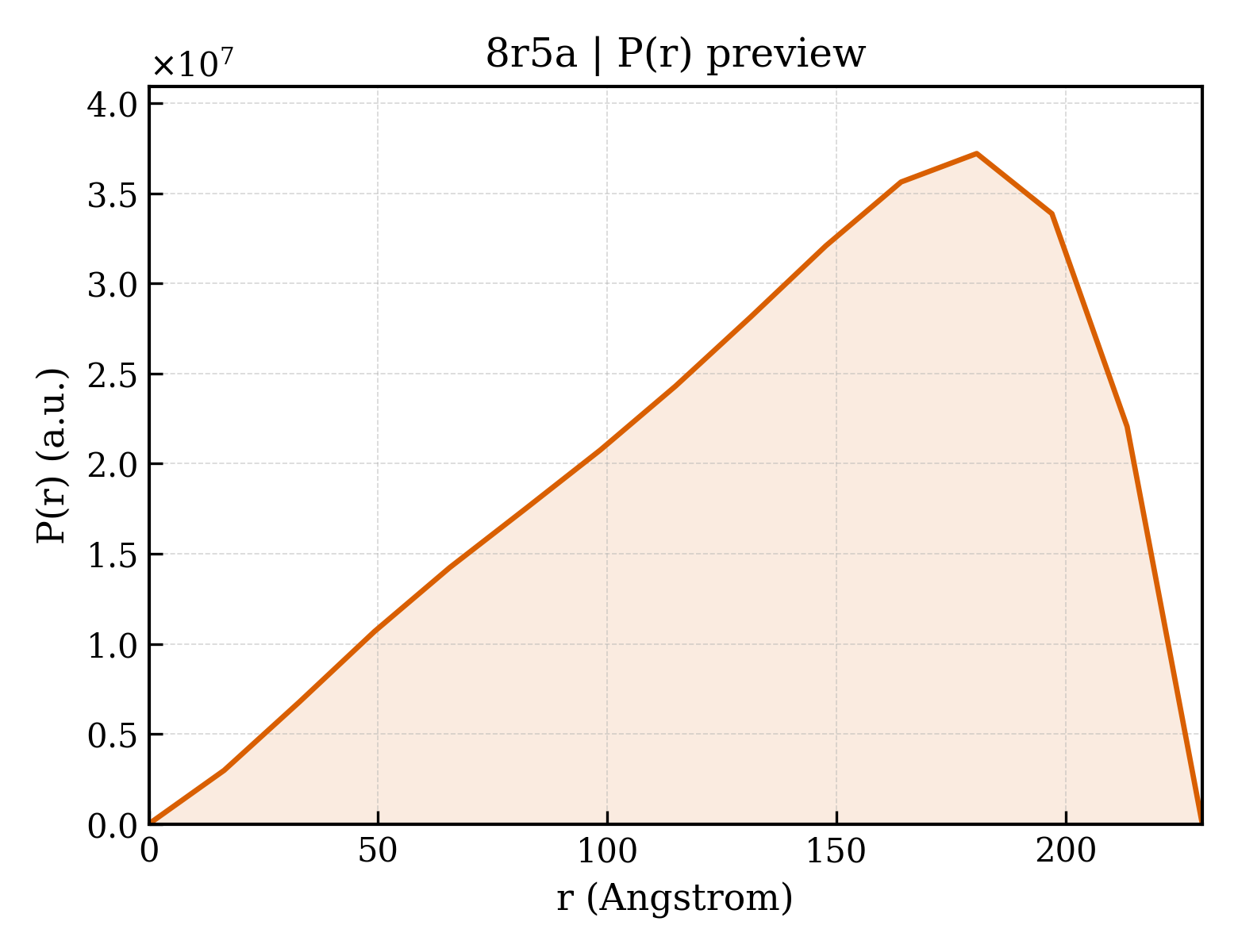

8r5a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	107.20 Å
Total Rg	107.40 Å
Atom count	144528
Residues	18480
Excluded volume	2537200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8r5a__assembly_1__model_1`	264-meric （264）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Transcription attenuation protein MtrB
Molecular weight formula_weight	8317.4 kDa
Mutation mutation	S33H,K35H
Source method src_method	man
Copy count entity_count	264

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	;A,L,M,N,O,P,Q,R,S,T,U,V,W,Y,Z,a,b,c,d,e,f,g,h,i,B,j,k,l,m,n,o,p,q,r,s,t,u,v,w,x,y,z,0,1,2,3,4,5,C,6,7,8,9,AA,BA,CA,DA,EA,FA,GA,HA,IA,JA,KA,LA,MA,NA,OA,PA,QA,RA,SA,D,TA,UA,VA,WA,XA,YA,ZA,aA,bA,cA,dA,eA,fA,gA,hA,iA,jA,kA,lA,mA,nA,oA,pA,E,qA,rA,sA,tA,uA,vA,wA,xA,yA,zA,0A,1A,2A,3A,4A,5A,6A,7A,8A,9A,AB,BB,CB,F,DB,EB,FB,GB,HB,IB,JB,KB,LB,MB,NB,OB,PB,QB,RB,SB,TB,UB,VB,WB,XB,YB,ZB,G,aB,bB,cB,dB,eB,fB,gB,hB,iB,jB,kB,lB,mB,nB,oB,pB,qB,rB,sB,tB,uB,vB,wB,H,xB,yB,zB,0B,1B,2B,3B,4B,5B,6B,7B,8B,9B,AC,BC,CC,DC,EC,FC,GC,HC,IC,JC,I,KC,LC,MC,NC,OC,PC,QC,RC,SC,TC,UC,VC,WC,XC,YC,ZC,aC,bC,cC,dC,eC,fC,gC,J,hC,iC,jC,kC,lC,mC,nC,oC,pC,qC,rC,sC,tC,uC,vC,wC,xC,yC,zC,0C,1C,2C,3C,K,4C,5C,6C,7C,8C,9C,AD,BD,CD,DD,ED,FD,GD,HD,ID,JD,KD,LD,MD,ND,OD,PD,QD ;
Atom count atom_count	144528

MYTNSDFVVIKALEDGVNVIGLTRGADTRFHHHEHLDKGEVLIAQFTEHTSAIKVRGKAYIQTRHGVIESEGKK

Source Source

Source organism organism	Geobacillus stearothermophilus
NCBI taxonomy ID ncbi_taxonomy_id	1422
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COBALT (II) ION
Molecular weight formula_weight	58.9 kDa
Source method src_method	syn
Copy count entity_count	120

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.84 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	161631
