9n51

Crosslinked Crystal Structure of Human Mitochondrial Ketosynthase, OXSM, and Crosslinker-crypto Human Mitochondrial Acyl Carrier Protein, C8Cl-mACP

Method: X-RAY DIFFRACTION D_max: 144.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-oxoacyl-[acyl-carrier-protein] synthase, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 38–459 Chain B； UniProt 38–459	Fragment：residues 38-459	Acyl carrier protein, mitochondrial × 1 （O14561） A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.5 M ammonium sulfate, 1 M lithium sulfate, and 0.1 M sodium citrate pH 5.6	Resolution 2.31 Å R-free 0.273
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 38–459 Chain E； UniProt 38–459	Fragment：residues 38-459	Acyl carrier protein, mitochondrial × 1 （O14561） A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.5 M ammonium sulfate, 1 M lithium sulfate, and 0.1 M sodium citrate pH 5.6	Resolution 2.31 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9N51	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2C9H Structure of mitochondrial beta-ketoacyl synthase Deposited 2005-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 39–459（421 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；0.1 M BIS-TRIS PH=5.5, 25% PEG3350, 0.20 M NH4AC, pH 5.50	Resolution 1.80 Å R-free 0.240
2IWY Human mitochondrial beta-ketoacyl ACP synthase Deposited 2006-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 38–459（422 aa） Fragment：RESIDUES 38-459 Chain B 38–459（422 aa） Fragment：RESIDUES 38-459	Not recorded	NH4 AMMONIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；24% PEG-3350, 0.2 M NH4CL, pH 7.80	Resolution 2.06 Å R-free 0.205
2IWZ Human mitochondrial beta-ketoacyl ACP synthase complexed with hexanoic acid Deposited 2006-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 38–459（422 aa） Fragment：RESIDUES 38-459 Chain B 38–459（422 aa） Fragment：RESIDUES 38-459	Not recorded	6NA HEXANOIC ACID × 2 NH4 AMMONIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；24% PEG3350, 0.2M NH4CL, pH 7.80	Resolution 1.65 Å R-free 0.188
9N50 Crosslinked Crystal Structure of Human Mitochondrial Ketosynthase, OXSM, and Crosslinker-crypto Human Mitochondrial Acyl Carrier Protein, C8aBr-mACP Deposited 2025-02-03	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 38–459（422 aa） Fragment：residues 38-459 Chain B 38–459（422 aa） Fragment：residues 38-459	Not recorded	A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.5 M ammonium sulfate, 1 M lithium sulfate, and 0.1 M sodium citrate pH 5.6	Resolution 2.50 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	OXSM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–425； UniProt 38–459 Author chain B； PDBConstruct 4–425； UniProt 38–459 Author chain D； PDBConstruct 4–425； UniProt 38–459 Author chain E； PDBConstruct 4–425； UniProt 38–459

Acyl carrier protein, mitochondrial

Homo sapiens

UniProt O14561

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 69–156	Not recorded	3-oxoacyl-[acyl-carrier-protein] synthase, mitochondrial × 2 （Q9NWU1） A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.5 M ammonium sulfate, 1 M lithium sulfate, and 0.1 M sodium citrate pH 5.6	Resolution 2.31 Å R-free 0.273
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain F； UniProt 69–156	Not recorded	3-oxoacyl-[acyl-carrier-protein] synthase, mitochondrial × 2 （Q9NWU1） A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.5 M ammonium sulfate, 1 M lithium sulfate, and 0.1 M sodium citrate pH 5.6	Resolution 2.31 Å R-free 0.273

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9N51	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DNW Solution structure of RSGI RUH-059, an ACP domain of acyl carrier protein, mitochondrial [Precursor] from human cDNA Deposited 2006-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 69–156（88 aa） Fragment：acyl carrier protein	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 0.91mM RSGI RUH-059 U-15N, 13C; 20mM d-Tris-HCl; 1mM d-DTT; 0.02% NaN3; 10% D2O, 90% H2O \| 90% H2O/10% D2O	Resolution not provided
5OOL Structure of a native assembly intermediate of the human mitochondrial ribosome with unfolded interfacial rRNA Deposited 2017-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 56-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 92 ZN ZINC ION × 3 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.45；2 mM Synercid (Santa Cruz Biotechnology, Inc) was added to reduce preferential orientation. cryo-EM vitrification conditions Cryogen ETHANE；Sample incubated for 30 s prior to freezing.	Resolution 3.06 Å
5OOM Structure of a native assembly intermediate of the human mitochondrial ribosome with unfolded interfacial rRNA Deposited 2017-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 55-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 49 ZN ZINC ION × 2 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.45；2 mM Synercid (Santa Cruz Biotechnology, Inc) was added to reduce preferential orientation. cryo-EM vitrification conditions Cryogen ETHANE；Sample incubated for 30 s prior to freezing.	Resolution 3.03 Å
5XTB Cryo-EM structure of human respiratory complex I matrix arm Deposited 2017-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain G 72–156（85 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 6 FMN FLAVIN MONONUCLEOTIDE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
5XTC Cryo-EM structure of human respiratory complex I transmembrane arm Deposited 2017-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric	Chain X 72–156（85 aa）	Not recorded	PLX (9R,11S)-9-({[(1S)-1-HYDROXYHEXADECYL]OXY}METHYL)-2,2-DIMETHYL-5,7,10-TRIOXA-2LAMBDA~5~-AZA-6LAMBDA~5~-PHOSPHAOCTACOSANE-6,6,11-TRIOL × 9 CDL CARDIOLIPIN × 5 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 4 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
5XTD Cryo-EM structure of human respiratory complex I Deposited 2017-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain G 72–156（85 aa） Chain X 72–156（85 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 6 FMN FLAVIN MONONUCLEOTIDE × 1 PLX (9R,11S)-9-({[(1S)-1-HYDROXYHEXADECYL]OXY}METHYL)-2,2-DIMETHYL-5,7,10-TRIOXA-2LAMBDA~5~-AZA-6LAMBDA~5~-PHOSPHAOCTACOSANE-6,6,11-TRIOL × 9 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 5 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
5XTH Cryo-EM structure of human respiratory supercomplex I1III2IV1 Deposited 2017-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 80 PDB declaration: 80-meric	Chain G 72–156（85 aa） Fragment：UNP RESIDUES 72-156 Chain X 72–156（85 aa） Fragment：UNP RESIDUES 72-156	Not recorded	SF4 IRON/SULFUR CLUSTER × 6 FMN FLAVIN MONONUCLEOTIDE × 1 PLX (9R,11S)-9-({[(1S)-1-HYDROXYHEXADECYL]OXY}METHYL)-2,2-DIMETHYL-5,7,10-TRIOXA-2LAMBDA~5~-AZA-6LAMBDA~5~-PHOSPHAOCTACOSANE-6,6,11-TRIOL × 12 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 4 CDL CARDIOLIPIN × 14 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 10 CU COPPER (II) ION × 3 MG MAGNESIUM ION × 1 HEA HEME-A × 2 ZN ZINC ION × 1 HEC HEME C × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
5XTI Cryo-EM architecture of human respiratory chain megacomplex-I2III2IV2 Deposited 2017-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 138 PDB declaration: 138-meric	Chain BG 72–156（85 aa） Fragment：UNP RESIDUES 72-196 Chain BX 72–156（85 aa） Fragment：UNP RESIDUES 72-196 Chain G 72–156（85 aa） Fragment：UNP RESIDUES 72-196 Chain X 72–156（85 aa） Fragment：UNP RESIDUES 72-196	Not recorded	SF4 IRON/SULFUR CLUSTER × 12 FMN FLAVIN MONONUCLEOTIDE × 2 PLX (9R,11S)-9-({[(1S)-1-HYDROXYHEXADECYL]OXY}METHYL)-2,2-DIMETHYL-5,7,10-TRIOXA-2LAMBDA~5~-AZA-6LAMBDA~5~-PHOSPHAOCTACOSANE-6,6,11-TRIOL × 21 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 4 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 2 FES FE2/S2 (INORGANIC) CLUSTER × 6 CDL CARDIOLIPIN × 19 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 14 CU COPPER (II) ION × 6 MG MAGNESIUM ION × 2 HEA HEME-A × 4 ZN ZINC ION × 2 HEC HEME C × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 17.40 Å
6ODD Crystal structure of the human complex ACP-ISD11 Deposited 2019-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 72–156（85 aa）	Not recorded	8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；The drop was a 1:1 mix of protein (in 10 mM Tris buffer, 25 mM NaCl, pH 7.5) and reservoir solution (0.1 M Tris pH 9.1, 0.1 M CaCl2, 23% tert-butanol)	Resolution 2.00 Å R-free 0.216
6ODD Crystal structure of the human complex ACP-ISD11 Deposited 2019-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 72–156（85 aa）	Not recorded	8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；The drop was a 1:1 mix of protein (in 10 mM Tris buffer, 25 mM NaCl, pH 7.5) and reservoir solution (0.1 M Tris pH 9.1, 0.1 M CaCl2, 23% tert-butanol)	Resolution 2.00 Å R-free 0.216
7A5H Structure of the split human mitoribosomal large subunit with rescue factors mtRF-R and MTRES1 Deposited 2020-08-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 59-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 92 ZN ZINC ION × 2 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7A5J Structure of the split human mitoribosomal large subunit with P-and E-site mt-tRNAs Deposited 2020-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 59 PDB declaration: 63-meric	Chain w 1–156（156 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 92 ZN ZINC ION × 3 CL CHLORIDE ION × 2 NA SODIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7O9K Human mitochondrial ribosome large subunit assembly intermediate with MTERF4-NSUN4, MRM2, MTG1, the MALSU module, GTPBP5 and mtEF-Tu Deposited 2021-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 67 PDB declaration: 69-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 93 SAM S-ADENOSYLMETHIONINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7O9M Human mitochondrial ribosome large subunit assembly intermediate with MTERF4-NSUN4, MRM2, MTG1 and the MALSU module Deposited 2021-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 64 PDB declaration: 66-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 104 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 2 SAM S-ADENOSYLMETHIONINE × 1 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
7ODR State A of the human mitoribosomal large subunit assembly intermediate Deposited 2021-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 57-meric	Chain w 1–156（156 aa）	Not recorded	PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 SAM S-ADENOSYLMETHIONINE × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 97 K POTASSIUM ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；4 uL of the sample was blotted for 2-6 sec before plunging	Resolution 2.90 Å
7ODS State B of the human mitoribosomal large subunit assembly intermediate Deposited 2021-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 58-meric	Chain w 1–156（156 aa）	Not recorded	PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 SAM S-ADENOSYLMETHIONINE × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 88 K POTASSIUM ION × 8 N ANY 5'-MONOPHOSPHATE NUCLEOTIDE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；4 uL of the sample was blotted for 2-6 sec before plunging	Resolution 3.10 Å
7ODT State C of the human mitoribosomal large subunit assembly intermediate Deposited 2021-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 58-meric	Chain w 1–156（156 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 95 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 SAM S-ADENOSYLMETHIONINE × 1 ZN ZINC ION × 2 K POTASSIUM ION × 10 FES FE2/S2 (INORGANIC) CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；4 uL of the sample was blotted for 2-6 sec before plunging	Resolution 3.10 Å
7OF0 Structure of a human mitochondrial ribosome large subunit assembly intermediate in complex with MTERF4-NSUN4 (dataset1). Deposited 2021-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 56-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 61	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.20 Å
7OF2 Structure of a human mitochondrial ribosome large subunit assembly intermediate in complex with GTPBP6. Deposited 2021-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 56-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 85 GTP GUANOSINE-5'-TRIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
7OF3 Structure of a human mitochondrial ribosome large subunit assembly intermediate in complex with MTERF4-NSUN4 (dataset2). Deposited 2021-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 56-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 58 GTP GUANOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
7OF5 Structure of a human mitochondrial ribosome large subunit assembly intermediate in complex with MTERF4-NSUN4 and GTPBP5 (dataset2). Deposited 2021-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 57-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 70 GTP GUANOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7OF7 Structure of a human mitochondrial ribosome large subunit assembly intermediate in complex with MTERF4-NSUN4 and GTPBP5 (dataset1). Deposited 2021-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 57-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 74	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
7OI6 Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 1 Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 52-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 48 ZN ZINC ION × 1 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.70 Å
7OI7 Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 2 Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 54-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 49 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7OI8 Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 3A Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 49 ZN ZINC ION × 2 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7OI9 Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 3B Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 54-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 49 ZN ZINC ION × 2 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7OIC Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 4 Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 58-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 76 ZN ZINC ION × 3 PNS 4'-PHOSPHOPANTETHEINE × 1 SAM S-ADENOSYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7OID Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 5A Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 56-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 2 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7OIE Cryo-EM structure of late human 39S mitoribosome assembly intermediates, state 5B Deposited 2021-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 55-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 2 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7PD3 Structure of the human mitoribosomal large subunit in complex with NSUN4.MTERF4.GTPBP7 and MALSU1.L0R8F8.mt-ACP Deposited 2021-08-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 60-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 91 PNS 4'-PHOSPHOPANTETHEINE × 1 SAM S-ADENOSYLMETHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7PO4 Assembly intermediate of human mitochondrial ribosome large subunit (largely unfolded rRNA with MALSU1, L0R8F8 and ACP) Deposited 2021-09-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 60-meric	Chain zc 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 35 K POTASSIUM ION × 8 ZN ZINC ION × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.56 Å
7QH6 Cryo-EM structure of the human mtLSU assembly intermediate upon MRM2 depletion - class 1 Deposited 2021-12-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 46-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
7QH7 Cryo-EM structure of the human mtLSU assembly intermediate upon MRM2 depletion - class 4 Deposited 2021-12-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 49-meric	Chain w 74–152（79 aa）	Not recorded	MG MAGNESIUM ION × 50 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.89 Å
8K2B Cryo-EM structure of the human 39S mitoribosome with Tigecycline Deposited 2023-07-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 55-meric	Chain w 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 95 T1C TIGECYCLINE × 1 ZN ZINC ION × 3 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8PK0 human mitoribosomal large subunit assembly intermediate 1 with GTPBP10-GTPBP7 Deposited 2023-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 58-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 1 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 SAM S-ADENOSYLMETHIONINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 96 K POTASSIUM ION × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8QSJ Human mitoribosomal large subunit assembly intermediate 2 with GTPBP7 Deposited 2023-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 58-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 38 FES FE2/S2 (INORGANIC) CLUSTER × 1 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 SAM S-ADENOSYLMETHIONINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8QU5 mt-LSU assembly intermediate in GTPBP8 knock-out cells, state 2 Deposited 2023-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 55-meric	Chain w 1–156（156 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 48 PNS 4'-PHOSPHOPANTETHEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.42 Å
9CWT Human kidney respiratory complex I Deposited 2024-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain G 1–156（156 aa） Chain X 1–156（156 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 6 FMN FLAVIN MONONUCLEOTIDE × 1 ZMP S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å
9I4I High resolution Cryo-EM structure of human complex I in mitochondria Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain H 1–156（156 aa） Chain X 1–156（156 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 7 CDL CARDIOLIPIN × 6 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 PLX (9R,11S)-9-({[(1S)-1-HYDROXYHEXADECYL]OXY}METHYL)-2,2-DIMETHYL-5,7,10-TRIOXA-2LAMBDA~5~-AZA-6LAMBDA~5~-PHOSPHAOCTACOSANE-6,6,11-TRIOL × 7 DGT 2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 6 FMN FLAVIN MONONUCLEOTIDE × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 2 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å
9N50 Crosslinked Crystal Structure of Human Mitochondrial Ketosynthase, OXSM, and Crosslinker-crypto Human Mitochondrial Acyl Carrier Protein, C8aBr-mACP Deposited 2025-02-03	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 69–156（88 aa）	Not recorded	A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.5 M ammonium sulfate, 1 M lithium sulfate, and 0.1 M sodium citrate pH 5.6	Resolution 2.50 Å
9PRA In Situ Structure of the Human Mitoribosome Large Subunit 39S in Complex with EF-Tu Deposited 2025-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 64 PDB declaration: 66-meric	Chain Af 1–156（156 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2 K POTASSIUM ION × 36 MG MAGNESIUM ION × 141 FES FE2/S2 (INORGANIC) CLUSTER × 1 SPD SPERMIDINE × 2 PUT 1,4-DIAMINOBUTANE × 1 VAL VALINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9TI4 High resolution Cryo-EM structure of human complex I in mitochondria Deposited 2025-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain H 72–156（85 aa） Chain X 72–156（85 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 6 FMN FLAVIN MONONUCLEOTIDE × 1 PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 7 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 2 PLX (9R,11S)-9-({[(1S)-1-HYDROXYHEXADECYL]OXY}METHYL)-2,2-DIMETHYL-5,7,10-TRIOXA-2LAMBDA~5~-AZA-6LAMBDA~5~-PHOSPHAOCTACOSANE-6,6,11-TRIOL × 7 ZN ZINC ION × 1 CDL CARDIOLIPIN × 6 DGT 2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；25 mM HEPES-KOH pH=7.5, 50 mM KCl, 20 mM Mg(OAc)2, 0.01% (v/v) Lauryl Maltose Neopentyl Glycol (LMNG), 0.001 % cardiolipin, 0.001 % glycol-diosgenin (GDN, Sigma-Aldrich), 0.1mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.66 Å

41 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACPM_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–88； UniProt 69–156 Author chain F； PDBConstruct 1–88； UniProt 69–156

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

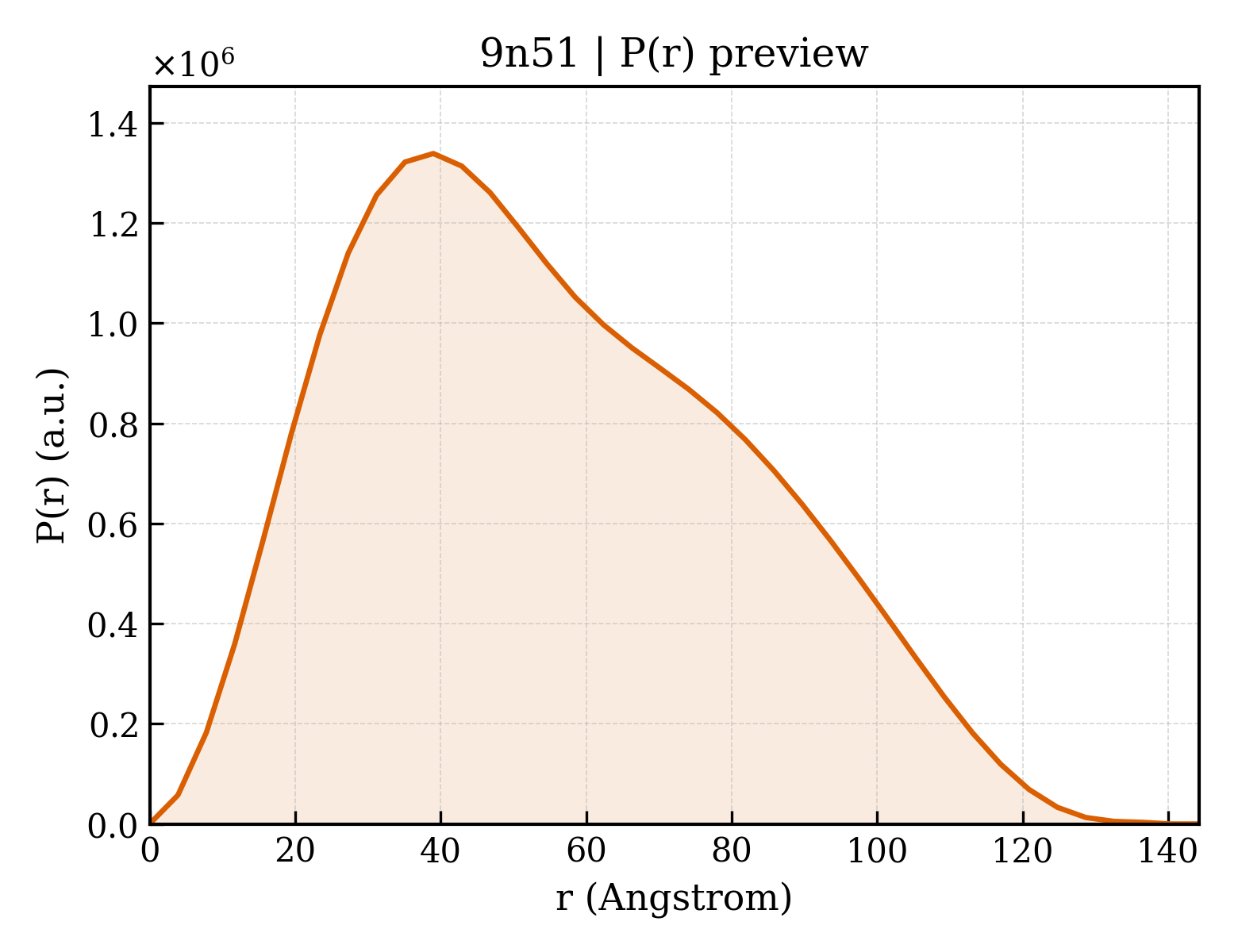

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9n51
Deposition date deposition_date	2025-02-03
最后修订 last_revision	2025-09-24
Structure title title	Crosslinked Crystal Structure of Human Mitochondrial Ketosynthase, OXSM, and Crosslinker-crypto Human Mitochondrial Acyl Carrier Protein, C8Cl-mACP
Keywords keywords	Crosslinked Complex, Human mitochondria, Type II Fatty Acid Biosynthesis, Ketosynthase, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.06 Å
Radius of gyration Rg (electron density) rg_electron	43.16 Å
Forward intensity I(0) i0	1129980000.00
Molecular weight molecular_weight	183480.0 kDa
Excluded volume excluded_volume	176710 Å³
Envelope volume envelope_volume	311910 Å³
Hydration-shell volume shell_volume	59775 Å³
Envelope diameter envelope_diameter	146.3 Å
Shell Rg shell_rg	48.00 Å
Envelope Rg envelope_rg	43.06 Å
Shape Rg shape_rg	43.16 Å
Total Rg total_rg	43.32 Å
Total atoms total_atoms	13868
Residues n_residues	1848
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	144.3 Å
Rg (real space) rg_real	43.22 Å
Rg uncertainty (real space) rg_real_error	1.54 Å
I(0) (real space) i0_real	1.1300e+09
I(0) uncertainty (real space) i0_real_error	2.1410e+07
Rg (reciprocal space) rg_reciprocal	43.06 Å
I(0) (reciprocal space) i0_reciprocal	1130000000.0000
Solution quality estimate total_estimate	0.7948
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	39.0 Å
Skewness Skewness skewness	0.372
Kurtosis Kurtosis kurtosis	-0.653
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	183400000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.922; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	3-oxoacyl-[acyl-carrier-protein] synthase, mitochondrial
Molecular weight formula_weight	44903.9 kDa
EC 编号 ec_number	2.3.1.41
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E
Atom count atom_count	14066

GHMSRLHRRVVITGIGLVTPLGVGTHLVWDRLIGGESGIVSLVGEEYKSIPCSVAAYVPRGSDEGQFNEQNFVSKSDIKSMSSPTIMAIGAAELAMKDSGWHPQSEADQVATGVAIGMGMIPLEVVSETALNFQTKGYNKVSPFFVPKILVNMAAGQVSIRYKLKGPNHAVSTACTTGAHAVGDSFRFIAHGDADVMVAGGTDSCISPLSLAGFSRARALSTNSDPKLACRPFHPKRDGFVMGEGAAVLVLEEYEHAVQRRARIYAEVLGYGLSGDAGHITAPDPEGEGALRCMAAALKDAGVQPEEISYINAHATSTPLGDAAENKAIKHLFKDHAYALAVSSTKGATGHLLGAAGAVEAAFTTLACYYQKLPPTLNLDCSEPEFDLNYVPLKAQEWKTEKRFIGLTNSFGFGGTNATLCIAGL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Acyl carrier protein, mitochondrial
Molecular weight formula_weight	10178.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

SDMPPLTLEGIQDRVLYVLKLYDKIDPEKLSVNSHFMKDLGLDSLDQVEIIMAMEDEFGFEIPDIDAEKLMCPQEIVDYIADKKDVYE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide
Molecular weight formula_weight	467.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	134

▶

8. Citations (1)

▶

Unit-cell length a length_a	79.000 Å
Unit-cell length b length_b	118.630 Å
Unit-cell length c length_c	132.510 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.57 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.310 Å
Low-resolution limit resolution_low	53.640 Å
R factor r_factor	—
R_work r_work	0.2450
R_free r_free	0.2730

fit	/app/data/saxs_computation/n5/9n51/9n51.fit
pddf	/app/data/pr_computation/n5/9n51/9n51.pr.out
profile	/app/data/saxs_computation/n5/9n51/9n51.dat
