9qlq

NMT1-NAC bound human RNC with full length ARF1 - alternative State

Method: ELECTRON MICROSCOPY Dmax: 246.0 Å Quality: EXCELLENT

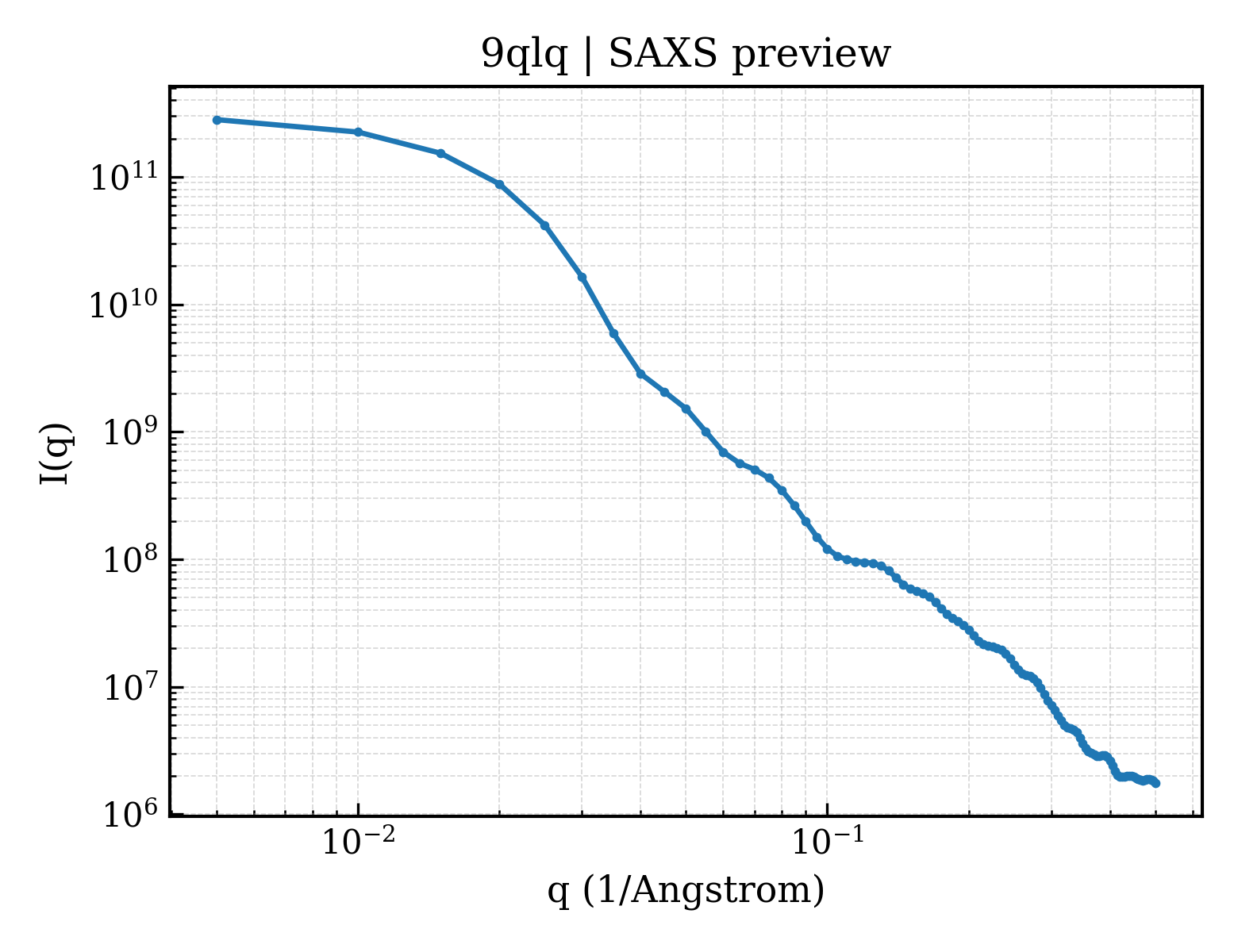

SAXS Profile

SAXS profile for 9qlq

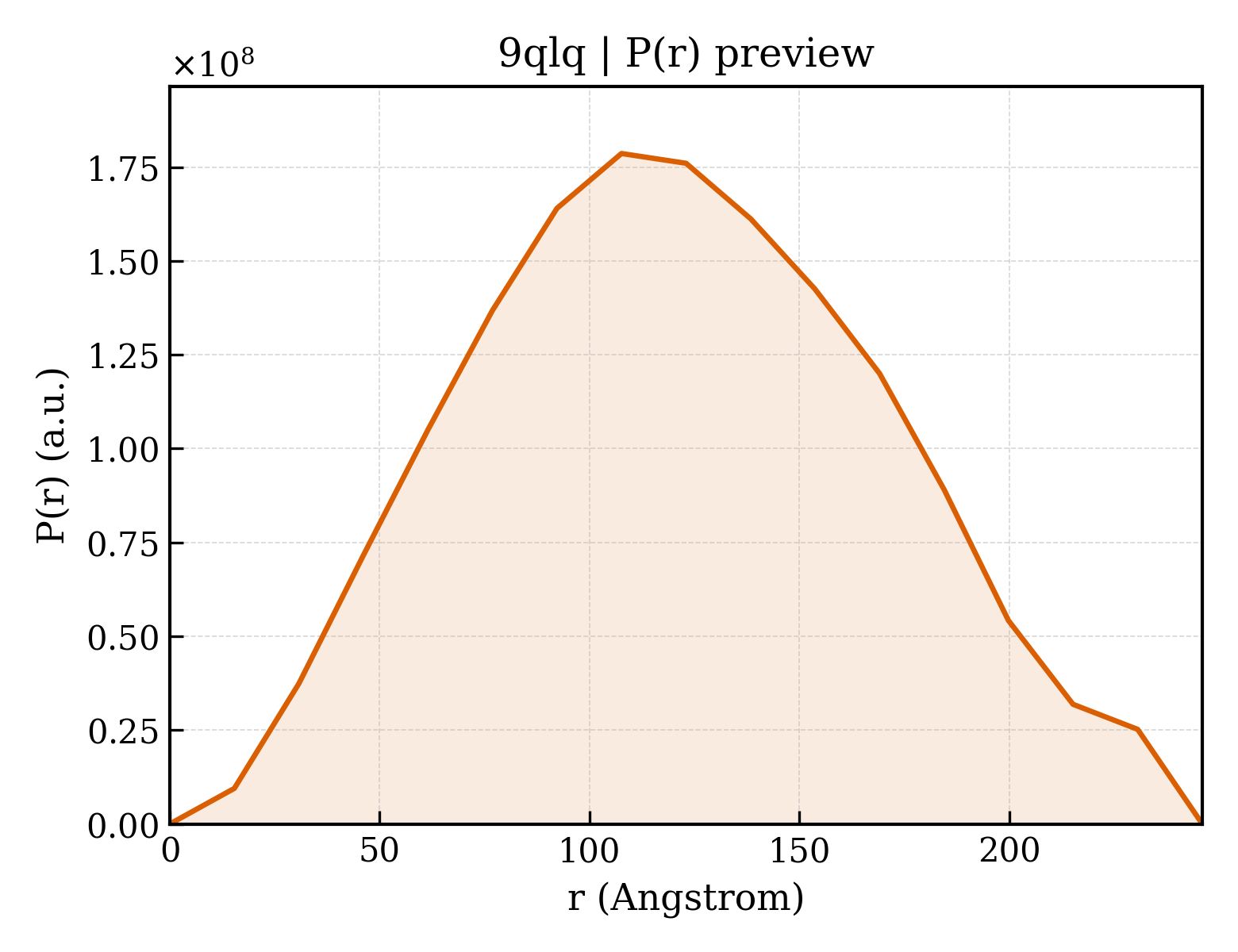

P(r) Distribution

P(r) distribution for 9qlq

1. Structure Basics

entry_id9qlq
deposition_date2025-03-21
titleNMT1-NAC bound human RNC with full length ARF1 - alternative State
keywordsmyristoylation, NMT1, co-translational, NAC, ribosome, RNC; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier94.56
rg_electron95.72
i0303312000000.00
molecular_weight3294100.0 kDa
excluded_volume3540000 ų
envelope_volume5975000 ų
shell_volume468150 ų
envelope_diameter322.9
shell_rg113.20
envelope_rg95.48
shape_rg95.82
total_rg95.56
total_atoms223392
n_residues18587
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax246.0
rg_real91.95
rg_real_error0.39
i0_real2.9030e+11
i0_real_error4.9440e+09
rg_reciprocal96.22
i0_reciprocal305000000000.0000
total_estimate0.9102
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary107.6
skewness0.128
kurtosis-0.582
angular_range— – 0.0800 −1
current_alpha0.9914
highest_alpha19320000000.0000
n_real_points17
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.999; Stabil: 0.950; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (91)

6. Citations (2)

7. Files & Curves (10)
