9w2v

Cryo-EM structure of complex I on the bovine heart submitochondrial particles, closed

Method: ELECTRON MICROSCOPY Dmax: 221.3 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9w2v

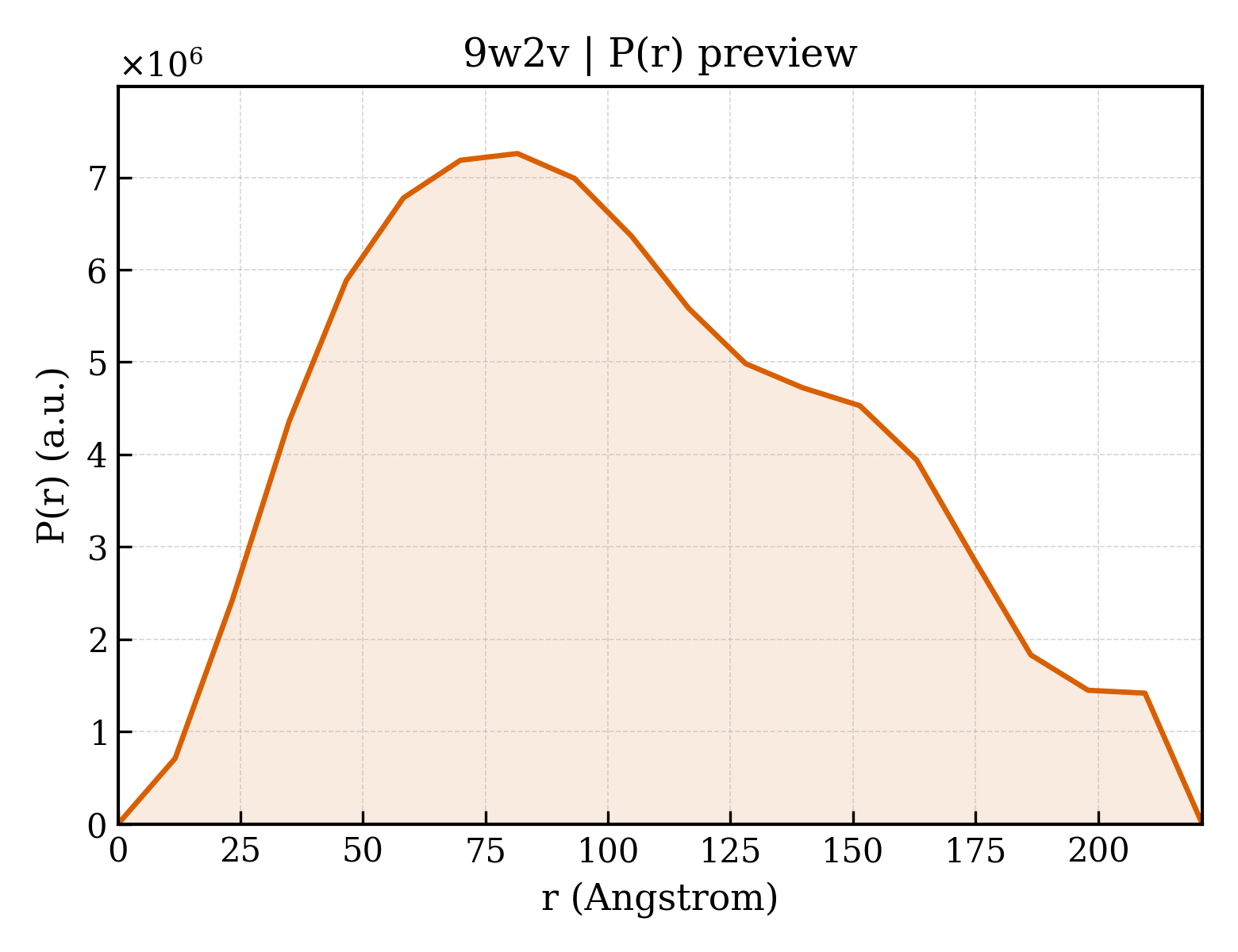

P(r) Distribution

P(r) distribution for 9w2v

1. Structure Basics

entry_id9w2v
deposition_date2025-07-28
titleCryo-EM structure of complex I on the bovine heart submitochondrial particles, closed
keywordsrespiratory chain complex, supercomplex, submitochondrial particles, MOTOR PROTEIN, OXIDOREDUCTASE; OXIDOREDUCTASE
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier83.00
rg_electron82.97
i012018800000.00
molecular_weight976150.0 kDa
excluded_volume1238600 ų
envelope_volume1849500 ų
shell_volume189350 ų
envelope_diameter308.6
shell_rg76.81
envelope_rg82.20
shape_rg83.03
total_rg82.70
total_atoms68503
n_residues8281
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax221.3
rg_real78.80
rg_real_error0.82
i0_real1.1600e+10
i0_real_error2.2240e+08
rg_reciprocal80.62
i0_reciprocal11940000000.0000
total_estimate0.9068
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary81.5
skewness0.325
kurtosis-0.713
angular_range— – 0.0950 −1
current_alpha0.1874
highest_alpha815000000.0000
n_real_points20
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.976; Stabil: 0.984; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (57)

6. Citations (1)

7. Files & Curves (10)
