SAXSdb — 2agg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cationic trypsin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	succinyl-Ala-Ala-Pro-Lys × 1 SULFATE ION × 1 CALCIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRY1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–223； UniProt 24–246

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2agg
Deposition date deposition_date	2005-07-26
Structure title title	succinyl-AAPK-trypsin acyl-enzyme at 1.28 A resolution
Keywords keywords	ACYL-ENZYME, SERINE PROTEASE, PROTEINASE, PEPTIDASE, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2agg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2agg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

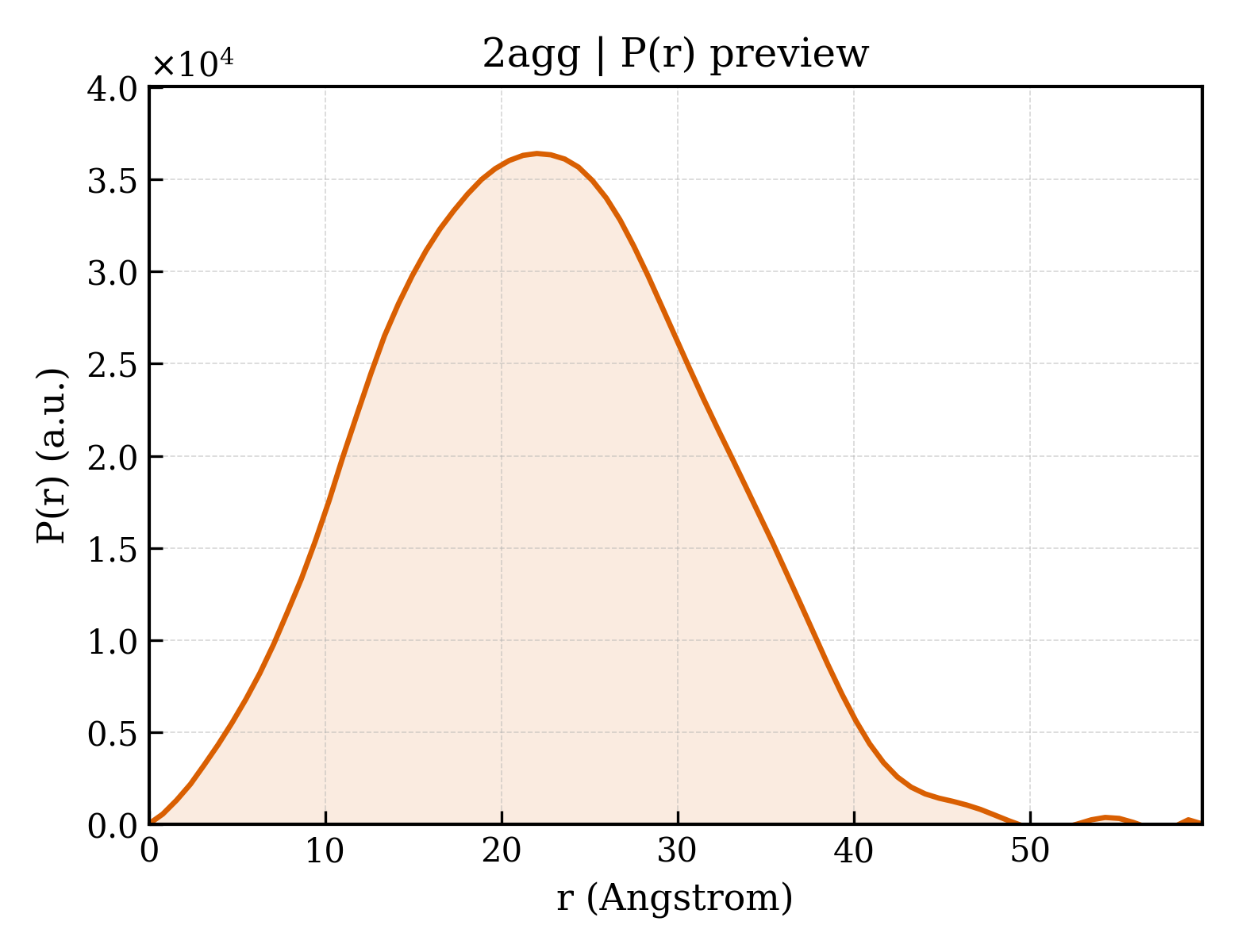

2agg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.12 Å
Rg (electron density)	15.96 Å
Total Rg	16.96 Å
Atom count	1654
Residues	225
Excluded volume	29268 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2agg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cationic trypsin
Molecular weight formula_weight	23324.3 kDa
EC 编号 ec_number	3.4.21.4
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	2049

IVGGYTCGANTVPYQVSLNSGYHFCGGSLINSQWVVSAAHCYKSGIQVRLGEDNINVVEGNEQFISASKSIVHPSYNSNTLNNDIMLIKLKSAASLNSRVASISLPTSCASAGTQCLISGWGNTKSSGTSYPDVLKCLKAPILSDSSCKSAYPGQITSNMFCAGYLEGGKDSCQGDSGGPVVCSGKLQGIVSWGSGCAQKNKPGVYTKVCNYVSWIKQTIASN

Entity 2 Entity 2 polymer

Description description	succinyl-Ala-Ala-Pro-Lys
Molecular weight formula_weight	471.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

AAPX

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	357

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2aggx_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (2 domains)

Domain ID domain_id	2aggX01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2aggX02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	61.388 Å
Unit-cell length b length_b	63.588 Å
Unit-cell length c length_c	68.849 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.280 Å
Low-resolution limit resolution_low	46.630 Å
R factor r_factor	0.1250
R_work r_work	0.1240
R_free r_free	0.1580
