SAXSdb — 8wk1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cationic trypsin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	21 kDa seed protein-like × 2 （A0A6P5Y0F4） SULFATE ION × 4 GLYCEROL × 11 ACETATE ION × 3 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRY1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–223； UniProt 24–246 Author chain C； PDBConstruct 1–223； UniProt 24–246

21 kDa seed protein-like

Durio zibethinus

UniProt A0A6P5Y0F4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cationic trypsin × 2 （P00760） SULFATE ION × 4 GLYCEROL × 11 ACETATE ION × 3 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6P5Y0F4_DURZI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–194； UniProt 27–220 Author chain D； PDBConstruct 1–194； UniProt 27–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wk1
Deposition date deposition_date	2023-09-26
Structure title title	Bovine trypsin in complex with Durio zibethinus trypsin inhibitor DzTI-4
Keywords keywords	Kunitz-type trypsin inhibitor, seed protein, Durio zibethinus, bovine trypsin, PLANT PROTEIN; PLANT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8wk1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8wk1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

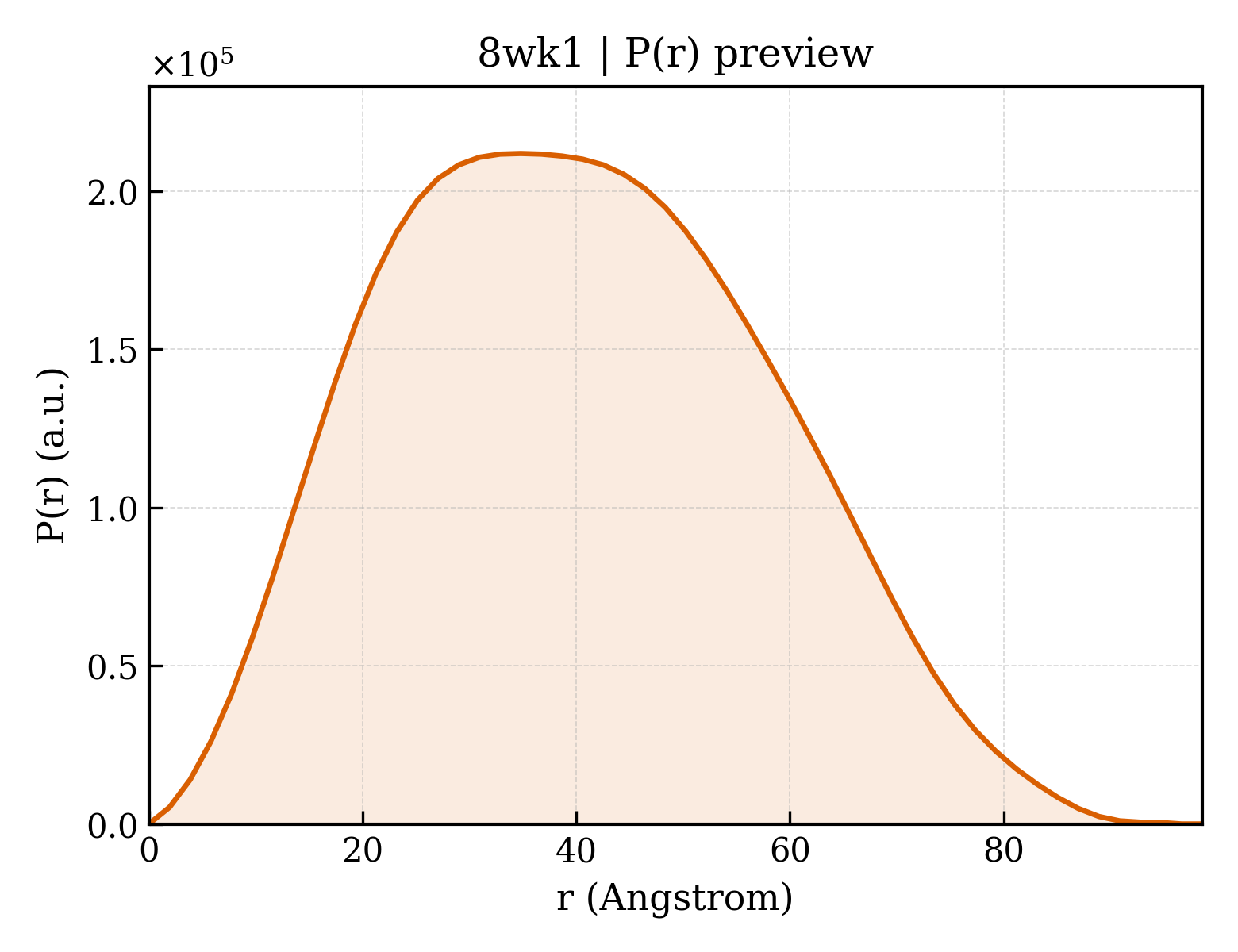

8wk1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.02 Å
Rg (electron density)	30.28 Å
Total Rg	31.13 Å
Atom count	6234
Residues	811
Excluded volume	110290 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8wk1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Cationic trypsin
Molecular weight formula_weight	23324.3 kDa
EC 编号 ec_number	3.4.21.4
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6807

IVGGYTCGANTVPYQVSLNSGYHFCGGSLINSQWVVSAAHCYKSGIQVRLGEDNINVVEGNEQFISASKSIVHPSYNSNTLNNDIMLIKLKSAASLNSRVASISLPTSCASAGTQCLISGWGNTKSSGTSYPDVLKCLKAPILSDSSCKSAYPGQITSNMFCAGYLEGGKDSCQGDSGGPVVCSGKLQGIVSWGSGCAQKNKPGVYTKVCNYVSWIKQTIASN

Entity 2 Entity 2 polymer

Description description	21 kDa seed protein-like
Molecular weight formula_weight	21673.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

KNEPVLDTDGDELRAGEQYYVVSAIWGAGGGGLALGRLTDQKCPEIVVQRRSDLDYGTPVVFYNLDTKDDIVRRSTDLNIQFVPIRDRLCLTSTVWKIDDYDTSTGKWWVTTDGVIGNPSPQTLQSWFKIEKSGNLGYKFNFCPSVCESCVTLCNDIGRYGHDGQIRLALGENAWPFVFKKASSTIKQVVNAKN

Source Source

Source organism organism	Durio zibethinus
NCBI taxonomy ID ncbi_taxonomy_id	66656
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 5 Entity 5 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	573

▶

Unit-cell length a length_a	70.473 Å
Unit-cell length b length_b	72.055 Å
Unit-cell length c length_c	147.495 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	29.760 Å
R factor r_factor	0.1797
R_work r_work	0.1774
R_free r_free	0.2244
