2al4
CRYSTAL STRUCTURE OF THE GLUR2 LIGAND BINDING CORE (S1S2J) IN COMPLEX WITH quisqualate and CX614.
SAXS 散射曲线 SAXS Profile

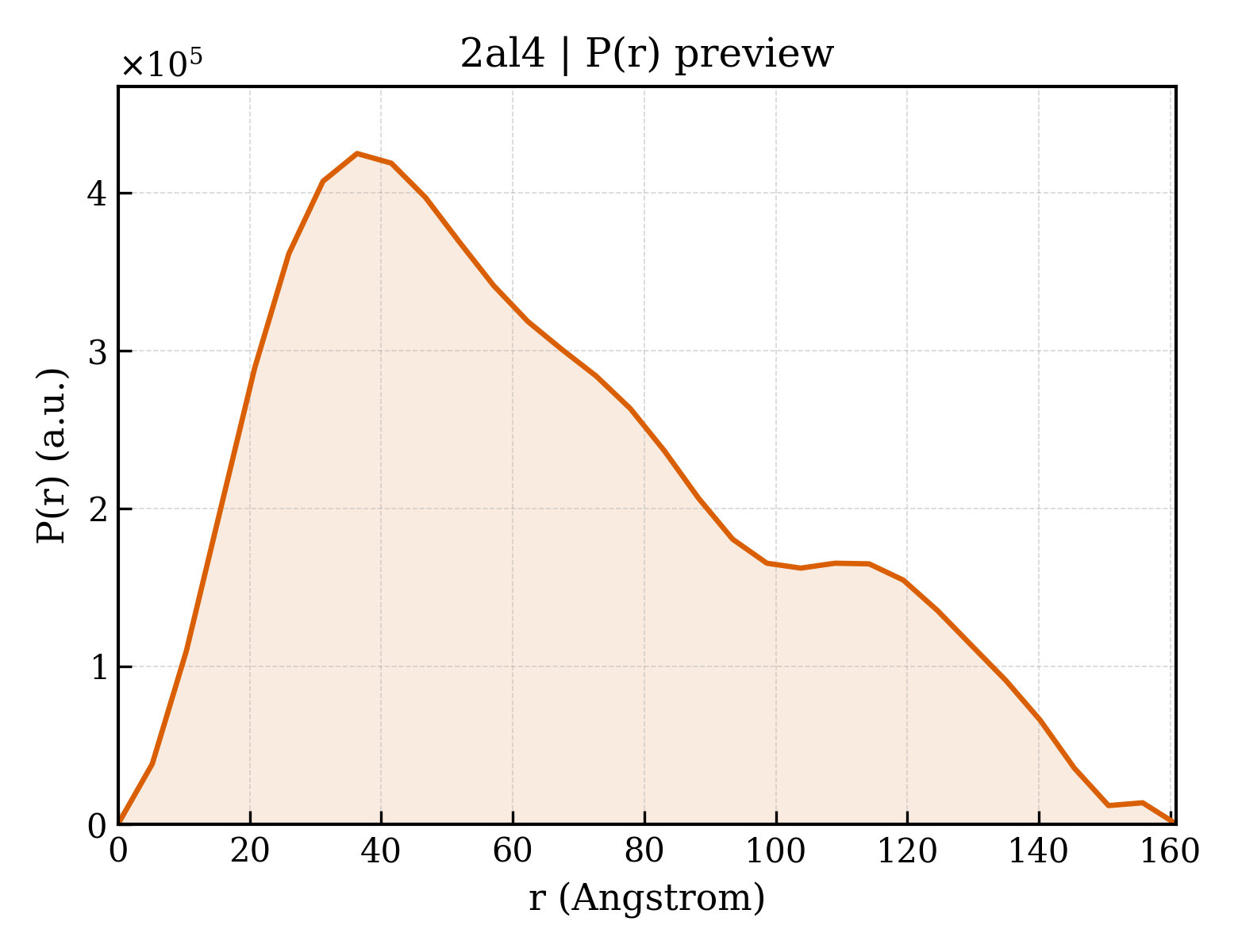

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2al4 |
| 沉积日期 deposition_date | 2005-08-04 |
| 结构标题 title | CRYSTAL STRUCTURE OF THE GLUR2 LIGAND BINDING CORE (S1S2J) IN COMPLEX WITH quisqualate and CX614. |
| 关键词 keywords | IONOTROPIC GLUTAMATE RECEPTOR, GLUR2, LIGAND BINDING CORE, S1S2, quisqualate, CX614, modulator, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 50.64 Å |
| 回转半径 Rg (电子) rg_electron | 51.19 Å |
| 零角强度 I(0) i0 | 418947000.00 |
| 分子量 molecular_weight | 169950.0 kDa |
| 排除体积 excluded_volume | 212830 ų |
| 包络体积 envelope_volume | 291300 ų |
| 水化壳体积 shell_volume | 52146 ų |
| 包络直径 envelope_diameter | 177.6 Å |
| 壳层 Rg shell_rg | 47.55 Å |
| 包络 Rg envelope_rg | 50.36 Å |
| 形状 Rg shape_rg | 51.20 Å |
| 总 Rg total_rg | 51.00 Å |
| 总原子数 total_atoms | 11892 |
| 残基数 n_residues | 1550 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 160.9 Å |
| Rg (实空间) rg_real | 51.12 Å |
| Rg 误差 (实空间) rg_real_error | 1.75 Å |
| I(0) (实空间) i0_real | 4.1890e+08 |
| I(0) 误差 (实空间) i0_real_error | 7.8220e+06 |
| Rg (倒空间) rg_reciprocal | 50.21 Å |
| I(0) (倒空间) i0_reciprocal | 418400000.0000 |
| 解质量估计 total_estimate | 0.7455 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 36.3 Å |
| 偏度 Skewness skewness | 0.529 |
| 峰度 Kurtosis kurtosis | -0.620 |
| 角度范围 angular_range | — – 0.1550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 49830000.0000 |
| 实空间数据点数 n_real_points | 32 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.704; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.577; Smooth: 0.002 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 18 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2al4a_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d2al4b_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d2al4c_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d2al4d_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d2al4e_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d2al4f_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
CATH v4.4 (12 domains)
| 结构域编号 domain_id | 2al4A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4C01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4C02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4D01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4D02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4E01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4E02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4F01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 2al4F02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
