SAXSdb — 9ovw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform Flip of Glutamate receptor 1

Rattus norvegicus

UniProt P19490

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Isoform Flip of Glutamate receptor 2 × 2 （P19491） (S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRIA1_RAT
Isoform	P19490-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–805； UniProt 23–833 Author chain C； PDBConstruct 1–805； UniProt 23–833

Isoform Flip of Glutamate receptor 2

Rattus norvegicus

UniProt P19491

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Isoform Flip of Glutamate receptor 1 × 2 （P19490） (S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRIA2_RAT
Isoform	P19491-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–811； UniProt 25–841 Author chain D； PDBConstruct 1–811； UniProt 25–841

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ovw
Deposition date deposition_date	2025-05-31
Structure title title	Heteromeric GluA1/A2 in the desensitized state, composite map of ATD-LBD-TMD
Keywords keywords	GluA1A2 heterotetramer quisqualate iGluR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ovw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

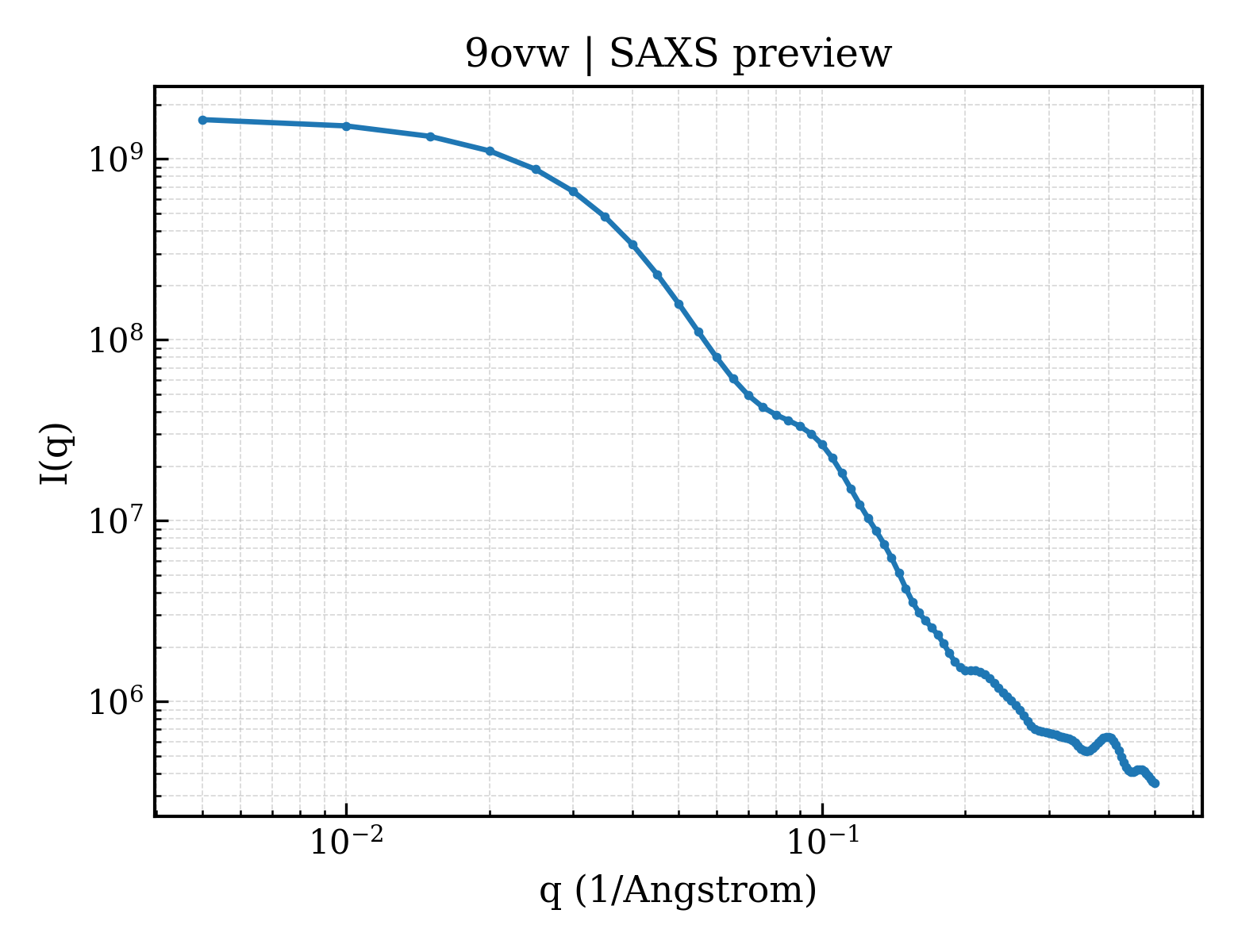

9ovw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9ovw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	56.45 Å
Rg (electron density)	56.68 Å
Total Rg	56.52 Å
Atom count	24938
Residues	3154
Excluded volume	446640 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ovw__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Isoform Flip of Glutamate receptor 1
Molecular weight formula_weight	91225.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	24938

NNIQIGGLFPNQQSQEHAAFRFALSQLTEPPKLLPQIDIVNISDSFEMTYRFCSQFSKGVYAIFGFYERRTVNMLTSFCGALHVCFITPSFPVDTSNQFVLQLRPELQEALISIIDHYKWQTFVYIYDADRGLSVLQRVLDTAAEKNWQVTAVNILTTTEEGYRMLFQDLEKKKERLVVVDCESERLNAILGQIVKLEKNGIGYHYILANLGFMDIDLNKFKESGANVTGFQLVNYTDTIPARIMQQWRTSDSRDHTRVDWKRPKYTSALTYDGVKVMAEAFQSLRRQRIDISRRGNAGDCLANPAVPWGQGIDIQRALQQVRFEGLTGNVQFNEKGRRTNYTLHVIEMKHDGIRKIGYWNEDDKFVPAGGDNSSVQNRTYIVTTILEDPYVMLKKNANQFEGNDRYEGYCVELAAEIAKHVGYSYRLEIVSDGKYGARDPDTKAWNGMVGELVYGRADVAVAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHSEEFEEGRDQTTSDQSNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLEAGSTKEFFRRSKIAVFEKMWTYMKSAEPSVFVRTTEEGMIRVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSALRGPVNLAVLKLSEQGVLDKLKSKWWYDKGECGSKDSGSKDKTSALSLSNVAGVFYILIGGLGLAMLVALIEFCYKSR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Isoform Flip of Glutamate receptor 2
Molecular weight formula_weight	91054.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

NSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGAEVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVLTEDDTSGLEQKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETWSSESTNEFGIFNSLWFSLGAFMRQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLGTPVNLAVLKLSEQGVLDKLKNKWWYDKGECGAKDSGSKEKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRA

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	(S)-2-AMINO-3-(3,5-DIOXO-[1,2,4]OXADIAZOLIDIN-2-YL)-PROPIONIC ACID
Molecular weight formula_weight	189.1 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.91 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	251523

Heteromeric GluA1/A2 in the desensitized state, composite map of ATD-LBD-TMD
