8ss2

;Structure of AMPA receptor GluA2 complex with auxiliary subunits TARP gamma-5 and cornichon-2 bound to competitive antagonist ZK and channel blocker spermidine (closed state) ;

Method: ELECTRON MICROSCOPY D_max: 224.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

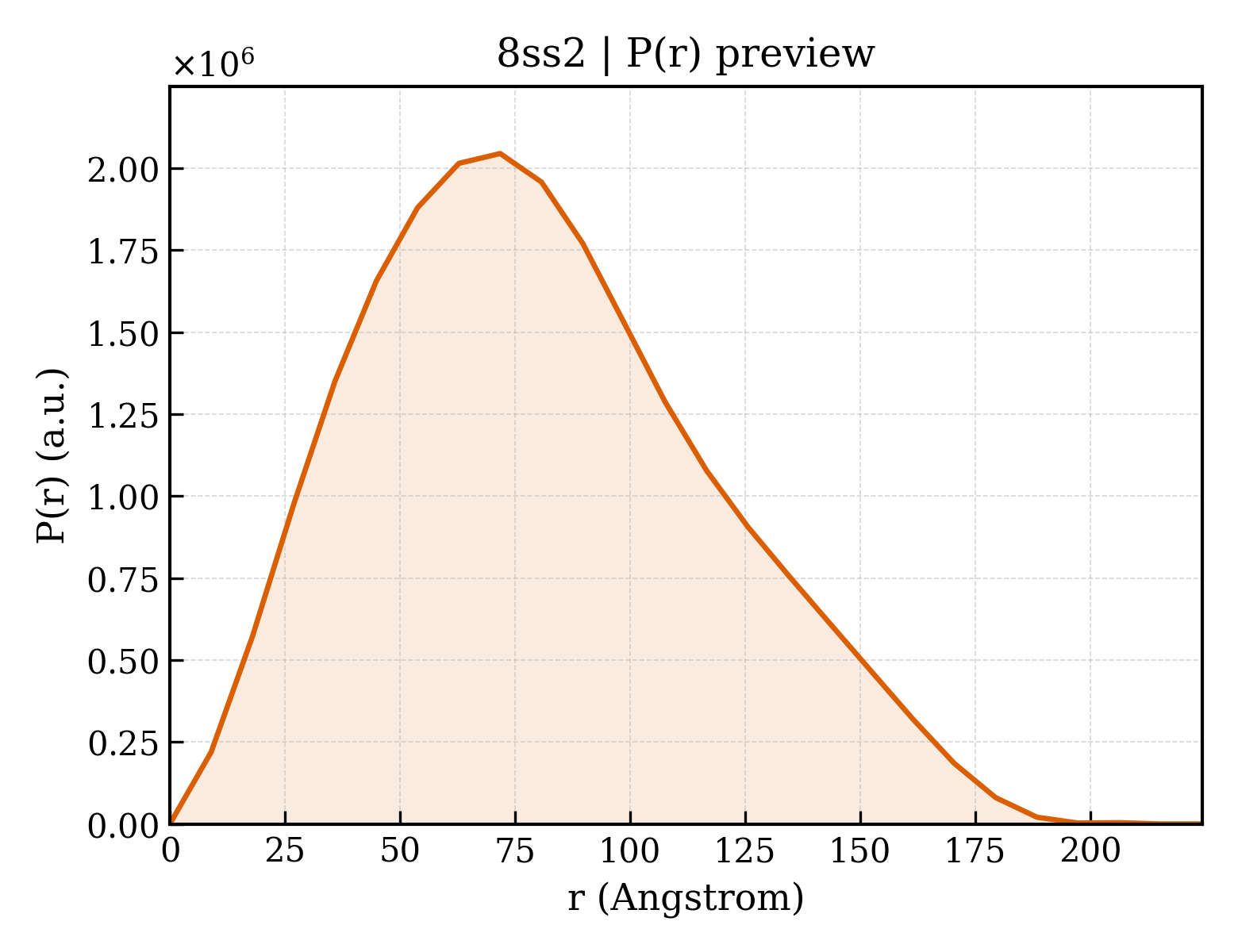

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ss2
沉积日期 deposition_date	2023-05-08
结构标题 title	;Structure of AMPA receptor GluA2 complex with auxiliary subunits TARP gamma-5 and cornichon-2 bound to competitive antagonist ZK and channel blocker spermidine (closed state) ;
关键词 keywords	AMPA receptor, spermidine, TARP gamma-5, cornichon-2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.37 Å
回转半径 Rg (电子) rg_electron	62.72 Å
零角强度 I(0) i0	2444020000.00
分子量 molecular_weight	442380.0 kDa
排除体积 excluded_volume	564280 Å³
包络体积 envelope_volume	828610 Å³
水化壳体积 shell_volume	114360 Å³
包络直径 envelope_diameter	210.1 Å
壳层 Rg shell_rg	59.88 Å
包络 Rg envelope_rg	60.98 Å
形状 Rg shape_rg	62.76 Å
总 Rg total_rg	62.49 Å
总原子数 total_atoms	31146
残基数 n_residues	3802
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	224.2 Å
Rg (实空间) rg_real	62.60 Å
Rg 误差 (实空间) rg_real_error	2.28 Å
I(0) (实空间) i0_real	2.4440e+09
I(0) 误差 (实空间) i0_real_error	5.7640e+07
Rg (倒空间) rg_reciprocal	62.16 Å
I(0) (倒空间) i0_reciprocal	2442000000.0000
解质量估计 total_estimate	0.8623
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	71.8 Å
偏度 Skewness skewness	0.389
峰度 Kurtosis kurtosis	-0.425
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0020
最高正则化参数 α highest_alpha	154000000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.776; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.878

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Glutamate receptor 2, Voltage-dependent calcium channel gamma-5 subunit chimera
分子量 formula_weight	114978.9 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	31146

NSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGAEVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVLTEDDTSGLEQKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLGTPVNLAVLKLSEQGVLDKLKNKWWYDKGECGAKDSGSKEKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRAEAKRMKGTGSACGRKALTLLSSVFAVCGLGLLGIAVSTDYWLYLEEGIILPQNQSTEVKMSLHSGLWRVCFLAGEERGRCFTIEYVMPMNSQMTSESTVNVLKMIRSATPFPLVSLFFMFIGFILSNIGHIRPHRTILAFVSGIFFILSGLSLVVGLVLYISSINDEMLNRTKDAETYFNYKYGWSFAFAAISFLLTESAGVMSVYLFMKRYTAE

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Protein cornichon homolog 2
分子量 formula_weight	18948.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F

MAFTFAAFCYMLTLVLCASLIFFVIWHIIAFDELRTDFKNPIDQGNPARARERLKNIERICCLLRKLVVPEYSIHGLFCLMFLCAAEWVTLGLNIPLLFYHLWRYFHRPADGSEVMYDAVSIMNADILNYCQKESWCKLAFYLLSFFYYLYSMVYTLVSF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 non-polymer

描述 description	{[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid
分子量 formula_weight	409.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
分子量 formula_weight	787.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	26

Entity 5 non-polymer

描述 description	CHOLESTEROL
分子量 formula_weight	386.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	Digitonin
分子量 formula_weight	1229.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	SPERMIDINE
分子量 formula_weight	145.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

结构域编号 domain_id	8ss2A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Periplasmic binding protein-like II

结构域编号 domain_id	8ss2C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.58 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	55275

fit	/app/data/saxs_computation/ss/8ss2/8ss2.fit
pddf	/app/data/pr_computation/ss/8ss2/8ss2.pr.out
profile	/app/data/saxs_computation/ss/8ss2/8ss2.dat
