7uig

Mediator-PIC Early (Mediator A)

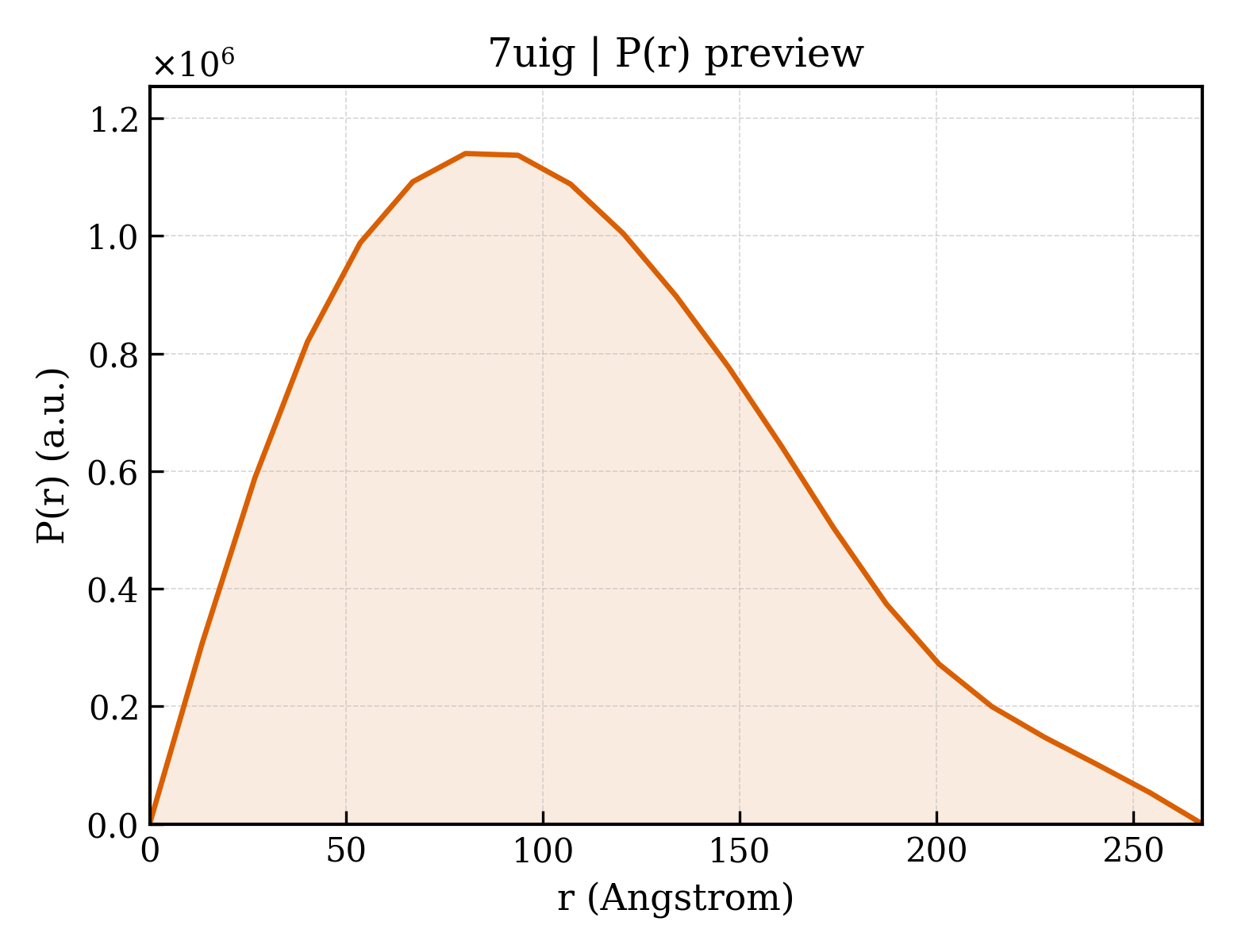

Method: ELECTRON MICROSCOPY Dmax: 267.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mediator of RNA polymerase II transcription subunit 1

OrganismNot specified

UniProt Q12321

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain a； UniProt 1–566 Not recorded Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain a 1–566（566 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain a 1–566（566 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIL Mediator-PIC Early (Tail A/B Dimer) Deposited 2022-03-29 Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain a 1–566（566 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Aa 1–566（566 aa）
Chain Ba 1–566（566 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED1_YEAST
Isoform —
PDB entities 1
Chains and sequence ranges Author chain a； PDBConstruct 1–566； UniProt 1–566

Mediator of RNA polymerase II transcription subunit 4

OrganismNot specified

UniProt Q12343

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain d； UniProt 1–284 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain h 1–125（125 aa）
Chain h 126–284（159 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain T 1–284（284 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain d 1–284（284 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain d 1–284（284 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Ad 1–284（284 aa）
Chain Bd 1–284（284 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED4_YEAST
Isoform —
PDB entities 2
Chains and sequence ranges Author chain d； PDBConstruct 1–284； UniProt 1–284

Mediator of RNA polymerase II transcription subunit 6

OrganismNot specified

UniProt P38782

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain f； UniProt 1–295 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3J1O Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain N 166–190（25 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–295（295 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain N 1–295（295 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain U 1–295（295 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–295（295 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–295（295 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain S 1–295（295 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain a 1–295（295 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain M 1–295（295 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain f 1–295（295 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain f 1–295（295 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Af 1–295（295 aa）
Chain Bf 1–295（295 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

10 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED6_YEAST
Isoform —
PDB entities 3
Chains and sequence ranges Author chain f； PDBConstruct 1–295； UniProt 1–295

Mediator of RNA polymerase II transcription subunit 7

OrganismNot specified

UniProt Q08278

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain g； UniProt 1–222 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1YKE Structure of the mediator MED7/MED21 subcomplex Deposited 2005-01-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 102–205（104 aa） Fragment：residues 102-205
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；sodium chloride, PEG 6000, ethanol, b-mercaptoethanol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.314
1YKE Structure of the mediator MED7/MED21 subcomplex Deposited 2005-01-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 102–205（104 aa） Fragment：residues 102-205
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；sodium chloride, PEG 6000, ethanol, b-mercaptoethanol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.314
1YKE Structure of the mediator MED7/MED21 subcomplex Deposited 2005-01-18 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 102–205（104 aa） Fragment：residues 102-205
Chain C 102–205（104 aa） Fragment：residues 102-205
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；sodium chloride, PEG 6000, ethanol, b-mercaptoethanol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.314
1YKH Structure of the mediator MED7/MED21 (Med7/Srb7) subcomplex Deposited 2005-01-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 102–205（104 aa） Fragment：residues 102-205
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG400, sodium acetate, b-mercaptoethanol, EDTA, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.289
3FBI Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–83（82 aa） Fragment：N-terminal domain, UNP residues 2-83
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 2.80 Å R-free 0.243
3FBI Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–83（82 aa） Fragment：N-terminal domain, UNP residues 2-83
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 2.80 Å R-free 0.243
3FBN Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–83（82 aa） Fragment：N-terminal domain, UNP residues 2-83
Mutation：L13Y, Y14S, P16T, P17S, P19S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 3.01 Å R-free 0.231
3FBN Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–83（82 aa） Fragment：N-terminal domain, UNP residues 2-83
Mutation：L13Y, Y14S, P16T, P17S, P19S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 3.01 Å R-free 0.231
3FBN Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 2–83（82 aa） Fragment：N-terminal domain, UNP residues 2-83
Chain C 2–83（82 aa） Fragment：N-terminal domain, UNP residues 2-83
Mutation：L13Y, Y14S, P16T, P17S, P19S Mutation：L13Y, Y14S, P16T, P17S, P19S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 3.01 Å R-free 0.231
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain i 1–222（222 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain U 1–222（222 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain g 1–222（222 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain g 1–222（222 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Ag 1–222（222 aa）
Chain Bg 1–222（222 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

9 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED7_YEAST
Isoform —
PDB entities 4
Chains and sequence ranges Author chain g； PDBConstruct 1–222； UniProt 1–222

Mediator of RNA polymerase II transcription subunit 8

OrganismNot specified

UniProt P38304

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain h； UniProt 1–223 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain J 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain K 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain L 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain J 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain K 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain L 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain K 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain L 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain I 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Chain L 189–209（21 aa） Fragment：C-terminal domain, residues 189-209
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
3J1O Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain J 1–223（223 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–223（223 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain J 1–223（223 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain Q 1–223（223 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–223（223 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–223（223 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain U 2–223（222 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain b 1–223（223 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain N 1–223（223 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain h 1–223（223 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain h 1–223（223 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Ah 1–223（223 aa）
Chain Bh 1–223（223 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

11 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED8_YEAST
Isoform —
PDB entities 5
Chains and sequence ranges Author chain h； PDBConstruct 1–223； UniProt 1–223

Mediator of RNA polymerase II transcription subunit 9

OrganismNot specified

UniProt P33308

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain i； UniProt 1–149 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain j 1–149（149 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain V 1–149（149 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain i 1–149（149 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain i 1–149（149 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Ai 1–149（149 aa）
Chain Bi 1–149（149 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED9_YEAST
Isoform —
PDB entities 6
Chains and sequence ranges Author chain i； PDBConstruct 1–149； UniProt 1–149

Mediator of RNA polymerase II transcription subunit 10

OrganismNot specified

UniProt Q06213

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain j； UniProt 1–157 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain k 1–157（157 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain j 1–157（157 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain j 1–157（157 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Aj 1–157（157 aa）
Chain Bj 1–157（157 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED10_YEAST
Isoform —
PDB entities 7
Chains and sequence ranges Author chain j； PDBConstruct 1–157； UniProt 1–157

Mediator of RNA polymerase II transcription subunit 11

OrganismNot specified

UniProt Q99278

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain k； UniProt 1–115 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain U 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 13 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 21–105（85 aa） Fragment：Residues 21-105
Chain C 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 14 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 21–105（85 aa） Fragment：Residues 21-105
Chain G 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 15 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 21–105（85 aa） Fragment：Residues 21-105
Chain K 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 16 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 21–105（85 aa） Fragment：Residues 21-105
Chain O 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 17 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 21–105（85 aa） Fragment：Residues 21-105
Chain S 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 18 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain U 21–105（85 aa） Fragment：Residues 21-105
Chain W 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 19 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain A 21–105（85 aa） Fragment：Residues 21-105
Chain C 21–105（85 aa） Fragment：Residues 21-105
Chain E 21–105（85 aa） Fragment：Residues 21-105
Chain G 21–105（85 aa） Fragment：Residues 21-105
Chain I 21–105（85 aa） Fragment：Residues 21-105
Chain K 21–105（85 aa） Fragment：Residues 21-105
Chain M 21–105（85 aa） Fragment：Residues 21-105
Chain O 21–105（85 aa） Fragment：Residues 21-105
Chain Q 21–105（85 aa） Fragment：Residues 21-105
Chain S 21–105（85 aa） Fragment：Residues 21-105
Chain U 21–105（85 aa） Fragment：Residues 21-105
Chain W 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain O 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 21–105（85 aa） Fragment：Residues 21-105
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–131（131 aa）
Mutation：T16G, M17S Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 1–131（131 aa）
Mutation：T16G, M17S Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain O 1–131（131 aa）
Mutation：T16G, M17S Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–115（115 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–115（115 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4H62 Structure of the Saccharomyces cerevisiae Mediator subcomplex Med17C/Med11C/Med22C Deposited 2012-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 84–115（32 aa） Fragment：C-terminal region (Unp residues 84-115)
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES, 4 M ammonium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.229
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain V 1–115（115 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain c 1–115（115 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain O 1–115（115 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain k 1–115（115 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain k 1–115（115 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Ak 1–115（115 aa）
Chain Bk 1–115（115 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

11 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED11_YEAST
Isoform —
PDB entities 8
Chains and sequence ranges Author chain k； PDBConstruct 1–115； UniProt 1–115

Mediator of RNA polymerase II transcription subunit 14

OrganismNot specified

UniProt P19263

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain n； UniProt 1–1082 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain l 1–745（745 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain n 1–1082（1082 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIC Mediator-PIC Early (Tail A) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain n 1–1082（1082 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain n 1–1082（1082 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIK Mediator-PIC Early (Tail A + Upstream DNA & Activator) Deposited 2022-03-29 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain n 834–1074（241 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.70 Å
7UIL Mediator-PIC Early (Tail A/B Dimer) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain 4 1–1082（1082 aa）
Chain n 1–1082（1082 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain An 1–1082（1082 aa）
Chain Bn 1–1082（1082 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED14_YEAST
Isoform —
PDB entities 9
Chains and sequence ranges Author chain n； PDBConstruct 1–1082； UniProt 1–1082

Mediator of RNA polymerase II transcription subunit 17

OrganismNot specified

UniProt P32569

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain q； UniProt 1–687 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3J1O Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain I 197–616（420 aa） Fragment：SEE REMARK 999
Chain I 669–687（19 aa） Fragment：SEE REMARK 999
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 109–616（508 aa）
Chain B 669–687（19 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain I 109–616（508 aa）
Chain I 669–687（19 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain P 109–616（508 aa）
Chain P 669–687（19 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–687（687 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–687（687 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4H62 Structure of the Saccharomyces cerevisiae Mediator subcomplex Med17C/Med11C/Med22C Deposited 2012-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Q 377–687（311 aa） Fragment：C-terminal region (Unp residues 377-687)
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES, 4 M ammonium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.229
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain W 1–687（687 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain d 1–687（687 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain P 1–687（687 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain q 1–687（687 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain q 1–687（687 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Aq 1–687（687 aa）
Chain Bq 1–687（687 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

11 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED17_YEAST
Isoform —
PDB entities 10
Chains and sequence ranges Author chain q； PDBConstruct 1–687； UniProt 1–687

Mediator of RNA polymerase II transcription subunit 18

OrganismNot specified

UniProt P32585

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain r； UniProt 1–307 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–307（306 aa） Fragment：residues 2-307
Not recorded PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 2–307（306 aa） Fragment：residues 2-307
Chain D 2–307（306 aa） Fragment：residues 2-307
Chain F 2–307（306 aa） Fragment：residues 2-307
Chain H 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 2–307（306 aa） Fragment：residues 2-307
Chain D 2–307（306 aa） Fragment：residues 2-307
Chain F 2–307（306 aa） Fragment：residues 2-307
Chain H 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 2–307（306 aa） Fragment：residues 2-307
Chain F 2–307（306 aa） Fragment：residues 2-307
Chain H 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 2–307（306 aa） Fragment：residues 2-307
Chain H 2–307（306 aa） Fragment：residues 2-307
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
3J1O Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain L 1–108（108 aa）
Chain L 141–307（167 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–108（108 aa）
Chain E 141–307（167 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain L 1–108（108 aa）
Chain L 141–307（167 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain S 1–108（108 aa）
Chain S 141–307（167 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–307（307 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–307（307 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain X 1–307（307 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain e 1–307（307 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain Q 1–307（307 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain r 1–307（307 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain r 1–307（307 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Ar 1–307（307 aa）
Chain Br 1–307（307 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

12 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED18_YEAST
Isoform —
PDB entities 11
Chains and sequence ranges Author chain r； PDBConstruct 1–307； UniProt 1–307

Mediator of RNA polymerase II transcription subunit 19

OrganismNot specified

UniProt P25046

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain s； UniProt 1–220 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain m 1–220（220 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain s 1–220（220 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain s 1–220（220 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain As 1–220（220 aa）
Chain Bs 1–220（220 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED19_YEAST
Isoform —
PDB entities 12
Chains and sequence ranges Author chain s； PDBConstruct 1–220； UniProt 1–220

Mediator of RNA polymerase II transcription subunit 20

OrganismNot specified

UniProt P34162

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain t； UniProt 1–210 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–210（210 aa）
Not recorded PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–210（210 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–210（210 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZM Structure of the Mediator head subcomplex Med18/20 Deposited 2006-08-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–210（210 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris, 1.8 M Na/K phosphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.264
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 2–210（209 aa）
Chain C 2–210（209 aa）
Chain E 2–210（209 aa）
Chain G 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 2–210（209 aa）
Chain C 2–210（209 aa）
Chain E 2–210（209 aa）
Chain G 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 2–210（209 aa）
Chain E 2–210（209 aa）
Chain G 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
2HZS Structure of the Mediator head submodule Med8C/18/20 Deposited 2006-08-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–210（209 aa）
Chain G 2–210（209 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；100 mM sodium acetate, 0.6 M sodium fluoride, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.70 Å R-free 0.272
3J1O Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain M 1–210（210 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–210（210 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain M 1–210（210 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain T 1–210（210 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 1–210（210 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain F 1–210（210 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain Y 2–210（209 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain f 1–210（210 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain R 1–210（210 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain t 1–210（210 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain t 1–210（210 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain At 1–210（210 aa）
Chain Bt 1–210（210 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8CEO Yeast RNA polymerase II transcription pre-initiation complex with core Mediator and the +1 nucleosome Deposited 2023-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 52 PDB declaration: 54-meric
Chain f 1–210（210 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å

13 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED20_YEAST
Isoform —
PDB entities 13
Chains and sequence ranges Author chain t； PDBConstruct 1–210； UniProt 1–210

Mediator of RNA polymerase II transcription subunit 21

OrganismNot specified

UniProt P47822

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain u； UniProt 1–140 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1YKE Structure of the mediator MED7/MED21 subcomplex Deposited 2005-01-18 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–140（140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；sodium chloride, PEG 6000, ethanol, b-mercaptoethanol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.314
1YKE Structure of the mediator MED7/MED21 subcomplex Deposited 2005-01-18 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–140（140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；sodium chloride, PEG 6000, ethanol, b-mercaptoethanol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.314
1YKE Structure of the mediator MED7/MED21 subcomplex Deposited 2005-01-18 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–140（140 aa）
Chain D 1–140（140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；sodium chloride, PEG 6000, ethanol, b-mercaptoethanol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.314
1YKH Structure of the mediator MED7/MED21 (Med7/Srb7) subcomplex Deposited 2005-01-18 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–132（132 aa）
Mutation：L5M, L119M, L125M No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG400, sodium acetate, b-mercaptoethanol, EDTA, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.289
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain n 1–140（140 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain W 1–140（140 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain u 1–140（140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain u 1–140（140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Au 1–140（140 aa）
Chain Bu 1–140（140 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

7 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED21_YEAST
Isoform —
PDB entities 14
Chains and sequence ranges Author chain u； PDBConstruct 1–140； UniProt 1–140

Mediator of RNA polymerase II transcription subunit 22

OrganismNot specified

UniProt P32570

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain v； UniProt 1–121 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3J1O Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 1–121（121 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain T 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain V 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain X 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 13 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–89（88 aa） Fragment：Residues 2-89
Chain D 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 14 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 2–89（88 aa） Fragment：Residues 2-89
Chain H 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 15 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 2–89（88 aa） Fragment：Residues 2-89
Chain L 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 16 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain N 2–89（88 aa） Fragment：Residues 2-89
Chain P 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 17 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 2–89（88 aa） Fragment：Residues 2-89
Chain T 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 18 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain V 2–89（88 aa） Fragment：Residues 2-89
Chain X 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 19 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain B 2–89（88 aa） Fragment：Residues 2-89
Chain D 2–89（88 aa） Fragment：Residues 2-89
Chain F 2–89（88 aa） Fragment：Residues 2-89
Chain H 2–89（88 aa） Fragment：Residues 2-89
Chain J 2–89（88 aa） Fragment：Residues 2-89
Chain L 2–89（88 aa） Fragment：Residues 2-89
Chain N 2–89（88 aa） Fragment：Residues 2-89
Chain P 2–89（88 aa） Fragment：Residues 2-89
Chain R 2–89（88 aa） Fragment：Residues 2-89
Chain T 2–89（88 aa） Fragment：Residues 2-89
Chain V 2–89（88 aa） Fragment：Residues 2-89
Chain X 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain N 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3R84 Structure of the Mediator head subcomplex Med11/22 Deposited 2011-03-23 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 2–89（88 aa） Fragment：Residues 2-89
Mutation：M27I Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；100 mM MES pH 6, 5.5% PEG 6000 and 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.05 Å R-free 0.208
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–121（121 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 1–121（121 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
3RJ1 Architecture of the Mediator Head module Deposited 2011-04-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 1–121（121 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SE SELENIUM ATOM × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris-HCl (pH 7.6) containing 10-12.5% (w/v) PEG-6K, and 0.4 M (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.373
4GWP Structure of the Mediator Head Module from S. cerevisiae Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–121（121 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.20 Å R-free 0.357
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–121（121 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4H62 Structure of the Saccharomyces cerevisiae Mediator subcomplex Med17C/Med11C/Med22C Deposited 2012-09-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain V 96–121（26 aa） Fragment：C-terminal region (Unp residues 96-121)
Not recorded MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES, 4 M ammonium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.00 Å R-free 0.229
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain Z 2–121（120 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain g 1–121（121 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain S 1–121（121 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain v 1–120（120 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain v 1–121（121 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Av 1–120（120 aa）
Chain Bv 1–120（120 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8CEO Yeast RNA polymerase II transcription pre-initiation complex with core Mediator and the +1 nucleosome Deposited 2023-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 52 PDB declaration: 54-meric
Chain g 1–121（121 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å

13 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED22_YEAST
Isoform —
PDB entities 15
Chains and sequence ranges Author chain v； PDBConstruct 1–121； UniProt 1–121

Mediator of RNA polymerase II transcription subunit 31

OrganismNot specified

UniProt P38633

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain w； UniProt 1–127 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） DNA-directed RNA polymerase II subunit RPB1 × 1 （P04050） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3FBI Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–127（127 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 2.80 Å R-free 0.243
3FBI Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–127（127 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 2.80 Å R-free 0.243
3FBN Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–127（127 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 3.01 Å R-free 0.231
3FBN Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–127（127 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 3.01 Å R-free 0.231
3FBN Structure of the Mediator submodule Med7N/31 Deposited 2008-11-19 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–127（127 aa）
Chain D 1–127（127 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50mM MES pH 5.6, 1.8M Li2SO4, 10mM MgCl2, vapor diffusion, hanging drop, temperature 293K
Resolution 3.01 Å R-free 0.231
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain o 1–127（127 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain X 1–127（127 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain w 1–127（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain w 1–127（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain Aw 1–127（127 aa）
Chain Bw 1–127（127 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

7 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MED31_YEAST
Isoform —
PDB entities 16
Chains and sequence ranges Author chain w； PDBConstruct 1–127； UniProt 1–127

DNA-directed RNA polymerase II subunit RPB1

OrganismNot specified

UniProt P04050

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 17 PDB declaration: heptadecameric（17） Consistent with protein copy count Chain z； UniProt 1–1733 Not recorded Mediator of RNA polymerase II transcription subunit 1 × 1 （Q12321） Mediator of RNA polymerase II transcription subunit 4 × 1 （Q12343） Mediator of RNA polymerase II transcription subunit 6 × 1 （P38782） Mediator of RNA polymerase II transcription subunit 7 × 1 （Q08278） Mediator of RNA polymerase II transcription subunit 8 × 1 （P38304） Mediator of RNA polymerase II transcription subunit 9 × 1 （P33308） Mediator of RNA polymerase II transcription subunit 10 × 1 （Q06213） Mediator of RNA polymerase II transcription subunit 11 × 1 （Q99278） Mediator of RNA polymerase II transcription subunit 14 × 1 （P19263） Mediator of RNA polymerase II transcription subunit 17 × 1 （P32569） Mediator of RNA polymerase II transcription subunit 18 × 1 （P32585） Mediator of RNA polymerase II transcription subunit 19 × 1 （P25046） Mediator of RNA polymerase II transcription subunit 20 × 1 （P34162） Mediator of RNA polymerase II transcription subunit 21 × 1 （P47822） Mediator of RNA polymerase II transcription subunit 22 × 1 （P32570） Mediator of RNA polymerase II transcription subunit 31 × 1 （P38633） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7UIG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1I3Q RNA POLYMERASE II CRYSTAL FORM I AT 3.1 A RESOLUTION Deposited 2001-02-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 6000, Ammoniumhydrogenphosphate, Sodiumdihydrogenphosphate, dioxane, DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.10 Å R-free 0.283
1I50 RNA POLYMERASE II CRYSTAL FORM II AT 2.8 A RESOLUTION Deposited 2001-02-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUMHYDROGENPHOSPHATE, SODIUMDIHYDROGENPHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 100K
Resolution 2.80 Å R-free 0.282
1I50 RNA POLYMERASE II CRYSTAL FORM II AT 2.8 A RESOLUTION Deposited 2001-02-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 16 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUMHYDROGENPHOSPHATE, SODIUMDIHYDROGENPHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 100K
Resolution 2.80 Å R-free 0.282
1I6H RNA POLYMERASE II ELONGATION COMPLEX Deposited 2001-03-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, SITTING DROP, temperature 100K
Resolution 3.30 Å R-free 0.298
1K83 Crystal Structure of Yeast RNA Polymerase II Complexed with the Inhibitor Alpha Amanitin Deposited 2001-10-22 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；PH 6.00
Resolution 2.80 Å R-free 0.280
1NIK Wild Type RNA Polymerase II Deposited 2002-12-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.3；291 K；peg400, peg 6K, NaCl, Dioaxne, ZnCl2, Ammonium phosphate, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 291K, pH 6.30
Resolution 4.10 Å R-free 0.360
1NT9 Complete 12-subunit RNA polymerase II Deposited 2003-01-29 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；PEG 20000, ammonium sodium phosphate, sodium chloride, dioxane, DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.20 Å
1PQV RNA polymerase II-TFIIS complex Deposited 2003-06-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；sodium-ammonium tartrate, Hepes, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.80 Å
1R5U RNA POLYMERASE II TFIIB COMPLEX Deposited 2003-10-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；ammonium sulfate, MES, NaCl, CdCl2, DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.50 Å R-free 0.373
1R9S RNA POLYMERASE II STRAND SEPARATED ELONGATION COMPLEX, MATCHED NUCLEOTIDE Deposited 2003-10-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 2 UTP URIDINE 5'-TRIPHOSPHATE × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 6000, Ammonium hydrogen phosphate, sodium dihydrogen phosphate, dioxane, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.25 Å R-free 0.398
1R9T RNA POLYMERASE II STRAND SEPARATED ELONGATION COMPLEX, MISMATCHED NUCLEOTIDE Deposited 2003-10-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 6000, Ammonium hydrogen phosphate, sodium dihydrogen phosphate, dioxane, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.50 Å R-free 0.317
1SFO RNA POLYMERASE II STRAND SEPARATED ELONGATION COMPLEX Deposited 2004-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 6000, ammonium sodium phosphate, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.61 Å R-free 0.343
1TWA RNA polymerase II complexed with ATP Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded MN MANGANESE (II) ION × 2 ZN ZINC ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.246
1TWC RNA polymerase II complexed with GTP Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.00 Å R-free 0.255
1TWF RNA polymerase II complexed with UTP at 2.3 A resolution Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 2 UTP URIDINE 5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.30 Å R-free 0.294
1TWF RNA polymerase II complexed with UTP at 2.3 A resolution Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 16 MN MANGANESE (II) ION × 4 UTP URIDINE 5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.30 Å R-free 0.294
1TWG RNA polymerase II complexed with CTP Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded MN MANGANESE (II) ION × 2 ZN ZINC ION × 8 CTP CYTIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.281
1TWG RNA polymerase II complexed with CTP Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain A 1–1733（1733 aa）
Not recorded MN MANGANESE (II) ION × 8 ZN ZINC ION × 32 CTP CYTIDINE-5'-TRIPHOSPHATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.281
1TWG RNA polymerase II complexed with CTP Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–1733（1733 aa）
Not recorded MN MANGANESE (II) ION × 4 ZN ZINC ION × 16 CTP CYTIDINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.281
1TWH RNA polymerase II complexed with 2'dATP Deposited 2004-06-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded MN MANGANESE (II) ION × 2 ZN ZINC ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 6000, AMMONIUM HYDROGEN PHOSPHATE, SODIUM DIHYDROGEN PHOSPHATE, DIOXANE, DTT, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.40 Å R-free 0.262
1WCM Complete 12-Subunit RNA Polymerase II at 3.8 Angstrom Deposited 2004-11-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.80 Å R-free 0.285
1Y1V Refined RNA Polymerase II-TFIIS complex Deposited 2004-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.80 Å R-free 0.294
1Y1W Complete RNA Polymerase II elongation complex Deposited 2004-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 4.00 Å R-free 0.276
1Y1Y RNA Polymerase II-TFIIS-DNA/RNA complex Deposited 2004-11-19 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 4.00 Å
1Y77 Complete RNA Polymerase II elongation complex with substrate analogue GMPCPP Deposited 2004-12-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 4.50 Å
2B63 Complete RNA Polymerase II-RNA inhibitor complex Deposited 2005-09-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 200 mM ammonium acetate, 150 mM magnesium acetate, 50 mM Hepes (pH 7.0), 5% PEG 6000, and 5 mM TCEP
Resolution 3.80 Å R-free 0.273
2B8K 12-subunit RNA Polymerase II Deposited 2005-10-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP
Resolution 4.15 Å
2E2H RNA polymerase II elongation complex at 5 mM Mg2+ with GTP Deposited 2006-11-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-11% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.95 Å R-free 0.368
2E2I RNA polymerase II elongation complex in 5 mM Mg+2 with 2'-dGTP Deposited 2006-11-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 DGT 2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-11% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.41 Å R-free 0.316
2E2J RNA polymerase II elongation complex in 5 mM Mg+2 with GMPCPP Deposited 2006-11-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-11% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.50 Å R-free 0.306
2JA5 CPD lesion containing RNA Polymerase II elongation complex A Deposited 2006-11-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.00
Resolution 3.80 Å R-free 0.280
2JA6 CPD lesion containing RNA Polymerase II elongation complex B Deposited 2006-11-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 4.00 Å R-free 0.301
2JA7 CPD lesion containing RNA Polymerase II elongation complex C Deposited 2006-11-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 3.80 Å R-free 0.275
2JA7 CPD lesion containing RNA Polymerase II elongation complex C Deposited 2006-11-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain M 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 3.80 Å R-free 0.275
2JA8 CPD lesion containing RNA Polymerase II elongation complex D Deposited 2006-11-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 3.80 Å R-free 0.288
2LO6 Structure of Nrd1 CID bound to phosphorylated RNAP II CTD Deposited 2012-01-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1556–1569（14 aa） Fragment：UNP residues 1556-1569
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 8；293 K；Ionic strength (raw mmCIF value) 100；Pressure ambient
NMR sample composition 2 mM [U-100% 13C; U-100% 15N] Nrd1 polypeptide, 2.3 mM phosphopeptide, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2NVQ RNA Polymerase II Elongation Complex in 150 mM Mg+2 with 2'dUTP Deposited 2006-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded DUT DEOXYURIDINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；200mM NH4OAc, 150mM Mg(OAc)2, 50mM Hepes, pH 7.0, 5% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.283
2NVT RNA Polymerase II Elongation Complex in 150 mM Mg+2 with GMPCPP Deposited 2006-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；200mM NH4OAc, 150mM Mg(OAc)2, 50mM Hepes, pH 7.0, 5% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.36 Å R-free 0.283
2NVX RNA polymerase II elongation complex in 5 mM Mg+2 with 2'-dUTP Deposited 2006-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 DUT DEOXYURIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-11% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.60 Å R-free 0.304
2NVY RNA Polymerase II form II in 150 mM Mn+2 Deposited 2006-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 12% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.40 Å R-free 0.323
2NVY RNA Polymerase II form II in 150 mM Mn+2 Deposited 2006-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 16 MN MANGANESE (II) ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 12% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.40 Å R-free 0.323
2NVZ RNA Polymerase II elongation complex with UTP, updated 11/2006 Deposited 2006-11-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 UTP URIDINE 5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-12% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.30 Å R-free 0.332
2R7Z Cisplatin lesion containing RNA polymerase II elongation complex Deposited 2007-09-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded CPT Cisplatin × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；200 mM ammonium acetate, 150 mM magnesium acetate, 50 mM Hepes pH 7.0, 5% (v/v) PEG 6000, 5 mM TCEP, VAPOR DIFFUSION, HANGING DROP
Resolution 3.80 Å R-free 0.240
2R92 Elongation complex of RNA polymerase II with artificial RdRP scaffold Deposited 2007-09-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；295 K；5% (w/v) PEG 6000, 200 mM ammonium acetate, 150 mM magnesium acetate, 50 mM Hepes pH 7.0, 5 mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 295.0K, pH 7.00
Resolution 3.80 Å R-free 0.246
2R93 Elongation complex of RNA polymerase II with a hepatitis delta virus-derived RNA stem loop Deposited 2007-09-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；5% (w/v) PEG 6000, 200 mM ammonium acetate, 150 mM magnesium acetate, 50 mM Hepes pH 7.0, 5 mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 295.0K
Resolution 4.00 Å R-free 0.241
2VUM Alpha-amanitin inhibited complete RNA polymerase II elongation complex Deposited 2008-05-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；200 MM AMMONIUM ACETATE, 300 MM SODIUM ACETATE, 50 MM HEPES PH 7.0, 4-7% PEG 6000, 5 MM TCEP
Resolution 3.40 Å R-free 0.288
2YU9 RNA polymerase II elongation complex in 150 mm MG+2 with UTP Deposited 2007-04-06 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 UTP URIDINE 5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；200MM NH4OAC, 150MM MG(OAC)2, 50MM HEPES, PH 7.0, 5% PEG6000, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.40 Å R-free 0.344
3CQZ Crystal structure of 10 subunit RNA polymerase II in complex with the inhibitor alpha-amanitin Deposited 2008-04-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å R-free 0.273
3FKI 12-Subunit RNA Polymerase II Refined with Zn-SAD data Deposited 2008-12-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；5-7% PEG 4000, 50 mM HEPES pH 7.0, 10 mM DTT, 70 mM glucosamine, 50 mM dioxane, VAPOR DIFFUSION, HANGING DROP
Resolution 3.88 Å R-free 0.301
3GTG Backtracked RNA polymerase II complex with 12mer RNA Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.78 Å R-free 0.300
3GTJ Backtracked RNA polymerase II complex with 13mer RNA Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.42 Å R-free 0.292
3GTK Backtracked RNA polymerase II complex with 18mer RNA Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.80 Å R-free 0.278
3GTL Backtracked RNA polymerase II complex with 13mer with G<>U mismatch Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.38 Å R-free 0.322
3GTM Co-complex of Backtracked RNA polymerase II with TFIIS Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.80 Å R-free 0.289
3GTO Backtracked RNA polymerase II complex with 15mer RNA Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.00 Å R-free 0.290
3GTP Backtracked RNA polymerase II complex with 24mer RNA Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.90 Å R-free 0.299
3GTQ Backtracked RNA polymerase II complex induced by damage Deposited 2009-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa） Fragment：DNA-directed RNA polymerase II largest subunit
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM Dioxane, 10mM DTT, 9-11% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.80 Å R-free 0.335
3H3V Yeast RNAP II containing poly(A)-signal sequence in the active site Deposited 2009-04-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain B 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；295 K；200 mM ammonium acetate, 50mM HEPES pH 7.0, 4% polyethylene glycol 6000, 5mM TCEP (tris (2-carboxyethyl) phosphine hydrochloride), VAPOR DIFFUSION, HANGING DROP, temperature 295.0 K
Resolution 4.00 Å R-free 0.241
3HOU Complete RNA polymerase II elongation complex I with a T-U mismatch Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；200mM ammonium acetate, 300mM SODIUM ACETATE, 50mM Hepes pH 7.0, 4-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.252
3HOU Complete RNA polymerase II elongation complex I with a T-U mismatch Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain M 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；200mM ammonium acetate, 300mM SODIUM ACETATE, 50mM Hepes pH 7.0, 4-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.252
3HOV Complete RNA polymerase II elongation complex II Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；200mM ammonium acetate, 300mM SODIUM ACETATE,, 50mM Hepes pH 7.0, 4-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.50 Å R-free 0.226
3HOW Complete RNA polymerase II elongation complex III with a T-U mismatch and a frayed RNA 3'-uridine Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；200mM ammonium acetate, 300mM SODIUM ACETATE, 50mM Hepes pH 7.0, 4-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.60 Å R-free 0.254
3HOX Complete RNA polymerase II elongation complex V Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；200mM ammonium acetate, 300mM SODIUM ACETATE, 50mM Hepes pH 7.0, 4-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.65 Å R-free 0.250
3HOY Complete RNA polymerase II elongation complex VI Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.40 Å R-free 0.254
3HOZ Complete RNA polymerase II elongation complex IV with a T-U mismatch and a frayed RNA 3'-guanine Deposited 2009-06-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20mM ammonium acetate, 300mM SODIUM ACETATE, 50mM Hepes pH 7.0, 4-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.65 Å R-free 0.253
3I4M 8-oxoguanine containing RNA polymerase II elongation complex D Deposited 2009-07-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；200mM ammonium acetate, 300mM sodium acetate, 50mM Hepes, 4%(w/v) PEG 6000, 5mM TCEP, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.70 Å R-free 0.258
3I4N 8-oxoguanine containing RNA polymerase II elongation complex E Deposited 2009-07-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；5%(w/v) PEG 6000, 200mM ammonium acetate, 300mM sodium acetate, 50mM Hepes, 5mM TCEP , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.90 Å R-free 0.266
3J1N Cryo-EM map of a yeast minimal preinitiation complex interacting with the Mediator Head module Deposited 2012-03-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1455（1455 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 25 mM KCl, 25 mM Tris-HCl, 10 mM DTT；pH 8；25 mM KCl, 25 mM Tris-HCl, 10 mM DTT
cryo-EM vitrification conditions Blot for ~2 sec before plunging；77 K；Cryogen ETHANE；Blot for approximately 2 seconds before plunging into liquid ethane.
Resolution 16.00 Å
3K1F Crystal structure of RNA Polymerase II in complex with TFIIB Deposited 2009-09-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；800 mM sodium ammonium tartrate, 100 mM HEPES pH 7.5, 5 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.30 Å R-free 0.255
3K7A Crystal Structure of an RNA polymerase II-TFIIB complex Deposited 2009-10-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；295 K；1.2 M sodium/potassium phosphate, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.80 Å R-free 0.313
3M3Y RNA polymerase II elongation complex C Deposited 2010-03-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 C7P cis-diammine(pyridine)chloroplatinum(II) × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, 50mM dioxane, 10mM DTT, 9-11% PEG6,000, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.18 Å R-free 0.255
3M4O RNA polymerase II elongation complex B Deposited 2010-03-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 C7P cis-diammine(pyridine)chloroplatinum(II) × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；390mM (NH4)2HPO4/NaH2PO4, 50mM dioxane, 10mM DTT, 9-11% PEG6,000, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.57 Å R-free 0.292
3PO2 Arrested RNA Polymerase II elongation complex Deposited 2010-11-21 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4-7% PEG6000, 50mM HEPES pH 7.0, 200mM ammonium acetate, 300mM sodium acetate, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.178
3PO3 Arrested RNA Polymerase II reactivation intermediate Deposited 2010-11-21 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ACT ACETATE ION × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4-7% PEG6000, 50mM HEPES pH 7.0, 200mM AMMONIUM ACETATE, 300mM SODIUM ACETATE, 5mM TCEP , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.189
3QT1 RNA polymerase II variant containing A Chimeric RPB9-C11 subunit Deposited 2011-02-22 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 7 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；200mM ammonium acetate, 300mM SODIUM ACETATE, 50mM Hepes pH 7.0, 5-6% PEG 6000, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.30 Å R-free 0.281
3RZD RNA Polymerase II Initiation Complex with a 5-nt RNA Deposited 2011-05-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6,000, 15mM DTT, vapor diffusion, temperature 293K, VAPOR DIFFUSION
Resolution 3.30 Å R-free 0.230
3RZO RNA Polymerase II Initiation Complex with a 4-nt RNA Deposited 2011-05-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6.000, 15mM DTT, vapor diffusion, temperature 293K, VAPOR DIFFUSION
Resolution 3.00 Å R-free 0.236
3S14 RNA Polymerase II Initiation Complex with a 6-nt RNA Deposited 2011-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6,000, 15mM DTT, vapor diffusion, temperature 293K, VAPOR DIFFUSION
Resolution 2.85 Å R-free 0.227
3S15 RNA Polymerase II Initiation Complex with a 7-nt RNA Deposited 2011-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6.000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.30 Å R-free 0.228
3S16 RNA Polymerase II Initiation Complex with an 8-nt RNA Deposited 2011-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6.000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.24 Å R-free 0.227
3S17 RNA Polymerase II Initiation Complex with a 9-nt RNA Deposited 2011-05-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.9, 50mM dioxane, 9-11% PEG 6,000, 15mM DTT, vapor diffusion, temperature 293K, VAPOR DIFFUSION
Resolution 3.20 Å R-free 0.236
3S1M RNA Polymerase II Initiation Complex with a 5-nt RNA (variant 1) Deposited 2011-05-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6.000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.13 Å R-free 0.233
3S1N RNA Polymerase II Initiation Complex with a 5-nt RNA (variant 2) Deposited 2011-05-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6.000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.10 Å R-free 0.232
3S1Q RNA Polymerase II Initiation Complex with a 5-nt 3'-deoxy RNA soaked with ATP Deposited 2011-05-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 2 ZN ZINC ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6,000, 15mM DTT, vapor diffusion, temperature 293K, VAPOR DIFFUSION
Resolution 3.30 Å R-free 0.229
3S1R RNA Polymerase II Initiation Complex with a 5-nt 3'-deoxy RNA soaked with GTP Deposited 2011-05-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6.000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.20 Å R-free 0.226
3S2D RNA Polymerase II Initiation Complex with a 5-nt RNA containing a 5Br-U Deposited 2011-05-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50mM dioxane, 9-11% PEG 6,000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.20 Å R-free 0.231
3S2H RNA Polymerase II Initiation Complex with a 6-nt RNA containing a 2[prime]-iodo ATP Deposited 2011-05-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；390mM (NH4)2HPO4/NaH2PO4, pH 5.9-6.1, 50mM dioxane, 9-11% PEG 6,000, 15mM DTT, vapor diffusion, temperature 293K
Resolution 3.30 Å R-free 0.240
4A3B RNA Polymerase II initial transcribing complex with a 4nt DNA-RNA hybrid Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.50 Å R-free 0.197
4A3C RNA Polymerase II initial transcribing complex with a 5nt DNA-RNA hybrid Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.50 Å R-free 0.184
4A3D RNA Polymerase II initial transcribing complex with a 6nt DNA-RNA hybrid Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.40 Å R-free 0.186
4A3E RNA Polymerase II initial transcribing complex with a 5nt DNA-RNA hybrid and soaked with AMPCPP Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.40 Å R-free 0.188
4A3F RNA Polymerase II initial transcribing complex with a 6nt DNA-RNA hybrid and soaked with AMPCPP Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.50 Å R-free 0.185
4A3G RNA Polymerase II initial transcribing complex with a 2nt DNA-RNA hybrid Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.50 Å R-free 0.194
4A3I RNA Polymerase II binary complex with DNA Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.80 Å R-free 0.191
4A3J RNA Polymerase II initial transcribing complex with a 2nt DNA-RNA hybrid and soaked with GMPCPP Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7
Resolution 3.70 Å R-free 0.194
4A3K RNA Polymerase II initial transcribing complex with a 7nt DNA-RNA hybrid Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.50 Å R-free 0.185
4A3L RNA Polymerase II initial transcribing complex with a 7nt DNA-RNA hybrid and soaked with AMPCPP Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.50 Å R-free 0.187
4A3M RNA Polymerase II initial transcribing complex with a 4nt DNA-RNA hybrid and soaked with AMPCPP Deposited 2011-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；pH 7
Resolution 3.90 Å R-free 0.190
4A93 RNA Polymerase II elongation complex containing a CPD Lesion Deposited 2011-11-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1732（1732 aa） Fragment：RESIDUES 1-1732
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；4-7% PEG 6000, 50 MM HEPES PH 7.0, 200 MM AMMONIUM ACETATE, 300MM SODIUM ACETATE, 5 MM TCEP, VAPOR DIFFUSION, HANGING DROP.
Resolution 3.40 Å R-free 0.199
4BBR Structure of RNA polymerase II-TFIIB complex Deposited 2012-09-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.40 Å R-free 0.211
4BBS Structure of an initially transcribing RNA polymerase II-TFIIB complex Deposited 2012-09-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.60 Å R-free 0.225
4BXX Arrested RNA polymerase II-Bye1 complex Deposited 2013-07-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5-7% PEG6000, 50 MM HEPES PH 7.0, 300 MM SODIUM ACETATE, 5 MM TCEP, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293 K
Resolution 3.28 Å R-free 0.208
4BXZ RNA Polymerase II-Bye1 complex Deposited 2013-07-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；750 MM TRI-SODIUM CITRATE, 100 MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293K
Resolution 4.80 Å R-free 0.253
4BY1 elongating RNA Polymerase II-Bye1 TLD complex soaked with AMPCPP Deposited 2013-07-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5-7% PEG6000, 50 MM HEPES PH 7.0, 200 MM AMMONIUM ACETATE, 300 MM SODIUM ACETATE, 5 MM TCEP, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293 K
Resolution 3.60 Å R-free 0.206
4BY7 elongating RNA Polymerase II-Bye1 TLD complex Deposited 2013-07-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；5-7% PEG6000, 50 MM HEPES PH 7.0, 200 MM AMMONIUM ACETATE, 300 MM SODIUM ACETATE, 5 MM TCEP, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 293 K
Resolution 3.15 Å R-free 0.212
4GWQ Structure of the Mediator Head Module from S. cerevisiae in complex with the carboxy-terminal domain (CTD) of RNA Polymerase II Rpb1 subunit Deposited 2012-09-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 1556–1590（35 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；291.2 K；275mM ammonium citrate tribasic pH 7.0, 10% w/v PEG 3350, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 291.2K
Resolution 4.50 Å R-free 0.345
4V1M Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 6.60 Å
4V1N Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: nonadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 7.80 Å
4V1O Architecture of the RNA polymerase II-Mediator core transcription initiation complex Deposited 2014-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 180 MM POTASSIUM ACETATE, 5 % GLYCEROL, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE GLOW- DISCHARGED FOR 20 S BEFORE DEPOSITION OF 4 MICROLITERS SAMPLE AND INCUBATED FOR 30 S. GRIDS WERE WASHED TWICE WITH 4 MICROLITERS DISTILLED WATER, BLOTTED, AND VITRIFIED BY PLUNGING INTO LIQUID ETHANE WITH A MANUAL PLUNGER.
Resolution 9.70 Å
4X67 Crystal structure of elongating yeast RNA polymerase II stalled at oxidative Cyclopurine DNA lesions. Deposited 2014-12-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；390 mM (NH4)2HPO4/NaH2PO4, PH 5.9-6.3, 50 mM dioxane, 10 mM DTT, and 10.7% - 11.6% PEG6000
Resolution 4.10 Å R-free 0.289
4X6A Crystal structure of yeast RNA polymerase II encountering oxidative Cyclopurine DNA lesions Deposited 2014-12-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；390 mM (NH4)2HPO4/NaH2PO4, PH 5.9-6.3, 50 mM dioxane, 10 mM DTT, and 10.7% - 11.6% PEG6000
Resolution 3.96 Å R-free 0.296
4Y52 Crystal structure of 5-Carboxycytosine Recognition by RNA Polymerase II during Transcription Elongation. Deposited 2015-02-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；390 mM (NH4)2HPO4/NaH2PO4, 50 mM dioxane, 10 mM DTT, and 10.7-11.6%(w/v) PEG6000
Resolution 3.50 Å R-free 0.232
4Y7N The Structure Insight into 5-Carboxycytosine Recognition by RNA Polymerase II during Transcription Elongation. Deposited 2015-02-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；390 mM (NH4)2HPO4/NaH2PO4, pH 6.0, 50 mM dioxane, 10 mM DTT, and 10.7-11.6%(w/v) PEG6000
Resolution 3.30 Å R-free 0.250
5C3E Crystal structure of a transcribing RNA Polymerase II complex reveals a complete transcription bubble Deposited 2015-06-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；PEG 6000, Ammonium Acetate, Sodium Acetate, DTT
Resolution 3.70 Å R-free 0.220
5C44 Crystal structure of a transcribing RNA Polymerase II complex reveals a complete transcription bubble Deposited 2015-06-17 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；PEG 6000, Ammonium Acetate, Sodium Acetate, DTT
Resolution 3.95 Å R-free 0.236
5C4A Crystal structure of a transcribing RNA Polymerase II complex reveals a complete transcription bubble Deposited 2015-06-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；PEG 4000, POTASSIUM THIOCYANATE, MES, DTT
Resolution 4.20 Å R-free 0.242
5C4J Crystal structure of a transcribing RNA Polymerase II complex reveals a complete transcription bubble Deposited 2015-06-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；PEG 4000, SODIUM MALONATE, HEPES, DTT
Resolution 4.00 Å R-free 0.271
5C4X Crystal structure of a transcribing RNA Polymerase II complex reveals a complete transcription bubble Deposited 2015-06-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；PEG 4000, SODIUM CITRATE, MES, DTT
Resolution 4.00 Å R-free 0.227
5FMF the P-lobe of RNA polymerase II pre-initiation complex Deposited 2015-11-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 2 ZN ZINC ION × 9 ELECTRON MICROSCOPY
cryo-EM buffer 20 MM HEPES (PH7.6), 5 MM DTT, 2 MM MG(OAC)2,AND 40 MM KOAC；pH 7.6；20 MM HEPES (PH7.6), 5 MM DTT, 2 MM MG(OAC)2,AND 40 MM KOAC
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 100, TEMPERATURE- 120, INSTRUMENT- FEI VITROBOT MARK III,
Resolution 6.00 Å
5FYW Transcription initiation complex structures elucidate DNA opening (OC) Deposited 2016-03-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 150 MM POTASSIUM ACETATE, 2 MM MGCL2, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 150 MM POTASSIUM ACETATE, 2 MM MGCL2, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN - ETHANE. INSTRUMENT - FEI VITROBOT MARK IV. QUANTIFOIL R 3.5- 1 HOLEY CARBON GRIDS WERE GLOW-DISCHARGED BEFORE DEPOSITION OF 4.5 MICROLITERS OF SAMPLE. GRIDS WERE THEN BLOTTED FOR 8.5 S AND PLUNGE- FROZEN IN LIQUID ETHANE.
Resolution 4.35 Å
5FZ5 Transcription initiation complex structures elucidate DNA opening (CC) Deposited 2016-03-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 MM HEPES-KOH PH 7.5, 150 MM POTASSIUM ACETATE, 2 MM MGCL2, 5 MM DTT；pH 7.5；25 MM HEPES-KOH PH 7.5, 150 MM POTASSIUM ACETATE, 2 MM MGCL2, 5 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 8.80 Å
5IP7 Structure of RNA Polymerase II-Tfg1 peptide complex Deposited 2016-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 2–1733（1732 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；PEG 6000, sodium acetate, ammonium acetate, hepes, tcep
Resolution 3.52 Å R-free 0.180
5IP9 Structure of RNA Polymerase II-TFIIF complex Deposited 2016-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 2–1733（1732 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；peg 6000, sodium acetate, ammonium acetate, hepes, tcep
Resolution 3.90 Å R-free 0.194
5OQJ STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH Deposited 2017-08-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 29 PDB declaration: 31-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；GRIDS WERE BLOTTED FOR 8 S AND PLUNGE-FROZEN IN LIQUID ETHANE.
Resolution 4.70 Å
5OQM STRUCTURE OF YEAST TRANSCRIPTION PRE-INITIATION COMPLEX WITH TFIIH AND CORE MEDIATOR Deposited 2017-08-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 44 PDB declaration: 46-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 8 s and plunge-frozen in liquid ethane.
Resolution 5.80 Å
5OT2 RNA polymerase II elongation complex in the presence of 3d-Napht-A Deposited 2017-08-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 AHW 2-ethyl-7-methoxy-naphthalene × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；4-7% PEG 6000, 200 mM ammonium acetate, 300 mM sodium acetate, 50 mM HEPES pH 7.0, 5 mM TCEP
Resolution 3.20 Å R-free 0.222
5SVA Mediator-RNA Polymerase II Pre-Initiation Complex Deposited 2016-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain A 1–1733（1733 aa）
Chain k 1561–1585（25 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.30 Å
5U5Q 12 Subunit RNA Polymerase II at Room Temperature collected using SFX Deposited 2016-12-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 6.3；289.65 K；21-22% PEG 400, 5% PEG 5%, 100 mM Ammonium Phosphate pH 6.3, 100 mM NaCl, 1 mM ZnCl2 and 10 mM DTT
Resolution 3.80 Å R-free 0.271
5VKL SPT6 tSH2-RPB1 1476-1500 pS1493 Deposited 2017-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1476–1498（23 aa） Fragment：UNP residues 1476-1498
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；40% ethanol, 100 mM Tris pH 7.0
Resolution 2.20 Å R-free 0.243
5VKO SPT6 tSH2-RPB1 1468-1500 pT1471, pS1493 Deposited 2017-04-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1468–1500（33 aa） Fragment：UNP residues 1468-1500
Non-standard monomer：Yes (specific site not provided by mmCIF) IPA ISOPROPYL ALCOHOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% iso-Propanol, 0.1 M Na Hepes pH 7.5, 20% PEG 4000
Resolution 1.80 Å R-free 0.198
5VVR Ternary complex of RNA Pol II, transcription scaffold and Rad26 Deposited 2017-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.80 Å
5VVS RNA pol II elongation complex Deposited 2017-05-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5W4U Pol II elongation complex with an N6-methyladenine-containing template Deposited 2017-06-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 10-12.5% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.60 Å R-free 0.259
5W51 Pol II elongation complex with an N6-methyladenine-containing template and a matched UMPNPP Deposited 2017-06-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 2KH 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 10-12.5% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.40 Å R-free 0.254
6BLO Pol II elongation complex with an abasic lesion at i+1 position Deposited 2017-11-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-12% PEG6000
Resolution 3.40 Å R-free 0.227
6BLP Pol II elongation complex with an abasic lesion at i+1 position, soaking AMPCPP Deposited 2017-11-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-12% PEG6000
Resolution 3.20 Å R-free 0.257
6BM2 Pol II elongation complex with an abasic lesion at i-1 position Deposited 2017-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-12% PEG6000
Resolution 3.40 Å R-free 0.244
6BM4 Pol II elongation complex with an abasic lesion at i-1 position,soaking UMPNPP Deposited 2017-11-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 2KH 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-12% PEG6000
Resolution 2.95 Å R-free 0.260
6BQF Pol II elongation complex with 'dT-AP' at i+1, i-1 position Deposited 2017-11-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 50mM dioxane, 10mM DTT, 9-12% PEG6000
Resolution 3.35 Å R-free 0.245
6GYK Structure of a yeast closed complex (core CC1) Deposited 2018-06-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
6GYL Structure of a yeast closed complex with distorted DNA (core CCdist) Deposited 2018-06-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6GYM Structure of a yeast closed complex with distorted DNA (CCdist) Deposited 2018-06-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 29 PDB declaration: 31-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 16 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.70 Å
6I84 Structure of transcribing RNA polymerase II-nucleosome complex Deposited 2018-11-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: 23-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
6O6C RNA polymerase II elongation complex arrested at a CPD lesion Deposited 2019-03-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；The sample was manually wicked from the grid. 1.2 uL sample buffer was then applied to the streptavidin side. The grid was then blotted.
Resolution 3.10 Å
6UPX RNA polymerase II elongation complex with 5-guanidinohydantoin lesion in state 1 Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.40 Å R-free 0.266
6UPY RNA polymerase II elongation complex with 5-guanidinohydantoin lesion in state 2E Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.40 Å R-free 0.282
6UPZ RNA polymerase II elongation complex with 5-guanidinohydantoin lesion in state 3 Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 PPV PYROPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.10 Å R-free 0.269
6UQ0 RNA polymerase II elongation complex with 5-guanidinohydantoin lesion in state 4 Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.56 Å R-free 0.278
6UQ1 RNA polymerase II elongation complex with 5-guanidinohydantoin lesion in state 6 Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.60 Å R-free 0.287
6UQ2 RNA polymerase II elongation complex with dG in state 1 Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.20 Å R-free 0.280
6UQ3 RNA polymerase II elongation complex with 5-guanidinohydantoin lesion in state 5 Deposited 2019-10-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 PPV PYROPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.47 Å R-free 0.286
7KED RNA polymerase II elongation complex with unnatural base dTPT3 Deposited 2020-10-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.60 Å R-free 0.305
7KEE RNA polymerase II elongation complex with unnatural base dTPT3, rNaMTP bound to E-site Deposited 2020-10-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 WCG (1S)-1,4-anhydro-5-O-[(R)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]oxy}phosphoryl]-1-(3-methoxynaphthalen-2-yl)-D-ribitol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.45 Å R-free 0.302
7KEF RNA polymerase II elongation complex with unnatural base dTPT3, rNaM in swing state Deposited 2020-10-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 WC4 (1S)-1,4-anhydro-1-(3-methoxynaphthalen-2-yl)-5-O-phosphono-D-ribitol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.89 Å R-free 0.326
7NKX RNA polymerase II-Spt4/5-nucleosome-Chd1 structure Deposited 2021-02-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7NKY RNA Polymerase II-Spt4/5-nucleosome-FACT structure Deposited 2021-02-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 27-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7O4I Yeast RNA polymerase II transcription pre-initiation complex with initial transcription bubble Deposited 2021-04-06 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7O4J Yeast RNA polymerase II transcription pre-initiation complex (consensus) Deposited 2021-04-06 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7O4K Yeast TFIIH in the contracted state within the pre-initiation complex Deposited 2021-04-06 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 10 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7O4L Yeast TFIIH in the expanded state within the pre-initiation complex Deposited 2021-04-06 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 11 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7O72 Yeast RNA polymerase II transcription pre-initiation complex with closed promoter DNA Deposited 2021-04-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7O73 Yeast RNA polymerase II transcription pre-initiation complex with closed distorted promoter DNA Deposited 2021-04-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7O75 Yeast RNA polymerase II transcription pre-initiation complex with open promoter DNA Deposited 2021-04-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7RIM RNA polymerase II elongation complex with hairpin polyamide Py-Im 1, scaffold 1 Deposited 2021-07-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded 5N0 3-({3-[(3-{[4-({4-[(4-{[4-({(2R)-2-amino-4-[(1-methyl-4-{[1-methyl-4-({1-methyl-4-[(1-methyl-1H-imidazole-2-carbonyl)amino]-1H-imidazole-2-carbonyl}amino)-1H-pyrrole-2-carbonyl]amino}-1H-pyrrole-2-carbonyl)amino]butanoyl}amino)-1-methyl-1H-imidazole-2-carbonyl]amino}-1-methyl-1H-pyrrole-2-carbonyl)amino]-1-methyl-1H-pyrrole-2-carbonyl}amino)-1-methyl-1H-pyrrole-2-carbonyl]amino}propyl)(methyl)amino]propyl}carbamoyl)benzoic acid × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 2.90 Å R-free 0.251
7RIP RNA polymerase II elongation complex with hairpin polyamide Py-Im 1, scaffold 1 soaked with CTP Deposited 2021-07-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 5N0 3-({3-[(3-{[4-({4-[(4-{[4-({(2R)-2-amino-4-[(1-methyl-4-{[1-methyl-4-({1-methyl-4-[(1-methyl-1H-imidazole-2-carbonyl)amino]-1H-imidazole-2-carbonyl}amino)-1H-pyrrole-2-carbonyl]amino}-1H-pyrrole-2-carbonyl)amino]butanoyl}amino)-1-methyl-1H-imidazole-2-carbonyl]amino}-1-methyl-1H-pyrrole-2-carbonyl)amino]-1-methyl-1H-pyrrole-2-carbonyl}amino)-1-methyl-1H-pyrrole-2-carbonyl]amino}propyl)(methyl)amino]propyl}carbamoyl)benzoic acid × 1 ZN ZINC ION × 8 PPV PYROPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.30 Å R-free 0.261
7RIQ RNA polymerase II elongation complex scaffold 1 without polyamide Deposited 2021-07-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.00 Å R-free 0.264
7RIW RNA polymerase II elongation complex scaffold 2, without polyamide Deposited 2021-07-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.20 Å R-free 0.265
7RIX RNA polymerase II elongation complex with hairpin polyamide Py-Im 1, scaffold 2 Deposited 2021-07-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 5N0 3-({3-[(3-{[4-({4-[(4-{[4-({(2R)-2-amino-4-[(1-methyl-4-{[1-methyl-4-({1-methyl-4-[(1-methyl-1H-imidazole-2-carbonyl)amino]-1H-imidazole-2-carbonyl}amino)-1H-pyrrole-2-carbonyl]amino}-1H-pyrrole-2-carbonyl)amino]butanoyl}amino)-1-methyl-1H-imidazole-2-carbonyl]amino}-1-methyl-1H-pyrrole-2-carbonyl)amino]-1-methyl-1H-pyrrole-2-carbonyl}amino)-1-methyl-1H-pyrrole-2-carbonyl]amino}propyl)(methyl)amino]propyl}carbamoyl)benzoic acid × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.40 Å R-free 0.268
7RIY RNA polymerase II elongation complex with hairpin polyamide Py-Im 1, scaffold 2 soaked with UTP Deposited 2021-07-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 5N0 3-({3-[(3-{[4-({4-[(4-{[4-({(2R)-2-amino-4-[(1-methyl-4-{[1-methyl-4-({1-methyl-4-[(1-methyl-1H-imidazole-2-carbonyl)amino]-1H-imidazole-2-carbonyl}amino)-1H-pyrrole-2-carbonyl]amino}-1H-pyrrole-2-carbonyl)amino]butanoyl}amino)-1-methyl-1H-imidazole-2-carbonyl]amino}-1-methyl-1H-pyrrole-2-carbonyl)amino]-1-methyl-1H-pyrrole-2-carbonyl}amino)-1-methyl-1H-pyrrole-2-carbonyl]amino}propyl)(methyl)amino]propyl}carbamoyl)benzoic acid × 1 ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.70 Å R-free 0.281
7UI9 Core Mediator-PICearly (Copy A) Deposited 2022-03-28 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain A 1–1453（1453 aa）
Chain z 1561–1585（25 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7UIF Mediator-PIC Early (Core B) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain A 1–1733（1733 aa）
Chain z 1–1733（1733 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7UIO Mediator-PIC Early (Composite Model) Deposited 2022-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 78 PDB declaration: 80-meric
Chain AA 1–1453（1453 aa）
Chain Az 1561–1585（25 aa）
Chain BA 1–1453（1453 aa）
Chain Bz 1561–1585（25 aa）
Not recorded ZN ZINC ION × 4 THR THREONINE × 1 ALA ALANINE × 1 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7ZS9 Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome (complex A) Deposited 2022-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7ZSA Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome and NTP (complex B) Deposited 2022-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7ZSB Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome and NTP, complex C Deposited 2022-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
8CEN Yeast RNA polymerase II transcription pre-initiation complex with core Mediator Deposited 2023-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 44 PDB declaration: 46-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8CEO Yeast RNA polymerase II transcription pre-initiation complex with core Mediator and the +1 nucleosome Deposited 2023-02-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 52 PDB declaration: 54-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8JCH Cryo-EM structure of yeast Rat1-bound Pol II pre-termination transcription complex 1 (Pol II Rat1-PTTC1) Deposited 2023-05-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: 18-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8K5P Cryo-EM structure of yeast Rat1-bound Pol II pre-termination transcription complex 2 (Pol II Rat1-PTTC2) Deposited 2023-07-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: 18-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8RAM Structure of Sen1 bound RNA Polymerase II pre-termination complex Deposited 2023-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: 19-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8RAP Structure of Sen1-ADP.BeF3 bound RNA Polymerase II pre-termination complex Deposited 2023-12-01 Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: 19-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8TUG Cryo-EM structure of CPD-stalled Pol II in complex with Rad26 (engaged state) Deposited 2023-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: 16-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8TVP Cryo-EM structure of CPD-stalled Pol II in complex with Rad26 (open state) Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: 16-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8TVQ Cryo-EM structure of CPD stalled 10-subunit Pol II in complex with Rad26 Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: 14-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8TVV Cryo-EM structure of backtracked Pol II Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: 15-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8TVW Cryo-EM structure of CPD-stalled Pol II (conformation 1) Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: 15-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8TVX Cryo-EM structure of CPD-stalled Pol II (Conformation 2) Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: 15-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8TVY Cryo-EM structure of CPD lesion containing RNA Polymerase II elongation complex with Rad26 and Elf1 (closed state) Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: 17-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8U9R STRUCTURAL BASIS OF TRANSCRIPTION: RNA POLYMERASE II SUBSTRATE BINDING AND METAL COORDINATION USING A FREE-ELECTRON LASER Deposited 2023-09-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 GOL GLYCEROL × 1 MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；10-15 % tacsimate 100mM Hepes pH 7.5
Resolution 3.34 Å R-free 0.261
8U9X STRUCTURAL BASIS OF TRANSCRIPTION: RNA POLYMERASE II SUBSTRATE BINDING AND METAL COORDINATION AT 3.0 A OF T834P MUTANT USING A FREE-ELECTRON LASER Deposited 2023-09-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；289 K；10-15 % tacsimate 100mM Hepes
Resolution 3.05 Å R-free 0.307
8UKQ RNA polymerase II elongation complex with Fapy-dG lesion in apo state Deposited 2023-10-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: 13-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；390 mM ammonium phosphate (pH 6.0), 5 mM DTT, 5 mM dioxane, and 9-13 % (w/v) PEG 6,000
Resolution 3.50 Å R-free 0.302
8UKR RNA polymerase II elongation complex with Fapy-dG lesion soaking with ATP before chemistry Deposited 2023-10-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；390 mM ammonium phosphate (pH 6.0), 5 mM DTT, 5 mM dioxane, and 9-13% (w/v) PEG 6,000
Resolution 3.78 Å R-free 0.310
8UKS RNA polymerase II elongation complex with Fapy-dG lesion soaking with CTP before chemistry Deposited 2023-10-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 2 ZN ZINC ION × 8 CTP CYTIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；390 mM ammonium phosphate (pH 6.0), 5 mM DTT, 5 mM dioxane, and 9-13% (w/v) PEG 6,000
Resolution 3.40 Å R-free 0.301
8UKT RNA polymerase II elongation complex with Fapy-dG lesion with AMP added Deposited 2023-10-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: 13-meric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 POP PYROPHOSPHATE 2- × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；390 mM ammonium phosphate (pH 6.0), 5 mM DTT, 5 mM dioxane, and 9-13% (w/v) PEG 6,000
Resolution 3.60 Å R-free 0.289
8UKU RNA polymerase II elongation complex with Fapy-dG lesion with CMP added Deposited 2023-10-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；390 mM ammonium phosphate (pH 6.0), 5 mM DTT, 5 mM dioxane, and 9-13% (w/v) PEG 6,000
Resolution 3.60 Å R-free 0.301
8UOQ Composite map of PIC_delta_TFIIK form2 Deposited 2023-10-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 15 MG MAGNESIUM ION × 2 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8UOT Composite map of PICdeltaTFIIK form1 Deposited 2023-10-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 30-meric
Chain A 1–1733（1733 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 15 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM HEPES PH 7.6 50 mM KOAc 5 mM DTT 2 mM MgOAc
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9BVT RNA Pol II - High Mn(+2) concentration Deposited 2024-05-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MN MANGANESE (II) ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Tacsimate Hepes
Resolution 3.40 Å R-free 0.249
9BW0 RNA Polymerase II - No ATP Deposited 2024-05-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Tacsimate, Hepes pH 7.0
Resolution 3.51 Å R-free 0.246
9JA1 The RNA polymerase II elongation complex from Saccharomyces cerevisiae Deposited 2024-08-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: tetradecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 6 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.98 Å
9K7F RNA polymerase II elongation complex apo structure. Deposited 2024-10-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9KD7 The structure of RNA polymerase II elongation complex paused at N-1 state by actinomycin D. Deposited 2024-11-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
9KD8 The structure of RNA polymerase II elongation complex paused at N-2 state by actinomycin D. Deposited 2024-11-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
9KD9 The structure of RNA polymerase II elongation complex paused at N-5 state by actinomycin D. Deposited 2024-11-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9KDN The structure of 1 ACTD bound to RNA polymerase II elongation complex with 2 CTG repeats. Deposited 2024-11-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.96 Å
9KDO The structure of 2 ACTD bound to RNA polymerase II elongation complex with 3 CTG repeats Deposited 2024-11-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: heptadecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
9KDQ The structure of 3 ACTD bound to RNA polymerase II elongation complex with 4 CTG repeats. Deposited 2024-11-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: octadecameric
Chain A 1–1454（1454 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.63 Å
9N5B RNA polymerase II elongation complex containing 8-oxoG at +1 site, apo form Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.10 Å R-free 0.256
9N5C RNA polymerase II elongation complex with 8-oxoG at +1 site, CMPCPP-bound Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 2TM 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]methyl}phosphoryl]cytidine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.60 Å R-free 0.297
9N5D RNA polymerase II elongation complex with 8-oxoG at +1 site, CMP added Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 PPV PYROPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.35 Å R-free 0.300
9N5E RNA polymerase II elongation complex with 8-oxoG at +1 site, AMPCPP in E-site Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.75 Å R-free 0.291
9N5F RNA polymerase II elongation complex with 8-oxoG in syn-conformation with added AMP Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.60 Å R-free 0.281
9N5G RNA polymerase II elongation complex with 8-oxoG at +1 site, ATP in both A- and E-site Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；390mM (NH4)2HPO4/NaH2PO4, pH 6.5, 5mM dioxane, 5mM DTT, 10-12% PEG6000
Resolution 3.15 Å R-free 0.254
9PVV RNA polymerase II elongation complex with dC at +1 site, 8-oxo-GTP bound in A-site. Deposited 2025-08-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.48 Å R-free 0.258
9PVW RNA polymerase II elongation complex with dA at +1 site, 8-oxo-GMP added in Syn-conformation Deposited 2025-08-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.56 Å R-free 0.288
9PVX RNA polymerase II elongation complex with dA at +1 site, 8-oxo-GTP bound in E-site. Deposited 2025-08-03 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric
Chain A 1–1733（1733 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.39 Å R-free 0.236
9QEB CryoEM structure of transcribing RNA polymerase II elongation complex Deposited 2025-03-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: 15-meric
Chain A 1–1733（1733 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
9RYB CryoEM structure of transcribing RNA polymerase II elongation complex in post-catalysis state Deposited 2025-07-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–1733（1733 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 K POTASSIUM ION × 1 DPO DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å

211 other PDB entries and 218 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RPB1_YEAST
Isoform —
PDB entities 17
Chains and sequence ranges Author chain z； PDBConstruct 1–1733； UniProt 1–1733

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7uig

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7uig
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7uig
Deposition date deposition_date2022-03-29
Structure title titleMediator-PIC Early (Mediator A)
Keywords keywords;Divergent transcription, Mediator, RNA Polymerase II, PIC, Pre-Initiation, Activation, Transcription Factor, Gal4, Gal4VP16, TRANSCRIPTION ;; TRANSCRIPTION
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier79.48 Å
Radius of gyration Rg (electron density) rg_electron79.77 Å
Forward intensity I(0) i02037280000.00
Molecular weight molecular_weight391860.0 kDa
Excluded volume excluded_volume495070 ų
Envelope volume envelope_volume965030 ų
Hydration-shell volume shell_volume107180 ų
Envelope diameter envelope_diameter290.5 Å
Shell Rg shell_rg71.05 Å
Envelope Rg envelope_rg76.44 Å
Shape Rg shape_rg79.80 Å
Total Rg total_rg79.53 Å
Total atoms total_atoms27580
Residues n_residues3390
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax267.6 Å
Rg (real space) rg_real83.38 Å
Rg uncertainty (real space) rg_real_error1.48 Å
I(0) (real space) i0_real2.0400e+09
I(0) uncertainty (real space) i0_real_error4.5540e+07
Rg (reciprocal space) rg_reciprocal77.99 Å
I(0) (reciprocal space) i0_reciprocal2029000000.0000
Solution quality estimate total_estimate0.8850
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary80.3 Å
Skewness Skewness skewness0.429
Kurtosis Kurtosis kurtosis-0.392
Angular range angular_range— – 0.1000 Å−1
Current regularization parameter α current_alpha1.5820
Highest regularization parameter α highest_alpha85500000.0000
Real-space data points n_real_points21
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.960; Stabil: 0.856; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.087
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (17)

▶

8. Citations (1)

▶

9. Files and Curves (10)
