4odn

Structure of SlyD from Thermus thermophilus in complex with S2-plus peptide

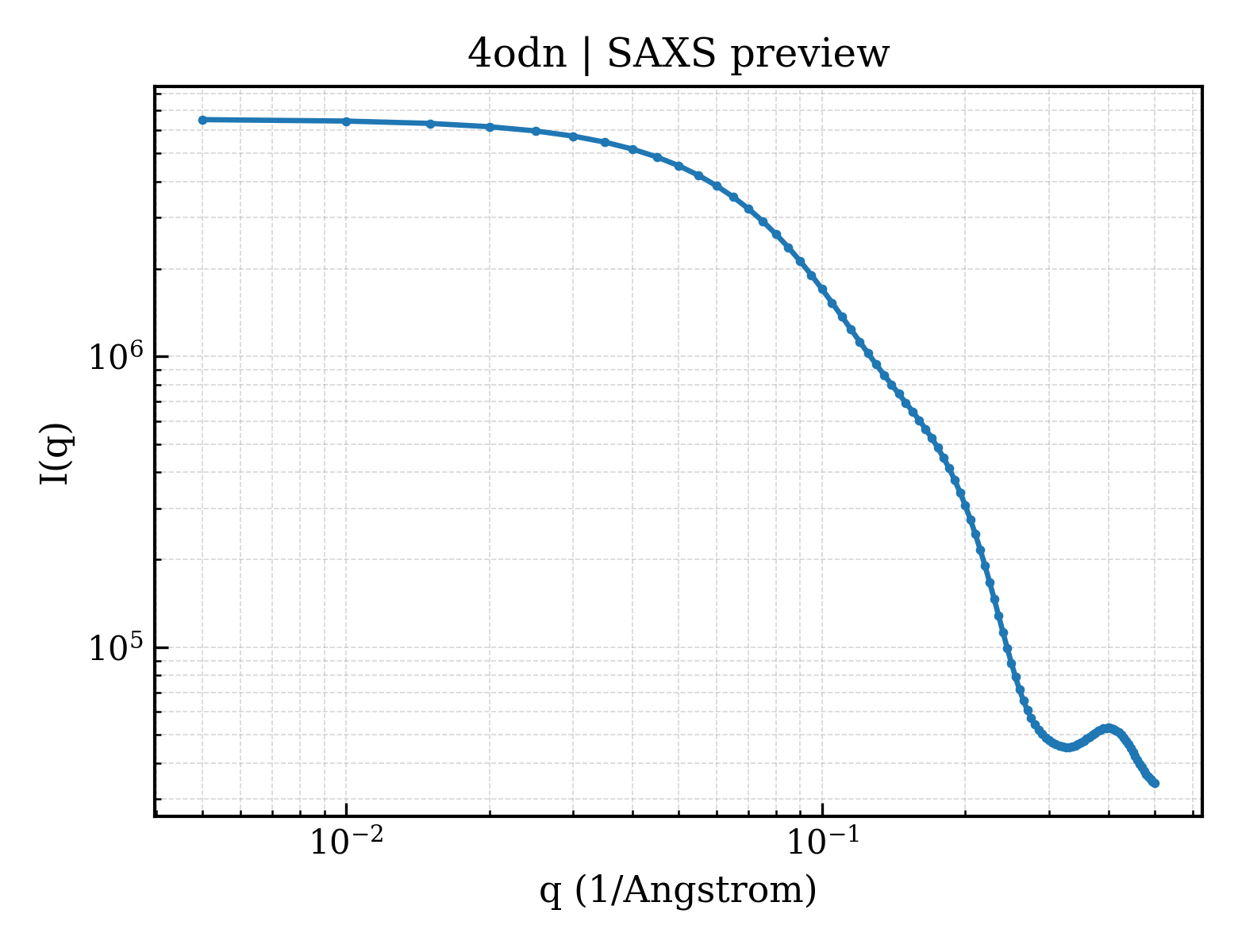

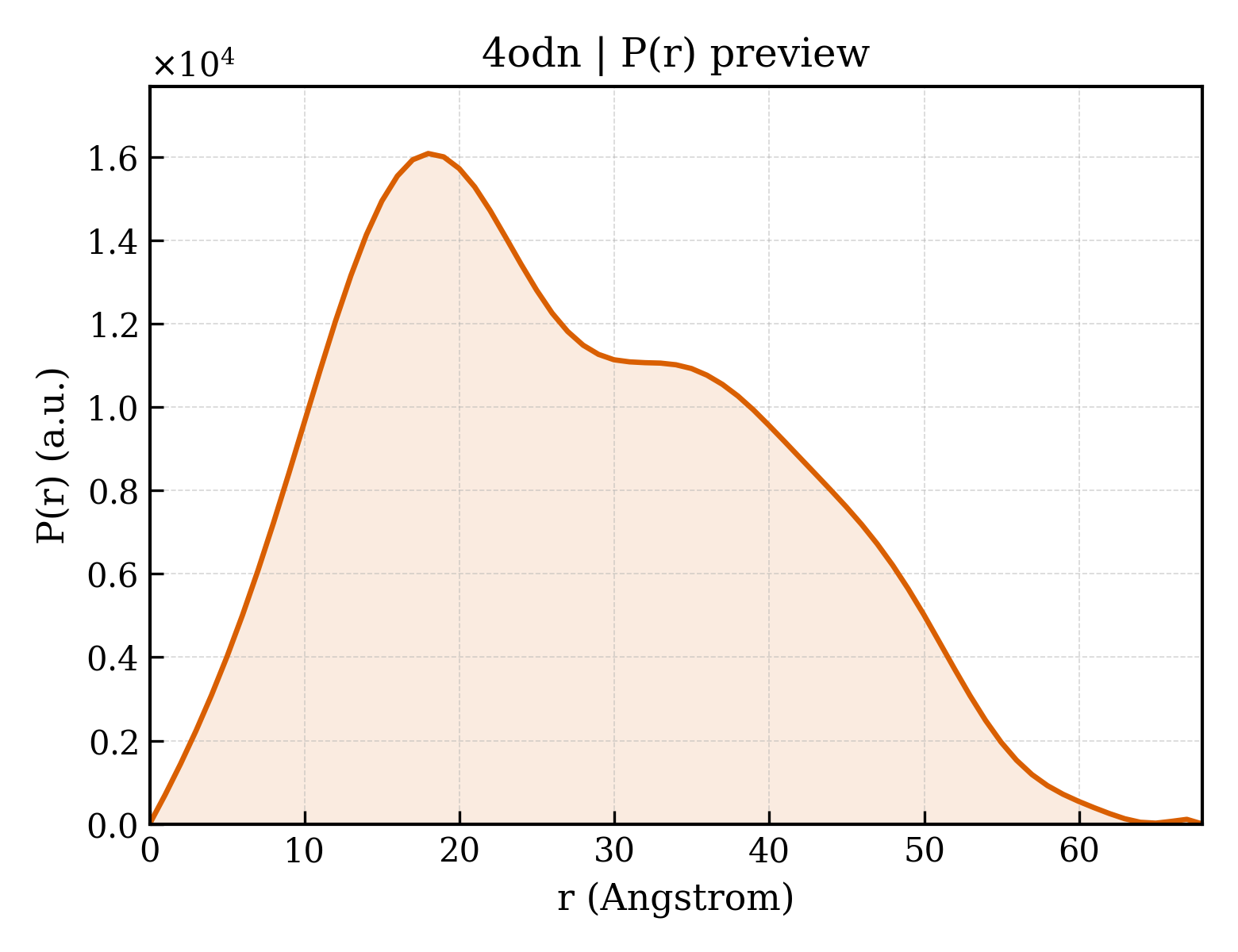

Method: X-RAY DIFFRACTION Dmax: 67.9 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Peptidyl-prolyl cis-trans isomerase SlyD

Thermus thermophilus

UniProt Q5SLE7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–149 Not recorded 30S ribosomal protein S2 × 1 （P0A7V0） SO4 SULFATE ION × 3 GOL GLYCEROL × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20% PEG6000, 0.1 M citric acid, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 1.60 Å R-free 0.198

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4ODN Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3CGM Crystal structure of thermophilic SlyD Deposited 2008-03-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–149（149 aa）
Not recorded SCN THIOCYANATE ION × 6 NI NICKEL (II) ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；286 K；60mg/ml protein, 1:1 mixing, 2M Ammonium sulfate, 2% PEG 400, 1% Thiocyanate, 100mM HEPES, pH7.5, VAPOR DIFFUSION, HANGING DROP, temperature 286K
Resolution 2.41 Å R-free 0.226
3CGM Crystal structure of thermophilic SlyD Deposited 2008-03-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–149（149 aa）
Not recorded SCN THIOCYANATE ION × 36 NI NICKEL (II) ION × 6 GOL GLYCEROL × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；286 K；60mg/ml protein, 1:1 mixing, 2M Ammonium sulfate, 2% PEG 400, 1% Thiocyanate, 100mM HEPES, pH7.5, VAPOR DIFFUSION, HANGING DROP, temperature 286K
Resolution 2.41 Å R-free 0.226
3CGN Crystal Structure of thermophilic SlyD Deposited 2008-03-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–149（149 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；286 K；100mM MES, pH6.5, 1.6M Na/K-Tartrate, 26mg/ml, 1:1 mixing, VAPOR DIFFUSION, HANGING DROP, temperature 286K
Resolution 2.70 Å R-free 0.257
3CGN Crystal Structure of thermophilic SlyD Deposited 2008-03-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–149（149 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；286 K；100mM MES, pH6.5, 1.6M Na/K-Tartrate, 26mg/ml, 1:1 mixing, VAPOR DIFFUSION, HANGING DROP, temperature 286K
Resolution 2.70 Å R-free 0.257
3LUO Crystal Structure and functional characterization of the thermophilic prolyl isomerase and chaperone SlyD Deposited 2010-02-18 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–149（149 aa）
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；10MG/ML N-SUC-ALA-LEU-PRO-PHE-PNA, 2M AMMONIUM SULFATE, 5 % PEG 400, 100MM MES, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.55 Å R-free 0.235
3LUO Crystal Structure and functional characterization of the thermophilic prolyl isomerase and chaperone SlyD Deposited 2010-02-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–149（149 aa）
Not recorded ZN ZINC ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；10MG/ML N-SUC-ALA-LEU-PRO-PHE-PNA, 2M AMMONIUM SULFATE, 5 % PEG 400, 100MM MES, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.55 Å R-free 0.235
4ODK Structure of SlyD from Thermus thermophilus in complex with T1 peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；13.2% PEG1500, 0.1 M HEPES, pH 7.5, 0.05 M sodium chloride, 11% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.40 Å R-free 0.167
4ODL Structure of SlyD from Thermus thermophilus in complex with S2 peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；20% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.92 Å R-free 0.224
4ODL Structure of SlyD from Thermus thermophilus in complex with S2 peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；20% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.92 Å R-free 0.224
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 ACT ACETATE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODO Structure of SlyD from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–149（149 aa）
Not recorded MG MAGNESIUM ION × 3 CL CHLORIDE ION × 1 FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M magnesium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.204
4ODO Structure of SlyD from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M magnesium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.204
4ODO Structure of SlyD from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–149（149 aa）
Not recorded MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M magnesium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.204
4ODP Structure of SlyD delta-IF from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–64（64 aa） Fragment：SEE REMARK 999
Chain A 126–149（24 aa） Fragment：SEE REMARK 999
Not recorded CL CHLORIDE ION × 1 CA CALCIUM ION × 4 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；28% PEG400, 0.1 M HEPES, pH 7.5, 0.2 M calcium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.202
4ODQ Structure of SlyD delta-IF from Thermus thermophilus in complex with S3 peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–64（64 aa） Fragment：SEE REMARK 999
Chain A 126–149（24 aa） Fragment：SEE REMARK 999
Not recorded CL CHLORIDE ION × 1 CA CALCIUM ION × 4 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；25% PEG6000, 0.1 M Tris-HCl, pH 8.0, 0.2 M calcium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.00 Å R-free 0.213
4ODR Structure of SlyD delta-IF from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–64（64 aa） Fragment：SEE REMARK 999
Chain A 126–149（24 aa） Fragment：SEE REMARK 999
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ZN ZINC ION × 2 CL CHLORIDE ION × 1 GOL GLYCEROL × 4 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20% PEG6000, 0.1 M sodium acetate, pH 5.0, 0.2 M zinc chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.93 Å R-free 0.170
4ODR Structure of SlyD delta-IF from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–64（64 aa） Fragment：SEE REMARK 999
Chain B 126–149（24 aa） Fragment：SEE REMARK 999
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20% PEG6000, 0.1 M sodium acetate, pH 5.0, 0.2 M zinc chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.93 Å R-free 0.170
7OXG ttSlyD FKBP domain with M8A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–64（64 aa）
Chain A 126–149（24 aa）
Mutation：Deletion of IF domain Mutation：Deletion of IF domain CL CHLORIDE ION × 1 IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 5.5；292.15 K；Bis-Tris, PEG 3350
Resolution 2.00 Å R-free 0.247
7OXG ttSlyD FKBP domain with M8A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–64（64 aa）
Chain B 126–149（24 aa）
Mutation：Deletion of IF domain Mutation：Deletion of IF domain CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 5.5；292.15 K；Bis-Tris, PEG 3350
Resolution 2.00 Å R-free 0.247
7OXH ttSlyD with pseudo-wild-type S2 peptide Deposited 2021-06-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 NI NICKEL (II) ION × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 6.5；292.15 K；Sodium cacodylate, PEG 200
Resolution 1.70 Å R-free 0.238
7OXI ttSlyD with W4A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 6.5；292.15 K；sodium cacodylate, MPD, PEG8000
Resolution 2.60 Å R-free 0.245
7OXJ ttSlyD with M8A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded NI NICKEL (II) ION × 1 PGE TRIETHYLENE GLYCOL × 2 PG4 TETRAETHYLENE GLYCOL × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；292.15 K；Sodium cacodylate, PEG 200
Resolution 1.85 Å R-free 0.224
7OXK ttSlyD with W4K pseudo-wild-type S2 peptide Deposited 2021-06-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–149（149 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 9；292.15 K；1-4dioxane, bicine, PEG 20000
Resolution 2.80 Å R-free 0.235

15 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q5SLE7_THET8
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–149； UniProt 1–149

30S ribosomal protein S2

OrganismNot specified

UniProt P0A7V0

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 26–41 Fragment：S2-plus peptide (UNP residues 26-41) Mutation：I41Y Non-standard monomer：Yes (specific site not provided by mmCIF) Peptidyl-prolyl cis-trans isomerase SlyD × 1 （Q5SLE7） SO4 SULFATE ION × 3 GOL GLYCEROL × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20% PEG6000, 0.1 M citric acid, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 1.60 Å R-free 0.198

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4ODN Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
10FZ 30S ribosomal subunit from E. coli missing the gene encoding for the 16S rRNA 2'-O-methyltransferase RsmI Deposited 2026-01-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 21-meric
Chain B 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 77 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；10 mM HEPES, 10 mM MgCl2, 100 mM NH4Cl, 6 mM Beta-mercaptoethanol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
11BQ Escherichia coli 70S ribosome containing an evolved 16S rRNA (EC-S3.5) Deposited 2026-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 53-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 307 SPD SPERMIDINE × 14 SPM SPERMINE × 1 C CYTIDINE-5'-MONOPHOSPHATE × 1 G GUANOSINE-5'-MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
11DG Chimeric Escherichia coli 70S ribosome containing an evolved Vibrio cholerae 16S rRNA (VC-S4.4) Deposited 2026-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 53-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 272 SPD SPERMIDINE × 14 SPM SPERMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
11EL Chimeric Escherichia coli 70S ribosome containing an evolved 16S rRNA from Vibrio cholerae (VC-ST) Deposited 2026-02-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 53-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 308 SPD SPERMIDINE × 16 SPM SPERMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
11FV Chimeric Escherichia coli 70S ribosome containing an evolved 16S rRNA from Pseudomonas aeruginosa (PA-S3.3) Deposited 2026-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain D 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 307 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
11GG Chimeric Escherichia coli 70S ribosome containing an evolved 16S rRNA from Pseudomonas aeruginosa (PA-ST) Deposited 2026-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain D 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 307 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.02 Å
28UH E. coli 70S ribosome, trapped conformational ground state of SSU-h44 apical loop, with A/P- and P/E-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 274 K POTASSIUM ION × 65 SCM SPECTINOMYCIN × 1 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å
28UI E. coli 70S ribosome, trapped conformational excited state of SSU-h44 apical loop, with A- and P-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 SCM SPECTINOMYCIN × 1 MG MAGNESIUM ION × 270 VAL VALINE × 1 K POTASSIUM ION × 11 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.10 Å
28UJ E. coli 70S ribosome, trapped conformational excited state of SSU-h44 apical loop, with A/P- and P/E-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 251 SCM SPECTINOMYCIN × 1 K POTASSIUM ION × 47 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.16 Å
28UK E. coli 70S ribosome, conformational ground state mutation in SSU-h41, with A- and P-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 227 K POTASSIUM ION × 74 SCM SPECTINOMYCIN × 1 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.24 Å
28UL E. coli 70S ribosome, conformational ground state mutation in SSU-h41, with A/P- and P/E-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 212 K POTASSIUM ION × 77 SCM SPECTINOMYCIN × 1 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
28UM E. coli 70S ribosome, conformational excited state mutation in SSU-h41, with A- and P-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 238 K POTASSIUM ION × 109 SCM SPECTINOMYCIN × 1 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.15 Å
28UN E. coli 70S ribosome, conformational excited state mutation in SSU-h41, with A/P- and P/E-site tRNA Deposited 2026-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 183 K POTASSIUM ION × 65 SCM SPECTINOMYCIN × 1 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.48 Å
30RA E. coli 70S ribosome with peptidyl-tRNA, mRNA and Hsp15 Deposited 2026-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 281 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.78 Å
30RB E. coli 70S ribosome with peptidyl-tRNA and Hsp15 Deposited 2026-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 53-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 1 MG MAGNESIUM ION × 210 K POTASSIUM ION × 2 ASP ASPARTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
3J9Y Cryo-EM structure of tetracycline resistance protein TetM bound to a translating E.coli ribosome Deposited 2015-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain b 1–240（240 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 mM HEPES-KOH, 100 mM KOAc, 25 mM Mg(OAc)2, 6 mM b-mercaptoethanol；pH 7.4；50 mM HEPES-KOH, 100 mM KOAc, 25 mM Mg(OAc)2, 6 mM b-mercaptoethanol
cryo-EM vitrification conditions Cryogen ETHANE；Plunged into liquid ethane (FEI VITROBOT MARK IV)
Resolution 3.90 Å
3J9Z Activation of GTP Hydrolysis in mRNA-tRNA Translocation by Elongation Factor G Deposited 2015-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain SB 2–241（240 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions 93 K；Cryogen ETHANE；Plunged into liquid ethane (FEI VITROBOT MARK IV)
Resolution 3.60 Å
3JA1 Activation of GTP Hydrolysis in mRNA-tRNA Translocation by Elongation Factor G Deposited 2015-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain SB 2–241（240 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions 93 K；Cryogen ETHANE；Plunged into liquid ethane (FEI VITROBOT MARK IV)
Resolution 3.60 Å
3JBU Mechanisms of Ribosome Stalling by SecM at Multiple Elongation Steps Deposited 2015-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20mM HEPES, 50mM KOAc, 6mM Mg(OAc)2, 1mM DTT, 500 ug/ml chloramphenicol, 0.05% Nikkol, 0.5% pill/ml Complete EDTA-free Protease inhibitor cocktail, 0.1U/ml RNasin and 125mM sucrose；pH 7；20mM HEPES, 50mM KOAc, 6mM Mg(OAc)2, 1mM DTT, 500 ug/ml chloramphenicol, 0.05% Nikkol, 0.5% pill/ml Complete EDTA-free Protease inhibitor cocktail, 0.1U/ml RNasin and 125mM sucrose
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.64 Å
3JBV Mechanisms of Ribosome Stalling by SecM at Multiple Elongation Steps Deposited 2015-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded CLM CHLORAMPHENICOL × 1 ELECTRON MICROSCOPY
cryo-EM buffer 20mM HEPES, 50mM KOAc, 6mM Mg(OAc)2, 1mM DTT, 500 ug/ml chloramphenicol,0.05% Nikkol,0.5% pill/ml Complete EDTA-free Protease inhibitor cocktail,0.1 U/ml RNasin and 125mM sucrose；pH 7；20mM HEPES, 50mM KOAc, 6mM Mg(OAc)2, 1mM DTT, 500 ug/ml chloramphenicol,0.05% Nikkol,0.5% pill/ml Complete EDTA-free Protease inhibitor cocktail,0.1 U/ml RNasin and 125mM sucrose
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
3JCD Structure of Escherichia coli EF4 in posttranslocational ribosomes (Post EF4) Deposited 2015-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain b 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
3JCE Structure of Escherichia coli EF4 in pretranslocational ribosomes (Pre EF4) Deposited 2015-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain b 1–241（241 aa）
Not recorded PHE PHENYLALANINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
3JCJ Structures of ribosome-bound initiation factor 2 reveal the mechanism of subunit association Deposited 2015-12-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain j 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 195 ZN ZINC ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 20 mM HEPES-KOH, pH 7.5, 15 mM magnesium acetate, 150 mM potassium acetate, 4 mM 2-mercapthoethanol, 2 mM spermidine, 0.05 mM spermine；pH 7.5；20 mM HEPES-KOH, pH 7.5, 15 mM magnesium acetate, 150 mM potassium acetate, 4 mM 2-mercapthoethanol, 2 mM spermidine, 0.05 mM spermine
cryo-EM vitrification conditions Blot for 2-4 seconds before plunging；Cryogen ETHANE；Blot for 2-4 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 3.70 Å
3JCN Structures of ribosome-bound initiation factor 2 reveal the mechanism of subunit association: Initiation Complex I Deposited 2016-01-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain d 1–241（241 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 20 mM HEPES-KOH, pH 7.5, 15 mM magnesium acetate, 150 mM potassium acetate, 4 mM 2-mercapthoethanol, 2 mM spermidine, 0.05 mM spermine；pH 7.5；20 mM HEPES-KOH, pH 7.5, 15 mM magnesium acetate, 150 mM potassium acetate, 4 mM 2-mercapthoethanol, 2 mM spermidine, 0.05 mM spermine
cryo-EM vitrification conditions Blot for 2-4 seconds before plunging；Cryogen ETHANE；Blot for 2-4 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).
Resolution 4.60 Å
4A2I Cryo-electron Microscopy Structure of the 30S Subunit in Complex with the YjeQ Biogenesis Factor Deposited 2011-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain B 9–225（217 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 10 MM TRIS-HCL PH 7.5, 10 MM MAGNESIUM ACETATE, 60 MM NH4CL, 3 MM 2- MERCAPTOETHANOL AND 2 MM GMP-PNP；pH 7.5；10 MM TRIS-HCL PH 7.5, 10 MM MAGNESIUM ACETATE, 60 MM NH4CL, 3 MM 2- MERCAPTOETHANOL AND 2 MM GMP-PNP
cryo-EM vitrification conditions Cryogen ETHANE；BLOT FOR 7 SECONDS IN FEI VITROBOT III
Resolution 16.50 Å
4ADV Structure of the E. coli methyltransferase KsgA bound to the E. coli 30S ribosomal subunit Deposited 2012-01-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain B 1–240（240 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 40 MM KCL, 4MM MGCL2, 20 MM HEPES/KOH PH 7. 6, 6 MM 2- MERCAPTOETHANOL；pH 7.6；40 MM KCL, 4MM MGCL2, 20 MM HEPES/KOH PH 7. 6, 6 MM 2- MERCAPTOETHANOL
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, INSTRUMENT- PLUNGER,
Resolution 13.50 Å
4ODL Structure of SlyD from Thermus thermophilus in complex with S2 peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 20–34（15 aa） Fragment：S2 peptide (UNP residues 20-34)
Chain F 20–34（15 aa） Fragment：S2 peptide (UNP residues 20-34)
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；20% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.92 Å R-free 0.224
4ODL Structure of SlyD from Thermus thermophilus in complex with S2 peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 20–34（15 aa） Fragment：S2 peptide (UNP residues 20-34)
Chain E 20–34（15 aa） Fragment：S2 peptide (UNP residues 20-34)
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；20% PEG3350, 0.1 M Bis-Tris, pH 5.5, 0.2 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.92 Å R-free 0.224
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Chain H 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Chain F 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 ACT ACETATE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Chain J 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Chain L 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODM Structure of SlyD from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain M 20–34（15 aa） Fragment：S2-W23A peptide (UNP residues 20-34)
Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；19% PEG3350, 8% Tacsimate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.208
4ODP Structure of SlyD delta-IF from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 20–34（15 aa） Fragment：S2-W23 peptide (UNP residues 20-34)
Mutation：W23A Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 1 CA CALCIUM ION × 4 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；28% PEG400, 0.1 M HEPES, pH 7.5, 0.2 M calcium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.202
4U1U Crystal structure of the E. coli ribosome bound to quinupristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；291 K；PEG8k, MPD
Resolution 2.95 Å R-free 0.282
4U1U Crystal structure of the E. coli ribosome bound to quinupristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；291 K；PEG8k, MPD
Resolution 2.95 Å R-free 0.282
4U1V Crystal structure of the E. coli ribosome bound to linopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.00 Å R-free 0.274
4U1V Crystal structure of the E. coli ribosome bound to linopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.00 Å R-free 0.274
4U20 Crystal structure of the E. coli ribosome bound to flopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 VIF Flopristin × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.90 Å R-free 0.279
4U20 Crystal structure of the E. coli ribosome bound to flopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 VIF Flopristin × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.90 Å R-free 0.279
4U24 Crystal structure of the E. coli ribosome bound to dalfopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 DOL 5-(2-DIETHYLAMINO-ETHANESULFONYL)-21-HYDROXY-10-ISOPROPYL-11,19-DIMETHYL-9,26-DIOXA-3,15,28-TRIAZA-TRICYCLO[23.2.1.00,255]OCTACOSA-1(27),12,17,19,25(28)-PENTAENE-2,8,14,23-TETRAONE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.90 Å R-free 0.264
4U24 Crystal structure of the E. coli ribosome bound to dalfopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 226 DOL 5-(2-DIETHYLAMINO-ETHANESULFONYL)-21-HYDROXY-10-ISOPROPYL-11,19-DIMETHYL-9,26-DIOXA-3,15,28-TRIAZA-TRICYCLO[23.2.1.00,255]OCTACOSA-1(27),12,17,19,25(28)-PENTAENE-2,8,14,23-TETRAONE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.90 Å R-free 0.264
4U25 Crystal structure of the E. coli ribosome bound to virginiamycin M1. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 VIR VIRGINIAMYCIN M1 × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.90 Å R-free 0.265
4U25 Crystal structure of the E. coli ribosome bound to virginiamycin M1. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 VIR VIRGINIAMYCIN M1 × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.90 Å R-free 0.265
4U26 Crystal structure of the E. coli ribosome bound to dalfopristin and quinupristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 DOL 5-(2-DIETHYLAMINO-ETHANESULFONYL)-21-HYDROXY-10-ISOPROPYL-11,19-DIMETHYL-9,26-DIOXA-3,15,28-TRIAZA-TRICYCLO[23.2.1.00,255]OCTACOSA-1(27),12,17,19,25(28)-PENTAENE-2,8,14,23-TETRAONE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.80 Å R-free 0.271
4U26 Crystal structure of the E. coli ribosome bound to dalfopristin and quinupristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 DOL 5-(2-DIETHYLAMINO-ETHANESULFONYL)-21-HYDROXY-10-ISOPROPYL-11,19-DIMETHYL-9,26-DIOXA-3,15,28-TRIAZA-TRICYCLO[23.2.1.00,255]OCTACOSA-1(27),12,17,19,25(28)-PENTAENE-2,8,14,23-TETRAONE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.80 Å R-free 0.271
4U27 Crystal structure of the E. coli ribosome bound to flopristin and linopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 VIF Flopristin × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.80 Å R-free 0.260
4U27 Crystal structure of the E. coli ribosome bound to flopristin and linopristin. Deposited 2014-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 VIF Flopristin × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.80 Å R-free 0.260
4V4H Crystal structure of the bacterial ribosome from Escherichia coli in complex with the antibiotic kasugamyin at 3.5A resolution. Deposited 2006-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 1–241（241 aa）
Not recorded KSG (1S,2R,3S,4R,5S,6S)-2,3,4,5,6-PENTAHYDROXYCYCLOHEXYL 2-AMINO-4-{[CARBOXY(IMINO)METHYL]AMINO}-2,3,4,6-TETRADEOXY-ALPHA-D-ARABINO-HEXOPYRANOSIDE × 1 MG MAGNESIUM ION × 170 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；MPD, PEG 8000, MGCL2, NH4CL, SPERMINE, SPERMIDINE, TRIS-HCL, EDTA, PH 7.5, BATCH, TEMPERATURE 277K, pH 7.50
Resolution 3.46 Å R-free 0.331
4V4H Crystal structure of the bacterial ribosome from Escherichia coli in complex with the antibiotic kasugamyin at 3.5A resolution. Deposited 2006-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 0–240（241 aa）
Not recorded KSG (1S,2R,3S,4R,5S,6S)-2,3,4,5,6-PENTAHYDROXYCYCLOHEXYL 2-AMINO-4-{[CARBOXY(IMINO)METHYL]AMINO}-2,3,4,6-TETRADEOXY-ALPHA-D-ARABINO-HEXOPYRANOSIDE × 1 MG MAGNESIUM ION × 173 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；MPD, PEG 8000, MGCL2, NH4CL, SPERMINE, SPERMIDINE, TRIS-HCL, EDTA, PH 7.5, BATCH, TEMPERATURE 277K, pH 7.50
Resolution 3.46 Å R-free 0.331
4V4Q Crystal structure of the bacterial ribosome from Escherichia coli at 3.5 A resolution. Deposited 2005-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 170 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.46 Å R-free 0.331
4V4Q Crystal structure of the bacterial ribosome from Escherichia coli at 3.5 A resolution. Deposited 2005-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 173 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.46 Å R-free 0.331
4V4V Structure of a pre-translocational E. coli ribosome obtained by fitting atomic models for RNA and protein components into cryo-EM map EMD-1056 Deposited 2006-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 52-meric
Chain AB 5–240（236 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；rapid-freezing in liquid ethane
Resolution 15.00 Å
4V4W Structure of a SecM-stalled E. coli ribosome complex obtained by fitting atomic models for RNA and protein components into cryo-EM map EMD-1143 Deposited 2006-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 52-meric
Chain AB 5–240（236 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；rapid-freezing in liquid ethane
Resolution 15.00 Å
4V50 Crystal Structure of Ribosome with messenger RNA and the Anticodon stem-loop of P-site tRNA. Deposited 2006-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain AB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 181 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MGCL2, NH4CL, SPERMINE, SPERMIDINE, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.22 Å R-free 0.320
4V50 Crystal Structure of Ribosome with messenger RNA and the Anticodon stem-loop of P-site tRNA. Deposited 2006-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain CB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 177 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MGCL2, NH4CL, SPERMINE, SPERMIDINE, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.22 Å R-free 0.320
4V52 Crystal structure of the bacterial ribosome from Escherichia coli in complex with neomycin. Deposited 2007-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 2–241（240 aa）
Not recorded NMY NEOMYCIN × 2 MG MAGNESIUM ION × 170 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.21 Å R-free 0.309
4V52 Crystal structure of the bacterial ribosome from Escherichia coli in complex with neomycin. Deposited 2007-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 2–241（240 aa）
Not recorded NMY NEOMYCIN × 2 MG MAGNESIUM ION × 173 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.21 Å R-free 0.309
4V53 Crystal structure of the bacterial ribosome from Escherichia coli in complex with gentamicin. Deposited 2007-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 170 LLL (2R,3R,4R,5R)-2-((1S,2S,3R,4S,6R)-4,6-DIAMINO-3-((2R,3R,6S)-3-AMINO-6-(AMINOMETHYL)-TETRAHYDRO-2H-PYRAN-2-YLOXY)-2-HYDR OXYCYCLOHEXYLOXY)-5-METHYL-4-(METHYLAMINO)-TETRAHYDRO-2H-PYRAN-3,5-DIOL × 4 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.54 Å R-free 0.320
4V53 Crystal structure of the bacterial ribosome from Escherichia coli in complex with gentamicin. Deposited 2007-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 173 LLL (2R,3R,4R,5R)-2-((1S,2S,3R,4S,6R)-4,6-DIAMINO-3-((2R,3R,6S)-3-AMINO-6-(AMINOMETHYL)-TETRAHYDRO-2H-PYRAN-2-YLOXY)-2-HYDR OXYCYCLOHEXYLOXY)-5-METHYL-4-(METHYLAMINO)-TETRAHYDRO-2H-PYRAN-3,5-DIOL × 4 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.54 Å R-free 0.320
4V54 Crystal structure of the bacterial ribosome from Escherichia coli in complex with ribosome recycling factor (RRF). Deposited 2007-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 170 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.30 Å R-free 0.304
4V54 Crystal structure of the bacterial ribosome from Escherichia coli in complex with ribosome recycling factor (RRF). Deposited 2007-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 173 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.30 Å R-free 0.304
4V55 Crystal structure of the bacterial ribosome from Escherichia coli in complex with gentamicin and ribosome recycling factor (RRF). Deposited 2007-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 170 LLL (2R,3R,4R,5R)-2-((1S,2S,3R,4S,6R)-4,6-DIAMINO-3-((2R,3R,6S)-3-AMINO-6-(AMINOMETHYL)-TETRAHYDRO-2H-PYRAN-2-YLOXY)-2-HYDR OXYCYCLOHEXYLOXY)-5-METHYL-4-(METHYLAMINO)-TETRAHYDRO-2H-PYRAN-3,5-DIOL × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 4.00 Å R-free 0.305
4V55 Crystal structure of the bacterial ribosome from Escherichia coli in complex with gentamicin and ribosome recycling factor (RRF). Deposited 2007-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 173 LLL (2R,3R,4R,5R)-2-((1S,2S,3R,4S,6R)-4,6-DIAMINO-3-((2R,3R,6S)-3-AMINO-6-(AMINOMETHYL)-TETRAHYDRO-2H-PYRAN-2-YLOXY)-2-HYDR OXYCYCLOHEXYLOXY)-5-METHYL-4-(METHYLAMINO)-TETRAHYDRO-2H-PYRAN-3,5-DIOL × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 4.00 Å R-free 0.305
4V56 Crystal structure of the bacterial ribosome from Escherichia coli in complex with spectinomycin. Deposited 2007-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 170 SCM SPECTINOMYCIN × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.93 Å R-free 0.311
4V56 Crystal structure of the bacterial ribosome from Escherichia coli in complex with spectinomycin. Deposited 2007-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 170 SCM SPECTINOMYCIN × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.93 Å R-free 0.311
4V57 Crystal structure of the bacterial ribosome from Escherichia coli in complex with spectinomycin and neomycin. Deposited 2007-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 2–241（240 aa）
Not recorded NMY NEOMYCIN × 2 MG MAGNESIUM ION × 170 SCM SPECTINOMYCIN × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.50 Å R-free 0.306
4V57 Crystal structure of the bacterial ribosome from Escherichia coli in complex with spectinomycin and neomycin. Deposited 2007-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 2–241（240 aa）
Not recorded NMY NEOMYCIN × 2 MG MAGNESIUM ION × 170 SCM SPECTINOMYCIN × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.50 Å R-free 0.306
4V5B Structure of PDF binding helix in complex with the ribosome. Deposited 2007-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 50 PDB declaration: 53-meric
Chain not uniquely mapped Reference range not declared Fragment：RESIDUES 2-241
Not recorded MG MAGNESIUM ION × 170 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；pH 7.5
Resolution 3.74 Å R-free 0.323
4V5B Structure of PDF binding helix in complex with the ribosome. Deposited 2007-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 49 PDB declaration: 52-meric
Chain DB 2–241（240 aa） Fragment：RESIDUES 2-241
Not recorded MG MAGNESIUM ION × 173 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；pH 7.5
Resolution 3.74 Å R-free 0.323
4V5H E.Coli 70s Ribosome Stalled During Translation Of Tnac Leader Peptide. Deposited 2009-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain AB 9–226（218 aa） Fragment：RESIDUES 9-226
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 MM TRIS-HCL PH 8.0, 10MM MG-ACETATE, 50MM KCL, 10MM NH4CL, 2MM EGTA, 2MM L-TRYPTOPHAN, 10 MM DTT；pH 8；50 MM TRIS-HCL PH 8.0, 10MM MG-ACETATE, 50MM KCL, 10MM NH4CL, 2MM EGTA, 2MM L-TRYPTOPHAN, 10 MM DTT
cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN- ETHANE,
Resolution 5.80 Å
4V5Y Crystal structure of the bacterial ribosome from Escherichia coli in complex with paromomycin and ribosome recycling factor (RRF). Deposited 2007-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 170 PAR PAROMOMYCIN × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 4.45 Å R-free 0.309
4V5Y Crystal structure of the bacterial ribosome from Escherichia coli in complex with paromomycin and ribosome recycling factor (RRF). Deposited 2007-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain CB 2–241（240 aa）
Not recorded MG MAGNESIUM ION × 173 PAR PAROMOMYCIN × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 4.45 Å R-free 0.309
4V64 Crystal structure of the bacterial ribosome from Escherichia coli in complex with hygromycin B. Deposited 2008-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 170 HYG HYGROMYCIN B × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.50 Å R-free 0.318
4V64 Crystal structure of the bacterial ribosome from Escherichia coli in complex with hygromycin B. Deposited 2008-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 173 HYG HYGROMYCIN B × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions batch；pH 7.5；277 K；MPD, PEG 8000, MgCl2, NH4Cl, spermine, spermidine, TRIS, EDTA, pH 7.5, batch, temperature 277K
Resolution 3.50 Å R-free 0.318
4V65 Structure of the E. coli ribosome in the Pre-accommodation state Deposited 2008-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain AB 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
4V66 Structure of the E. coli ribosome and the tRNAs in Post-accommodation state Deposited 2008-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain AB 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
4V69 Ternary complex-bound E.coli 70S ribosome. Deposited 2008-12-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain AB 9–226（218 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Vitrification using FEI Vitrobot; blot 3 seconds before plunging with an offset of -1mm
Resolution 6.70 Å
4V6C Crystal structure of the E. coli 70S ribosome in an intermediate state of ratcheting Deposited 2009-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 184 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；4% PEG 8000, 4% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, microbatch, temperature 291K
Resolution 3.19 Å R-free 0.252
4V6C Crystal structure of the E. coli 70S ribosome in an intermediate state of ratcheting Deposited 2009-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；4% PEG 8000, 4% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, microbatch, temperature 291K
Resolution 3.19 Å R-free 0.252
4V6D Crystal structure of the E. coli 70S ribosome in an intermediate state of ratcheting Deposited 2009-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 184 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7；291 K；4% PEG 8000, 4% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, pH 7.0, microbatch, temperature 291K
Resolution 3.81 Å R-free 0.253
4V6D Crystal structure of the E. coli 70S ribosome in an intermediate state of ratcheting Deposited 2009-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain CB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7；291 K；4% PEG 8000, 4% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, pH 7.0, microbatch, temperature 291K
Resolution 3.81 Å R-free 0.253
4V6E Crystal structure of the E. coli 70S ribosome in an intermediate state of ratcheting Deposited 2009-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 184 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7；291 K；4% PEG 8000, 4% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, pH 7.0, microbatch, temperature 291K
Resolution 3.71 Å R-free 0.268
4V6E Crystal structure of the E. coli 70S ribosome in an intermediate state of ratcheting Deposited 2009-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain CB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7；291 K；4% PEG 8000, 4% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, pH 7.0, microbatch, temperature 291K
Resolution 3.71 Å R-free 0.268
4V6K Structural insights into cognate vs. near-cognate discrimination during decoding. Deposited 2011-01-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain BF 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 8.25 Å
4V6L Structural insights into cognate vs. near-cognate discrimination during decoding. Deposited 2011-01-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AF 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 13.20 Å
4V6M Structure of the ribosome-SecYE complex in the membrane environment Deposited 2011-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 60-meric
Chain AB 2–241（240 aa）
Not recorded PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 101 PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 32 ELECTRON MICROSCOPY
cryo-EM buffer 20 mM Hepes (pH 7.2), 100 mM KOAc, 10 mM Mg(OAc)2, 1 mM DTT, 250 microg/ml chloramphenicol；pH 7.2；20 mM Hepes (pH 7.2), 100 mM KOAc, 10 mM Mg(OAc)2, 1 mM DTT, 250 microg/ml chloramphenicol
cryo-EM vitrification conditions Cryogen ETHANE；liquid ethane was used as a cryogen
Resolution 7.10 Å
4V6N Structural characterization of mRNA-tRNA translocation intermediates (50S ribosome of class2 of the six classes) Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain BE 1–240（240 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 TRP TRYPTOPHAN × 1 ELECTRON MICROSCOPY
cryo-EM buffer HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)；pH 7.5；HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)
cryo-EM vitrification conditions blot for 3 seconds；80 K；Cryogen NITROGEN；Blot for 3 seconds, plunge into liquid nitrogen (Vitrobot)
Resolution 12.10 Å
4V6O Structural characterization of mRNA-tRNA translocation intermediates (class 4a of the six classes) Deposited 2011-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AE 1–240（240 aa）
Not recorded TRP TRYPTOPHAN × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)；pH 7.5；HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)
cryo-EM vitrification conditions blot for 3 seconds；80 K；Cryogen NITROGEN；Blot for 3 seconds, plunge into liquid nitrogen (Vitrobot)
Resolution 14.70 Å
4V6P Structural characterization of mRNA-tRNA translocation intermediates (class 4b of the six classes) Deposited 2011-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AE 1–240（240 aa）
Not recorded TRP TRYPTOPHAN × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)；pH 7.5；HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)
cryo-EM vitrification conditions blot for 6 seconds；80 K；Cryogen NITROGEN；Blot for 6 seconds, plunge into liquid nitrogen (Vitrobot)
Resolution 13.50 Å
4V6Q Structural characterization of mRNA-tRNA translocation intermediates (class 5 of the six classes) Deposited 2011-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AE 1–240（240 aa）
Not recorded TRP TRYPTOPHAN × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)；pH 7.5；HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)
cryo-EM vitrification conditions blot for 3 seconds；80 K；Cryogen NITROGEN；Blot for 3 seconds, plunge into liquid nitrogen (Vitrobot)
Resolution 11.50 Å
4V6R Structural characterization of mRNA-tRNA translocation intermediates (class 6 of the six classes) Deposited 2011-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AE 1–240（240 aa）
Not recorded TRP TRYPTOPHAN × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)；pH 7.5；HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)
cryo-EM vitrification conditions blot for 3 seconds；80 K；Cryogen NITROGEN；Blot for 3 seconds, plunge into liquid nitrogen (Vitrobot)
Resolution 11.50 Å
4V6S Structural characterization of mRNA-tRNA translocation intermediates (class 3 of the six classes) Deposited 2011-12-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain BD 1–240（240 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)；pH 7.5；HiFi buffer (50 mM Tris-HCl, pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2)
cryo-EM vitrification conditions blot for 3 seconds；80 K；Cryogen NITROGEN；Blot for 3 seconds, plunge into liquid nitrogen (Vitrobot)
Resolution 13.10 Å
4V6T Structure of the bacterial ribosome complexed by tmRNA-SmpB and EF-G during translocation and MLD-loading Deposited 2012-01-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions blot for 5-10 seconds before plunging；96.15 K；Cryogen ETHANE；blot for 5-10 seconds before plunging into liquid ethane (FEI Vitrobot)
Resolution 8.30 Å
4V6V Tetracycline resistance protein Tet(O) bound to the ribosome Deposited 2013-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain AB 2–241（240 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.80 Å
4V6Y E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in classic pre-translocation state (pre1a) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 12.00 Å
4V6Z E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in classic pre-translocation state (pre1b) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
4V70 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in intermediate pre-translocation state (pre3) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 17.00 Å
4V71 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in intermediate pre-translocation state (pre2) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 20.00 Å
4V72 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in hybrid pre-translocation state (pre4) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 13.00 Å
4V73 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in hybrid pre-translocation state (pre5a) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.00 Å
4V74 70S-fMetVal-tRNAVal-tRNAfMet complex in hybrid pre-translocation state (pre5b) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 17.00 Å
4V75 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in classic post-translocation state (post1) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 12.00 Å
4V76 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in intermediate post-translocation state (post2a) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 17.00 Å
4V77 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in intermediate post-translocation state (post2b) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.00 Å
4V78 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in intermediate post-translocation state (post3a) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 20.00 Å
4V79 E. coli 70S-fMetVal-tRNAVal-tRNAfMet complex in intermediate post-translocation state (post3b) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 15.00 Å
4V7A E. coli 70S-fMetVal-tRNAVal post-translocation complex (post4) Deposited 2013-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain AB 9–226（218 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VAL VALINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine；pH 7.5；50 mM Tris-HCl, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Manual blotting for about 2 seconds；Cryogen ETHANE；Manual blotting for about 2 seconds prior to plunging into liquid ethane (custom-built CEVS vitrification instrument with dew point temperature adjusted to 18 degrees C)
Resolution 9.00 Å
4V7B Visualization of two tRNAs trapped in transit during EF-G-mediated translocation Deposited 2013-10-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AB 1–241（241 aa）
Not recorded FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 80 mM HEPES potassium, 75 mM NH4Cl, 10 mM MgCl2, 6 mM BME；pH 7.6；80 mM HEPES potassium, 75 mM NH4Cl, 10 mM MgCl2, 6 mM BME
cryo-EM vitrification conditions blot for 5-10 seconds before plunging；96 K；Cryogen ETHANE；Blot for 5-10 seconds before plunging into liquid ethane (FEI VITROBOT MARK I)
Resolution 6.80 Å
4V7C Structure of the Ribosome with Elongation Factor G Trapped in the Pre-Translocation State (pre-translocation 70S*tRNA structure) Deposited 2013-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain AB 2–241（240 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer Polymix buffer；pH 7.6；10 mM HEPES-KOH, 5 mM MgCl2, 90 mM NH4Cl, 2 mM spermidine, 0.1 mM spermine, 6 mM BME, 0.5 mM viomycin, 0.5 mM GTP, 0.5 mM fusidic acid
cryo-EM vitrification conditions Freshly glow-disharged grids were loaded into an FEI Mark II Vitrobot and equilibrated to 95% relative humidity at 22 degrees Celsius. 2 microliters of sample was applied through the side port, blotted for 7 seconds with a positional offset of 2, and plunged into liquid ethane.；Cryogen ETHANE；Freshly glow-disharged grids were loaded into an FEI Mark II Vitrobot and equilibrated to 95% relative humidity at 22 degrees Celsius. 2 microliters of sample was applied through the side port, blotted for 7 seconds with a positional offset of 2, and plunged into liquid ethane.
Resolution 7.60 Å
4V7D Structure of the Ribosome with Elongation Factor G Trapped in the Pre-Translocation State (pre-translocation 70S*tRNA*EF-G structure) Deposited 2013-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain BB 2–241（240 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer Polymix buffer；pH 7.6；10 mM HEPES-KOH, 5 mM MgCl2, 90 mM NH4Cl, 2 mM spermidine, 0.1 mM spermine, 6 mM BME, 0.5 mM viomycin, 0.5 mM GTP, 0.5 mM fusidic acid
cryo-EM vitrification conditions Freshly glow-disharged grids were loaded into an FEI Mark II Vitrobot and equilibrated to 95% relative humidity at 22 degrees Celsius. 2 microliters of sample was applied through the side port, blotted for 7 seconds with a positional offset of 2, and plunged into liquid ethane.；Cryogen ETHANE；Freshly glow-disharged grids were loaded into an FEI Mark II Vitrobot and equilibrated to 95% relative humidity at 22 degrees Celsius. 2 microliters of sample was applied through the side port, blotted for 7 seconds with a positional offset of 2, and plunged into liquid ethane.
Resolution 7.60 Å
4V7I Ribosome-SecY complex. Deposited 2009-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 56-meric
Chain BB 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 50 MM HEPES- KOH PH 7.5, 100 MM KOAC, 10 MM MG(OAC)2, 0.05% DDM；pH 7.5；50 MM HEPES- KOH PH 7.5, 100 MM KOAC, 10 MM MG(OAC)2, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE；THE SPECIMENS WERE PLUNGE FROZEN IN LIQUID ETHANE AT 4 DEGREES C AT AN RH OF ~90-95%.
Resolution 9.60 Å
4V7S Crystal structure of the E. coli ribosome bound to telithromycin. Deposited 2010-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 181 TEL TELITHROMYCIN × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.25 Å R-free 0.245
4V7S Crystal structure of the E. coli ribosome bound to telithromycin. Deposited 2010-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.25 Å R-free 0.245
4V7T Crystal structure of the E. coli ribosome bound to chloramphenicol. Deposited 2010-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 183 CLM CHLORAMPHENICOL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.19 Å R-free 0.252
4V7T Crystal structure of the E. coli ribosome bound to chloramphenicol. Deposited 2010-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.19 Å R-free 0.252
4V7U Crystal structure of the E. coli ribosome bound to erythromycin. Deposited 2010-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 182 ERY ERYTHROMYCIN A × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；4.3% PEG 8000, 4.9% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, 10 mM Tris, 20 mM MES pH 6.5. 0.25 mM EDTA, microbatch, temperature 291K
Resolution 3.10 Å R-free 0.254
4V7U Crystal structure of the E. coli ribosome bound to erythromycin. Deposited 2010-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；4.3% PEG 8000, 4.9% MPD, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, 10 mM Tris, 20 mM MES pH 6.5. 0.25 mM EDTA, microbatch, temperature 291K
Resolution 3.10 Å R-free 0.254
4V7V Crystal structure of the E. coli ribosome bound to clindamycin. Deposited 2010-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 182 CLY CLINDAMYCIN × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；4.3% PEG 8000, 4.9% MPD, 10 mM Tris, 20 mM MES, pH 6.5-7.0, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, 0.25 mM EDTA, microbatch, temperature 291K
Resolution 3.29 Å R-free 0.241
4V7V Crystal structure of the E. coli ribosome bound to clindamycin. Deposited 2010-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；4.3% PEG 8000, 4.9% MPD, 10 mM Tris, 20 mM MES, pH 6.5-7.0, 3.8 mM MgCl2, 380 mM NH4Cl, 5.5 mM putrescine, 5 mM spermidine, 0.25 mM EDTA, microbatch, temperature 291K
Resolution 3.29 Å R-free 0.241
4V89 Crystal Structure of Release Factor RF3 Trapped in the GTP State on a Rotated Conformation of the Ribosome (without viomycin) Deposited 2011-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 58-meric
Chain AB 1–241（241 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；Tris Ac PH.7.0 25-35 mM KCL 6.1% PEG 20000 %1 glycerol 50mM sucrose , VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 3.70 Å R-free 0.290
4V9C Allosteric control of the ribosome by small-molecule antibiotics Deposited 2012-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 224 NMY NEOMYCIN × 10 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；291 K；PEG800, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.30 Å R-free 0.255
4V9C Allosteric control of the ribosome by small-molecule antibiotics Deposited 2012-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain CB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 266 NMY NEOMYCIN × 8 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；291 K；PEG800, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.30 Å R-free 0.255
4V9D Structures of the bacterial ribosome in classical and hybrid states of tRNA binding Deposited 2012-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.00 Å R-free 0.260
4V9D Structures of the bacterial ribosome in classical and hybrid states of tRNA binding Deposited 2012-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain BB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 227 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8000, MPD, pH 6.5, microbatch, temperature 291K
Resolution 3.00 Å R-free 0.260
4V9O Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 56-meric
Chain BB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 187 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.272
4V9O Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric
Chain DB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 187 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.272
4V9O Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric
Chain FB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 187 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.272
4V9O Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain HB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 187 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.272
4V9P Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric
Chain BB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 185 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.267
4V9P Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain DB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 185 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.267
4V9P Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric
Chain FB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 185 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.267
4V9P Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain HB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 185 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K
Resolution 2.90 Å R-free 0.267
4WF1 Crystal structure of the E. coli ribosome bound to negamycin. Deposited 2014-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 271 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.09 Å R-free 0.244
4WF1 Crystal structure of the E. coli ribosome bound to negamycin. Deposited 2014-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain CB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 228 ZN ZINC ION × 1 NEG NEGAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.09 Å R-free 0.244
4WOI 4,5-linked aminoglycoside antibiotics regulate the bacterial ribosome by targeting dynamic conformational processes within intersubunit bridge B2 Deposited 2014-10-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 269 PAR PAROMOMYCIN × 6 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KCl, KSCN
Resolution 3.00 Å R-free 0.253
4WOI 4,5-linked aminoglycoside antibiotics regulate the bacterial ribosome by targeting dynamic conformational processes within intersubunit bridge B2 Deposited 2014-10-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain DB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 226 PAR PAROMOMYCIN × 7 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KCl, KSCN
Resolution 3.00 Å R-free 0.253
4WWW Crystal structure of the E. coli ribosome bound to CEM-101 Deposited 2014-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain QB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 182 EM1 (3aS,4R,7S,9R,10R,11R,13R,15R,15aR)-1-{4-[4-(3-aminophenyl)-1H-1,2,3-triazol-1-yl]butyl}-4-ethyl-7-fluoro-11-methoxy-3a ,7,9,11,13,15-hexamethyl-2,6,8,14-tetraoxotetradecahydro-2H-oxacyclotetradecino[4,3-d][1,3]oxazol-10-yl 3,4,6-trideoxy-3-(dimethylamino)-beta-D-xylo-hexopyranoside × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.10 Å R-free 0.252
4WWW Crystal structure of the E. coli ribosome bound to CEM-101 Deposited 2014-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain XB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 179 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.10 Å R-free 0.252
4YBB High-resolution structure of the Escherichia coli ribosome Deposited 2015-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 263 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 PGE TRIETHYLENE GLYCOL × 9 ACY ACETIC ACID × 3 EDO 1,2-ETHANEDIOL × 12 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.10 Å R-free 0.234
4YBB High-resolution structure of the Escherichia coli ribosome Deposited 2015-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 200 PG4 TETRAETHYLENE GLYCOL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 2.10 Å R-free 0.234
5AFI 2.9A Structure of E. coli ribosome-EF-TU complex by cs-corrected cryo-EM Deposited 2015-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain b 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 333 CL CHLORIDE ION × 2 FME N-FORMYLMETHIONINE × 1 KIR KIRROMYCIN × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 NA SODIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer 50MM HEPES-KOH, 70MMNH4CL, 30MM KCL, 20MM MGCL2, 1MM DTT, 0.6MM SPERMINE, 0.4MM SPERMIDINE, 0.15MM KIRROMYCIN；pH 7.5；50MM HEPES-KOH, 70MMNH4CL, 30MM KCL, 20MM MGCL2, 1MM DTT, 0.6MM SPERMINE, 0.4MM SPERMIDINE, 0.15MM KIRROMYCIN
cryo-EM vitrification conditions Cryogen ETHANE；LIQUIDE ETHANE
Resolution 2.90 Å
5H5U Mechanistic insights into the alternative translation termination by ArfA and RF2 Deposited 2016-11-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain i 2–241（240 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
5IQR Structure of RelA bound to the 70S ribosome Deposited 2016-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 299 ZN ZINC ION × 3 PAR PAROMOMYCIN × 1 MET METHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 5 s
Resolution 3.00 Å
5IT8 High-resolution structure of the Escherichia coli ribosome Deposited 2016-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 266 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.12 Å R-free 0.220
5IT8 High-resolution structure of the Escherichia coli ribosome Deposited 2016-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 200 PG4 TETRAETHYLENE GLYCOL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD
Resolution 3.12 Å R-free 0.220
5J5B Structure of the WT E coli ribosome bound to tetracycline Deposited 2016-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 267 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 TAC TETRACYCLINE × 1 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8000, Spermidine, Putrescine, Ammonium Chloride, Magnesium Chloride, MES pH 6.5
Resolution 2.80 Å R-free 0.219
5J5B Structure of the WT E coli ribosome bound to tetracycline Deposited 2016-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 202 PG4 TETRAETHYLENE GLYCOL × 1 TAC TETRACYCLINE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8000, Spermidine, Putrescine, Ammonium Chloride, Magnesium Chloride, MES pH 6.5
Resolution 2.80 Å R-free 0.219
5J7L Structure of the 70S E coli ribosome with the U1052G mutation in the 16S rRNA bound to tetracycline Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 268 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 TAC TETRACYCLINE × 2 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, Magnesium Chloride, MES pH 6.5
Resolution 3.00 Å R-free 0.193
5J7L Structure of the 70S E coli ribosome with the U1052G mutation in the 16S rRNA bound to tetracycline Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 204 PG4 TETRAETHYLENE GLYCOL × 1 TAC TETRACYCLINE × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, Magnesium Chloride, MES pH 6.5
Resolution 3.00 Å R-free 0.193
5J88 Structure of the E coli 70S ribosome with the U1060A mutation in 16S rRNA Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 266 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, Magnesium Chloride, MES pH 6.5
Resolution 3.32 Å R-free 0.219
5J88 Structure of the E coli 70S ribosome with the U1060A mutation in 16S rRNA Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 200 PG4 TETRAETHYLENE GLYCOL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, Magnesium Chloride, MES pH 6.5
Resolution 3.32 Å R-free 0.219
5J8A Structure of the E coli 70S ribosome with the U1052G mutation in 16S rRNA bound to tigecycline Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 268 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 T1C TIGECYCLINE × 1 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, MAgnesium Chloride, MPD, MES pH 6.5
Resolution 3.10 Å R-free 0.192
5J8A Structure of the E coli 70S ribosome with the U1052G mutation in 16S rRNA bound to tigecycline Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 204 PG4 TETRAETHYLENE GLYCOL × 1 T1C TIGECYCLINE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, MAgnesium Chloride, MPD, MES pH 6.5
Resolution 3.10 Å R-free 0.192
5J91 Structure of the Wild-type 70S E coli ribosome bound to Tigecycline Deposited 2016-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 267 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 T1C TIGECYCLINE × 1 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, MAgnesium Chloride, MPD, MES pH 6.5
Resolution 2.96 Å R-free 0.221
5J91 Structure of the Wild-type 70S E coli ribosome bound to Tigecycline Deposited 2016-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 202 PG4 TETRAETHYLENE GLYCOL × 1 T1C TIGECYCLINE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, MAgnesium Chloride, MPD, MES pH 6.5
Resolution 2.96 Å R-free 0.221
5JC9 Structure of the Escherichia coli ribosome with the U1052G mutation in the 16S rRNA Deposited 2016-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric
Chain AB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 267 PG4 TETRAETHYLENE GLYCOL × 6 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 14 PUT 1,4-DIAMINOBUTANE × 16 ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 11 EDO 1,2-ETHANEDIOL × 12 PGE TRIETHYLENE GLYCOL × 9 SPD SPERMIDINE × 4 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 GUN GUANINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, MAgnesium Chloride, MPD, MES
Resolution 3.03 Å R-free 0.200
5JC9 Structure of the Escherichia coli ribosome with the U1052G mutation in the 16S rRNA Deposited 2016-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric
Chain BB 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 202 PG4 TETRAETHYLENE GLYCOL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG 8k, Spermidine, Putrescine, Ammonium Chloride, MAgnesium Chloride, MPD, MES
Resolution 3.03 Å R-free 0.200
5JU8 Cryo-EM structure of an ErmBL-stalled ribosome in complex with P-, and E-tRNA Deposited 2016-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain AB 1–240（240 aa）
Not recorded ERY ERYTHROMYCIN A × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5KCR Cryo-EM structure of the Escherichia coli 70S ribosome in complex with antibiotic Avilamycin C, mRNA and P-site tRNA at 3.6A resolution Deposited 2016-06-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain 1b 1–241（241 aa）
Not recorded 6UQ (2R,3S,4R,6S)-4-hydroxy-6-{[(2R,3aR,4R,4'R,5'S,6S,6'R,7aR)-4'-hydroxy-6-{[(2S,3R,4R,5S,6R)-3-hydroxy-2-{[(2R,3S,4S,5S,6S)-4-hydroxy-6-({(2R,3aS,3a'R,6S,6'R,7R,7'R,7aR,7a'R)-7'-hydroxy-7'-[(1S)-1-hydroxyethyl]-6'-methyl-7-[(2-methylpropanoyl)oxy]octahydro-4H-2,4'-spirobi[[1,3]dioxolo[4,5-c]pyran]-6-yl}oxy)-5-methoxy-2-(methoxymethyl)tetrahydro-2H-pyran-3-yl]oxy}-5-methoxy-6-methyltetrahydro-2H-pyran-4-yl]oxy}-4,6',7a-trimethyloctahydro-4H-spiro[1,3-dioxolo[4,5-c]pyran-2,2'-pyran]-5'-yl]oxy}-2-methyltetrahydro-2H-pyran-3-yl 3,5-dichloro-4-hydroxy-2-methoxy-6-methylbenzoate (non-preferred name) × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
X-ray crystallization conditions pH 7.4
Resolution 3.60 Å
5KCS Cryo-EM structure of the Escherichia coli 70S ribosome in complex with antibiotic Evernimycin, mRNA, TetM and P-site tRNA at 3.9A resolution Deposited 2016-06-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain 1b 1–241（241 aa）
Not recorded EVN (2R,3R,4R,6S)-6-{[(2R,3aR,4R,4'R,5'S,6S,6'R,7S,7aR)-6-{[(2S,3R,4R,5S,6R)-2-{[(2R,3S,4S,5S,6S)-6-({(2R,3aS,3a'R,6S,7R,7' R,7aS,7a'S)-7'-[(2,4-dihydroxy-6-methylbenzoyl)oxy]-7-hydroxyoctahydro-4H-2,4'-spirobi[[1,3]dioxolo[4,5-c]pyran]-6-yl}ox y)-4-hydroxy-5-methoxy-2-(methoxymethyl)tetrahydro-2H-pyran-3-yl]oxy}-3-hydroxy-5-methoxy-6-methyltetrahydro-2H-pyran-4- yl]oxy}-4',7-dihydroxy-4,6',7a-trimethyloctahydro-4H-spiro[1,3-dioxolo[4,5-c]pyran-2,2'-pyran]-5'-yl]oxy}-4-{[(2R,4S,5R, 6S)-5-methoxy-4,6-dimethyl-4-nitrotetrahydro-2H-pyran-2-yl]oxy}-2-methyltetrahydro-2H-pyran-3-yl 3,5-dichloro-4-hydroxy-2-methoxy-6-methylbenzoate (non-preferred name) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
5KPS Structure of RelA bound to ribosome in absence of A/R tRNA (Structure I) Deposited 2016-07-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain 7 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Apply 2 uL sample and blot 4 seconds before plunging into liquid ethane (GATAN CRYOPLUNGE 3).
Resolution 3.90 Å
5KPV Structure of RelA bound to ribosome in presence of A/R tRNA (Structure II) Deposited 2016-07-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain 6 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Apply 2 uL sample and blot 4 seconds before plunging into liquid ethane (GATAN CRYOPLUNGE 3).
Resolution 4.10 Å
5KPW Structure of RelA bound to ribosome in presence of A/R tRNA (Structure III) Deposited 2016-07-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain 6 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Apply 2 uL sample and blot 4 seconds before plunging into liquid ethane (GATAN CRYOPLUNGE 3).
Resolution 3.90 Å
5KPX Structure of RelA bound to ribosome in presence of A/R tRNA (Structure IV) Deposited 2016-07-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain 6 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Apply 2 uL sample and blot 4 seconds before plunging into liquid ethane (GATAN CRYOPLUNGE 3).
Resolution 3.90 Å
5L3P Cryo-EM structure of stringent response factor RelA bound to ErmCL-stalled ribosome complex Deposited 2016-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain b 1–240（240 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
5LZA Structure of the 70S ribosome with SECIS-mRNA and P-site tRNA (Initial complex, IC) Deposited 2016-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain b 9–226（218 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes-KOH, pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6mM spermine, 0.4mM spermidine, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5LZB Structure of SelB-Sec-tRNASec bound to the 70S ribosome in the initial binding state (IB) Deposited 2016-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 SEC SELENOCYSTEINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes-KOH, pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6mM spermine, 0.4mM spermidine, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
5LZC Structure of SelB-Sec-tRNASec bound to the 70S ribosome in the codon reading state (CR) Deposited 2016-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 SEC SELENOCYSTEINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes-KOH, pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6mM spermine, 0.4mM spermidine, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5LZD Structure of SelB-Sec-tRNASec bound to the 70S ribosome in the GTPase activated state (GA) Deposited 2016-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded CL CHLORIDE ION × 1 MG MAGNESIUM ION × 147 FME N-FORMYLMETHIONINE × 1 SEC SELENOCYSTEINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes-KOH, pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6mM spermine, 0.4mM spermidine, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
5LZE Structure of the 70S ribosome with Sec-tRNASec in the classical pre-translocation state (C) Deposited 2016-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain b 9–226（218 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes-KOH, pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
5LZF Structure of the 70S ribosome with fMetSec-tRNASec in the hybrid pre-translocation state (H) Deposited 2016-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain b 9–226（218 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes-KOH, pH 7.5, 70 mM NH4Cl, 30 mM KCl, 7 mM MgCl2, 0.6mM spermine, 0.4mM spermidine, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
5MDV Structure of ArfA and RF2 bound to the 70S ribosome (accommodated state) Deposited 2016-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 440 FME N-FORMYLMETHIONINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
5MDW Structure of ArfA(A18T) and RF2 bound to the 70S ribosome (pre-accommodated state) Deposited 2016-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 438 FME N-FORMYLMETHIONINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.06 Å
5MDY Structure of ArfA and TtRF2 bound to the 70S ribosome (pre-accommodated state) Deposited 2016-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 62-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 450 FME N-FORMYLMETHIONINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
5MDZ Structure of the 70S ribosome (empty A site) Deposited 2016-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 437 FME N-FORMYLMETHIONINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
5ME0 Structure of the 30S Pre-Initiation Complex 1 (30S IC-1) Stalled by GE81112 Deposited 2016-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain B 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 13.50 Å
5ME1 Structure of the 30S Pre-Initiation Complex 2 (30S IC-2) Stalled by GE81112 Deposited 2016-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain B 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 13.50 Å
5MGP Structural basis for ArfA-RF2 mediated translation termination on stop-codon lacking mRNAs Deposited 2016-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain b 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
5MY1 E. coli expressome Deposited 2017-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 25 PDB declaration: 26-meric
Chain B 2–241（240 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.60 Å
5NO3 RsgA-GDPNP bound to the 30S ribosomal subunit (RsgA assembly intermediate without uS3) Deposited 2017-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 19 PDB declaration: eicosameric
Chain B 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 71 ZN ZINC ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.16 Å
5NP6 70S structure prior to bypassing Deposited 2017-04-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain E 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5NWY 2.9 A cryo-EM structure of VemP-stalled ribosome-nascent chain complex Deposited 2017-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain 1 9–241（233 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
5O2R Cryo-EM structure of the proline-rich antimicrobial peptide Api137 bound to the terminating ribosome Deposited 2017-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
5U4I Structural Basis of Co-translational Quality Control by ArfA and RF2 Bound to Ribosome Deposited 2016-12-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain b 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 124 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
5UYK 70S ribosome bound with cognate ternary complex not base-paired to A site codon (Structure I) Deposited 2017-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 3.90 Å
5UYL 70S ribosome bound with cognate ternary complex base-paired to A site codon (Structure II) Deposited 2017-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 3.60 Å
5UYM 70S ribosome bound with cognate ternary complex base-paired to A site codon, closed 30S (Structure III) Deposited 2017-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 383 ZN ZINC ION × 2 FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 3.20 Å
5UYN 70S ribosome bound with near-cognate ternary complex not base-paired to A site codon (Structure I-nc) Deposited 2017-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 4.00 Å
5UYP 70S ribosome bound with near-cognate ternary complex base-paired to A site codon, open 30S (Structure II-nc) Deposited 2017-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 LYS LYSINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 3.90 Å
5UYQ 70S ribosome bound with near-cognate ternary complex base-paired to A site codon, closed 30S (Structure III-nc) Deposited 2017-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 LYS LYSINE × 1 MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 3.80 Å
5WDT 70S ribosome-EF-Tu H84A complex with GppNHp Deposited 2017-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain b 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 MG MAGNESIUM ION × 1904 K POTASSIUM ION × 5 PHE PHENYLALANINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；5 second blot time, no wait time
Resolution 3.00 Å
5WE4 70S ribosome-EF-Tu wt complex with GppNHp Deposited 2017-07-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain b 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 1618 K POTASSIUM ION × 1 FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；5 second blot time, no wait time
Resolution 3.10 Å
5WE6 70S ribosome-EF-Tu H84A complex with GTP and cognate tRNA Deposited 2017-07-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain b 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 MG MAGNESIUM ION × 662 K POTASSIUM ION × 8 PHE PHENYLALANINE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；5 second blot time, no wait time
Resolution 3.40 Å
5WFK 70S ribosome-EF-Tu H84A complex with GTP and near-cognate tRNA (Complex C3) Deposited 2017-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain b 9–226（218 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 MG MAGNESIUM ION × 1413 K POTASSIUM ION × 1 PHE PHENYLALANINE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；5 second blot time, no wait time
Resolution 3.40 Å
6BU8 70S ribosome with S1 domains 1 and 2 (Class 1) Deposited 2017-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；2 uL of complex was applied to each grid. After a 10-second incubation, the grids were blotted for 2 to 4 seconds.
Resolution 3.50 Å
6BY1 E. coli pH03H9 complex Deposited 2017-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain AB 2–226（225 aa）
Not recorded MG MAGNESIUM ION × 225 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；PEG 2000, PEP629, potassium thiocyanate, tris acetate
Resolution 3.94 Å R-free 0.269
6BY1 E. coli pH03H9 complex Deposited 2017-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain BB 2–226（225 aa）
Not recorded MG MAGNESIUM ION × 220 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；PEG 2000, PEP629, potassium thiocyanate, tris acetate
Resolution 3.94 Å R-free 0.269
6C4I Conformation of methylated GGQ in the peptidyl transferase center during translation termination Deposited 2018-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain b 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 317 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 3.5 seconds.
Resolution 3.24 Å
6ENF Cryo-EM structure of a polyproline-stalled ribosome in the absence of EF-P Deposited 2017-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain b 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6ENJ Polyproline-stalled ribosome in the presence of A+P site tRNA and elongation-factor P (EF-P) Deposited 2017-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain b 9–226（218 aa）
Not recorded PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6ENU Polyproline-stalled ribosome in the presence of elongation-factor P (EF-P) Deposited 2017-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain b 9–226（218 aa）
Not recorded PRO PROLINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
6GWT Cryo-EM structure of an E. coli 70S ribosome in complex with RF3-GDPCP, RF1(GAQ) and Pint-tRNA (State I) Deposited 2018-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Solutions were preapred fresh and filtered previous to usage.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6GXM Cryo-EM structure of an E. coli 70S ribosome in complex with RF3-GDPCP, RF1(GAQ) and Pint-tRNA (State II) Deposited 2018-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Solutions were preapred fresh and filtered previous to usage.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6GXN Cryo-EM structure of an E. coli 70S ribosome in complex with RF3-GDPCP, RF1(GAQ) and Pint-tRNA (State III) Deposited 2018-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Solutions were preapred fresh and filtered previous to usage.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6GXO Cryo-EM structure of a rotated E. coli 70S ribosome in complex with RF3-GDPCP, RF1(GAQ) and P/E-tRNA (State IV) Deposited 2018-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain b 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Solutions were preapred fresh and filtered previous to usage.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6GXP Cryo-EM structure of a rotated E. coli 70S ribosome in complex with RF3-GDPCP(RF3-only) Deposited 2018-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric
Chain b 9–226（218 aa）
Not recorded GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Solutions were preapred fresh and filtered previous to usage.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
6H4N Structure of a hibernating 100S ribosome reveals an inactive conformation of the ribosomal protein S1 - 70S Hibernating E. coli Ribosome Deposited 2018-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain b 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；B100S buffer (25 mM Hepes pH 7.5, 100 mM KOAc, 15 mM Mg(OAc)2, 1 mM dithiothreitol)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
6H58 Structure of a hibernating 100S ribosome reveals an inactive conformation of the ribosomal protein S1 - Full 100S Hibernating E. coli Ribosome Deposited 2018-07-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 104 PDB declaration: 112-meric
Chain b 9–226（218 aa）
Chain bb 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 7.90 Å
6HRM E. coli 70S d2d8 stapled ribosome Deposited 2018-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 53-meric
Chain g 3–227（225 aa）
Not recorded MG MAGNESIUM ION × 436 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.96 Å
6I7V Ribosomal protein paralogs bL31 and bL36 Deposited 2018-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 99 PDB declaration: 105-meric
Chain AB 9–226（218 aa）
Chain BB 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 453 PGE TRIETHYLENE GLYCOL × 8 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 13 PG4 TETRAETHYLENE GLYCOL × 5 SPD SPERMIDINE × 3 PUT 1,4-DIAMINOBUTANE × 7 1PE PENTAETHYLENE GLYCOL × 2 ACY ACETIC ACID × 3 PEG DI(HYDROXYETHYL)ETHER × 9 EDO 1,2-ETHANEDIOL × 12 GUN GUANINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN
Resolution 2.90 Å R-free 0.255
6OFX Non-rotated ribosome (Structure I) Deposited 2019-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6OG7 70S termination complex with RF2 bound to the UGA codon. Non-rotated ribosome with RF2 bound (Structure II) Deposited 2019-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6Q97 Structure of tmRNA SmpB bound in A site of E. coli 70S ribosome Deposited 2018-12-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain g 3–227（225 aa）
Not recorded MG MAGNESIUM ION × 439 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6Q98 Structure of tmRNA SmpB bound in P site of E. coli 70S ribosome Deposited 2018-12-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 57-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 429 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
6Q9A Structure of tmRNA SmpB bound past E site of E. coli 70S ribosome Deposited 2018-12-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain g 3–227（225 aa）
Not recorded MG MAGNESIUM ION × 437 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6SZS Release factor-dependent ribosome rescue by BrfA in the Gram-positive bacterium Bacillus subtilis Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain b 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.06 Å
6TBV Cryo-EM structure of an Escherichia coli ribosome-SpeFL complex stalled in response to L-ornithine (Replicate 2) Deposited 2019-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain S021 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 339 K POTASSIUM ION × 147 UNX UNKNOWN LIGAND × 1201 ZN ZINC ION × 3 ORN L-ornithine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
6TC3 Cryo-EM structure of an Escherichia coli ribosome-SpeFL complex stalled in response to L-ornithine (Replicate 1) Deposited 2019-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain S021 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 339 K POTASSIUM ION × 147 UNX UNKNOWN LIGAND × 1201 ZN ZINC ION × 3 ORN L-ornithine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
6VWL 70S ribosome bound to HIV frameshifting stem-loop (FSS) and P/E tRNA (rotated conformation) Deposited 2020-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain a 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 34 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
6VWM 70S ribosome bound to HIV frameshifting stem-loop (FSS) and P-site tRNA (non-rotated conformation, Structure I) Deposited 2020-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain a 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 53 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
6VWN 70S ribosome bound to HIV frameshifting stem-loop (FSS) and P-site tRNA (non-rotated conformation, Structure II) Deposited 2020-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain a 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 55 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
6W7M 30S-Inactive-high-Mg2+ + carbon layer Deposited 2020-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 19 PDB declaration: eicosameric
Chain B 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6WD6 Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure II-C2) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6WDB Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure IV-A) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6WDC Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure IV-B) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6WDD Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure V-A) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6WDE Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure V-B) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded PHE PHENYLALANINE × 1 MET METHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6WDF Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure VI-A) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain G 2–226（225 aa）
Not recorded PHE PHENYLALANINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6WDG Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Cognate Structure VI-B) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain G 2–226（225 aa）
Not recorded PHE PHENYLALANINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6WDH Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Non-cognate Structure IV-B1) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
6WDI Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Non-cognate Structure IV-B2) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6WDJ Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Non-cognate Structure V-A1) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6WDK Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Non-cognate Structure V-A2) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
6WDL Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Non-cognate Structure V-B1) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6WDM Cryo-EM of elongating ribosome with EF-Tu*GTP elucidates tRNA proofreading (Non-cognate Structure V-B2) Deposited 2020-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded PHE PHENYLALANINE × 1 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
6WNV 70S ribosome without free 5S rRNA and with a perturbed PTC Deposited 2020-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 52-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
6WNW Active 70S ribosome without free 5S rRNA and bound with A- and P- tRNA Deposited 2020-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6XE0 Cryo-EM structure of NusG-CTD bound to 70S ribosome (30S: NusG-CTD fragment) Deposited 2020-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain A 9–226（218 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
6XZA E. coli 70S ribosome in complex with dirithromycin, and deacylated tRNA(iMet) (focused classification). Deposited 2020-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 53-meric
Chain B1 4–227（224 aa）
Not recorded DI0 Dirithromycin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.66 Å
6XZB E. coli 70S ribosome in complex with dirithromycin, fMet-Phe-tRNA(Phe) and deacylated tRNA(iMet) (focused classification). Deposited 2020-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B1 4–227（224 aa）
Not recorded DI0 Dirithromycin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
6Y69 Cryo-EM structure of an Escherichia coli 70S ribosome in complex with antibiotic TetracenomycinX Deposited 2020-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 54-meric
Chain b 9–226（218 aa）
Not recorded OCW Tetracenomycin X × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
6ZTL E. coli 70S-RNAP expressome complex in collided state bound to NusG Deposited 2020-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 54 PDB declaration: 62-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 441 PHE PHENYLALANINE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7ABZ Structure of pre-accomodated trans-translation complex on E. coli stalled ribosome. Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain g 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 192 KIR KIRROMYCIN × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging
Resolution 3.21 Å
7AC7 Structure of accomodated trans-translation complex on E. Coli stalled ribosome. Deposited 2020-09-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain g 3–227（225 aa）
Not recorded MG MAGNESIUM ION × 441 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging
Resolution 3.08 Å
7ACJ Structure of translocated trans-translation complex on E. coli stalled ribosome. Deposited 2020-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 55-meric
Chain g 3–227（225 aa）
Not recorded MG MAGNESIUM ION × 308 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging
Resolution 3.20 Å
7ACR Structure of post-translocated trans-translation complex on E. coli stalled ribosome. Deposited 2020-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 55-meric
Chain g 3–227（225 aa）
Not recorded MG MAGNESIUM ION × 212 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging
Resolution 3.44 Å
7BOE Bacterial 30S ribosomal subunit assembly complex state M (Consensus refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 21-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 152 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BOH Complete Bacterial 30S ribosomal subunit assembly complex state E (+RbfA)(Consensus Refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 21-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 156 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
7D6Z Molecular model of the cryo-EM structure of 70S ribosome in complex with peptide deformylase and trigger factor Deposited 2020-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain i 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7D80 Molecular model of the cryo-EM structure of 70S ribosome in complex with peptide deformylase, trigger factor, and methionine aminopeptidase Deposited 2020-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain C 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7JSS ArfB Rescue of a 70S Ribosome stalled on truncated mRNA with a partial A-site codon (+2-II) Deposited 2020-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JSW ArfB Rescue of a 70S Ribosome stalled on truncated mRNA with a partial A-site codon (+2-III) Deposited 2020-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7JSZ ArfB Rescue of a 70S Ribosome stalled on truncated mRNA with a partial A-site codon (+2-IV) Deposited 2020-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7JT1 70S ribosome stalled on long mRNA with ArfB-1 and ArfB-2 bound (+9-III) Deposited 2020-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7JT2 70S ribosome stalled on long mRNA with ArfB bound in the A site Deposited 2020-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7JT3 Rotated 70S ribosome stalled on long mRNA with ArfB-1 and ArfB-2 bound in the A site (+9-IV) Deposited 2020-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7K50 Pre-translocation non-frameshifting(CCA-A) complex (Structure I) Deposited 2020-09-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blotting force 9, blotted for 4 seconds
Resolution 3.40 Å
7K51 Mid-translocated non-frameshifting(CCA-A) complex with EF-G and GDPCP (Structure II) Deposited 2020-09-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PRO PROLINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blotting force 9, blotted for 4 seconds
Resolution 3.50 Å
7K52 Near post-translocated non-frameshifting(CCA-A) complex with EF-G and GDPCP (Structure III) Deposited 2020-09-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PRO PROLINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blotting force 9, blotted for 4 seconds
Resolution 3.40 Å
7K53 Pre-translocation +1-frameshifting(CCC-A) complex (Structure I-FS) Deposited 2020-09-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blotting force 9, blotted for 4 seconds
Resolution 3.20 Å
7K54 Mid-translocated +1-frameshifting(CCC-A) complex with EF-G and GDPCP (Structure II-FS) Deposited 2020-09-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PRO PROLINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blotting force 9, blotted for 4 seconds
Resolution 3.20 Å
7K55 Near post-translocated +1-frameshifting(CCC-A) complex with EF-G and GDPCP (Structure III-FS) Deposited 2020-09-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PRO PROLINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blotting force 9, blotted for 4 seconds
Resolution 3.30 Å
7LV0 Pre-translocation rotated ribosome +1-frameshifting(CCC-A) complex (Structure Irot-FS) Deposited 2021-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blotting force 9, blotted for 4 seconds
Resolution 3.20 Å
7N1P Elongating 70S ribosome complex in a classical pre-translocation (PRE-C) conformation Deposited 2021-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain SB 1–241（241 aa）
Not recorded PUT 1,4-DIAMINOBUTANE × 18 MG MAGNESIUM ION × 405 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 SPD SPERMIDINE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å
7N2C Elongating 70S ribosome complex in a fusidic acid-stalled intermediate state of translocation bound to EF-G(GDP) (INT2) Deposited 2021-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 61-meric
Chain SB 1–241（241 aa）
Not recorded PUT 1,4-DIAMINOBUTANE × 21 MG MAGNESIUM ION × 197 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 SPD SPERMIDINE × 3 FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.72 Å
7N2U Elongating 70S ribosome complex in a hybrid-H1 pre-translocation (PRE-H1) conformation Deposited 2021-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain SB 1–241（241 aa）
Not recorded PUT 1,4-DIAMINOBUTANE × 16 MG MAGNESIUM ION × 368 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 SPD SPERMIDINE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.53 Å
7N2V Elongating 70S ribosome complex in a spectinomycin-stalled intermediate state of translocation bound to EF-G in an active, GTP conformation (INT1) Deposited 2021-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain SB 1–241（241 aa）
Not recorded SCM SPECTINOMYCIN × 3 PUT 1,4-DIAMINOBUTANE × 17 MG MAGNESIUM ION × 344 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 SPD SPERMIDINE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7N30 Elongating 70S ribosome complex in a hybrid-H2* pre-translocation (PRE-H2*) conformation Deposited 2021-05-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain SB 1–241（241 aa）
Not recorded PUT 1,4-DIAMINOBUTANE × 11 MG MAGNESIUM ION × 296 ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 SPD SPERMIDINE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.66 Å
7N31 Elongating 70S ribosome complex in a post-translocation (POST) conformation Deposited 2021-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain SB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 209 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 PUT 1,4-DIAMINOBUTANE × 9 SPD SPERMIDINE × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.69 Å
7NAR Complete Bacterial 30S ribosomal subunit assembly complex state F (+RsgA)(Consensus Refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 97 ZN ZINC ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7NAT Bacterial 30S ribosomal subunit assembly complex state A (Consensus refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 65 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.59 Å
7NAU Bacterial 30S ribosomal subunit assembly complex state C (Consensus Refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 21-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 57 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
7NAV Bacterial 30S ribosomal subunit assembly complex state D (Consensus refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 37 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NAW Bacterial 30S ribosomal subunit assembly complex state B (Consensus Refinement) Deposited 2021-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 22 PDB declaration: 23-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 31 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.05 Å
7NBU Structure of the HigB1 toxin mutant K95A from Mycobacterium tuberculosis (Rv1955) and its target, the cspA mRNA, on the E. coli Ribosome. Deposited 2021-01-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 50 PDB declaration: 56-meric
Chain B 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 313 FME N-FORMYLMETHIONINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2s before plunging
Resolution 3.11 Å
7O19 Cryo-EM structure of an Escherichia coli TnaC-ribosome complex stalled in response to L-tryptophan Deposited 2021-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 170 ZN ZINC ION × 3 TRP TRYPTOPHAN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；All buffers used during the preparation contained 2 mM L-tryptophan.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7O1A Cryo-EM structure of an Escherichia coli TnaC(R23F)-ribosome complex stalled in response to L-tryptophan Deposited 2021-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain AB 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 326 K POTASSIUM ION × 147 ZN ZINC ION × 3 TRP TRYPTOPHAN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；All buffers used during the preparation contained 2 mM L-tryptophan.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
7O1C Cryo-EM structure of an Escherichia coli TnaC(R23F)-ribosome-RF2 complex stalled in response to L-tryptophan Deposited 2021-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain AB 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 339 K POTASSIUM ION × 147 ZN ZINC ION × 3 TRP TRYPTOPHAN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；All buffers used during the preparation contained 2 mM L-tryptophan.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
7OIZ Cryo-EM structure of 70S ribosome stalled with TnaC peptide Deposited 2021-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 308 TRP TRYPTOPHAN × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7OJ0 Cryo-EM structure of 70S ribosome stalled with TnaC peptide and RF2 Deposited 2021-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 59-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 308 TRP TRYPTOPHAN × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7OXG ttSlyD FKBP domain with M8A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 20–34（15 aa）
Not recorded CL CHLORIDE ION × 1 IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 5.5；292.15 K；Bis-Tris, PEG 3350
Resolution 2.00 Å R-free 0.247
7OXG ttSlyD FKBP domain with M8A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 20–34（15 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 5.5；292.15 K；Bis-Tris, PEG 3350
Resolution 2.00 Å R-free 0.247
7OXH ttSlyD with pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 20–34（15 aa）
Not recorded PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 NI NICKEL (II) ION × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 6.5；292.15 K；Sodium cacodylate, PEG 200
Resolution 1.70 Å R-free 0.238
7OXI ttSlyD with W4A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 20–34（15 aa）
Chain C 20–34（15 aa）
Mutation：W23E, P25A, K28L, I30A Mutation：W23E, P25A, K28L, I30A CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions COUNTER-DIFFUSION；pH 6.5；292.15 K；sodium cacodylate, MPD, PEG8000
Resolution 2.60 Å R-free 0.245
7OXJ ttSlyD with M8A pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 20–34（15 aa）
Mutation：P6A, M8A, K9L, I11A NI NICKEL (II) ION × 1 PGE TRIETHYLENE GLYCOL × 2 PG4 TETRAETHYLENE GLYCOL × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.5；292.15 K；Sodium cacodylate, PEG 200
Resolution 1.85 Å R-free 0.224
7OXK ttSlyD with W4K pseudo-wild-type S2 peptide Deposited 2021-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 20–34（15 aa）
Chain C 20–34（15 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 9；292.15 K；1-4dioxane, bicine, PEG 20000
Resolution 2.80 Å R-free 0.235
7P3K Cryo-EM structure of 70S ribosome stalled with TnaC peptide (control) Deposited 2021-07-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 308 CLM CHLORAMPHENICOL × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7PJV Structure of the 70S-EF-G-GDP-Pi ribosome complex with tRNAs in hybrid state 1 (H1-EF-G-GDP-Pi) Deposited 2021-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain b 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 369 ZN ZINC ION × 2 NA SODIUM ION × 2 AM2 APRAMYCIN × 3 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing
Resolution 3.10 Å
7PJY Structure of the 70S-EF-G-GDP ribosome complex with tRNAs in chimeric state 1 (CHI1-EF-G-GDP) Deposited 2021-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain b 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 318 ZN ZINC ION × 2 NA SODIUM ION × 1 AM2 APRAMYCIN × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing
Resolution 3.10 Å
7QG8 Structure of the collided E. coli disome - VemP-stalled 70S ribosome Deposited 2021-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain 1 1–239（239 aa）
Not recorded MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
7QGR Structure of the SmrB-bound E. coli disome - collided 70S ribosome Deposited 2021-12-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain 1 1–239（239 aa）
Not recorded MG MAGNESIUM ION × 2 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
7SS9 Late translocation intermediate with EF-G partially dissociated (Structure V) Deposited 2021-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7SSD Mid translocation intermediate with EF-G bound with GDP (Structure IV) Deposited 2021-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7SSL Pre translocation intermediate with EF-G bound to GDP and Pi (Structure III) Deposited 2021-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7SSN Pre translocation 70S ribosome with A/P* and P/E tRNA (Structure II-B) Deposited 2021-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 54-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7SSO Pre translocation 70S ribosome with A/A and P/E tRNA (Structure II-A) Deposited 2021-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7SSW Late translocation intermediate with EF-G dissociated (Structure VI) Deposited 2021-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7ST2 Post translocation, non-rotated 70S ribosome with EF-G dissociated (Structure VII) Deposited 2021-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric
Chain G 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7ST6 Pre translocation, non-rotated 70S ribosome (Structure I) Deposited 2021-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain G 2–226（225 aa）
Not recorded PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7ST7 Pre translocation intermediate stalled with viomycin and bound with EF-G in a GDP and Pi state (Structure III-vio) Deposited 2021-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain G 9–226（218 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7UPH Structure of a ribosome with tethered subunits Deposited 2022-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 49-meric
Chain W 4–227（224 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.18 Å
7Y7C Structure of the Bacterial Ribosome with human tRNA Asp(G34) and mRNA(GAU) Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 283 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.51 Å
7Y7D Structure of the Bacterial Ribosome with human tRNA Asp(Q34) and mRNA(GAU) Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 258 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.58 Å
7Y7E Structure of the Bacterial Ribosome with human tRNA Asp(ManQ34) and mRNA(GAU) Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 248 MAN alpha-D-mannopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.41 Å
7Y7F Structure of the Bacterial Ribosome with human tRNA Asp(ManQ34) and mRNA(GAC) Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 259 MAN alpha-D-mannopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.43 Å
7Y7G Structure of the Bacterial Ribosome with human tRNA Tyr(GalQ34) and mRNA(UAU) Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 256 GAL beta-D-galactopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.34 Å
7Y7H Structure of the Bacterial Ribosome with human tRNA Tyr(GalQ34) and mRNA(UAC) Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 263 GAL beta-D-galactopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.51 Å
7ZTA Structure of an Escherichia coli 70S ribosome stalled by Tetracenomycin X during translation of an MAAAPQK(C) peptide Deposited 2022-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain S021 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 289 K POTASSIUM ION × 115 ZN ZINC ION × 3 OCW Tetracenomycin X × 1 CYS CYSTEINE × 1 GLN GLUTAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Waiting 30 sec Blotting 2.5 sec Blot force 5
Resolution 2.70 Å
8A3L Structural insights into the binding of bS1 to the ribosome Deposited 2022-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain B 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 313 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
8AKN Cryo-EM structure of the proline-rich antimicrobial peptide drosocin bound to the terminating ribosome Deposited 2022-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain C 1–241（241 aa）
Not recorded ZN ZINC ION × 2 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1 MG MAGNESIUM ION × 305 SPM SPERMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.30 Å
8AM9 Cryo-EM structure of the proline-rich antimicrobial peptide drosocin bound to the elongating ribosome Deposited 2022-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain C 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 293 SPM SPERMINE × 1 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.80 Å
8AYE E. coli 70S ribosome bound to thermorubin and fMet-tRNA Deposited 2022-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 308 T8B Thermorubin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.96 Å
8B0X Translating 70S ribosome in the unrotated state (P and E, tRNAs) Deposited 2022-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 1 K POTASSIUM ION × 168 MG MAGNESIUM ION × 361 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.55 Å
8B7Y Cryo-EM structure of the E.coli 70S ribosome in complex with the antibiotic Myxovalargin B. Deposited 2022-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 52-meric
Chain D 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 237 ZN ZINC ION × 1 FME N-FORMYLMETHIONINE × 1 SPD SPERMIDINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8BF7 Elongating E. coli 70S ribosome containing deacylated tRNA(iMet) in the P-site and AAA mRNA codon with cognate dipeptidyl-tRNA(Lys) in the A-site Deposited 2022-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain f 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å
8BGE Elongating E. coli 70S ribosome containing acylated tRNA(iMet) in the P-site and AAm6A mRNA codon in the A-site after uncompleted di-peptide formation Deposited 2022-10-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain f 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.11 Å
8BGH Elongating E. coli 70S ribosome containing acylated tRNA(iMet) in the P-site and AAA mRNA codon in the A-site after uncompleted di-peptide formation Deposited 2022-10-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain f 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
8BH4 Elongating E. coli 70S ribosome containing deacylated tRNA(iMet) in the P-site and AAm6A mRNA codon with cognate dipeptidyl-tRNA(Lys) in the A-site Deposited 2022-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain f 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.62 Å
8BHJ Elongating E. coli 70S ribosome containing deacylated tRNA(iMet) in the P-site and Am6AA mRNA codon with cognate dipeptidyl-tRNA(Lys) in the A-site Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain f 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.81 Å
8BHL Elongating E. coli 70S ribosome containing acylated tRNA(iMet) in the P-site and Am6AA mRNA codon in the A-site after uncompleted di-peptide formation Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain f 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.21 Å
8BHN Elongating E. coli 70S ribosome containing deacylated tRNA(iMet) in the P-site and m6AAA mRNA codon with cognate dipeptidyl-tRNA(Lys) in the A-site Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain f 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
8BHP Elongating E. coli 70S ribosome containing acylated tRNA(iMet) in the P-site and m6AAA mRNA codon in the A-site after uncompleted di-peptide formation Deposited 2022-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain f 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.37 Å
8BIL Initiation complex of the E. coli 70S ribosome with mRNA containing AAA codon in the A-site. Deposited 2022-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain f 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.04 Å
8BIM Initiation complex of the E. coli 70S ribosome with mRNA containing AAm6A codon in the A-site Deposited 2022-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain f 1–241（241 aa）
Not recorded FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1x TAKM7 buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.04 Å
8CAI Streptomycin and Hygromycin B bound to the 30S body Deposited 2023-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: pentadecameric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 29 HY0 HYGROMYCIN B VARIANT × 3 5I0 [(2~{S},3~{S},4~{S},5~{R},6~{S})-2-[(2~{R},3~{R},4~{R},5~{S})-2-[(1~{R},2~{S},3~{R},4~{R},5~{S},6~{R})-2,4-bis[[azaniumylidene(azanyl)methyl]amino]-3,5,6-tris(oxidanyl)cyclohexyl]oxy-4-[bis(oxidanyl)methyl]-5-methyl-4-oxidanyl-oxolan-3-yl]oxy-6-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-3-yl]-methyl-azanium × 1 SCM SPECTINOMYCIN × 1 MG MAGNESIUM ION × 55 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.08 Å
8CAZ empty 30S head Deposited 2023-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 9 PDB declaration: decameric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 13 MG MAGNESIUM ION × 29 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.11 Å
8CF1 Tetracycline bound to the 30S head Deposited 2023-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 9 PDB declaration: decameric
Chain B 1–241（241 aa）
Not recorded TAC TETRACYCLINE × 1 MG MAGNESIUM ION × 31 K POTASSIUM ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.82 Å
8CF8 Eravacycline bound to the 30S head Deposited 2023-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric
Chain B 1–241（241 aa）
Not recorded YQM Eravacycline × 1 MG MAGNESIUM ION × 32 K POTASSIUM ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
8CGJ Streptomycin bound to the 30S body Deposited 2023-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 25 5I0 [(2~{S},3~{S},4~{S},5~{R},6~{S})-2-[(2~{R},3~{R},4~{R},5~{S})-2-[(1~{R},2~{S},3~{R},4~{R},5~{S},6~{R})-2,4-bis[[azaniumylidene(azanyl)methyl]amino]-3,5,6-tris(oxidanyl)cyclohexyl]oxy-4-[bis(oxidanyl)methyl]-5-methyl-4-oxidanyl-oxolan-3-yl]oxy-6-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-3-yl]-methyl-azanium × 1 TAC TETRACYCLINE × 1 MG MAGNESIUM ION × 63 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.79 Å
8HTZ E. coli 70S ribosome complexed with H. marismortui tRNA_Ile2 bearing agm2C34 in classical state Deposited 2022-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 317 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8HU1 E. coli 70S ribosome complexed with tRNA_Ile2 bearing L34 and ct6A37 in classical state Deposited 2022-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 314 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.69 Å
8IFB Dibekacin-bound E.coli 70S ribosome in the PURE system Deposited 2023-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 406 SPD SPERMIDINE × 14 84D Dibekacin × 13 SPM SPERMINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.43 Å
8IFC Arbekacin-bound E.coli 70S ribosome in the PURE system Deposited 2023-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 460 SPD SPERMIDINE × 16 84G Arbekacin × 10 SPM SPERMINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8JSG Structure of the 30S-IF3 complex from Escherichia coli Deposited 2023-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain j 2–226（225 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8K3O Cryo-EM structure of 30S ribosome with cleaved AP-mRNA bound complex I Deposited 2023-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain B 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.88 Å
8K4E Cryo-EM structure of 30S ribosome with cleaved AP-mRNA bound complex-II Deposited 2023-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain B 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8P16 E167K RF2 on E. coli 70S release complex with UGG (Structure I) Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 330 SPD SPERMIDINE × 13 K POTASSIUM ION × 128 PUT 1,4-DIAMINOBUTANE × 13 SPM SPERMINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.77 Å
8P17 E167K RF2 on E. coli 70S release complex with UGG (Structure II) Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 325 SPD SPERMIDINE × 13 K POTASSIUM ION × 128 PUT 1,4-DIAMINOBUTANE × 13 SPM SPERMINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.78 Å
8P18 E167K RF2 on E. coli 70S release complex with UGG (Structure III) Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 321 SPD SPERMIDINE × 13 K POTASSIUM ION × 127 PUT 1,4-DIAMINOBUTANE × 13 SPM SPERMINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.77 Å
8PEG Escherichia coli paused disome complex (queueing 70S non-rotated closed PRE state) Deposited 2023-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 61-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 260 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celcius.
Resolution 3.30 Å
8PHJ cA4-bound Cami1 in complex with 70S ribosome Deposited 2023-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 61-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 241 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.67 Å
8PKL Escherichia coli paused disome complex (leading 70S non-rotated closed PRE state) Deposited 2023-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 60-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 PUT 1,4-DIAMINOBUTANE × 2 SPD SPERMIDINE × 1 MG MAGNESIUM ION × 287 ALA ALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celcius.
Resolution 3.09 Å
8PVA Structure of bacterial ribosome determined by cryoEM at 100 keV Deposited 2023-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8QBT E. coli ApdP-stalled ribosomal complex Deposited 2023-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 45 PDB declaration: 52-meric
Chain j 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 248 K POTASSIUM ION × 127 PRO PROLINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.20 Å
8QK7 E167K RF2 on E. coli 70S release complex with UAA Deposited 2023-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain g 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 332 PUT 1,4-DIAMINOBUTANE × 21 K POTASSIUM ION × 126 SPD SPERMIDINE × 10 SPM SPERMINE × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.77 Å
8QOA Structure of SecM-stalled Escherichia coli 70S ribosome Deposited 2023-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 K POTASSIUM ION × 132 MG MAGNESIUM ION × 288 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.00 Å
8R3V Escherichia coli paused disome complex (non-rotated disome interface) Deposited 2023-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 65-meric
Chain B 1–241（241 aa）
Chain B2 1–241（241 aa）
Not recorded ZN ZINC ION × 2 PUT 1,4-DIAMINOBUTANE × 2 SPD SPERMIDINE × 1 MG MAGNESIUM ION × 297 ALA ALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celsius.
Resolution 3.28 Å
8R6C 70S Escherichia coli ribosome with Paenilamicin B2 bound with A- and P-site tRNA. Deposited 2023-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 308 K POTASSIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.20 Å
8R8M 70S Escherichia coli ribosome with Paenilamicin B2 bound with hybrid A/P- and hybrid P/E-tRNA. Deposited 2023-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 307 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.40 Å
8RCL Escherichia coli paused disome complex (Non-rotated disome interface class 1) Deposited 2023-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 65-meric
Chain B 1–241（241 aa）
Chain B2 1–241（241 aa）
Not recorded ZN ZINC ION × 2 PUT 1,4-DIAMINOBUTANE × 2 SPD SPERMIDINE × 1 MG MAGNESIUM ION × 296 ALA ALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celcius.
Resolution 3.49 Å
8RCM Escherichia coli paused disome complex (Non-rotated disome interface class 2) Deposited 2023-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 65-meric
Chain B 1–241（241 aa）
Chain B2 1–241（241 aa）
Not recorded ZN ZINC ION × 2 PUT 1,4-DIAMINOBUTANE × 2 MG MAGNESIUM ION × 296 ALA ALANINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celcius.
Resolution 3.59 Å
8RCS Escherichia coli paused disome complex (Rotated disome interface class 1) Deposited 2023-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 65-meric
Chain B 1–241（241 aa）
Chain B2 1–241（241 aa）
Not recorded ZN ZINC ION × 2 PUT 1,4-DIAMINOBUTANE × 2 SPD SPERMIDINE × 1 MG MAGNESIUM ION × 269 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celcius.
Resolution 4.46 Å
8RCT Escherichia coli paused disome complex (Rotated disome interface class 2) Deposited 2023-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 65-meric
Chain B 1–241（241 aa）
Chain B2 1–241（241 aa）
Not recorded ZN ZINC ION × 2 PUT 1,4-DIAMINOBUTANE × 2 SPD SPERMIDINE × 1 MG MAGNESIUM ION × 268 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；Withdrawn samples were spotted directly onto freshly glow-discharged holey carbon grids, blotted for 1-2 s, and flash frozen in liquid ethane using a Vitrobot Mark IV plunger (ThermoFisher Scientific) after a wait time of 40 s at 4 degrees Celcius.
Resolution 5.32 Å
8Y5K E.coli transcription translation coupling complex in TTC-A state 2 containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
8Y5L E.coli transcription translation coupling complex in TTC-B state 1 (subclass1) containing mRNA with 30-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8Y5M E.coli transcription translation coupling complex in TTC-B state 2 containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5N E.coli transcription translation coupling complex in TTC-A state 3 containing mRNA with 21-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5O E.coli transcription translation coupling complex in TTC-B state 3 (subclass1) containing mRNA with 30-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8Y5P E.coli transcription translation coupling complex in TTC-B state 4 (subclass 1) containing mRNA with 24-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.50 Å
8Y5Q E.coli transcription translation coupling complex in TTC-B state 4 (subclass 2) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and GDPCP Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 66-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8Y5R E.coli Transcription translation coupling complex in TTC-B state 5 (subclass 1) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and fusidic acid Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5S E.coli Transcription translation coupling complex in TTC-B state 5 (subclass 2) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and GDPCP Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5T E.coli Transcription translation coupling complex in TTC-B state 5 (subclass 3) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and fusidic acid Deposited 2024-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8YDE E.coli transcription translation coupling complex in TTC-B state 1 (subclass 3) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
8YDF E.coli transcription translation coupling complex in TTC-B state 1 (subclass 2) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8YDG E.coli transcription translation coupling complex in TTC-B state 3 (subclass2) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
8YDH E.coli transcription translation coupling complex in TTC-P state 1 (subclass1) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
8YDI E.coli transcription translation coupling complex in TTC-P state 1 (subclass 2) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8YDJ E.coli transcription translation coupling complex in TTC-P containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain G 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
8YUO E. coli 70S ribosome complexed with P. putida tRNAIle2 at the A-site and P-site Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 309 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.25 Å
8YUP E. coli 70S ribosome complexed with P. putida tRNAIle2 and A4 mRNA Deposited 2024-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 309 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.39 Å
8YUQ E. coli 70S ribosome complexed with P. putida tRNAIle2 and dA4 mRNA Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 309 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.41 Å
8YUR E. coli 70S ribosome complexed with P. putida tRNAIle2 and Am4 mRNA Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 309 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.47 Å
8YUS E. coli 70S ribosome complexed with P.putida tRNAIle2 and A(F)4 mRNA Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 309 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.43 Å
8ZEJ Structure of E.coli ribosome in complex with an engineered arrest peptide Deposited 2024-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 1 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM HEPES (pH 7.6), 140 mM NH4Cl, 25 mM MgCl2, 2 mM DTT
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.69 Å
8ZFF Structure of the Bacterial Ribosome without hypoxia-induced rRNA modifications Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 457 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.59 Å
8ZFG Structure of the Bacterial Ribosome with hypoxia-induced rRNA modifications Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 471 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.68 Å
8ZFI Structure of E.coli ribosome in complex with an engineered arrest peptide and trigger factor Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 1 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM HEPES (pH 7.6), 140 mM NH4Cl, 25 mM MgCl2, 2 mM DTT
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.90 Å
8ZTU 70S ribosome arrested by PepNL Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 300 K POTASSIUM ION × 47 SPD SPERMIDINE × 7 PUT 1,4-DIAMINOBUTANE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8ZTV 70S ribosome arrested by PepNL with RF2 Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 301 K POTASSIUM ION × 47 SPD SPERMIDINE × 7 PUT 1,4-DIAMINOBUTANE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9FBV 70S Escherichia coli ribosome with P-site initiatior tRNA. Deposited 2024-05-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 306 K POTASSIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.40 Å
9GFT Structure of the HrpA-bound E. coli disome, Class I Deposited 2024-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 105 PDB declaration: 116-meric
Chain 1 1–241（241 aa）
Chain AB 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9GGR Structure of the HrpA-bound E. coli disome, Class II Deposited 2024-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 106 PDB declaration: 117-meric
Chain 1 1–241（241 aa）
Chain AB 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9GHA Fusidic acid-locked Escherichia coli 70S ribosome with Staphylococcus aureus EF-G and a tRNA in pe/E chimeric state (CHI) Deposited 2024-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 K POTASSIUM ION × 94 MG MAGNESIUM ION × 271 GDP GUANOSINE-5'-DIPHOSPHATE × 1 FUA FUSIDIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.24 Å
9GHB Fusidic acid-locked Escherichia coli 70S ribosome with Staphylococcus aureus EF-G in post-translocational state (POST) Deposited 2024-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 K POTASSIUM ION × 111 MG MAGNESIUM ION × 303 GDP GUANOSINE-5'-DIPHOSPHATE × 1 FUA FUSIDIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.21 Å
9GHC Pre-release fusidic acid-locked Escherichia coli 70S ribosome with Staphylococus aureus EF-G and FusB (FusB-EF-G-70S) Deposited 2024-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 3 K POTASSIUM ION × 109 MG MAGNESIUM ION × 301 GDP GUANOSINE-5'-DIPHOSPHATE × 1 FUA FUSIDIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.79 Å
9GHD Escherichia coli 70S ribosome in complex with Staphylococcus aureus FusB-EF-G (FusB-EF-G-70S*) Deposited 2024-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 K POTASSIUM ION × 112 MG MAGNESIUM ION × 303 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.41 Å
9GHE Staphylococcus aureus FusB bound to the small subunit of the Escherichia coli 70S ribosome (FusB-70S:SSU) Deposited 2024-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 3 K POTASSIUM ION × 112 MG MAGNESIUM ION × 303 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.87 Å
9GHF Staphylococcus aureus FusB bound to the large subunit of the Escherichia coli 70S ribosome (FusB-70S:LSU) Deposited 2024-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 3 K POTASSIUM ION × 112 MG MAGNESIUM ION × 303 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9GUP 30S mRNA delivery complex (open head) Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 86 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9GUQ 30S PIC (Pre-Initiation complex) Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 24-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 128 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9GUS 30S mRNA delivery complex TEC resolved (30S only) Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 24-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 125 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GUT 30S mRNA delivery complex (bS1 resolved) Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 24-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 137 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9GUU 30S mRNA delivery complex (consensus) Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 24-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 120 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9GUV 30S mRNA delivery complex (closed-head) Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 24-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 86 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9GUW 30S-TEC (TEC in expressome position) Inactive state 2 Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 26 PDB declaration: 30-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 118 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9GUX 30S-TEC (TEC in expressome position) Inactive state 1 Deposited 2024-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 27 PDB declaration: 31-meric
Chain C 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 132 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9GXX 70S ribosome with doublet-decoding tRNASer3 bound to A-site GCA codon Deposited 2024-10-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 288 SPD SPERMIDINE × 7 PUT 1,4-DIAMINOBUTANE × 7 SPM SPERMINE × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.61 Å
9H0L 70S ribosome with cognate tRNASer3 bound to A-site AGC codon Deposited 2024-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 314 SPD SPERMIDINE × 6 SPM SPERMINE × 1 PUT 1,4-DIAMINOBUTANE × 6 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
9H9H Complex 1 30S-IF1-IF2-IF3-GE81112 Deposited 2024-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 23 PDB declaration: 26-meric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 5 MG MAGNESIUM ION × 152 A1IC4 (2S,3S)-2-[[(2S)-2-[[(2S,4S)-5-aminocarbonyloxy-4-oxidanyl-2-[[(2S,3R)-3-oxidanylpiperidin-2-yl]carbonylamino]pentanoyl]amino]-3-(1H-imidazol-4-yl)propanoyl]amino]-3-(2-chloranyl-1H-imidazol-4-yl)-3-oxidanyl-propanoic acid × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9H9I Complex 2 (HEAD) 30S-IF1-IF3-tRNA-GE81112 Deposited 2024-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: 11-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 49 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9H9K Complex 3 (HEAD) 30S-tRNA-GE81112 Deposited 2024-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: 11-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 30 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9H9M Complex 4 (HEAD) 30S-GE81112 (weak residual tRNA) Deposited 2024-10-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 42 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9JPM Structure of the Bacterial Ribosome with human tRNA Lys(mcm5s2U34) and mRNA(AAA) Deposited 2024-09-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 391 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.43 Å
9JPO Structure of the Bacterial Ribosome with human tRNA Lys(mcm5h2U34) and mRNA(AAA) Deposited 2024-09-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 448 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.18 Å
9JPP Structure of the Bacterial Ribosome with human tRNA Lys(mcm5s2U34) and mRNA(AAG) Deposited 2024-09-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 443 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
9JQ2 Structure of the Bacterial Ribosome with human tRNA Lys(mcm5h2U34) and mRNA(AAG) Deposited 2024-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 438 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；The Buffer pH was adjusted to 7.6 using KOH.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.61 Å
9N2B Impacts of ribosomal RNA sequence variation on gene expression and phenotype: Cryo-EM structure of the rrsB ribosome (BBB-70S) Deposited 2025-01-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain SB 1–241（241 aa）
Not recorded PUT 1,4-DIAMINOBUTANE × 9 SPD SPERMIDINE × 5 MG MAGNESIUM ION × 276 K POTASSIUM ION × 56 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
9N2C Impacts of ribosomal RNA sequence variation on gene expression and phenotype: Cryo-EM structure of the rrsH ribosome (HBB-70S) Deposited 2025-01-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain SB 1–241（241 aa）
Not recorded PUT 1,4-DIAMINOBUTANE × 10 SPD SPERMIDINE × 5 MG MAGNESIUM ION × 283 K POTASSIUM ION × 49 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9NJF E. coli pre-elongation complex without an A-site tRNA with EQ2-YbiT in Non-hydrolytic 1/PtIM(a) conformation Deposited 2025-02-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 124 ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9NJV E. coli 70S initiation complex (bL33 absent) Deposited 2025-02-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 53-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 152 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NKL E. coli 70S initiation complex Deposited 2025-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 161 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9NL5 E. coli pre-elongation complex without an A-site tRNA with EQ2-EttA in Hydrolytic 1 conformation Deposited 2025-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 125 ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9NL6 E. coli initiation complex with EQ2-YbiT in Non-hydrolytic 1/PtIM(a) conformation Deposited 2025-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 252 FME N-FORMYLMETHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NL7 E. coli initiation complex with EQ2-YbiT in Non-hydrolytic 2/PtIM(b) conformation Deposited 2025-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 250 FME N-FORMYLMETHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9NLB E. coli initiation complex with EQ2-EttA in Hydrolytic 2 conformation Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 279 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NLE E. coli initiation complex with EQ2-EttA in Hydrolytic 1 conformation Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 298 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 FME N-FORMYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NLF E. coli initiation complex with EQ2-YbiT in Hydrolytic 2/PtIM(a) conformation Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 245 FME N-FORMYLMETHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NLH E.coli Initiation complex with YheS-EQ2 Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 263 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NLJ E.coli Initiation complex with Uup-EQ2 Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 277 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NLQ E. coli initiation complex with EQ2-YbiT in Hydrolytic 1/PtIM(a) conformation Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 241 FME N-FORMYLMETHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9NLS E. coli initiation complex with EQ2-YbiT in Intermediate/PtIM(b) conformation Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric
Chain sb 9–226（218 aa）
Not recorded MG MAGNESIUM ION × 248 ZN ZINC ION × 1 FME N-FORMYLMETHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9PZG Bacterial ribosomal 2'-O-methyltransferase RsmI in complex with the small ribosomal subunit Deposited 2025-08-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 22 PDB declaration: 23-meric
Chain B 1–241（241 aa）
Not recorded AN6 5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine × 2 MG MAGNESIUM ION × 79 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；10 mM HEPES, 10 mM MgCl2, 100 mM NH4Cl, 6 mM Beta-mercaptoethanol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.42 Å
9Q87 Principles of ion binding to RNA inferred from the analysis of a 1.55 Angstrom resolution bacterial ribosome structure - Part I: Mg2+ Deposited 2025-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 2–235（234 aa）
Not recorded K POTASSIUM ION × 235 MG MAGNESIUM ION × 415 CU1 COPPER (I) ION × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.55 Å
9QQQ Cryo-EM structure of SKM-70S ribosomal stalled complex in the major state (vacant A-site, canon) Deposited 2025-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 A1JA7 [(2~{S},3~{S},4~{R},5~{R},6~{S})-4-[(2~{S},3~{R},4~{S},5~{R},6~{S})-5-acetamido-6-(hydroxymethyl)-4-[(2~{R},3~{R},4~{S},5~{S},6~{R})-6-(hydroxymethyl)-4-[(2~{S},3~{R},4~{R},5~{R},6~{R})-6-(hydroxymethyl)-5-methoxy-3,4-bis(oxidanyl)oxan-2-yl]oxy-3,5-bis(oxidanyl)oxan-2-yl]oxy-3-oxidanyl-oxan-2-yl]oxy-6-carbamimidamido-2-(hydroxymethyl)-5-oxidanyl-oxan-3-yl] carbamate × 1 MG MAGNESIUM ION × 312 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.26 Å
9QSJ Cryo-EM structure of SKM-70S ribosomal stalled complex in the A-tRNA positioned (Body open) state. Deposited 2025-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 3–241（239 aa）
Not recorded ZN ZINC ION × 2 A1JAI [(2~{S},3~{S},4~{R},5~{R},6~{S})-4-[(2~{S},3~{R},4~{S},5~{R},6~{S})-5-acetamido-6-(hydroxymethyl)-4-[(2~{R},3~{R},4~{S},5~{S},6~{R})-6-(hydroxymethyl)-4-[(2~{S},3~{R},4~{R},5~{R},6~{R})-6-(hydroxymethyl)-5-methoxy-3,4-bis(oxidanyl)oxan-2-yl]oxy-3,5-bis(oxidanyl)oxan-2-yl]oxy-3-oxidanyl-oxan-2-yl]oxy-2-(hydroxymethyl)-6-[[~{N}-[4-[(~{N}-methylcarbamimidoyl)amino]butyl]carbamimidoyl]amino]-5-oxidanyl-oxan-3-yl] carbamate × 1 MG MAGNESIUM ION × 311 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.62 Å
9R3A Structure of Stalled Beta-Galactosidase 70S Ribosome Nascent Chain Deposited 2025-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 56-meric
Chain V 1–241（241 aa）
Not recorded ZN ZINC ION × 2 K POTASSIUM ION × 131 MG MAGNESIUM ION × 287 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.86 Å
9RBF Structure of a stalled E. coli 70S RNC-NuoK-86 in complex with the membrane protein insertase SecYEG-YidC Deposited 2025-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 61-meric
Chain B 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 2.44 Å
9RJA Manikomycin bound to the Escherichia coli 70S ribosome Deposited 2025-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 57-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 309 K POTASSIUM ION × 2 PAR PAROMOMYCIN × 1 SPD SPERMIDINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.45 Å
9RTU Structure of the 70S-EF-G(P610L)-GDP-Pi ribosome complex with tRNAs in hybrid state 1 (H1-EF-G(P610L)-GDP-Pi) Deposited 2025-07-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain b 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 369 ZN ZINC ION × 2 NA SODIUM ION × 2 AM2 APRAMYCIN × 3 PO4 PHOSPHATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing
Resolution 3.00 Å
9RTV Structure of the 70S-EF-G(P610L)-GDP-Pi ribosome complex with tRNAs in hybrid state 2 (H2-EF-G(P610L)-GDP-Pi) Deposited 2025-07-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric
Chain b 1–240（240 aa）
Not recorded MG MAGNESIUM ION × 369 ZN ZINC ION × 2 NA SODIUM ION × 2 AM2 APRAMYCIN × 3 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES, 70 mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.6 mM spermine, 0.4 mM spermidine
cryo-EM vitrification conditions Cryogen ETHANE；Manual blotting & plunge-freezing
Resolution 3.60 Å
9SLG Doxycycline Bound E. coli Ribosome with Rearranged Peptidyl Transferase Centre Deposited 2025-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 447 K POTASSIUM ION × 77 DXT (4S,4AR,5S,5AR,6R,12AS)-4-(DIMETHYLAMINO)-3,5,10,12,12A-PENTAHYDROXY-6-METHYL-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2-CARBOXAMIDE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；BS100 ribosomal resuspension buffer
cryo-EM vitrification conditions Cryogen ETHANE；Blot time 4 s, blot force 1, blot total 1
Resolution 2.16 Å
9SRO Cryo-EM structure of SKM-70S ribosomal stalled complex in the rotated state with hybrid tRNAs Deposited 2025-09-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 54-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 309 A1JAI [(2~{S},3~{S},4~{R},5~{R},6~{S})-4-[(2~{S},3~{R},4~{S},5~{R},6~{S})-5-acetamido-6-(hydroxymethyl)-4-[(2~{R},3~{R},4~{S},5~{S},6~{R})-6-(hydroxymethyl)-4-[(2~{S},3~{R},4~{R},5~{R},6~{R})-6-(hydroxymethyl)-5-methoxy-3,4-bis(oxidanyl)oxan-2-yl]oxy-3,5-bis(oxidanyl)oxan-2-yl]oxy-3-oxidanyl-oxan-2-yl]oxy-2-(hydroxymethyl)-6-[[~{N}-[4-[(~{N}-methylcarbamimidoyl)amino]butyl]carbamimidoyl]amino]-5-oxidanyl-oxan-3-yl] carbamate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.60 Å
9SS0 30S ribosomal subunit RimM-KO with IF1 and IF3 (State I) Deposited 2025-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 17 PDB declaration: 18-meric
Chain AA 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9SS1 30S ribosomal subunit RimM-KO with IF1 and IF3 (State II) Deposited 2025-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 19 PDB declaration: 20-meric
Chain AA 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9SS2 30S ribosomal subunit RimM-KO with IF1 and IF3 (State III) Deposited 2025-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 22 PDB declaration: 23-meric
Chain AA 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9SS6 70S ribosome from RimM-KO Deposited 2025-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 55-meric
Chain AA 1–241（241 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9SYH E. coli 70S ribosome from deltaRlmE strain Deposited 2025-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 148 MG MAGNESIUM ION × 351 SR0 N~1~-(3-azaniumylpropyl)butane-1,4-diaminium × 6 PUT 1,4-DIAMINOBUTANE × 9 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.89 Å
9T0Y E. coli 70S ribosome from delta-9 strain Deposited 2025-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 143 MG MAGNESIUM ION × 337 SR0 N~1~-(3-azaniumylpropyl)butane-1,4-diaminium × 6 PUT 1,4-DIAMINOBUTANE × 9 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.87 Å
9T6M E. coli 70S ribosome from delta-10 strain Deposited 2025-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded K POTASSIUM ION × 132 MG MAGNESIUM ION × 316 SR0 N~1~-(3-azaniumylpropyl)butane-1,4-diaminium × 5 PUT 1,4-DIAMINOBUTANE × 8 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；HEPES-polymix buffer (pH-7.5)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.87 Å
9TEW DalDro bound to the initiating Escherichia coli 70S ribosome Deposited 2025-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.90 Å
9TEX Dal2 bound to the Escherichia coli 70S ribosome Deposited 2025-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.54 Å
9TMI E. coli 70S ribosome with A- and P-site tRNA Deposited 2025-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 258 SCM SPECTINOMYCIN × 1 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.08 Å
9TNL E. coli 70S ribosome with A/P- and P/E-site tRNA Deposited 2025-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 SCM SPECTINOMYCIN × 1 MG MAGNESIUM ION × 266 K POTASSIUM ION × 52 VAL VALINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.11 Å
9TQA E. coli 70S ribosome, trapped conformational ground state of SSU-h44 apical loop, with A- and P-site tRNA Deposited 2025-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 SCM SPECTINOMYCIN × 1 MG MAGNESIUM ION × 238 VAL VALINE × 1 K POTASSIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å
9WNQ Structure of E.coli ribosome in complex with an engineered arrest peptide Deposited 2025-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 1 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM HEPES (pH 7.6), 140 mM NH4Cl, 25 mM MgCl2, 2 mM DTT
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.59 Å
9WNR Structure of E.coli ribosome in complex with an engineered arrest peptide and trigger factor Deposited 2025-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 57-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 1 PRO PROLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM HEPES (pH 7.6), 140 mM NH4Cl, 25 mM MgCl2, 2 mM DTT
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.76 Å
9XTC E.coli delta lepA 30S ribosomal subunit class C, body domain Deposited 2025-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: tridecameric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 39 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.10 Å
9XTD E.coli delta lepA 30S ribosomal subunit class B, body domain Deposited 2025-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: tridecameric
Chain B 4–227（224 aa）
Not recorded MG MAGNESIUM ION × 39 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
9XTE E.coli delta lepA 30S ribosomal subunit class A, body domain Deposited 2025-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: tridecameric
Chain B 1–241（241 aa）
Not recorded MG MAGNESIUM ION × 34 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.24 Å
9ZTL Single Particle Cryo EM Analysis of a Ribosome Nascent Globin Complex Deposited 2025-12-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain B 1–241（241 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å

400 other PDB entries and 452 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RS2_ECOLI
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–16； UniProt 26–41

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 4odn

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 4odn
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id4odn
Deposition date deposition_date2014-01-10
Structure title titleStructure of SlyD from Thermus thermophilus in complex with S2-plus peptide
Keywords keywordsFKBP domain, IF domain, chaperone, peptidyl-prolyl isomerase, PPIase, ISOMERASE; ISOMERASE, CHAPERONE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier21.06 Å
Radius of gyration Rg (electron density) rg_electron20.42 Å
Forward intensity I(0) i06544310.00
Molecular weight molecular_weight18405.0 kDa
Excluded volume excluded_volume22745 ų
Envelope volume envelope_volume29194 ų
Hydration-shell volume shell_volume12798 ų
Envelope diameter envelope_diameter66.9 Å
Shell Rg shell_rg25.11 Å
Envelope Rg envelope_rg20.21 Å
Shape Rg shape_rg20.39 Å
Total Rg total_rg21.23 Å
Total atoms total_atoms1292
Residues n_residues162
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax67.9 Å
Rg (real space) rg_real21.16 Å
Rg uncertainty (real space) rg_real_error0.46 Å
I(0) (real space) i0_real6.5440e+06
I(0) uncertainty (real space) i0_real_error8.8060e+04
Rg (reciprocal space) rg_reciprocal21.14 Å
I(0) (reciprocal space) i0_reciprocal6544000.0000
Solution quality estimate total_estimate0.7089
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary18.0 Å
Skewness Skewness skewness0.315
Kurtosis Kurtosis kurtosis-0.747
Angular range angular_range— – 0.3750 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha1125000.0000
Real-space data points n_real_points69
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.817; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.768; Smooth: 0.888
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id4odnA00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily40 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
