6uu8

E. coli mutant sigma-S transcription initiation complex with a 7-nt RNA ("Fresh" mutant crystal soaked with GTP, UTP, and CTP for 30 minutes)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	DNA-directed RNA polymerase subunit beta × 1 （P0A8V4） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoS × 1 （A0A377K1M2） Synthetic DNA 50-mer (promoter non-template strand) × 1 Synthetic DNA 50-mer (promoter template strand) × 1 RNA 7-mer (de novo synthesized) × 1 MAGNESIUM ION × 2 ZINC ION × 2 DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 8–242； UniProt 1–235 Author chain BBB； PDBConstruct 8–242； UniProt 1–235

DNA-directed RNA polymerase subunit beta

Escherichia coli

UniProt P0A8V4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoS × 1 （A0A377K1M2） Synthetic DNA 50-mer (promoter non-template strand) × 1 Synthetic DNA 50-mer (promoter template strand) × 1 RNA 7-mer (de novo synthesized) × 1 MAGNESIUM ION × 2 ZINC ION × 2 DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOB_ECO57
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain CCC； PDBConstruct 1–1342； UniProt 1–1342

;DNA-directed RNA polymerase subunit beta' ;

Escherichia coli

UniProt P0A8T7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V4） DNA-directed RNA polymerase subunit omega × 1 （P0A800） RNA polymerase sigma factor RpoS × 1 （A0A377K1M2） Synthetic DNA 50-mer (promoter non-template strand) × 1 Synthetic DNA 50-mer (promoter template strand) × 1 RNA 7-mer (de novo synthesized) × 1 MAGNESIUM ION × 2 ZINC ION × 2 DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain DDD； PDBConstruct 1–1407； UniProt 1–1407

DNA-directed RNA polymerase subunit omega

Escherichia coli

UniProt P0A800

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V4） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） RNA polymerase sigma factor RpoS × 1 （A0A377K1M2） Synthetic DNA 50-mer (promoter non-template strand) × 1 Synthetic DNA 50-mer (promoter template strand) × 1 RNA 7-mer (de novo synthesized) × 1 MAGNESIUM ION × 2 ZINC ION × 2 DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOZ_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain EEE； PDBConstruct 1–90； UniProt 2–91

RNA polymerase sigma factor RpoS

Escherichia coli

UniProt A0A377K1M2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	DNA-directed RNA polymerase subunit alpha × 2 （P0A7Z4） DNA-directed RNA polymerase subunit beta × 1 （P0A8V4） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P0A8T7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） Synthetic DNA 50-mer (promoter non-template strand) × 1 Synthetic DNA 50-mer (promoter template strand) × 1 RNA 7-mer (de novo synthesized) × 1 MAGNESIUM ION × 2 ZINC ION × 2 DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A377K1M2_ECOLX
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain FFF； PDBConstruct 1–328； UniProt 1–328

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6uu8
Deposition date deposition_date	2019-10-30
Structure title title	E. coli mutant sigma-S transcription initiation complex with a 7-nt RNA ("Fresh" mutant crystal soaked with GTP, UTP, and CTP for 30 minutes)
Keywords keywords	;Transcription initiation, RNA polymerase, DNA promoter, transcription bubble, de novo RNA synthesis, DNA scrunching, sigma-S factor, TRANSCRIPTION, TRANSFERASE-DNA-RNA complex ;; TRANSCRIPTION, TRANSFERASE/DNA/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6uu8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

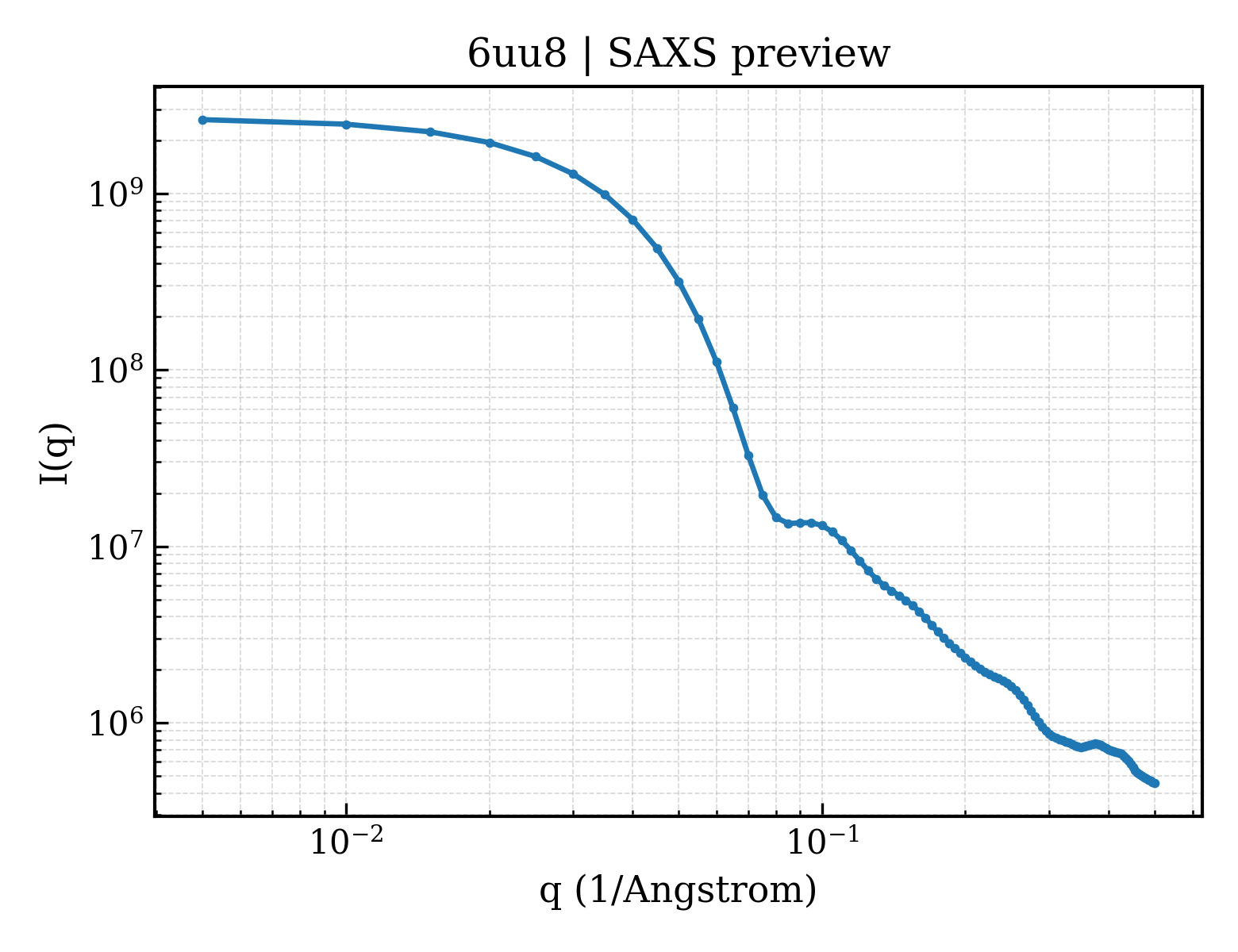

6uu8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6uu8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.85 Å
Rg (electron density)	48.34 Å
Total Rg	48.59 Å
Atom count	28931
Residues	3575
Excluded volume	510340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6uu8__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	26899.6 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA,BBB
Atom count atom_count	28931

AHHHHHHMQGSVTEFLKPRLVDIEQVSSTHAKVTLEPLERGFGHTLGNALRRILLSSMPGCAVTEVEIDGVLHEYSTKEGVQEDILEILLNLKGLAVRVQGKDEVILTLNKSGIGPVTAADITHDGDVEIVKPQHVICHLTDENASISMRIKVQRGRGYVPASTRIHSEEDERPIGRLLVDACYSPVERIAYNVEAARVEQRTDLDKLVIEMETNGTIDPEEAIRRAATILAEQLEAFVDLR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	150820.9 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	CCC

MVYSYTEKKRIRKDFGKRPQVLDVPYLLSIQLDSFQKFIEQDPEGQYGLEAAFRSVFPIQSYSGNSELQYVSYRLGEPVFDVQECQIRGVTYSAPLRVKLRLVIYEREAPEGTVKDIKEQEVYMGEIPLMTDNGTFVINGTERVIVSQLHRSPGVFFDSDKGKTHSSGKVLYNARIIPYRGSWLDFEFDPKDNLFVRIDRRRKLPATIILRALNYTTEQILDLFFEKVIFEIRDNKLQMELVPERLRGETASFDIEANGKVYVEKGRRITARHIRQLEKDDVKLIEVPVEYIAGKVVAKDYIDESTGELICAANMELSLDLLAKLSQSGHKRIETLFTNDLDHGPYISETLRVDPTNDRLSALVEIYRMMRPGEPPTREAAESLFENLFFSEDRYDLSAVGRMKFNRSLLREEIEGSGILSKDDIIDVMKKLIDIRNGKGEVDDIDHLGNRRIRSVGEMAENQFRVGLVRVERAVKERLSLGDLDTLMPQDMINAKPISAAVKEFFGSSQLSQFMDQNNPLSEITHKRRISALGPGGLTRERAGFEVRDVHPTHYGRVCPIETPEGPNIGLINSLSVYAQTNEYGFLETPYRKVTDGVVTDEIHYLSAIEEGNYVIAQANSNLDEEGHFVEDLVTCRSKGESSLFSRDQVDYMDVSTQQVVSVGASLIPFLEHDDANRALMGANMQRQAVPTLRADKPLVGTGMERAVAVDSGVTAVAKRGGVVQYVDASRIVIKVNEDEMYPGEAGIDIYNLTKYTRSNQNTCINQMPCVSLGEPVERGDVLADGPSTDLGELALGQNMRVAFMPWNGYNFEDSILVSERVVQEDRFTTIHIQELACVSRDTKLGPEEITADIPNVGEAALSKLDESGIVYIGAEVTGGDILVGKVTPKGETQLTPEEKLLRAIFGEKASDVKDSSLRVPNGVSGTVIDVQVFTRDGVEKDKRALEIEEMQLKQAKKDLSEELQILEAGLFSRIRAVLVAGGVEAEKLDKLPRDRWLELGLTDEEKQNQLEQLAEQYDELKHEFEKKLEAKRRKITQGDDLAPGVLKIVKVYLAVKRRIQPGDKMAGRHGNKGVISKINPIEDMPYDENGTPVDIVLNPLGVPSRMNIGQILETHLGMAAKGIGDKINAMLKQQQEVAKLREFIQRAYDLGADVRQKVDLSTFSDEEVMRLAENLRKGMPIATPVFDGAKEAEIKELLKLGDLPTSGQIRLYDGRTGEQFERPVTVGYMYMLKLNHLVDDKMHARSTGSYSLVTQQPLGGKAQFGGQRFGEMEVWALEAYGAAYTLQEMLTVKSDDVNGRTKMYKNIVDGNHQMEPGMPESFNVLLKEIRSLGINIELEDE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	155366.8 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	DDD

MKDLLKFLKAQTKTEEFDAIKIALASPDMIRSWSFGEVKKPETINYRTFKPERDGLFCARIFGPVKDYECLCGKYKRLKHRGVICEKCGVEVTQTKVRRERMGHIELASPTAHIWFLKSLPSRIGLLLDMPLRDIERVLYFESYVVIEGGMTNLERQQILTEEQYLDALEEFGDEFDAKMGAEAIQALLKSMDLEQECEQLREELNETNSETKRKKLTKRIKLLEAFVQSGNKPEWMILTVLPVLPPDLRPLVPLDGGRFATSDLNDLYRRVINRNNRLKRLLDLAAPDIIVRNEKRMLQEAVDALLDNGRRGRAITGSNKRPLKSLADMIKGKQGRFRQNLLGKRVDYSGRSVITVGPYLRLHQCGLPKKMALELFKPFIYGKLELRGLATTIKAAKKMVEREEAVVWDILDEVIREHPVLLNRAPTLHRLGIQAFEPVLIEGKAIQLHPLVCAAYNADFDGDQMAVHVPLTLEAQLEARALMMSTNNILSPANGEPIIVPSQDVVLGLYYMTRDCVNAKGEGMVLTGPKEAERLYRSGLASLHARVKVRITEYEKDANGELVAKTSLKDTTVGRAILWMIVPKGLPYSIVNQALGKKAISKMLNTCYRILGLKPTVIFADQIMYTGFAYAARSGASVGIDDMVIPEKKHEIISEAEAEVAEIQEQFQSGLVTAGERYNKVIDIWAAANDRVSKAMMDNLQTETVINRDGQEEKQVSFNSIYMMADSGARGSAAQIRQLAGMRGLMAKPDGSIIETPITANFREGLNVLQYFISTHGARKGLADTALKTANSGYLTRRLVDVAQDLVVTEDDCGTHEGIMMTPVIEGGDVKEPLRDRVLGRVTAEDVLKPGTADILVPRNTLLHEQWCDLLEENSVDAVKVRSVVSCDTDFGVCAHCYGRDLARGHIINKGEAIGVIAAQSIGEPGTQLTMRTFHIGGAASRAAAESSIQVKNKGSIKLSNVKSVVNSSGKLVITSRNTELKLIDEFGRTKESYKVPYGAVLAKGDGEQVAGGETVANWDPHTMPVITEVSGFVRFTDMIDGQTITRQTDELTGLSSLVVLDSAERTAGGKDLRPALKIVDAQGNDVLIPGTDMPAQYFLPGKAIVQLEDGVQISSGDTLARIPQESGGTKDITGGLPRVADLFEARRPKEPAILAEISGIVSFGKETKGKRRLVITPVDGSDPYEEMIPKWRQLNVFEGERVERGDVISDGPEAPHDILRLRGVHAVTRYIVNEVQDVYRLQGVKINDKHIEVIVRQMLRKATIVNAGSSDFLEGEQVEYSRVKIANRELEANGKVGATYSRDLLGITKASLATESFISAASFQETTRVLTEAAVAGKRDELRGLKENVIVGRLIPAGTGYAYHQDRMRRRAAGEAPAAPQVTAEDASASLAELLNAGLGGSDNE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	10118.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	EEE

ARVTVQDAVEKIGNRFDLVLVAARRARQMQVGGKDPLVPEENDKTTVIALREIEEGLINNQILDVRERQEQQEQEAAELQAVTAIAEGRR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	RNA polymerase sigma factor RpoS
Molecular weight formula_weight	38705.5 kDa
Mutation mutation	I219G, S221A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	FFF

MGQNTLKVHDLNEDAEFDENGVEVFDEKALVEEEPSDNDLAEEELLSQGATQRVLDATQLYLGEIGYSPLLTAEEEVYFARRALRGDVASRRRMIESNLRLVVKIARRYGNRGLALLDLIEEGNLGLIRAVEKFDPERGFRFSTYATWWIRQTIERAIMNQTRTIRLPIHIVKELNVYLRTARELSHKLDHEPSAEEIAEQLDKPVDDVSRMLRLNERGTAVDTPLGGDSEKALLDILADEKENGPEDTTQDDDMKQSIVKWLFELNAKQREVLARRFGLLGYEAATLEDVGREIGLTRERVRQIQVEGLRRLREILQTQGLNIEALFLEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Synthetic DNA 50-mer (promoter non-template strand)
Molecular weight formula_weight	15313.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	111

ACCTTGACATCCCACCTCACGTATGCTATAATGTGTGCAGTCTGACGCGG

Entity 7 Entity 7 polymer

Description description	Synthetic DNA 50-mer (promoter template strand)
Molecular weight formula_weight	15563.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	222

TCCGCGTCAGACTCGTAGGATTATAGCATACGTGAGGTGGGATGTCAAGG

Entity 8 Entity 8 polymer

Description description	RNA 7-mer (de novo synthesized)
Molecular weight formula_weight	2397.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	333

GAGUCUG

Entity 9 Entity 9 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	DIPHOSPHATE
Molecular weight formula_weight	173.9 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	133.460 Å
Unit-cell length b length_b	154.504 Å
Unit-cell length c length_c	235.697 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	4.400 Å
Low-resolution limit resolution_low	49.378 Å
R factor r_factor	—
R_work r_work	0.3572
R_free r_free	0.3796
