9nsn

Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-41059

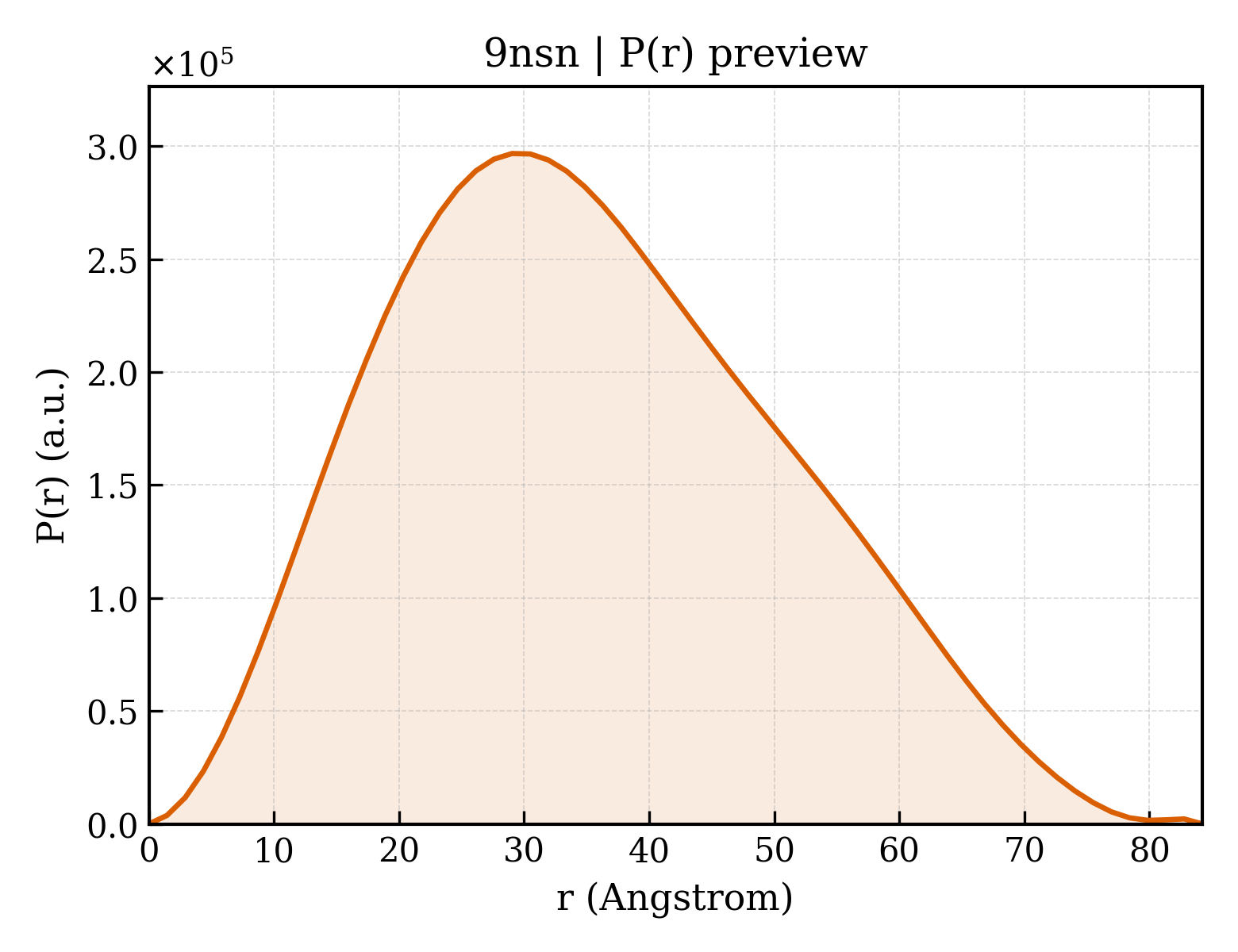

Method: X-RAY DIFFRACTION Dmax: 84.2 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DDB1- and CUL4-associated factor 1

Homo sapiens

UniProt Q9Y4B6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 1080–1390 Fragment：residues 1080-1390 WD repeat-containing protein 5 × 1 （P61964） A1B0X N-{(1P)-5'-({(26E)-27-[(3P)-4-{[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-25-oxo-3,6,9,12,15,18,21-heptaoxa-24-azaheptacos-26-en-1-yl}carbamoyl)-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-5,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.15 M cesium chloride, 15% PEG3350 Resolution 1.85 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9NSN Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3WA0 Crystal structure of merlin complexed with DCAF1/VprBP Deposited 2013-04-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1417–1506（90 aa） Fragment：UNP residues 1417-1506
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；277 K；0.2M ammonium fluoride, 23% PEG 3350, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.31 Å R-free 0.264
3WA0 Crystal structure of merlin complexed with DCAF1/VprBP Deposited 2013-04-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1417–1506（90 aa） Fragment：UNP residues 1417-1506
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；277 K；0.2M ammonium fluoride, 23% PEG 3350, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.31 Å R-free 0.264
4CC9 Crystal structure of human SAMHD1 (amino acid residues 582-626) bound to Vpx isolated from sooty mangabey and human DCAF1 (amino acid residues 1058-1396) Deposited 2013-10-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1058–1396（339 aa） Fragment：RESIDUES 1058-1396
Not recorded PG4 TETRAETHYLENE GLYCOL × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.2 M MAGNESIUM CHLORIDE, 0.1 M HEPES PH 7.5, 15% PEG 400
Resolution 2.47 Å R-free 0.216
4P7I Crystal structure of the Merlin FERM/DCAF1 complex Deposited 2014-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 998–1058（61 aa） Fragment：UNP residues 998-1058
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% Isopropanol and 5% PEG8000
Resolution 2.60 Å R-free 0.256
4P7I Crystal structure of the Merlin FERM/DCAF1 complex Deposited 2014-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 998–1058（61 aa） Fragment：UNP residues 998-1058
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% Isopropanol and 5% PEG8000
Resolution 2.60 Å R-free 0.256
4PXW Crystal structure of human DCAF1 WD40 repeats (Q1250L) Deposited 2014-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L UNX UNKNOWN LIGAND × 22 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；0.1 M sodium hepes, 0.2 M lithium sulfate, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, temperature 291K
Resolution 1.72 Å R-free 0.219
4PXW Crystal structure of human DCAF1 WD40 repeats (Q1250L) Deposited 2014-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1039–1401（363 aa）
Mutation：Q1250L UNX UNKNOWN LIGAND × 23 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；0.1 M sodium hepes, 0.2 M lithium sulfate, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, temperature 291K
Resolution 1.72 Å R-free 0.219
4Z8L Crystal structure of DCAF1/SIV-MND VPX/MND SAMHD1 NTD ternary complex Deposited 2015-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1057–1396（340 aa） Fragment：UNP residues 1057-1396
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；1.6 M NaH2PO4, 0.4 M K2HPO4, 0.1 M Sodium Phosphate/Citrate buffer, pH 4.2
Resolution 2.60 Å R-free 0.228
4Z8L Crystal structure of DCAF1/SIV-MND VPX/MND SAMHD1 NTD ternary complex Deposited 2015-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1057–1396（340 aa） Fragment：UNP residues 1057-1396
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；1.6 M NaH2PO4, 0.4 M K2HPO4, 0.1 M Sodium Phosphate/Citrate buffer, pH 4.2
Resolution 2.60 Å R-free 0.228
5AJA Crystal structure of mandrill SAMHD1 (amino acid residues 1-114) bound to Vpx isolated from mandrill and human DCAF1 (amino acid residues 1058-1396) Deposited 2015-02-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1058–1396（339 aa） Fragment：WD40-REPEAT DOMAIN, RESIDUES 1058-1396
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.16 M TRISODIUM CITRATE-HCL PH 5.2, 4% PEG 6000
Resolution 2.65 Å R-free 0.227
5JK7 The X-ray structure of the DDB1-DCAF1-Vpr-UNG2 complex Deposited 2016-04-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1045–1396（352 aa） Fragment：UNP residues 1045-1396
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；289.15 K；100 mM Na Ctrate, pH 5.6, 11% PEG 20000
Resolution 3.49 Å R-free 0.206
5JK7 The X-ray structure of the DDB1-DCAF1-Vpr-UNG2 complex Deposited 2016-04-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1045–1396（352 aa） Fragment：UNP residues 1045-1396
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；289.15 K；100 mM Na Ctrate, pH 5.6, 11% PEG 20000
Resolution 3.49 Å R-free 0.206
6N45 Crystal structure of the cryptic polo box domain of human activated Plk4 variant 1 Deposited 2018-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1475–1507（33 aa）
Chain B 1475–1507（33 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；4.3M Ammonium Acetate 0.1M BisTris propane pH 8.0
Resolution 2.64 Å R-free 0.314
6ZUE Crystal structure of human DDB1 bound to human DCAF1 (amino acid residues 1046-1396) Deposited 2020-07-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1046–1396（351 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；100 mM Tri-Na citrate pH 5.5 18% PEG 1000
Resolution 3.09 Å R-free 0.279
6ZX9 Crystal structure of SIV Vpr,fused to T4 lysozyme, isolated from moustached monkey, bound to human DDB1 and human DCAF1 (amino acid residues 1046-1396) Deposited 2020-07-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1046–1396（351 aa）
Not recorded GOL GLYCEROL × 8 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；8-10% PEG 4000 (w/v), 200 mM MgCl2, 100 mM HEPES-NaOH, pH 7.0-8.2.
Resolution 2.52 Å R-free 0.260
7OKQ Cryo-EM Structure of the DDB1-DCAF1-CUL4A-RBX1 Complex Deposited 2021-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: Hexadecameric
Chain B 2–1507（1506 aa）
Chain F 2–1507（1506 aa）
Chain J 2–1507（1506 aa）
Chain N 2–1507（1506 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7SSE Crystal structure of the WDR domain of human DCAF1 in complex with CYCA-117-70 Deposited 2021-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Mutation：F1077A, R1079A Mutation：F1077A, R1079A B1I N-[(3R)-1-(3-fluorophenyl)piperidin-3-yl]-6-(morpholin-4-yl)pyrimidin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；30% PEG3350 ,0.1M Ammonium Sulphate, 0.1M Bis-Tris pH5.5
Resolution 1.62 Å R-free 0.234
7UFV Crystal structure of the WDR domain of human DCAF1 in complex with OICR-6766 Deposited 2022-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Mutation：F1077A, R1079A N6O (3P)-N-[(1S)-3-amino-1-(3-chlorophenyl)-3-oxopropyl]-3-(2-fluorophenyl)-1H-pyrazole-4-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；291 K；20% PEG3350, 0.2M Potassium Fluoride
Resolution 1.90 Å R-free 0.254
7UFV Crystal structure of the WDR domain of human DCAF1 in complex with OICR-6766 Deposited 2022-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1077–1390（314 aa）
Mutation：F1077A, R1079A N6O (3P)-N-[(1S)-3-amino-1-(3-chlorophenyl)-3-oxopropyl]-3-(2-fluorophenyl)-1H-pyrazole-4-carboxamide × 1 UNX UNKNOWN LIGAND × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；291 K；20% PEG3350, 0.2M Potassium Fluoride
Resolution 1.90 Å R-free 0.254
7V7B CryoEM structure of DDB1-VprBP complex in ARM-up conformation Deposited 2021-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1507（1507 aa）
Chain C 1–1507（1507 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7V7C CryoEM structure of DDB1-VprBP-Vpr-UNG2(94-313) complex Deposited 2021-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–1507（1507 aa）
Chain E 1–1507（1507 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8F8E Crystal structure of the WDR domain of human DCAF1 in complex with OICR-8268 compound Deposited 2022-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Mutation：F1077A, R1079A XJI (3P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-3-(4-chloro-2-fluorophenyl)-1H-pyrazole-4-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M di-Ammonium Citrate
Resolution 1.55 Å R-free 0.209
8F8E Crystal structure of the WDR domain of human DCAF1 in complex with OICR-8268 compound Deposited 2022-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1077–1390（314 aa）
Mutation：F1077A, R1079A XJI (3P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-3-(4-chloro-2-fluorophenyl)-1H-pyrazole-4-carboxamide × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M di-Ammonium Citrate
Resolution 1.55 Å R-free 0.209
8OG5 Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 1 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 LQH 5-(2-fluorophenyl)-2,3-dihydroimidazo[2,1-a]isoquinoline × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M MES pH6.5, 2.13M Lithium acetate
Resolution 2.20 Å R-free 0.235
8OG6 Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 1 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L LQH 5-(2-fluorophenyl)-2,3-dihydroimidazo[2,1-a]isoquinoline × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M Tris pH 7.0, 2.13M Lithium acetate
Resolution 2.25 Å R-free 0.231
8OG7 Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 2 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L ACT ACETATE ION × 1 EDO 1,2-ETHANEDIOL × 1 VMR (4~{R})-4-[3-(4-chloranylphenoxy)phenyl]pyrrolidin-2-imine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M MES pH6.5, 2.13M Lithium acetate
Resolution 2.64 Å R-free 0.206
8OG8 Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 3 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L VM8 5-(2-methyl-1-phenyl-propan-2-yl)imidazo[2,1-a]isoquinoline × 2 ACT ACETATE ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M MES pH6.5, 2.13M Lithium acetate
Resolution 2.11 Å R-free 0.212
8OG9 Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 4 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L VM3 5-[1-(4-chlorophenyl)cyclopropyl]imidazo[2,1-a]isoquinoline × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M MES pH6.5, 2.13M Lithium acetate
Resolution 2.94 Å R-free 0.240
8OGA Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 6 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain P 1079–1393（315 aa）
Mutation：Q1250L EDO 1,2-ETHANEDIOL × 3 DMS DIMETHYL SULFOXIDE × 2 VLW 5-[1-(4-methoxyphenyl)cyclopropyl]-8-(4-methylpiperazin-1-yl)-2,3-dihydroimidazo[2,1-a]isoquinoline × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1M Tris pH 7.5, 1.66M Lithium acetate
Resolution 2.20 Å R-free 0.209
8OGB Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 8 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L EDO 1,2-ETHANEDIOL × 1 VN5 ~{N}'-[2-[1-(4-methoxyphenyl)cyclopropyl]-7-(4-methylpiperazin-1-yl)quinazolin-4-yl]ethane-1,2-diamine × 1 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1M Tris pH 7.5, 2.13M Lithium acetate
Resolution 2.27 Å R-free 0.212
8OGC Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 11 Deposited 2023-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L DMS DIMETHYL SULFOXIDE × 1 MG MAGNESIUM ION × 1 ACT ACETATE ION × 2 EDO 1,2-ETHANEDIOL × 1 VMZ 1-[4-[4-(2-azanylethylamino)-2-[1-(4-chlorophenyl)cyclopentyl]quinazolin-7-yl]piperazin-1-yl]ethanone × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1M Tris pH 7.5, 2.18M Lithium acetate
Resolution 2.09 Å R-free 0.202
8OO5 Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 13 Deposited 2023-04-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain P 1079–1393（315 aa）
Mutation：Q1250L VUF 1-[4-[4-(2-azanylethylamino)-2-[1-(4-chlorophenyl)cyclohexyl]quinazolin-7-yl]piperazin-1-yl]ethanone × 2 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1.91M LiSO4, 0.1M Tris pH 7.5
Resolution 2.25 Å R-free 0.220
8OOD Crystal structure of human DCAF1 WD40 repeats (Q1250L) in complex with compound 15 Deposited 2023-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1039–1401（363 aa）
Mutation：Q1250L MG MAGNESIUM ION × 1 ACT ACETATE ION × 2 EDO 1,2-ETHANEDIOL × 5 VY3 ~{N}-[2-[2-[2-[2-[2-[2-[3-[4-[4-(2-azanylethylamino)-2-[1-(4-chlorophenyl)cyclopentyl]quinazolin-7-yl]piperazin-1-yl]-3-oxidanylidene-propoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethyl]ethanamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2.13M LiSO4, 0.1M Tris pH 7.5
Resolution 1.50 Å R-free 0.186
9B9H Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-40333 Deposited 2024-04-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1080–1390（311 aa） Fragment：residues 1080-1390
Not recorded A1AM2 N-{(1P)-5'-({(17E)-18-[(3P)-4-{[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-16-oxo-3,6,9,12-tetraoxa-15-azaoctadec-17-en-1-yl}carbamoyl)-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；5% w/v 1-ethyl-3-methylimidazolium ethyl sulfate, 15% w/v polyethylene glycol 20,000, pH 7.9
Resolution 2.06 Å R-free 0.229
9B9T Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-40407 Deposited 2024-04-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1080–1390（311 aa） Fragment：residues 1080-1390
Not recorded A1ANM N-{(1P)-5'-[(17-{(4P)-4-[(2P)-4-{[(1R)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-1H-pyrazol-1-yl}-16-oxo-3,6,9,12-tetraoxa-15-azaheptadecan-1-yl)carbamoyl]-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M sodium acetate trihydrate, pH 4.6, 2.0 M sodium formate
Resolution 2.05 Å R-free 0.196
9B9W Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-40792 Deposited 2024-04-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1080–1390（311 aa） Fragment：residues 1080-1390
Not recorded A1ANN (4P)-N-[(1R)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(25E)-1-{(1P)-6-fluoro-3'-[4-fluoro-2-(trifluoromethyl)benzamido]-4'-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-1,24-dioxo-5,8,11,14,17,20-hexaoxa-2,23-diazahexacos-25-en-26-yl]-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；35% v/v tacsimate, pH 7.0
Resolution 1.92 Å R-free 0.183
9BA2 Crystal structure of the binary complex of DCAF1 and WDR5 Deposited 2024-04-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1080–1390（311 aa） Fragment：residues 1080-1390
Not recorded IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M imidazole, pH 7.4, 20% w/v polyethylene glycol 4,000
Resolution 2.97 Å R-free 0.266
9BHR Crystal structure of the WDR domain of human DCAF1 in complex with OICR-40155 compound Deposited 2024-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Not recorded A1API (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-{(1E)-3-[(2-methoxyethyl)amino]-3-oxoprop-1-en-1-yl}-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M Magnesium formate
Resolution 1.62 Å R-free 0.187
9BHR Crystal structure of the WDR domain of human DCAF1 in complex with OICR-40155 compound Deposited 2024-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1077–1390（314 aa）
Not recorded A1API (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-{(1E)-3-[(2-methoxyethyl)amino]-3-oxoprop-1-en-1-yl}-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M Magnesium formate
Resolution 1.62 Å R-free 0.187
9BHS Crystal structure of the WDR domain of human DCAF1 in complex with OICR-9939 compound Deposited 2024-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Not recorded A1APJ (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-(1-methyl-1H-pyrazol-4-yl)-1H-pyrrole-3-carboxamide × 1 UNL UNKNOWN LIGAND × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；30% PEG2000 Monoethyl Ether, 0.2 M Potassium Bromide
Resolution 1.43 Å R-free 0.170
9BHS Crystal structure of the WDR domain of human DCAF1 in complex with OICR-9939 compound Deposited 2024-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1077–1390（314 aa）
Not recorded A1APJ (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-(1-methyl-1H-pyrazol-4-yl)-1H-pyrrole-3-carboxamide × 1 UNL UNKNOWN LIGAND × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；30% PEG2000 Monoethyl Ether, 0.2 M Potassium Bromide
Resolution 1.43 Å R-free 0.170
9C1Q Crystal structure of the WDR domain of human DCAF1 in complex with OICR-39512 compound Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Not recorded A1ATT (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-(3-methoxyprop-1-yn-1-yl)-1H-pyrrole-3-carboxamide × 1 UNX UNKNOWN LIGAND × 4 NA SODIUM ION × 2 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M Magnesium formate
Resolution 1.80 Å R-free 0.191
9D4E Crystal structure of the human DCAF1 WDR domain in complex with OICR-41103 Deposited 2024-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Not recorded A1A1Q (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(1E)-3-oxo-3-(piperidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% w/v PEG 3350, 0.2 M di-Ammonium Citrate
Resolution 1.70 Å R-free 0.206
9D4E Crystal structure of the human DCAF1 WDR domain in complex with OICR-41103 Deposited 2024-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1077–1390（314 aa）
Not recorded A1A1Q (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(1E)-3-oxo-3-(piperidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% w/v PEG 3350, 0.2 M di-Ammonium Citrate
Resolution 1.70 Å R-free 0.206
9DLW Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-41114 Deposited 2024-09-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1080–1390（311 aa） Fragment：residues 1080-1390
Not recorded A1BAF N-{(1P)-5'-({(32E)-33-[(3P)-4-{[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-31-oxo-3,6,9,12,15,18,21,24,27-nonaoxa-30-azatritriacont-32-en-1-yl}carbamoyl)-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；294 K；1.8 M Sodium phosphate monobasic monohydrate, potassium phosphate dibasic / pH 6.9
Resolution 2.07 Å R-free 0.242
9NSO Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-41060 Deposited 2025-03-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1080–1390（311 aa） Fragment：residues 1080-1390
Not recorded A1B0Y (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(34E)-1-{(1P)-6-fluoro-3'-[4-fluoro-2-(trifluoromethyl)benzamido]-4'-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-1,33-dioxo-5,8,11,14,17,20,23,26,29-nonaoxa-2,32-diazapentatriacont-34-en-35-yl]-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M sodium citrate tribasic dihydrate, pH 4.2, 0.4 M potassium phosphate dibasic, 1.6 M sodium phosphate monobasic monohydrate
Resolution 1.85 Å R-free 0.218
9PLY Crystal structure of the human DCAF1 WDR domain in complex with OICR-40156 Deposited 2025-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Not recorded A1CI0 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-{(1E)-3-[(3-methoxypropyl)amino]-3-oxoprop-1-en-1-yl}-1H-pyrrole-3-carboxamide × 2 EDO 1,2-ETHANEDIOL × 2 UNX UNKNOWN LIGAND × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG 3350, 0.2 M Magnesium formate
Resolution 1.40 Å R-free 0.174
9Y4Q Crystal structure of the human DCAF1 WDR domain in complex with OICR-40102 Deposited 2025-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Not recorded A1CR9 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-(pyrimidin-5-yl)-1H-pyrrole-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；3.2 M NaCl, 0.1 M Bis-Tris Propane pH 7.0
Resolution 1.48 Å R-free 0.193
9Y76 Crystal structure of the human DCAF1 WDR domain in complex with OICR-40120 Deposited 2025-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1077–1390（314 aa）
Not recorded A1CSX (4P,5M)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-{1-[2-(morpholin-4-yl)ethyl]-1H-pyrazol-4-yl}-1H-pyrrole-3-carboxamide × 1 UNX UNKNOWN LIGAND × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M magnesium formate
Resolution 1.56 Å R-free 0.208
9Y76 Crystal structure of the human DCAF1 WDR domain in complex with OICR-40120 Deposited 2025-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1077–1390（314 aa）
Not recorded A1CSX (4P,5M)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-{1-[2-(morpholin-4-yl)ethyl]-1H-pyrazol-4-yl}-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M magnesium formate
Resolution 1.56 Å R-free 0.208
9YDG Crystal structure of the human DCAF1 WDR domain in complex with OICR-41074 Deposited 2025-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1080–1390（311 aa）
Not recorded A1CU7 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(1E)-3-(morpholin-4-yl)-3-oxoprop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% w/v PEG 3350, 0.2 M Potassium Fluoride
Resolution 1.54 Å R-free 0.218
9YDG Crystal structure of the human DCAF1 WDR domain in complex with OICR-41074 Deposited 2025-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1080–1390（311 aa）
Not recorded A1CU7 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(1E)-3-(morpholin-4-yl)-3-oxoprop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% w/v PEG 3350, 0.2 M Potassium Fluoride
Resolution 1.54 Å R-free 0.218
9YE4 Crystal structure of the human DCAF1 WDR domain in complex with OICR-41110 Deposited 2025-09-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1080–1390（311 aa）
Not recorded A1CVQ (4P)-4-(4-chloro-2-fluorophenyl)-N-[(1S)-1-(3-chloro-4-fluorophenyl)-2-cyanoethyl]-5-[(1E)-3-oxo-3-(piperidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；25% w/v PEG 3350, 0.1 M Ammonium Sulphate, 0.1 M Bis-Tris pH 5.5
Resolution 1.74 Å R-free 0.224
9YE4 Crystal structure of the human DCAF1 WDR domain in complex with OICR-41110 Deposited 2025-09-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1080–1390（311 aa）
Not recorded A1CVQ (4P)-4-(4-chloro-2-fluorophenyl)-N-[(1S)-1-(3-chloro-4-fluorophenyl)-2-cyanoethyl]-5-[(1E)-3-oxo-3-(piperidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；25% w/v PEG 3350, 0.1 M Ammonium Sulphate, 0.1 M Bis-Tris pH 5.5
Resolution 1.74 Å R-free 0.224
9YV4 Crystal structure of the human DCAF1 WDR domain in complex with OICR-41109 Deposited 2025-10-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1080–1390（311 aa）
Not recorded A1CY9 (4P)-4-(4-chloro-2-fluorophenyl)-N-[(1S)-1-(3-chloro-4-fluorophenyl)-2-cyanoethyl]-5-[(1E)-3-oxo-3-(pyrrolidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 NA SODIUM ION × 1 UNX UNKNOWN LIGAND × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；25% w/v PEG 3350, 0.2 M Magnesium Chloride, 0.1 M Tris pH 8.5
Resolution 1.60 Å R-free 0.194
9YV4 Crystal structure of the human DCAF1 WDR domain in complex with OICR-41109 Deposited 2025-10-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1080–1390（311 aa）
Not recorded A1CY9 (4P)-4-(4-chloro-2-fluorophenyl)-N-[(1S)-1-(3-chloro-4-fluorophenyl)-2-cyanoethyl]-5-[(1E)-3-oxo-3-(pyrrolidin-1-yl)prop-1-en-1-yl]-1H-pyrrole-3-carboxamide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；25% w/v PEG 3350, 0.2 M Magnesium Chloride, 0.1 M Tris pH 8.5
Resolution 1.60 Å R-free 0.194
9ZL9 Crystal structure of DCAF1 in complex with SDIPTAC C7 Deposited 2025-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Chain C 1077–1390（314 aa）
Chain D 1077–1390（314 aa）
Chain E 1077–1390（314 aa）
Chain F 1077–1390（314 aa）
Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A A1C24 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-1H-pyrrole-3-carboxamide × 4 A1C23 (4P,4'P)-5,5'-[(1E,30E)-3,29-dioxo-7,10,13,16,19,22,25-heptaoxa-4,28-diazahentriaconta-1,30-diene-1,31-diyl]bis{N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-1H-pyrrole-3-carboxamide} × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；294.15 K；0.2 M sodium fluoride, 20% w/v PEG 3350, pH 7.3
Resolution 2.60 Å R-free 0.317
9ZLE Crystal structure of DCAF1 in complex with SDIPTAC C8 Deposited 2025-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Chain C 1077–1390（314 aa）
Chain D 1077–1390（314 aa）
Chain E 1077–1390（314 aa）
Chain F 1077–1390（314 aa）
Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A A1C24 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-1H-pyrrole-3-carboxamide × 4 A1C25 (4P,4'P)-5,5'-[(1E,33E)-3,32-dioxo-7,10,13,16,19,22,25,28-octaoxa-4,31-diazatetratriaconta-1,33-diene-1,34-diyl]bis{N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-1H-pyrrole-3-carboxamide} × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；294.15 K；1.0 M ammonium tartrate dibasic, 0.1 M sodium acetate trihydrate, pH 4.6
Resolution 2.55 Å R-free 0.305
9ZLG Crystal structure of DCAF1 in complex with SDIPTAC C9 Deposited 2025-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Chain C 1077–1390（314 aa）
Chain D 1077–1390（314 aa）
Chain E 1077–1390（314 aa）
Chain F 1077–1390（314 aa）
Chain G 1077–1390（314 aa）
Chain H 1077–1390（314 aa）
Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A A1C24 (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-1H-pyrrole-3-carboxamide × 4 A1C26 (4P,4'P)-5,5'-[(1E,36E)-3,35-dioxo-7,10,13,16,19,22,25,28,31-nonaoxa-4,34-diazaheptatriaconta-1,36-diene-1,37-diyl]bis{N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-1H-pyrrole-3-carboxamide} × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294.15 K；5% w/v 1-ethyl-3-methylimidazolium acetate, 15% w/v PEG 20,000, pH 6.5
Resolution 2.30 Å R-free 0.289
9ZLI Crystal structure of DCAF1 in complex with SDIPTAC C11 Deposited 2025-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1077–1390（314 aa）
Chain B 1077–1390（314 aa）
Chain C 1077–1390（314 aa）
Chain D 1077–1390（314 aa）
Chain E 1077–1390（314 aa）
Chain F 1077–1390（314 aa）
Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A Mutation：F1077A, R1079A No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.07 Å R-free 0.278

46 other PDB entries and 60 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DCAF1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain B； PDBConstruct 28–338； UniProt 1080–1390

WD repeat-containing protein 5

Homo sapiens

UniProt P61964

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 24–334 Not recorded DDB1- and CUL4-associated factor 1 × 1 （Q9Y4B6） A1B0X N-{(1P)-5'-({(26E)-27-[(3P)-4-{[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-25-oxo-3,6,9,12,15,18,21-heptaoxa-24-azaheptacos-26-en-1-yl}carbamoyl)-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-5,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.15 M cesium chloride, 15% PEG3350 Resolution 1.85 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9NSN Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
10TC Structure of WDR5 bound to RbBP5 (D376N) Deposited 2026-02-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 31–334（304 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.15 M Ammonium citrate, 18% PEG3350
Resolution 2.20 Å R-free 0.243
10TC Structure of WDR5 bound to RbBP5 (D376N) Deposited 2026-02-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 31–334（304 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.15 M Ammonium citrate, 18% PEG3350
Resolution 2.20 Å R-free 0.243
10TC Structure of WDR5 bound to RbBP5 (D376N) Deposited 2026-02-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 31–334（304 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.15 M Ammonium citrate, 18% PEG3350
Resolution 2.20 Å R-free 0.243
10TC Structure of WDR5 bound to RbBP5 (D376N) Deposited 2026-02-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 31–334（304 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.15 M Ammonium citrate, 18% PEG3350
Resolution 2.20 Å R-free 0.243
24XN Structure of WDR5 F263A variant in complex with MBD3C Deposited 2026-03-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.15 ammonium sulfate, 0.1 M sodium HEPES, pH7.0, 20% w/v PEG 4000
Resolution 1.57 Å R-free 0.212
24XN Structure of WDR5 F263A variant in complex with MBD3C Deposited 2026-03-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.15 ammonium sulfate, 0.1 M sodium HEPES, pH7.0, 20% w/v PEG 4000
Resolution 1.57 Å R-free 0.212
24XP Crystal structure of WDR5 F133A variant in complex with MBD3C Deposited 2026-03-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M sodium acetate (pH 5.0), 20% (w/v) PEG 4000
Resolution 1.30 Å R-free 0.180
24XP Crystal structure of WDR5 F133A variant in complex with MBD3C Deposited 2026-03-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M sodium acetate (pH 5.0), 20% (w/v) PEG 4000
Resolution 1.30 Å R-free 0.180
2CNX WDR5 and Histone H3 Lysine 4 dimethyl complex at 2.1 angstrom Deposited 2006-05-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 20–334（315 aa） Fragment：RESIDUES 20-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.223
2CO0 WDR5 and unmodified Histone H3 complex at 2.25 Angstrom Deposited 2006-05-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 20–334（315 aa） Fragment：RESIDUES 20-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.25 Å R-free 0.226
2CO0 WDR5 and unmodified Histone H3 complex at 2.25 Angstrom Deposited 2006-05-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 20–334（315 aa） Fragment：RESIDUES 20-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.25 Å R-free 0.226
2G99 Structural basis for the specific recognition of methylated histone H3 lysine 4 by the WD-40 protein WDR5 Deposited 2006-03-06 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 27–334（308 aa） Fragment：residues 27-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20% PEG 4000, 10% isopropanol, 0.1M HEPES, pH7.5 , VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 1.90 Å R-free 0.243
2G99 Structural basis for the specific recognition of methylated histone H3 lysine 4 by the WD-40 protein WDR5 Deposited 2006-03-06 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 27–334（308 aa） Fragment：residues 27-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20% PEG 4000, 10% isopropanol, 0.1M HEPES, pH7.5 , VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 1.90 Å R-free 0.243
2G9A Structural basis for the specific recognition of methylated histone H3 lysine 4 by the WD-40 protein WDR5 Deposited 2006-03-06 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 29–334（306 aa） Fragment：;'residues 24-334 ;
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20% PEG, 0.2M ammonium acetate, 100mM HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.70 Å R-free 0.286
2GNQ Structure of wdr5 Deposited 2006-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–334（334 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；20%peg5k mme, bis-tris 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 1.80 Å R-free 0.192
2H13 Crystal structure of WDR5/histone H3 complex Deposited 2006-05-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa） Fragment：Residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；20-30% PEG3350, 0.1 M HEPES, pH 7.5, 0.05 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP
Resolution 1.58 Å R-free 0.200
2H14 Crystal of WDR5 (apo-form) Deposited 2006-05-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa） Fragment：Residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；20-30% PEG 3350 0.1M Hepes 0.05M ammonium sulfate, pH 7.5, VAPOR DIFFUSION, HANGING DROP
Resolution 1.48 Å R-free 0.197
2H68 Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-05-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.79 Å R-free 0.192
2H68 Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-05-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.79 Å R-free 0.192
2H6K Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-05-31 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris, HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.89 Å R-free 0.190
2H6K Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-05-31 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris, HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.89 Å R-free 0.190
2H6N Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-05-31 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.50 Å R-free 0.198
2H6N Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-05-31 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.50 Å R-free 0.198
2H6Q Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-06-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.87 Å R-free 0.185
2H6Q Histone H3 recognition and presentation by the WDR5 module of the MLL1 complex Deposited 2006-06-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Crystals were grown by hanging drop vapour equilibration in Nextal plates as follows: 1 ul of 10 15 mg ml-1 protein solution (10 mM Tris HCl (pH 7.4), 50 mM NaCl, and 10 mM 2-mercaptoethanol) were mixed with 1 ul of well solution composed of 50 mM HEPES (pH 7.5), 100 mM potassium formate, and 10-20% (w/v) polyethylene glycol 3350 and equilibrated at room temperature overnight against 1 ml of well solution.
Resolution 1.87 Å R-free 0.185
2H9L WDR5delta23 Deposited 2006-06-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；20% PEG 5000 MME, 0.1M Bis-Tris 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 1.75 Å R-free 0.201
2H9M WDR5 in complex with unmodified H3K4 peptide Deposited 2006-06-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；300 K；20% PEG 3350, 0.2M di-Na Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 1.90 Å R-free 0.257
2H9M WDR5 in complex with unmodified H3K4 peptide Deposited 2006-06-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；300 K；20% PEG 3350, 0.2M di-Na Tartrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 1.90 Å R-free 0.257
2H9N WDR5 in complex with monomethylated H3K4 peptide Deposited 2006-06-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；20% PEG3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP
Resolution 2.00 Å R-free 0.279
2H9N WDR5 in complex with monomethylated H3K4 peptide Deposited 2006-06-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；20% PEG3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP
Resolution 2.00 Å R-free 0.279
2H9P WDR5 in complex with trimethylated H3K4 peptide Deposited 2006-06-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；300 K；30% PEG4000, 0.2M Ammonium Acetate and 0.1M Na Citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 1.91 Å R-free 0.203
2O9K WDR5 in Complex with Dimethylated H3K4 Peptide Deposited 2006-12-13 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；20% PEG 5000 MME, 0.1M BIS-TRIS, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 300K, pH 6.50
Resolution 1.90 Å R-free 0.226
2O9K WDR5 in Complex with Dimethylated H3K4 Peptide Deposited 2006-12-13 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；20% PEG 5000 MME, 0.1M BIS-TRIS, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 300K, pH 6.50
Resolution 1.90 Å R-free 0.226
3EG6 Structure of WDR5 bound to MLL1 peptide Deposited 2008-09-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：WD-repeat domain (UNP residues 23-334)
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；298 K；30% PEG 3350, 30 mM (NH4)2SO4, 100 mM HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.72 Å R-free 0.240
3EMH Structural basis of WDR5-MLL interaction Deposited 2008-09-24 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–334（310 aa） Fragment：UNP residues 25-334
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；20 mM HEPES, 15-20% PEG 3350, 60mM Ammonium sulfate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.37 Å R-free 0.200
3MXX Crystal structure of WDR5 mutant (S62A) Deposited 2010-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa） Fragment：RESIDUES 31-334
Mutation：S62A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；18% PEG 3350, 0.1M Hepes, 18mM (NH4)2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.05 Å R-free 0.239
3N0D Crystal structure of WDR5 mutant (W330F) Deposited 2010-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa） Fragment：RESIDUES 31-334
Mutation：W330F No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；18% PEG 3350, 0.1M Hepes, 14mM (NH4)2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.233
3N0E Crystal structure of WDR5 mutant (W330Y) Deposited 2010-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa） Fragment：RESIDUES 31-334
Mutation：W330Y No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；18% PEG 3350, 0.1M Hepes, 14mM (NH4)2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.323
3P4F Structural and biochemical insights into MLL1 core complex assembly and regulation. Deposited 2010-10-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 22–334（313 aa） Fragment：unp residues 1-308
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；0.2 M ammonium citrate (buffered with hydrochloric acid/sodium hydroxide to pH 7.0) and 18% PEG3350, VAPOR DIFFUSION, HANGING DROP
Resolution 2.35 Å R-free 0.249
3PSL Fine-tuning the stimulation of MLL1 methyltransferase activity by a histone H3 based peptide mimetic Deposited 2010-12-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：WDR5 (unp residues 21-334)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；50 mM NaAcetate, 100 mM NH4 SO4 , and 20% PEG4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.70 Å R-free 0.205
3PSL Fine-tuning the stimulation of MLL1 methyltransferase activity by a histone H3 based peptide mimetic Deposited 2010-12-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 21–334（314 aa） Fragment：WDR5 (unp residues 21-334)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；50 mM NaAcetate, 100 mM NH4 SO4 , and 20% PEG4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.70 Å R-free 0.205
3SMR Crystal structure of human WD repeat domain 5 with compound Deposited 2011-06-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded NP7 2-chloro-N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 8 UNX UNKNOWN LIGAND × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；24% PEG3350,9.2M NH4 Acetate, 0.1 Bis Tris pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 1.82 Å R-free 0.206
3SMR Crystal structure of human WD repeat domain 5 with compound Deposited 2011-06-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa）
Not recorded NP7 2-chloro-N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 6 UNX UNKNOWN LIGAND × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；24% PEG3350,9.2M NH4 Acetate, 0.1 Bis Tris pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 1.82 Å R-free 0.206
3SMR Crystal structure of human WD repeat domain 5 with compound Deposited 2011-06-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 24–334（311 aa）
Not recorded NP7 2-chloro-N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 5 UNX UNKNOWN LIGAND × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；24% PEG3350,9.2M NH4 Acetate, 0.1 Bis Tris pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 1.82 Å R-free 0.206
3SMR Crystal structure of human WD repeat domain 5 with compound Deposited 2011-06-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 24–334（311 aa）
Not recorded NP7 2-chloro-N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 4 UNX UNKNOWN LIGAND × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；24% PEG3350,9.2M NH4 Acetate, 0.1 Bis Tris pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 1.82 Å R-free 0.206
3UR4 Crystal structure of human WD repeat domain 5 with compound Deposited 2011-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded 0BW methyl 3-[(3-methoxybenzoyl)amino]-4-(4-methylpiperazin-1-yl)benzoate × 1 EDO 1,2-ETHANEDIOL × 2 CL CHLORIDE ION × 4 SO4 SULFATE ION × 2 UNX UNKNOWN LIGAND × 17 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；297 K；22% PEG 3350,0.1M A.S. ,0.1M Bis Tris pH 6.0 , VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 1.80 Å R-free 0.213
3UR4 Crystal structure of human WD repeat domain 5 with compound Deposited 2011-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa）
Not recorded 0BW methyl 3-[(3-methoxybenzoyl)amino]-4-(4-methylpiperazin-1-yl)benzoate × 1 EDO 1,2-ETHANEDIOL × 6 CL CHLORIDE ION × 2 SO4 SULFATE ION × 1 UNX UNKNOWN LIGAND × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；297 K；22% PEG 3350,0.1M A.S. ,0.1M Bis Tris pH 6.0 , VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 1.80 Å R-free 0.213
3UVK Crystal structure of WDR5 in complex with the WDR5-interacting motif of MLL2 Deposited 2011-11-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：UNP residues 21-334
Not recorded BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；323 K；0.1 M ammonium sulfate, 24% PEG3350, 0.1 M Bis-Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 323K
Resolution 1.40 Å R-free 0.192
3UVL Crystal structure of WDR5 in complex with the WDR5-interacting motif of MLL3 Deposited 2011-11-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：UNP residues 21-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；323 K；0.1 M ammonium acetate, 25% PEG3350, 0.1 M Bis-Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 323K
Resolution 2.20 Å R-free 0.220
3UVM Crystal structure of WDR5 in complex with the WDR5-interacting motif of MLL4 Deposited 2011-11-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：UNP residues 21-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；0.1 M ammonium sulfate, 25% PEG3350, 0.1 M Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.57 Å R-free 0.198
3UVN Crystal structure of WDR5 in complex with the WDR5-interacting motif of SET1A Deposited 2011-11-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：UNP residues 21-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；25% PEG3350, 0.1 M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.79 Å R-free 0.230
3UVN Crystal structure of WDR5 in complex with the WDR5-interacting motif of SET1A Deposited 2011-11-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 21–334（314 aa） Fragment：UNP residues 21-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；25% PEG3350, 0.1 M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.79 Å R-free 0.230
3UVO Crystal structure of WDR5 in complex with the WDR5-interacting motif of SET1B Deposited 2011-11-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：UNP residues 21-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；0.1 M ammonium sulfate, 25% PEG3350, 0.1 M Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.219
4A7J Symmetric Dimethylation of H3 Arginine 2 is a Novel Histone Mark that Supports Euchromatin Maintenance Deposited 2011-11-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa） Fragment：RESIDUES 21-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES PH 7.5; 60 MM AMMONIUM SULPHATE; 30% PEG 3350
Resolution 1.90 Å R-free 0.222
4CY1 Crystal structure of the KANSL1-WDR5 complex. Deposited 2014-04-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：RESIDUES 23-334
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；26% (W/V) PEG 3350, 0.2 M AMMONIUM SULPHATE, 0.1 M BIS-TRIS, PH 6.5.
Resolution 1.50 Å R-free 0.183
4CY1 Crystal structure of the KANSL1-WDR5 complex. Deposited 2014-04-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：RESIDUES 23-334
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；26% (W/V) PEG 3350, 0.2 M AMMONIUM SULPHATE, 0.1 M BIS-TRIS, PH 6.5.
Resolution 1.50 Å R-free 0.183
4CY2 Crystal structure of the KANSL1-WDR5-KANSL2 complex. Deposited 2014-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–334（312 aa） Fragment：RESIDUES 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.9；20% (W/V) PEG 3350, 0.2 M POTASSIUM NITRATE, PH 6.9.
Resolution 2.00 Å R-free 0.222
4ERQ X-ray structure of WDR5-MLL2 Win motif peptide binary complex Deposited 2012-04-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.3；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.3, hanging drop, temperature 294K
Resolution 1.91 Å R-free 0.200
4ERQ X-ray structure of WDR5-MLL2 Win motif peptide binary complex Deposited 2012-04-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.3；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.3, hanging drop, temperature 294K
Resolution 1.91 Å R-free 0.200
4ERQ X-ray structure of WDR5-MLL2 Win motif peptide binary complex Deposited 2012-04-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.3；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.3, hanging drop, temperature 294K
Resolution 1.91 Å R-free 0.200
4ERY X-ray structure of WDR5-MLL3 Win motif peptide binary complex Deposited 2012-04-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.5；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.5, hanging drop, temperature 294K
Resolution 1.30 Å R-free 0.209
4ERZ X-ray structure of WDR5-MLL4 Win motif peptide binary complex Deposited 2012-04-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.6；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.6, hanging drop, temperature 294K
Resolution 1.75 Å R-free 0.216
4ERZ X-ray structure of WDR5-MLL4 Win motif peptide binary complex Deposited 2012-04-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.6；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.6, hanging drop, temperature 294K
Resolution 1.75 Å R-free 0.216
4ERZ X-ray structure of WDR5-MLL4 Win motif peptide binary complex Deposited 2012-04-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.6；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.6, hanging drop, temperature 294K
Resolution 1.75 Å R-free 0.216
4ES0 X-ray structure of WDR5-SETd1b Win motif peptide binary complex Deposited 2012-04-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.6；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.6, hanging drop, temperature 294K
Resolution 1.82 Å R-free 0.242
4ESG X-ray structure of WDR5-MLL1 Win motif peptide binary complex Deposited 2012-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.2；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.2, hanging drop, temperature 294K
Resolution 1.70 Å R-free 0.193
4ESG X-ray structure of WDR5-MLL1 Win motif peptide binary complex Deposited 2012-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.2；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.2, hanging drop, temperature 294K
Resolution 1.70 Å R-free 0.193
4EWR X-ray structure of WDR5-SETd1a Win motif peptide binary complex Deposited 2012-04-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa） Fragment：UNP residues 23-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 7.6；294 K；PEG3350, Ammonium Sulfate, HEPES, pH 7.6, hanging drop, temperature 294K
Resolution 1.50 Å R-free 0.198
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM3 Crystal structure of human WD repeat domain 5 with compound MM-101 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG4000, 0.2 M ammonium sulfate, 0.1 M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.39 Å R-free 0.226
4GM8 Crystal structure of human WD repeat domain 5 with compound MM-102 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；30% PEG8000, 0.2 M ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.60 Å R-free 0.249
4GM8 Crystal structure of human WD repeat domain 5 with compound MM-102 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；30% PEG8000, 0.2 M ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.60 Å R-free 0.249
4GM8 Crystal structure of human WD repeat domain 5 with compound MM-102 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；30% PEG8000, 0.2 M ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.60 Å R-free 0.249
4GM8 Crystal structure of human WD repeat domain 5 with compound MM-102 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；30% PEG8000, 0.2 M ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.60 Å R-free 0.249
4GM9 Crystal structure of human WD repeat domain 5 with compound MM-401 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% PEG4000, 0.2 M magnesium chloride, 0.1 M Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K
Resolution 2.10 Å R-free 0.208
4GM9 Crystal structure of human WD repeat domain 5 with compound MM-401 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% PEG4000, 0.2 M magnesium chloride, 0.1 M Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K
Resolution 2.10 Å R-free 0.208
4GMB Crystal structure of human WD repeat domain 5 with compound MM-402 Deposited 2012-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa） Fragment：UNP residues 22-334
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；25% tert-butanol, 0.1 M Tris, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.78 Å R-free 0.247
4IA9 Crystal structure of human WD REPEAT DOMAIN 5 in complex with 2-chloro-4-fluoro-3-methyl-N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]benzamide Deposited 2012-12-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded IA9 2-chloro-4-fluoro-3-methyl-N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 2 UNX UNKNOWN LIGAND × 24 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；291 K；25% PEH 3500, 0.1 M Ammonium sulfate, 0.1 M BisTris pH5.5, vapor diffusion hanging drop, temperature 291K
Resolution 1.66 Å R-free 0.210
4O45 WDR5 in complex with influenza NS1 C-terminal tail Deposited 2013-12-18 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa） Fragment：UNP residues 24-334
Not recorded UNX UNKNOWN LIGAND × 17 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；291 K；25% PEG3350, 0.1 M ammonium sulfate, 0.1 M bis-tris, pH 6.5, temperature 291K
Resolution 1.87 Å R-free 0.212
4QL1 Crystal structure of human WDR5 in complex with compound OICR-9429 Deposited 2014-06-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded 35Q N-(4-(4-methylpiperazin-1-yl)-3'-(morpholinomethyl)-[1,1'-biphenyl]-3-yl)-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 UNX UNKNOWN LIGAND × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；25% PEG 3350, 0.2 M NH4oAC, 0.1 M BisTris pH6.5, vapor diffusion hanging drop, temperature 291K
Resolution 1.50 Å R-free 0.227
4QL1 Crystal structure of human WDR5 in complex with compound OICR-9429 Deposited 2014-06-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa）
Not recorded 35Q N-(4-(4-methylpiperazin-1-yl)-3'-(morpholinomethyl)-[1,1'-biphenyl]-3-yl)-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 UNX UNKNOWN LIGAND × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；25% PEG 3350, 0.2 M NH4oAC, 0.1 M BisTris pH6.5, vapor diffusion hanging drop, temperature 291K
Resolution 1.50 Å R-free 0.227
4QQE Crystal structure of WDR5, WD repeat domain 5 in complex with compound SGC-DS-MT-0345 Deposited 2014-06-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 24-334
Not recorded 37F N-[2-(4-methylpiperazin-1-yl)-5-(quinolin-3-yl)phenyl]-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 CL CHLORIDE ION × 1 EDO 1,2-ETHANEDIOL × 3 UNX UNKNOWN LIGAND × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；22% PEG3350, 0.2 M ammonium acetate, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 1.80 Å R-free 0.218
4Y7R Crystal structure of WDR5 in complex with MYC MbIIIb peptide Deposited 2015-02-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1 M Tris 7.0, 25% PEG 8K
Resolution 1.90 Å R-free 0.188
5EAL Crystal structure of human WDR5 in complex with compound 9h Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5ML 3-methyl-~{N}-[2-(4-methylpiperazin-1-yl)-5-quinolin-3-yl-phenyl]benzamide × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 EDO 1,2-ETHANEDIOL × 8 UNX UNKNOWN LIGAND × 13 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20% PEG 5K MME, 0.1 M BisTris pH6.5
Resolution 1.80 Å R-free 0.211
5EAL Crystal structure of human WDR5 in complex with compound 9h Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5ML 3-methyl-~{N}-[2-(4-methylpiperazin-1-yl)-5-quinolin-3-yl-phenyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 9 UNX UNKNOWN LIGAND × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20% PEG 5K MME, 0.1 M BisTris pH6.5
Resolution 1.80 Å R-free 0.211
5EAM Crystal structure of human WDR5 in complex with compound 9o Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5MN ~{N}-[5-(1~{H}-indol-5-yl)-2-(4-methylpiperazin-1-yl)phenyl]-3-methyl-benzamide × 1 EDO 1,2-ETHANEDIOL × 1 UNX UNKNOWN LIGAND × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；25% PEG3350, 0.1M NH4SO4, 0.1 M BisTris pH6.5
Resolution 1.80 Å R-free 0.228
5EAM Crystal structure of human WDR5 in complex with compound 9o Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5MN ~{N}-[5-(1~{H}-indol-5-yl)-2-(4-methylpiperazin-1-yl)phenyl]-3-methyl-benzamide × 1 EDO 1,2-ETHANEDIOL × 4 UNX UNKNOWN LIGAND × 14 SO4 SULFATE ION × 1 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；25% PEG3350, 0.1M NH4SO4, 0.1 M BisTris pH6.5
Resolution 1.80 Å R-free 0.228
5EAP Crystal structure of human WDR5 in complex with compound 9e Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5MO N-[5-(2,3-dihydro-1-benzofuran-5-yl)-2-(4-methylpiperazin-1-yl)phenyl]-3-methylbenzamide × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 EDO 1,2-ETHANEDIOL × 5 UNX UNKNOWN LIGAND × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；28% PEG 2K MME, 0.1 M BisTris pH6.5
Resolution 1.73 Å R-free 0.241
5EAR Crystal structure of human WDR5 in complex with compound 9d Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5MQ N-[5-(2,3-dihydro-1-benzofuran-7-yl)-2-(4-methylpiperazin-1-yl)phenyl]-3-methylbenzamide × 1 EDO 1,2-ETHANEDIOL × 9 UNX UNKNOWN LIGAND × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；22% PEG 3350, 0.1M NH4SO4, 0.1 M BisTris pH5.5
Resolution 1.80 Å R-free 0.185
5EAR Crystal structure of human WDR5 in complex with compound 9d Deposited 2015-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded 5MQ N-[5-(2,3-dihydro-1-benzofuran-7-yl)-2-(4-methylpiperazin-1-yl)phenyl]-3-methylbenzamide × 1 EDO 1,2-ETHANEDIOL × 10 UNX UNKNOWN LIGAND × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；22% PEG 3350, 0.1M NH4SO4, 0.1 M BisTris pH5.5
Resolution 1.80 Å R-free 0.185
5M23 Modulation of MLL1 Methyltransferase Activity Deposited 2016-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded 7DC 4-[(~{E})-[4-[[[(2~{S})-2-[[(2~{S})-2-[[(2~{S})-2-[[(2~{S})-2-azanyl-3-oxidanyl-propanoyl]amino]propanoyl]amino]-5-carbamimidamido-pentanoyl]amino]propanoyl]amino]methyl]phenyl]diazenyl]-~{N}-[(2~{S})-3-methyl-1-oxidanylidene-butan-2-yl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD 0.02 M carboxylic acid 0.1 M bicine/Trizma base pH 8.5
Resolution 1.97 Å R-free 0.214
5M25 Modulation of MLL1 Methyltransferase Activity Deposited 2016-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded 7DU (2~{S})-2-[[(2~{S})-2-[[(2~{S})-2-azanyl-3-oxidanyl-propanoyl]amino]propanoyl]amino]-5-carbamimidamido-~{N}-[(2~{S})-1-[[4-[(~{E})-[4-(hydroxymethyl)phenyl]diazenyl]phenyl]methylamino]-1-oxidanylidene-propan-2-yl]pentanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD 0.02 M carboxylic acid 0.1 M bicine/Trizma base pH 8.5
Resolution 2.43 Å R-free 0.248
5SXM WDR5 in complex with MLL Win motif peptidomimetic Deposited 2016-08-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–334（312 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；0.1M sodium citrate pH 5.6, 15% 2-propanol, and 17% PEG 4000, and 10mM ATP
Resolution 2.00 Å R-free 0.243
5SXM WDR5 in complex with MLL Win motif peptidomimetic Deposited 2016-08-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–334（312 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；0.1M sodium citrate pH 5.6, 15% 2-propanol, and 17% PEG 4000, and 10mM ATP
Resolution 2.00 Å R-free 0.243
5VFC WDR5 bound to inhibitor MM-589 Deposited 2017-04-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded 9BA N-{(3R,6S,9S,12R)-6-ethyl-12-methyl-9-[3-(N'-methylcarbamimidamido)propyl]-2,5,8,11-tetraoxo-3-phenyl-1,4,7,10-tetraazacyclotetradecan-12-yl}-2-methylpropanamide × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Na Bis-Tris pH 6.5, 26% PEG 8000 and 0.1 M ammonium sulfate
Resolution 1.64 Å R-free 0.174
6BYN Crystal structure of WDR5-Mb(S4) monobody complex Deposited 2017-12-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 31–334（304 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；28% PEG3350, 0.1 M BisTris pH 5.5
Resolution 2.69 Å R-free 0.248
6D9X Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded NA SODIUM ION × 1 FZM 2-phenyl-6,7-dihydro-5H-pyrrolo[1,2-a]imidazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.83 Å R-free 0.241
6DAI Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded DMS DIMETHYL SULFOXIDE × 2 G2V 6-(6,7-dihydro-5H-pyrrolo[1,2-a]imidazol-2-yl)-1-methylindoline × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.63 Å R-free 0.186
6DAK Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded G1Y N-{[3-(6,7-dihydro-5H-pyrrolo[1,2-a]imidazol-2-yl)phenyl]methyl}benzamide × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.60 Å R-free 0.188
6DAR Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded G2J N-(cyclopropylmethyl)-N-{[3-(6,7-dihydro-5H-pyrrolo[1,2-a]imidazol-2-yl)phenyl]methyl}-3-methoxybenzamide × 1 SO4 SULFATE ION × 2 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.88 Å R-free 0.195
6DAS Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded G2D N-[(1R)-6-(6,7-dihydro-5H-pyrrolo[1,2-a]imidazol-2-yl)-2,3-dihydro-1H-inden-1-yl]-3-methoxy-4-methylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.80 Å R-free 0.222
6DAS Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded G2D N-[(1R)-6-(6,7-dihydro-5H-pyrrolo[1,2-a]imidazol-2-yl)-2,3-dihydro-1H-inden-1-yl]-3-methoxy-4-methylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.80 Å R-free 0.222
6DY7 WDR5 in complex with a WIN site inhibitor Deposited 2018-07-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded HH7 N-[3-(2,4-dichlorophenoxy)propyl]-1H-imidazol-2-amine × 1 DMS DIMETHYL SULFOXIDE × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.90 Å R-free 0.199
6DYA WDR5 in complex with a WIN site inhibitor Deposited 2018-07-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 30–334（305 aa）
Not recorded HHM N-[(3,5-dichlorophenyl)methyl]-3-[(1H-imidazol-1-yl)methyl]benzamide × 1 SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 2.56 Å R-free 0.230
6E1Y Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded HLM N-[(1S)-1-(3-chlorophenyl)ethyl]-3-{[(4,5-dihydro-1H-imidazol-2-yl)amino]methyl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bis-Tris pH 6.0 or Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.22 Å R-free 0.182
6E1Y Discovery of Potent 2-Aryl-6,7-Dihydro-5HPyrrolo[ 1,2-a]imidazoles as WDR5 WIN-site Inhibitors Using Fragment-Based Methods and Structure-Based Design Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded HLM N-[(1S)-1-(3-chlorophenyl)ethyl]-3-{[(4,5-dihydro-1H-imidazol-2-yl)amino]methyl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bis-Tris pH 6.0 or Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.22 Å R-free 0.182
6E1Z Displacement of WDR5 from chromatin by a pharmacological WIN site inhibitor with picomolar affinity Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded HLP 5-[(1H-imidazol-1-yl)methyl]furan-2-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.10 Å R-free 0.163
6E1Z Displacement of WDR5 from chromatin by a pharmacological WIN site inhibitor with picomolar affinity Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded HLP 5-[(1H-imidazol-1-yl)methyl]furan-2-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.10 Å R-free 0.163
6E22 Displacement of WDR5 from chromatin by a pharmacological WIN site inhibitor with picomolar affinity Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded HLS 3-{[(4,5-dihydro-1H-imidazol-2-yl)amino]methyl}-N-[(3,5-dimethoxyphenyl)methyl]-4-fluorobenzamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris pH 6.0 or Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.60 Å R-free 0.180
6E22 Displacement of WDR5 from chromatin by a pharmacological WIN site inhibitor with picomolar affinity Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded HLS 3-{[(4,5-dihydro-1H-imidazol-2-yl)amino]methyl}-N-[(3,5-dimethoxyphenyl)methyl]-4-fluorobenzamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris pH 6.0 or Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.60 Å R-free 0.180
6E23 Displacement of WDR5 from chromatin by a pharmacological WIN site inhibitor with picomolar affinity Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded HLJ N-[(3,4-dichlorophenyl)methyl]-3-(6-fluoro-2-methylpyridin-3-yl)-5-{[(2E)-2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl]methyl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris pH 6.0 or Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.66 Å R-free 0.209
6E23 Displacement of WDR5 from chromatin by a pharmacological WIN site inhibitor with picomolar affinity Deposited 2018-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded HLJ N-[(3,4-dichlorophenyl)methyl]-3-(6-fluoro-2-methylpyridin-3-yl)-5-{[(2E)-2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl]methyl}benzamide × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Bis-Tris pH 6.0 or Hepes pH 7.5, 0.2 M ammonium acetate, 28% to 32% PEG3350
Resolution 1.66 Å R-free 0.209
6IAM Modulating Protein-Protein Interactions with Visible Light Peptide Backbone Switches Deposited 2018-11-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 29–334（306 aa）
Not recorded K POTASSIUM ION × 3 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；10% (w/v) PEG20000, 20% (v/v) PEG550 MME, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 1.51 Å R-free 0.170
6KIU Cryo-EM structure of human MLL1-ubNCP complex (3.2 angstrom) Deposited 2019-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain R 1–334（334 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 LYS LYSINE × 1 GLN GLUTAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6KIV Cryo-EM structure of human MLL1-ubNCP complex (4.0 angstrom) Deposited 2019-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain R 1–334（334 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6KIW Cryo-EM structure of human MLL3-ubNCP complex (4.0 angstrom) Deposited 2019-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain R 1–334（334 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6KIX Cryo-EM structure of human MLL1-NCP complex, binding mode1 Deposited 2019-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain R 1–334（334 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 LYS LYSINE × 1 GLN GLUTAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
6KIZ Cryo-EM structure of human MLL1-NCP complex, binding mode2 Deposited 2019-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain R 1–334（334 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6OFZ Crystal structure of human WDR5 Deposited 2019-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；295 K；100 mM Bis-Tris pH5.9, 32% PEG3350, 54.6 mM Ammonium Sulfate
Resolution 1.85 Å R-free 0.250
6OI0 Crystal structure of human WDR5 in complex with L-arginine Deposited 2019-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded ARG ARGININE × 1 SO4 SULFATE ION × 2 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；295 K；100 mM Bis-Tris pH 5.9; 32% PEG3350, 54.6 mM Ammonium Sulfate, 0.66 mM L-arginine
Resolution 1.92 Å R-free 0.201
6OI1 Crystal structure of human WDR5 in complex with monomethyl L-arginine Deposited 2019-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded SO4 SULFATE ION × 1 GOL GLYCEROL × 2 NMM (2S)-2-amino-5-[(N-methylcarbamimidoyl)amino]pentanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；295 K；100mM Bis-Tris pH 5.9, 32% PEG3350, 54.6 mM Ammonium Sulfate, 0.66 mM monomethyl L-arginine
Resolution 1.68 Å R-free 0.236
6OI2 Crystal structure of human WDR5 in complex with symmetric dimethyl-L-arginine Deposited 2019-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded SO4 SULFATE ION × 3 GOL GLYCEROL × 3 2MR N3, N4-DIMETHYLARGININE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；295 K；100 mM Bis-Tris pH5.9, 32% PEG3350, 54.6 mM Ammonium Sulfate, 0.66 mM symmetric dimethyl-L-arginine
Resolution 1.68 Å R-free 0.223
6OI3 Crystal structure of human WDR5 in complex with monomethyl H3R2 peptide Deposited 2019-04-08 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded GOL GLYCEROL × 3 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；295 K；100 mM Bis-Tris pH 5.9, 32% PEG3350, 54.6 mM Ammonium Sulfate, 1.67 mM monomethyl H3R2 peptide
Resolution 1.66 Å R-free 0.202
6PG3 WDR5delta23 bound to (2-butyl-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded OHJ (2-butyl-1H-imidazol-4-yl)methanol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.182 M ammonium fluoride, 0.1 M sodium cacodylate (pH 5.79), 22.1 %w/v PEG8000
Resolution 2.04 Å R-free 0.206
6PG3 WDR5delta23 bound to (2-butyl-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded OHJ (2-butyl-1H-imidazol-4-yl)methanol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.182 M ammonium fluoride, 0.1 M sodium cacodylate (pH 5.79), 22.1 %w/v PEG8000
Resolution 2.04 Å R-free 0.206
6PG4 WDR5delta32 bound to (2-methyl-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa）
Not recorded OHG (2-methyl-1H-imidazol-4-yl)methanol × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.114 M ammonium sulfate, 0.1 M bis-tris chloride (pH 6.11), 25.8 %w/v PEG8000
Resolution 1.60 Å R-free 0.176
6PG5 WDR5delta32 bound to benzyl (4-(5-(hydroxymethyl)-1H-imidazol-2-yl)butyl)carbamate Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa）
Not recorded OHV benzyl {4-[5-(hydroxymethyl)-1H-imidazol-2-yl]butyl}carbamate × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.215 M ammonium sulfate, 0.1 M sodium cacodylate (pH 7.06), 25.6 %w/v PEG8000
Resolution 1.99 Å R-free 0.202
6PG6 WDR5delta23 bound to N-(4-(5-(hydroxymethyl)-1H-imidazol-2-yl)butyl)acetamide Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded SO4 SULFATE ION × 1 OH7 N-{4-[4-(hydroxymethyl)-1H-imidazol-2-yl]butyl}acetamide × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.215 M ammonium sulfate, 0.1 M sodium cacodylate (pH 7.06), 25.6 %w/v PEG8000
Resolution 1.68 Å R-free 0.193
6PG6 WDR5delta23 bound to N-(4-(5-(hydroxymethyl)-1H-imidazol-2-yl)butyl)acetamide Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded SO4 SULFATE ION × 1 OH7 N-{4-[4-(hydroxymethyl)-1H-imidazol-2-yl]butyl}acetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.215 M ammonium sulfate, 0.1 M sodium cacodylate (pH 7.06), 25.6 %w/v PEG8000
Resolution 1.68 Å R-free 0.193
6PG7 WDR5delta32 bound to (2-(3-methoxy-3-phenylpropyl)-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa）
Not recorded OH4 {2-[(3S)-3-methoxy-3-phenylpropyl]-1H-imidazol-4-yl}methanol × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.17 M ammonium sulfate, 0.1 bis-tris chloride (pH 6.3), 30.5 %w/v PEG4000
Resolution 2.45 Å R-free 0.243
6PG8 WDR5delta23 bound to (2-(3-phenylpropyl)-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded OGY [2-(3-phenylpropyl)-1H-imidazol-4-yl]methanol × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.179 M ammonium sulfate, 0.1 M bis-tris chloride (pH 5.62), 28.6 %w/v PEG3350
Resolution 1.67 Å R-free 0.207
6PG8 WDR5delta23 bound to (2-(3-phenylpropyl)-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded OGY [2-(3-phenylpropyl)-1H-imidazol-4-yl]methanol × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.179 M ammonium sulfate, 0.1 M bis-tris chloride (pH 5.62), 28.6 %w/v PEG3350
Resolution 1.67 Å R-free 0.207
6PG8 WDR5delta23 bound to (2-(3-phenylpropyl)-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 22–334（313 aa）
Not recorded OGY [2-(3-phenylpropyl)-1H-imidazol-4-yl]methanol × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.179 M ammonium sulfate, 0.1 M bis-tris chloride (pH 5.62), 28.6 %w/v PEG3350
Resolution 1.67 Å R-free 0.207
6PG8 WDR5delta23 bound to (2-(3-phenylpropyl)-1H-imidazol-4-yl)methanol Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 22–334（313 aa）
Not recorded OGY [2-(3-phenylpropyl)-1H-imidazol-4-yl]methanol × 1 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.179 M ammonium sulfate, 0.1 M bis-tris chloride (pH 5.62), 28.6 %w/v PEG3350
Resolution 1.67 Å R-free 0.207
6PG9 WDR5delta23 bound to N-(4-(5-(hydroxymethyl)-1H-imidazol-2-yl)butyl)benzamide Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded OH1 N-{4-[4-(hydroxymethyl)-1H-imidazol-2-yl]butyl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.182 M ammonium fluoride, 0.1 soidum cacodylate (pH 5.79), 22.1 %w/v PEG8000
Resolution 1.75 Å R-free 0.269
6PG9 WDR5delta23 bound to N-(4-(5-(hydroxymethyl)-1H-imidazol-2-yl)butyl)benzamide Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded OH1 N-{4-[4-(hydroxymethyl)-1H-imidazol-2-yl]butyl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.182 M ammonium fluoride, 0.1 soidum cacodylate (pH 5.79), 22.1 %w/v PEG8000
Resolution 1.75 Å R-free 0.269
6PGA WDR5delta32 bound to methyl (4-(4-(hydroxymethyl)-1H-imidazol-2-yl)butyl)carbamate Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa）
Not recorded OGM methyl {4-[5-(hydroxymethyl)-1H-imidazol-2-yl]butyl}carbamate × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.237 M ammonium sulfate, 0.1 M bis-tris chloride, 25.7 %w/v MPEG5000
Resolution 2.45 Å R-free 0.250
6PGB WDR5delta32 bound to N-(4-(5-(hydroxymethyl)-1H-imidazol-2-yl)butyl)-2-phenylacetamide Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa） Fragment：UNP residues 32-334
Not recorded OJG N-{4-[5-(hydroxymethyl)-1H-imidazol-2-yl]butyl}-2-phenylacetamide × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.101 M ammonium sulfate, 0.1 M Bis-Tris chloride, pH 5.63, 25.8% w/v PEG4000
Resolution 1.73 Å R-free 0.217
6PGC WDR5delta32 bound to methyl benzyl(4-(4-(hydroxymethyl)-1H-imidazol-2-yl)butyl)carbamate Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa） Fragment：UNP residues 32-334
Not recorded SO4 SULFATE ION × 2 OJJ methyl benzyl{4-[4-(hydroxymethyl)-1H-imidazol-2-yl]butyl}carbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.237 M ammonium sulfate, 0.1 M Bis-Tris chloride, pH 6.92, 25.7% w/v MPEG5000
Resolution 1.81 Å R-free 0.248
6PGD WDR5delta32 bound to peptidomimetic Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa） Fragment：UNP residues 32-334
Not recorded OK4 N-acetyl-L-alanyl-5-[5-(hydroxymethyl)-1H-imidazol-2-yl]-L-norvalyl-L-valinamide × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.233 M ammonium sulfate, 0.1 M Bis-Tris chloride, pH 6.02, 26% w/v PEG8000
Resolution 1.50 Å R-free 0.167
6PGE WDR5delta32 bound to ethyl 3-(4-(hydroxymethyl)-1H-imidazol-2-yl)propanoate Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa） Fragment：UNP residues 32-334
Not recorded OJM ethyl 3-[4-(hydroxymethyl)-1H-imidazol-2-yl]propanoate × 1 SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.024 M ammonium sulfate, 0.1 M Bis-Tris chloride, pH 5.64, 26.3% w/v PEG4000
Resolution 1.76 Å R-free 0.213
6PGF WDR5delta32 bound to N-(4-(4-(hydroxymethyl)-1H-imidazol-2-yl)butyl)acrylamide Deposited 2019-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa） Fragment：UNP residues 32-334
Not recorded OJP N-{4-[4-(hydroxymethyl)-1H-imidazol-2-yl]butyl}prop-2-enamide × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.16 M ammonium sulfate, 0.1 M Bis-Tris chloride, pH 6.1, 30.1% w/v PEG8000
Resolution 1.54 Å R-free 0.170
6PWV Cryo-EM structure of MLL1 core complex bound to the nucleosome Deposited 2019-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain B 22–334（313 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
6PWW Cryo-EM structure of MLL1 in complex with RbBP5 and WDR5 bound to the nucleosome Deposited 2019-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain B 22–334（313 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
6U5M Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q0S 5-bromo-2-hydroxy-N-[3-(methylsulfonyl)-5-(pentafluoro-lambda~6~-sulfanyl)phenyl]benzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, ammonium acetate, PEG 3350
Resolution 1.80 Å R-free 0.186
6U5M Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q0S 5-bromo-2-hydroxy-N-[3-(methylsulfonyl)-5-(pentafluoro-lambda~6~-sulfanyl)phenyl]benzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, ammonium acetate, PEG 3350
Resolution 1.80 Å R-free 0.186
6U5Y Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q0M 3-{[(5-bromo-3-chloro-2-hydroxyphenyl)sulfonyl]amino}-5-(1-cyanocyclobutyl)-2-hydroxy-N-methylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris pH 6.5, 0.2 M ammonium acetate, 28% PEG 3350
Resolution 1.53 Å R-free 0.177
6U5Y Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q0M 3-{[(5-bromo-3-chloro-2-hydroxyphenyl)sulfonyl]amino}-5-(1-cyanocyclobutyl)-2-hydroxy-N-methylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris pH 6.5, 0.2 M ammonium acetate, 28% PEG 3350
Resolution 1.53 Å R-free 0.177
6U6W Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-08-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded Q0Y 5-bromo-N-(5-chloro-2-hydroxyphenyl)-2-methoxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris pH 6.5, 0.2M ammonium acetate, PEG3350
Resolution 1.20 Å R-free 0.179
6U6W Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-08-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa）
Not recorded Q0Y 5-bromo-N-(5-chloro-2-hydroxyphenyl)-2-methoxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris pH 6.5, 0.2M ammonium acetate, PEG3350
Resolution 1.20 Å R-free 0.179
6U80 Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded Q1J 5-bromo-N-(4-hydroxy[1,1'-biphenyl]-3-yl)-2-methoxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium Acetate, PEG 3350
Resolution 1.55 Å R-free 0.203
6U80 Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa）
Not recorded Q1J 5-bromo-N-(4-hydroxy[1,1'-biphenyl]-3-yl)-2-methoxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium Acetate, PEG 3350
Resolution 1.55 Å R-free 0.203
6U8B Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa）
Not recorded Q1M 3-{[(5-bromo-2-methoxyphenyl)sulfonyl]amino}-5-chloro-2-hydroxybenzoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, ammonium acetate, PEG 3350
Resolution 1.26 Å R-free 0.159
6U8B Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa）
Not recorded Q1M 3-{[(5-bromo-2-methoxyphenyl)sulfonyl]amino}-5-chloro-2-hydroxybenzoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, ammonium acetate, PEG 3350
Resolution 1.26 Å R-free 0.159
6U8L Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q1P 3-{[(5-bromo-2-hydroxyphenyl)sulfonyl]amino}-5-cyclopropyl-6-fluoro-2-hydroxybenzoic acid × 1 Q1S N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]isoquinolin-1-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium acetate, PEG 3350
Resolution 1.57 Å R-free 0.176
6U8L Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q1P 3-{[(5-bromo-2-hydroxyphenyl)sulfonyl]amino}-5-cyclopropyl-6-fluoro-2-hydroxybenzoic acid × 1 Q1S N-[2-(4-methylpiperazin-1-yl)-5-nitrophenyl]isoquinolin-1-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium acetate, PEG 3350
Resolution 1.57 Å R-free 0.176
6U8O Discovery and optimization of salicyclic acid-derived sulfonamide inhibitors of the WDR5:MYC protein-protein interaction Deposited 2019-09-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q1G 5-bromo-N-[5-(1-cyanocyclobutyl)-2-hydroxyphenyl]-2-hydroxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, ammonium acetate, PEG 3350
Resolution 1.60 Å R-free 0.184
6UCS Discovery and Structure-Based optimization of potent and selective WDR5 inhibitors containing a dihydroisoquinolinone bicyclic core Deposited 2019-09-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded Q41 2-amino-3-{[(5P)-2-[(3,5-dimethoxyphenyl)methyl]-5-(4-fluoro-2-methylphenyl)-1-oxo-1,2,3,4-tetrahydroisoquinolin-7-yl]methyl}-1-methyl-1H-imidazol-3-ium × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium Acetate, PEG 3350
Resolution 1.85 Å R-free 0.194
6UCS Discovery and Structure-Based optimization of potent and selective WDR5 inhibitors containing a dihydroisoquinolinone bicyclic core Deposited 2019-09-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded Q41 2-amino-3-{[(5P)-2-[(3,5-dimethoxyphenyl)methyl]-5-(4-fluoro-2-methylphenyl)-1-oxo-1,2,3,4-tetrahydroisoquinolin-7-yl]methyl}-1-methyl-1H-imidazol-3-ium × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium Acetate, PEG 3350
Resolution 1.85 Å R-free 0.194
6UFX WD repeat-containing protein 5 complexed with N-[(3,5-dimethoxyphenyl)methyl]-4'-fluoro-5-{[(2E)-2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl]methyl}-2'-methyl[1,1'-biphenyl]-3-carboxamide (compound 13) Deposited 2019-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–334（303 aa） Fragment：UNP residues 32-334
Not recorded Q6S N-[(3,5-dimethoxyphenyl)methyl]-4'-fluoro-5-{[(2E)-2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl]methyl}-2'-methyl[1,1'-biphenyl]-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M Bis-Tris or HEPES or Tris-HCl, pH 6.0-8.0, 0.2 M ammonium acetate, 20-30% PEG3350
Resolution 2.02 Å R-free 0.208
6UHY WDR5 in complex with Myc site fragment inhibitor Deposited 2019-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q8G 1-cyclohexyl-1H-benzimidazole-5-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350.
Resolution 1.26 Å R-free 0.181
6UHY WDR5 in complex with Myc site fragment inhibitor Deposited 2019-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q8G 1-cyclohexyl-1H-benzimidazole-5-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% to 32% PEG3350.
Resolution 1.26 Å R-free 0.181
6UHZ WDR5 in complex with Myc site fragment inhibitor Deposited 2019-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q8D 1-cyclohexyl-1H-benzotriazole-5-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% PEG3350
Resolution 1.26 Å R-free 0.176
6UHZ WDR5 in complex with Myc site fragment inhibitor Deposited 2019-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q8D 1-cyclohexyl-1H-benzotriazole-5-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Bis-Tris pH 6.0, 0.2 M ammonium acetate, 28% PEG3350
Resolution 1.26 Å R-free 0.176
6UIF Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q8P 4-{[(5-bromo-3-chloro-2-hydroxyphenyl)sulfonyl]amino}-1-cyclopentyl-N-methyl-1H-imidazole-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium acetate, PEG 3350
Resolution 1.60 Å R-free 0.194
6UIF Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q8P 4-{[(5-bromo-3-chloro-2-hydroxyphenyl)sulfonyl]amino}-1-cyclopentyl-N-methyl-1H-imidazole-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium acetate, PEG 3350
Resolution 1.60 Å R-free 0.194
6UIK Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q8M 5-bromo-3-chloro-N-(1-cyclopentyl-1H-imidazol-4-yl)-2-hydroxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris 6.5, 0.2 M Ammonium Acetate, 28% PEG 3350
Resolution 1.60 Å R-free 0.182
6UIK Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q8M 5-bromo-3-chloro-N-(1-cyclopentyl-1H-imidazol-4-yl)-2-hydroxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris 6.5, 0.2 M Ammonium Acetate, 28% PEG 3350
Resolution 1.60 Å R-free 0.182
6UJ4 Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–334（304 aa）
Not recorded Q8S 5-bromo-3-chloro-N-(1-cyclopentyl-2-methyl-1H-imidazol-4-yl)-2-hydroxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris 6.5, 0.2 M Ammonium acetate, 28% PEG 3350
Resolution 1.53 Å R-free 0.177
6UJ4 Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 31–334（304 aa）
Not recorded Q8S 5-bromo-3-chloro-N-(1-cyclopentyl-2-methyl-1H-imidazol-4-yl)-2-hydroxybenzene-1-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris 6.5, 0.2 M Ammonium acetate, 28% PEG 3350
Resolution 1.53 Å R-free 0.177
6UJH Discovery of fragment-inspired heterocyclic benzenesulfonamides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded QBS (2R)-2-(4-chlorophenyl)-3-oxobutanenitrile × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes, 0.2 M ammonium acetate, 32% PEG3350
Resolution 1.49 Å R-free 0.169
6UJH Discovery of fragment-inspired heterocyclic benzenesulfonamides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded QBS (2R)-2-(4-chlorophenyl)-3-oxobutanenitrile × 1 SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes, 0.2 M ammonium acetate, 32% PEG3350
Resolution 1.49 Å R-free 0.169
6UJJ Discovery of fragment-inspired heterocyclic benzenesulfonamides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded QBP 5-[4-(trifluoromethyl)phenyl]-1H-tetrazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Hepes, 0.2 M ammonium acetate, 32% PEG3350
Resolution 1.73 Å R-free 0.190
6UJL Discovery of fragment-inspired heterocyclic benzenesulfonamides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded QBM 6-methyl-3-(propylsulfanyl)-1,2,4-triazin-5-ol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Hepes, 0.2 M ammonium acetate, 32% PEG3350
Resolution 1.60 Å R-free 0.183
6UOZ Discovery of fragment-inspired heterocyclic benzenesulfonmides as inhibitors of the WDR5-MYC interaction Deposited 2019-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 31–334（304 aa）
Chain B 31–334（304 aa）
Not recorded QF1 5-bromo-3-chloro-N-[1-cyclopentyl-2-(methylsulfonyl)-1H-imidazol-4-yl]-2-hydroxybenzene-1-sulfonamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, ammonium acetate, PEG 3350
Resolution 1.53 Å R-free 0.169
6W5I Cryo-EM structure of MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Class01) Deposited 2020-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
6W5M Cryo-EM structure of MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Class02) Deposited 2020-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
6W5N Cryo-EM structure of MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Class05) Deposited 2020-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.00 Å
6WJQ Crystal structure of WDR5 in complex with the WIN peptide of PDPK1 Deposited 2020-04-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；PEG 3350, Ammonium Acetate, Bis-tris
Resolution 2.71 Å R-free 0.252
6WJQ Crystal structure of WDR5 in complex with the WIN peptide of PDPK1 Deposited 2020-04-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；PEG 3350, Ammonium Acetate, Bis-tris
Resolution 2.71 Å R-free 0.252
7AXP Structural characterisation of WDR5:CS-VIP8 interaction in cis state 2 Deposited 2020-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；10% (w/v) PEG20000, 20% (v/v) PEG550 MME, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 2.43 Å R-free 0.331
7AXQ Structure of the cryo-trapped WDR5:CS-VIP8 cocrystal after illumination at 405 nm and 180 K Deposited 2020-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；10% (w/v) PEG20000, 20% (v/v) PEG550 MME, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 1.56 Å R-free 0.200
7AXS Structural characterisation of WDR5:CS-VIP8 interaction in cis state 1 Deposited 2020-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；10% (w/v) PEG20000, 20% (v/v) PEG550 MME, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 1.88 Å R-free 0.235
7AXU Structure of WDR5:CS-VIP8 cocrystal after illumination in situ Deposited 2020-11-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；10% (w/v) PEG20000, 20% (v/v) PEG550 MME, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 1.68 Å R-free 0.193
7AXX Structure of WDR5:CS-VIP8 crystal after illumination at 405 nm and room temperature Deposited 2020-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；10% (w/v) PEG20000, 20% (v/v) PEG550 MME, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 1.79 Å R-free 0.214
7BCY X-ray structure of WDR5delta24 bound to the Kaposi's sarcoma herpesvirus LANA win motif peptide Deposited 2020-12-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–334（310 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；100 mM Bis-Tris pH 5.5, 50 mM (NH4)2SO4, 25% PEG3350
Resolution 1.50 Å R-free 0.227
7BCY X-ray structure of WDR5delta24 bound to the Kaposi's sarcoma herpesvirus LANA win motif peptide Deposited 2020-12-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 25–334（310 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；100 mM Bis-Tris pH 5.5, 50 mM (NH4)2SO4, 25% PEG3350
Resolution 1.50 Å R-free 0.227
7BED X-ray structure of WDR5 bound to the WDR5 win motif peptide Deposited 2020-12-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Chain B 1–334（334 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；26% PEG 3350, 100mM Bis-Tris pH 5.5, 50mM (NH4)2SO4,WDR5 at 14,65 mg/ml with 2:1 (protein:well) drop ratio.
Resolution 1.26 Å R-free 0.171
7CFP Crystal structure of WDR5 in complex with a H3Q5ser peptide Deposited 2020-06-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded SRO SEROTONIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；295 K；0.1% Octylglucoside, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 22% PEG 3350
Resolution 1.60 Å R-free 0.199
7CFQ Crystal structure of WDR5 in complex with H3K4me3Q5ser peptide Deposited 2020-06-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 1 SRO SEROTONIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；295 K；0.15M ammonium sulfate, 0.1M MES pH 5.5, 25% PEG 4000, 2% PEG 3350
Resolution 1.60 Å R-free 0.190
7DNO Characterization of Peptide Ligands Against WDR5 Isolated Using Phage Display Technique Deposited 2020-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 24–334（311 aa）
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.1 M BisTris pH 6.0, 0.2M ammonium acetate, 20-30% PEG3350
Resolution 2.03 Å R-free 0.227
7JTO Crystal structure of Protac MS33 in complex with the WD repeat-containing protein 5 and pVHL:ElonginC:ElonginB Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 31–334（304 aa）
Not recorded SCN THIOCYANATE ION × 4 EDO 1,2-ETHANEDIOL × 5 VKA 3-methyl-N-(11-{[2-(4-{[4'-(4-methylpiperazin-1-yl)-3'-{[6-oxo-4-(trifluoromethyl)-5,6-dihydropyridine-3-carbonyl]amino}[1,1'-biphenyl]-3-yl]methyl}piperazin-1-yl)ethyl]amino}-11-oxoundecanoyl)-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 GOL GLYCEROL × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.1 M HEPES sodium, pH 7.5-8.0, 1.3-1.6 M sodium thiocyanate, 15-20% PEG3350
Resolution 1.70 Å R-free 0.225
7JTP Crystal structure of Protac MS67 in complex with the WD repeat-containing protein 5 and pVHL:ElonginC:ElonginB Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 31–334（304 aa）
Not recorded GOL GLYCEROL × 1 X6M N-(6-fluoro-3'-{[6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carbonyl]amino}-4'-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-carbonyl)glycyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 30% PEG300
Resolution 2.12 Å R-free 0.224
7MBM Cryo-EM structure of MLL1-NCP (H3K4M) complex, mode01 Deposited 2021-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.76 Å
7MBN Cryo-EM structure of MLL1-NCP (H3K4M) complex, mode02 Deposited 2021-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.02 Å
7Q2J Quaternary Complex of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC Homer Deposited 2021-10-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 24–334（311 aa）
Not recorded 8KH N-[5-[4-[[5-[[(2S)-3,3-dimethyl-1-[(2S,4R)-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-5-oxidanylidene-pentyl]carbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanylidene-4-(trifluoromethyl)-1H-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21% PEG 3350 0.4 M KSCN 0.1 M HEPES 6.8
Resolution 2.50 Å R-free 0.293
7U9Y WDR5 bound to 2-(3,5-dimethoxybenzyl)-7-((2-methyl-1H-imidazol-1-yl)methyl)-5-(1-methyl-3-(trifluoromethyl)-1H-pyrazol-4-yl)-3,4-dihydroisoquinolin-1(2H)-one Deposited 2022-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 30–334（305 aa）
Not recorded BEN BENZAMIDINE × 1 M4U (5P)-2-[(3,5-dimethoxyphenyl)methyl]-7-[(2-methyl-1H-imidazol-1-yl)methyl]-5-[1-methyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-3,4-dihydroisoquinolin-1(2H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；BIS-Tris, ammonium acetate, PEG 3350, benzamidine
Resolution 1.90 Å R-free 0.189
7UAS Discovery of Potent Orally Bioavailable WD Repeat Domain 5 (WDR5) Inhibitors Using a Pharmacophore-Based Optimization Deposited 2022-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded MBU (5P)-2-[(S)-cyclopropyl(4-methylpyridin-2-yl)methyl]-5-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-7-[(2-methyl-1H-imidazol-1-yl)methyl]-3,4-dihydroisoquinolin-1(2H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium Acetate, PEG 3350
Resolution 1.81 Å R-free 0.175
7UAS Discovery of Potent Orally Bioavailable WD Repeat Domain 5 (WDR5) Inhibitors Using a Pharmacophore-Based Optimization Deposited 2022-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded MBU (5P)-2-[(S)-cyclopropyl(4-methylpyridin-2-yl)methyl]-5-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-7-[(2-methyl-1H-imidazol-1-yl)methyl]-3,4-dihydroisoquinolin-1(2H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Bis-Tris, Ammonium Acetate, PEG 3350
Resolution 1.81 Å R-free 0.175
7UD5 Complex between MLL1-WRAD and an H2B-ubiquitinated nucleosome Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain L 2–334（333 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.25 Å
7WVK Crystal structure of human WDR5 in complex with compound 19 Deposited 2022-02-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded 6IQ 1-[2,5-bis(chloranyl)phenyl]sulfonylbenzimidazole × 1 GOL GLYCEROL × 4 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.1M Bis-Tris, 0.2 M NH4OAC, 30% PEG3350
Resolution 1.42 Å R-free 0.182
8BB2 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with PEG linker (conformation #2) Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 33–334（302 aa）
Not recorded SCN THIOCYANATE ION × 5 Q3X ~{N}-[5-[4-[2-[2-[2-[2-[3-[[3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-3-oxidanylidene-propoxy]ethoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanylidene-4-(trifluoromethyl)-3~{H}-pyridine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21-28% PEG 3350 0.4-1 M KSCN 0.1 M HEPES 6.8
Resolution 2.05 Å R-free 0.237
8BB3 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with PEG linker (conformation #1) Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 33–334（302 aa）
Not recorded SCN THIOCYANATE ION × 15 EDO 1,2-ETHANEDIOL × 13 P6G HEXAETHYLENE GLYCOL × 1 Q3X ~{N}-[5-[4-[2-[2-[2-[2-[3-[[3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-3-oxidanylidene-propoxy]ethoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanylidene-4-(trifluoromethyl)-3~{H}-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21-26% PEG 3350 0.4-1 M KSCN 0.1 M HEPES
Resolution 1.80 Å R-free 0.227
8BB4 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with C3 linker Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 33–334（302 aa）
Not recorded Q3R ~{N}-[5-[4-[[4-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-4-oxidanylidene-butyl]carbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanyl-4-(trifluoromethyl)pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21-28% PEG 3350 0.4 M KSCN 0.1 M HEPES pH 6.8
Resolution 2.80 Å R-free 0.279
8BB5 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with Aryl linker Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 33–334（302 aa）
Not recorded SCN THIOCYANATE ION × 10 Q43 ~{N}-[5-[4-[[4-[2-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-2-oxidanylidene-ethyl]phenyl]methylcarbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanyl-4-(trifluoromethyl)pyridine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 4 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；21% PEG 3350, 0.4-1 M KSCN 0.1 M HEPES pH 6.8
Resolution 2.20 Å R-free 0.248
8DU4 Complex between RbBP5-WDR5 and an H2B-ubiquitinated nucleosome Deposited 2022-07-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain L 2–334（333 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
8E9F WD repeat-containing protein 5 complexed with 4-(7-((1H-imidazol-1-yl)methyl)-5-(1-methyl-3-(trifluoromethyl)-1H-pyrazol-4-yl)-1-oxo-3,4-dihydroisoquinolin-2(1H)-yl)-6-ethyl-N-methylquinoline-8-carboxamide (compound 10) Deposited 2022-08-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 30–334（305 aa）
Not recorded BEN BENZAMIDINE × 1 UY9 6-ethyl-4-[(5P)-7-[(1H-imidazol-1-yl)methyl]-5-[1-methyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-1-oxo-3,4-dihydroisoquinolin-2(1H)-yl]-N-methylquinoline-8-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；BIS-Tris, ammonium acetate, PEG 3350, benzamidine
Resolution 1.55 Å R-free 0.184
8F1G Crystal structure of human WDR5 in complex with compound WM662 Deposited 2022-11-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded X8N (2S)-2-({(2S)-3-(3'-chloro[1,1'-biphenyl]-4-yl)-1-oxo-1-[(1H-tetrazol-5-yl)amino]propan-2-yl}oxy)propanoic acid × 1 GOL GLYCEROL × 4 SO4 SULFATE ION × 1 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M HEPES pH=7.4, 25 mM ammonium sulfate, 24% w/v Polyethylene glycol 3350
Resolution 2.14 Å R-free 0.249
8F1G Crystal structure of human WDR5 in complex with compound WM662 Deposited 2022-11-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded X8N (2S)-2-({(2S)-3-(3'-chloro[1,1'-biphenyl]-4-yl)-1-oxo-1-[(1H-tetrazol-5-yl)amino]propan-2-yl}oxy)propanoic acid × 1 GOL GLYCEROL × 3 SO4 SULFATE ION × 1 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M HEPES pH=7.4, 25 mM ammonium sulfate, 24% w/v Polyethylene glycol 3350
Resolution 2.14 Å R-free 0.249
8F93 WDR5 covalently modified at Y228 by (R)-2-SF Deposited 2022-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: monomeric
Chain A 22–334（313 aa）
Chain B 22–334（313 aa）
Not recorded XKN 3-ethynyl-5-{[(3R)-4-{1-[(2-methoxyphenyl)methyl]-1H-benzimidazole-5-carbonyl}-3-methylpiperazin-1-yl]methyl}benzene-1-sulfonyl fluoride × 2 GOL GLYCEROL × 4 SO4 SULFATE ION × 2 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Ammonium sulfate, 0.1 M MES pH 6.5, 20% w/v PEG 8000
Resolution 2.30 Å R-free 0.253
8F93 WDR5 covalently modified at Y228 by (R)-2-SF Deposited 2022-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: monomeric
Chain A 22–334（313 aa）
Chain B 22–334（313 aa）
Not recorded XKN 3-ethynyl-5-{[(3R)-4-{1-[(2-methoxyphenyl)methyl]-1H-benzimidazole-5-carbonyl}-3-methylpiperazin-1-yl]methyl}benzene-1-sulfonyl fluoride × 2 GOL GLYCEROL × 4 SO4 SULFATE ION × 2 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Ammonium sulfate, 0.1 M MES pH 6.5, 20% w/v PEG 8000
Resolution 2.30 Å R-free 0.253
8G3C Crystal structure of human WDR5 in complex with N-[(2'-cyano[1,1'-biphenyl]-4-yl)methyl]-3-hydroxy-6-methyl-4-oxo-4H-pyran-2-carboxamide (compound 1, WDR5-MYC PPI inhibitor) Deposited 2023-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded YJN N-[(2'-cyano[1,1'-biphenyl]-4-yl)methyl]-3-hydroxy-6-methyl-4-oxo-4H-pyran-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% PEG3350, 0.2 M potassium acetate
Resolution 1.80 Å R-free 0.224
8G3E Crystal structure of human WDR5 in complex with (1M)-N-[(3,5-difluoro[1,1'-biphenyl]-4-yl)methyl]-6-methyl-4-oxo-1-(pyridin-3-yl)-1,4-dihydropyridazine-3-carboxamide (compound 2, WDR5-MYC inhibitor) Deposited 2023-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded YJR (1M)-N-[(3,5-difluoro[1,1'-biphenyl]-4-yl)methyl]-6-methyl-4-oxo-1-(pyridin-3-yl)-1,4-dihydropyridazine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；23.5% PEG3350, 0.21 M ammonium sulfate, 0.1 M HEPES, pH 7.5
Resolution 1.33 Å R-free 0.170
8G3E Crystal structure of human WDR5 in complex with (1M)-N-[(3,5-difluoro[1,1'-biphenyl]-4-yl)methyl]-6-methyl-4-oxo-1-(pyridin-3-yl)-1,4-dihydropyridazine-3-carboxamide (compound 2, WDR5-MYC inhibitor) Deposited 2023-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded YJR (1M)-N-[(3,5-difluoro[1,1'-biphenyl]-4-yl)methyl]-6-methyl-4-oxo-1-(pyridin-3-yl)-1,4-dihydropyridazine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；23.5% PEG3350, 0.21 M ammonium sulfate, 0.1 M HEPES, pH 7.5
Resolution 1.33 Å R-free 0.170
8HMX WDR5 in complex with histone H3Q5his peptide Deposited 2022-12-06 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 31–334（304 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M sodium citrate tribasic dihydrate (pH 5.5), 22% polyethylene glycol (PEG) 3350, and 0.1% n-Octyl-beta-D-glucoside
Resolution 1.70 Å R-free 0.193
8Q1N Cyclic peptide binder of the WBM-site of WDR5 Deposited 2023-08-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2M Li3-Citrate, 20 w/v% PEG3350
Resolution 1.84 Å R-free 0.243
8Q1N Cyclic peptide binder of the WBM-site of WDR5 Deposited 2023-08-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2M Li3-Citrate, 20 w/v% PEG3350
Resolution 1.84 Å R-free 0.243
8T5I Crystal structure of human WDR5 in complex with MR4397 Deposited 2023-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded ZHF N-[(2S)-1-(6,7-dihydrothieno[3,2-c]pyridin-5(4H)-yl)-1-oxopentan-2-yl]-3-[(1H-imidazol-1-yl)methyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 3 UNX UNKNOWN LIGAND × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；25% PEG3350, 0.2 M (NH4)2SO4, 0.1M BTP pH 7.0
Resolution 1.70 Å R-free 0.232
8T5I Crystal structure of human WDR5 in complex with MR4397 Deposited 2023-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded ZHF N-[(2S)-1-(6,7-dihydrothieno[3,2-c]pyridin-5(4H)-yl)-1-oxopentan-2-yl]-3-[(1H-imidazol-1-yl)methyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 5 UNX UNKNOWN LIGAND × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；25% PEG3350, 0.2 M (NH4)2SO4, 0.1M BTP pH 7.0
Resolution 1.70 Å R-free 0.232
8UJY Crystal structure of human WD repeat-containing protein 5 in complex with 4-(3,5-dimethoxybenzyl)-9-(4-fluoro-2-methylphenyl)-7-((2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl)methyl)-3,4-dihydrobenzo[f][1,4]oxazepin-5(2H)-one (compound 8) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Chain B 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded VV3 (9P)-4-[(3,5-dimethoxyphenyl)methyl]-9-(4-fluoro-2-methylphenyl)-7-{[(2E)-2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl]methyl}-3,4-dihydro-1,4-benzoxazepin-5(2H)-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1 M Bis-Tris pH 7.0, 0.2 M ammonium acetate, 25% PEG3350
Resolution 2.01 Å R-free 0.232
8WXQ Structure of WDR5 in complex with WIN motif containing MBD3C Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M HEPES (pH 7.5), 18% PEG 600
Resolution 1.90 Å R-free 0.209
8WXQ Structure of WDR5 in complex with WIN motif containing MBD3C Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M HEPES (pH 7.5), 18% PEG 600
Resolution 1.90 Å R-free 0.209
8WXR Structure of WDR5 in complex with WIN motif containing MBD3C F47A Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M potassium dihydrogen phosphate, 20% PEG 3350
Resolution 2.08 Å R-free 0.199
8WXR Structure of WDR5 in complex with WIN motif containing MBD3C F47A Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M potassium dihydrogen phosphate, 20% PEG 3350
Resolution 2.08 Å R-free 0.199
8WXT Structure of WDR5 in complex with WIN motif containing MBD3C R45E/V46G Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.2 M imidazole malate, pH 5.5, 33% PEG 600
Resolution 1.83 Å R-free 0.179
8WXU Structure of WDR5 in complex with WIN motif containing MBD3C C44S/R45E/V46G Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M lithium chloride, 20% PEG 3350
Resolution 2.37 Å R-free 0.233
8WXV Structure of WDR5 in complex with WIN motif containing SET1B Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M Bis-Tris, pH 5.5, 25% PEG 3350
Resolution 2.40 Å R-free 0.205
8WXV Structure of WDR5 in complex with WIN motif containing SET1B Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M Bis-Tris, pH 5.5, 25% PEG 3350
Resolution 2.40 Å R-free 0.205
8WXX Structure of WDR5 in complex with WIN motif containing SET1B E1750R/G1751V Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M sodium citrate, pH 5.5, 16% PEG 4000, 10% 2-propanol
Resolution 2.10 Å R-free 0.212
8WXX Structure of WDR5 in complex with WIN motif containing SET1B E1750R/G1751V Deposited 2023-10-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M sodium citrate, pH 5.5, 16% PEG 4000, 10% 2-propanol
Resolution 2.10 Å R-free 0.212
8X3R Crystal structure of human WDR5 in complex with WDR5 Deposited 2023-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Chain B 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1 M magnesium formate dihydrate, 15% w/v polyethylene glycol 3350
Resolution 1.76 Å R-free 0.205
8X3S Crystal structure of human WDR5 in complex with PTEN Deposited 2023-11-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–334（314 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.2 M lithium sulfate monohydrate, 0.1 M HEPES at pH 7.5, 25% w/v polyethylene glycol 3350
Resolution 1.87 Å R-free 0.259
9B9H Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-40333 Deposited 2024-04-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded A1AM2 N-{(1P)-5'-({(17E)-18-[(3P)-4-{[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-16-oxo-3,6,9,12-tetraoxa-15-azaoctadec-17-en-1-yl}carbamoyl)-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；5% w/v 1-ethyl-3-methylimidazolium ethyl sulfate, 15% w/v polyethylene glycol 20,000, pH 7.9
Resolution 2.06 Å R-free 0.229
9B9T Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-40407 Deposited 2024-04-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded A1ANM N-{(1P)-5'-[(17-{(4P)-4-[(2P)-4-{[(1R)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-1H-pyrazol-1-yl}-16-oxo-3,6,9,12-tetraoxa-15-azaheptadecan-1-yl)carbamoyl]-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M sodium acetate trihydrate, pH 4.6, 2.0 M sodium formate
Resolution 2.05 Å R-free 0.196
9B9W Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-40792 Deposited 2024-04-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded A1ANN (4P)-N-[(1R)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(25E)-1-{(1P)-6-fluoro-3'-[4-fluoro-2-(trifluoromethyl)benzamido]-4'-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-1,24-dioxo-5,8,11,14,17,20-hexaoxa-2,23-diazahexacos-25-en-26-yl]-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；35% v/v tacsimate, pH 7.0
Resolution 1.92 Å R-free 0.183
9BA2 Crystal structure of the binary complex of DCAF1 and WDR5 Deposited 2024-04-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M imidazole, pH 7.4, 20% w/v polyethylene glycol 4,000
Resolution 2.97 Å R-free 0.266
9D5Z Crystal structure of the human WDR5 in complex with LH168 compound Deposited 2024-08-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded A1A16 (3P)-N-[(2S)-1-(6,7-dihydrothieno[3,2-c]pyridin-5(4H)-yl)-1-oxopentan-2-yl]-3-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-5-[(1H-imidazol-1-yl)methyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M Ammonium formate
Resolution 1.70 Å R-free 0.189
9D5Z Crystal structure of the human WDR5 in complex with LH168 compound Deposited 2024-08-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–334（311 aa） Fragment：UNP residues 23-334
Not recorded A1A16 (3P)-N-[(2S)-1-(6,7-dihydrothieno[3,2-c]pyridin-5(4H)-yl)-1-oxopentan-2-yl]-3-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-5-[(1H-imidazol-1-yl)methyl]benzamide × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M Ammonium formate
Resolution 1.70 Å R-free 0.189
9DLW Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-41114 Deposited 2024-09-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded A1BAF N-{(1P)-5'-({(32E)-33-[(3P)-4-{[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]carbamoyl}-3-(4-chloro-2-fluorophenyl)-1H-pyrrol-2-yl]-31-oxo-3,6,9,12,15,18,21,24,27-nonaoxa-30-azatritriacont-32-en-1-yl}carbamoyl)-2'-fluoro-4-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；294 K；1.8 M Sodium phosphate monobasic monohydrate, potassium phosphate dibasic / pH 6.9
Resolution 2.07 Å R-free 0.242
9IY5 WDR5 inhibitor complex Deposited 2024-07-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Bis-tris pH 5.5 25% PEG 4000
Resolution 1.80 Å R-free 0.255
9IY5 WDR5 inhibitor complex Deposited 2024-07-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–334（334 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Bis-tris pH 5.5 25% PEG 4000
Resolution 1.80 Å R-free 0.255
9J20 Structure of WDR5 in complex with KIF2A Deposited 2024-08-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M HEPES (pH 7.5) and 18% PEG 600
Resolution 1.85 Å R-free 0.206
9J20 Structure of WDR5 in complex with KIF2A Deposited 2024-08-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M HEPES (pH 7.5) and 18% PEG 600
Resolution 1.85 Å R-free 0.206
9JWV Structure of WDR5 Y191F in complex with WIN motif containing Kif2A Deposited 2024-10-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Mutation：Y191F No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M HEPES (pH 7.5), 18% PEG 600
Resolution 1.80 Å R-free 0.211
9JWV Structure of WDR5 Y191F in complex with WIN motif containing Kif2A Deposited 2024-10-10 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Mutation：Y191F No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M HEPES (pH 7.5), 18% PEG 600
Resolution 1.80 Å R-free 0.211
9KD4 Structure of WDR5 in complex with WIN motif containing Kif2A 114-120 Deposited 2024-11-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate pH=4, 15% PEG 4000
Resolution 1.64 Å R-free 0.204
9KD4 Structure of WDR5 in complex with WIN motif containing Kif2A 114-120 Deposited 2024-11-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate pH=4, 15% PEG 4000
Resolution 1.64 Å R-free 0.204
9KD5 Structure of WDR5 in complex with WIN motif containing Kif2A S121G Deposited 2024-11-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate, pH=5.5, 24% PEG 600
Resolution 1.80 Å R-free 0.216
9KD5 Structure of WDR5 in complex with WIN motif containing Kif2A S121G Deposited 2024-11-03 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate, pH=5.5, 24% PEG 600
Resolution 1.80 Å R-free 0.216
9KFM Structure of WDR5 in complex with WIN motif containing EMBOW Deposited 2024-11-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M sodium cacodylate, pH 5.5, 25% (w/v) PEG 4000
Resolution 1.80 Å R-free 0.201
9KFM Structure of WDR5 in complex with WIN motif containing EMBOW Deposited 2024-11-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M sodium cacodylate, pH 5.5, 25% (w/v) PEG 4000
Resolution 1.80 Å R-free 0.201
9KFN Structure of WDR5 in complex with mutated EMBOW T3V Deposited 2024-11-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M imidazole malate, pH 8.5, 12.5 % (w/v) PEG 10000.
Resolution 2.80 Å R-free 0.241
9KFO Structure of WDR5 in complex with mutated EMBOW Deposited 2024-11-06 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium HEPES, pH 7.0, 15 % (w/v) PEG 4000.
Resolution 2.20 Å R-free 0.190
9KQS Crystal structure of WDR5 in complex with peptide MRTEPRPPAP of EMBOW Deposited 2024-11-26 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291.15 K；0.2 M Ammonium acetate, 0.1 M BIS-TRIS pH 5.5, 25% w/v Polyethylene glycol 3,350
Resolution 1.72 Å R-free 0.210
9L0T Structure of WDR5 in complex with WIN motif containing RBM15 Deposited 2024-12-12 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate, pH 6.0, and 15 % (w/v) PEG 4000
Resolution 2.05 Å R-free 0.245
9L0T Structure of WDR5 in complex with WIN motif containing RBM15 Deposited 2024-12-12 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate, pH 6.0, and 15 % (w/v) PEG 4000
Resolution 2.05 Å R-free 0.245
9L0V Structure of WDR5 in complex with WIN motif containing ZSCAN10 Deposited 2024-12-13 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M sodium citrate, pH 4.5, and 20 % (w/v) PEG 4000
Resolution 2.00 Å R-free 0.220
9LWY Crystal structure of human WDR5 in complex with compound 4 Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded GOL GLYCEROL × 1 A1EMB 4-[[2-(6-fluoranyl-2-methyl-pyridin-3-yl)-6-(5-methyl-1,3-thiazol-2-yl)pyridin-4-yl]methyl]-1-methyl-imidazol-2-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG3350, Bis-Tris, ammonium acetate
Resolution 1.55 Å R-free 0.191
9NCT Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded A1BW7 4-({6-cyclopropyl-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-3-yl}methyl)-2-methoxybenzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；Ammonium Acetate, PEG 3350, Bis-TRS, TRIS, or HEPES
Resolution 2.11 Å R-free 0.228
9NCT Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded A1BW7 4-({6-cyclopropyl-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-3-yl}methyl)-2-methoxybenzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；Ammonium Acetate, PEG 3350, Bis-TRS, TRIS, or HEPES
Resolution 2.11 Å R-free 0.228
9NCV Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded A1BW8 (6P)-6-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-3-[(4-fluoro-3-methylphenyl)methyl]-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG3350, Bis-TRIS, TRIS, HEPES
Resolution 1.58 Å R-free 0.287
9NCV Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded A1BW8 (6P)-6-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-3-[(4-fluoro-3-methylphenyl)methyl]-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG3350, Bis-TRIS, TRIS, HEPES
Resolution 1.58 Å R-free 0.287
9NCV Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 22–334（313 aa）
Not recorded A1BW8 (6P)-6-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-3-[(4-fluoro-3-methylphenyl)methyl]-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG3350, Bis-TRIS, TRIS, HEPES
Resolution 1.58 Å R-free 0.287
9NCV Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 22–334（313 aa）
Not recorded A1BW8 (6P)-6-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-3-[(4-fluoro-3-methylphenyl)methyl]-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG3350, Bis-TRIS, TRIS, HEPES
Resolution 1.58 Å R-free 0.287
9NCW Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–334（313 aa）
Not recorded A1BW9 1-{[(6P)-3-[(3,5-dimethoxyphenyl)methyl]-6-(4-fluoro-2-methylphenyl)-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-8-yl]methyl}-3-methyl-1,3-dihydro-2H-imidazol-2-imine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG 3350, Bis-TRIS, HEPES, TRIS
Resolution 1.58 Å R-free 0.275
9NCW Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 22–334（313 aa）
Not recorded A1BW9 1-{[(6P)-3-[(3,5-dimethoxyphenyl)methyl]-6-(4-fluoro-2-methylphenyl)-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazol-8-yl]methyl}-3-methyl-1,3-dihydro-2H-imidazol-2-imine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG 3350, Bis-TRIS, HEPES, TRIS
Resolution 1.58 Å R-free 0.275
9NCW Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG 3350, Bis-TRIS, HEPES, TRIS
Resolution 1.58 Å R-free 0.275
9NCW Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors Deposited 2025-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；ammonium acetate, PEG 3350, Bis-TRIS, HEPES, TRIS
Resolution 1.58 Å R-free 0.275
9NSO Crystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-41060 Deposited 2025-03-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded A1B0Y (4P)-N-[(1S)-3-amino-1-(3-chloro-4-fluorophenyl)-3-oxopropyl]-4-(4-chloro-2-fluorophenyl)-5-[(34E)-1-{(1P)-6-fluoro-3'-[4-fluoro-2-(trifluoromethyl)benzamido]-4'-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-yl}-1,33-dioxo-5,8,11,14,17,20,23,26,29-nonaoxa-2,32-diazapentatriacont-34-en-35-yl]-1H-pyrrole-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M sodium citrate tribasic dihydrate, pH 4.2, 0.4 M potassium phosphate dibasic, 1.6 M sodium phosphate monobasic monohydrate
Resolution 1.85 Å R-free 0.218
9UJR Crystal structure of WDR5 in complex with peptide Ac-MRT-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.1 M HEPES pH 7.0, 30% v/v Jeffamine ED-2001 pH 7.0
Resolution 2.25 Å R-free 0.235
9UJZ Crystal structure of WDR5 in complex with peptide Ac-MRTEPRP-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.1 M HEPES pH 7.0, 30% v/v Jeffamine ED-2001 pH 7.0
Resolution 2.46 Å R-free 0.229
9UK1 Crystal structure of WDR5 in complex with EMBOW Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Sodium tartrate dibasic dihydrate, 20% w/v Polyethylene glycol 3,350, pH7.3
Resolution 2.02 Å R-free 0.226
9UK3 Crystal structure of WDR5 in complex with peptide Ac-MRTEPRPPAP-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.1 M BIS-TRIS pH 5.5, 25% w/v Polyethylene glycol 3,350
Resolution 1.69 Å R-free 0.200
9UK4 Crystal structure of WDR5 in complex with peptide Ac-ARA-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.1 M HEPES pH 7.0, 30% v/v Jeffamine ED-2001 pH 7.0
Resolution 2.12 Å R-free 0.242
9UK7 Crystal structure of WDR5 in complex with peptide Ac-MRTEP-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Ammonium acetate, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 30% w/v Polyethylene glycol 4,000
Resolution 1.95 Å R-free 0.237
9UK7 Crystal structure of WDR5 in complex with peptide Ac-MRTEP-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Ammonium acetate, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 30% w/v Polyethylene glycol 4,000
Resolution 1.95 Å R-free 0.237
9UK7 Crystal structure of WDR5 in complex with peptide Ac-MRTEP-NH2 Deposited 2025-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 22–334（313 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Ammonium acetate, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 30% w/v Polyethylene glycol 4,000
Resolution 1.95 Å R-free 0.237
9UOJ WDR5 bound with P3 Deposited 2025-04-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–334（314 aa）
Not recorded A1L9J ~{N}-[5-[2-fluoranyl-5-[4-[[4-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,1,3-benzoxadiazol-7-yl]amino]butylcarbamoyl]phenyl]-2-[(3~{R},5~{S})-3,4,5-trimethylpiperazin-1-yl]phenyl]-6-oxidanylidene-4-(trifluoromethyl)-1~{H}-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；300 K；30% (w/v) polyethylene glycol 5000, 0.2 M ammonium sulfate, and 0.1 M MES monohydrate (pH 6.5)
Resolution 1.82 Å R-free 0.254
9UXG Structure of WDR5 in complex with Peptide 2 Deposited 2025-05-14 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium iodide, 0.1M Bis-tris propane pH 7.5, 20% w/v PEG 3350
Resolution 1.70 Å R-free 0.243
9UXJ Structure of WDR5 in complex with Peptide 2_R4A Deposited 2025-05-14 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate (pH 7.0), and 25 % w/v PEG 4000
Resolution 1.76 Å R-free 0.225
9UXM Structure of WDR5 in complex with Peptide 1 Deposited 2025-05-14 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M sodium fluoride, 0.1 M Bis-Tris propane, pH 8.5, 20% w/v PEG3350
Resolution 1.48 Å R-free 0.193
9VN5 Structure of WDR5 in complex with MBD3C R43K Deposited 2025-06-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate (pH 8.5) and 7.5% w/v PEG 10,000
Resolution 1.90 Å R-free 0.231
9VN5 Structure of WDR5 in complex with MBD3C R43K Deposited 2025-06-30 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–334（311 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M imidazole malate (pH 8.5) and 7.5% w/v PEG 10,000
Resolution 1.90 Å R-free 0.231
9YL3 State 1 MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: 17-meric
Chain R 1–334（334 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.50 Å
9YLE State 3 MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: 17-meric
Chain R 1–334（334 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.63 Å
9YLY MLL4FC bound to a nucleosome with p53 RE Deposited 2025-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 16-meric
Chain R 1–334（334 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.77 Å
9YM8 State 2 focused on PHD FYR of MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: 18-meric
Chain R 1–334（334 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.43 Å
9YMF State 2 focused on H3 N terminal tail of MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: 18-meric
Chain R 1–334（334 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.45 Å

198 other PDB entries and 294 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name WDR5_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain A； PDBConstruct 19–329； UniProt 24–334

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9nsn

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9nsn
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9nsn
Deposition date deposition_date2025-03-17
最后修订 last_revision2026-03-25
Structure title titleCrystal structure of the ternary complex of DCAF1 and WDR5 with PROTAC, OICR-41059
Keywords keywordsE3 ligase, adaptor, PROTAC, WDR, ternary complex, PROTEIN BINDING; PROTEIN BINDING
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier27.16 Å
Radius of gyration Rg (electron density) rg_electron26.61 Å
Forward intensity I(0) i0150096000.00
Molecular weight molecular_weight64820.0 kDa
Excluded volume excluded_volume62676 ų
Envelope volume envelope_volume101920 ų
Hydration-shell volume shell_volume31670 ų
Envelope diameter envelope_diameter88.2 Å
Shell Rg shell_rg34.30 Å
Envelope Rg envelope_rg26.64 Å
Shape Rg shape_rg26.65 Å
Total Rg total_rg27.13 Å
Total atoms total_atoms4896
Residues n_residues611
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax84.2 Å
Rg (real space) rg_real27.14 Å
Rg uncertainty (real space) rg_real_error0.52 Å
I(0) (real space) i0_real1.5010e+08
I(0) uncertainty (real space) i0_real_error2.0570e+06
Rg (reciprocal space) rg_reciprocal27.14 Å
I(0) (reciprocal space) i0_reciprocal150100000.0000
Solution quality estimate total_estimate0.9064
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary29.0 Å
Skewness Skewness skewness0.304
Kurtosis Kurtosis kurtosis-0.535
Angular range angular_range— – 0.2900 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha22300000.0000
Real-space data points n_real_points59
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.947
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▶

8. Citations (1)

▶

9. Files and Curves (10)
