1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucose-induced degradation protein 4 homolog

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Bromodomain-containing protein 4 × 1 （O60885） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Bromodomain-containing protein 4 × 1 （O60885） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 GLYCEROL × 4 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Bromodomain-containing protein 4 × 1 （O60885） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Bromodomain-containing protein 4 × 1 （O60885） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 GLYCEROL × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GID4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–167； UniProt 124–289 Author chain C； PDBConstruct 2–167； UniProt 124–289 Author chain E； PDBConstruct 2–167； UniProt 124–289 Author chain G； PDBConstruct 2–167； UniProt 124–289

Bromodomain-containing protein 4

Homo sapiens

UniProt O60885

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Glucose-induced degradation protein 4 homolog × 1 （Q8IVV7） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Glucose-induced degradation protein 4 homolog × 1 （Q8IVV7） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 GLYCEROL × 4 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Glucose-induced degradation protein 4 homolog × 1 （Q8IVV7） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Glucose-induced degradation protein 4 homolog × 1 （Q8IVV7） ;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ; × 1 GLYCEROL × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRD4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–126； UniProt 44–168 Author chain D； PDBConstruct 2–126； UniProt 44–168 Author chain F； PDBConstruct 2–126； UniProt 44–168 Author chain H； PDBConstruct 2–126； UniProt 44–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8x7h
Deposition date deposition_date	2023-11-24
Structure title title	Crystal structure of the ternary complex of GID4-PROTAC(NEP162)-BRD4(BD1).
Keywords keywords	ubiquitin ligase, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8x7h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

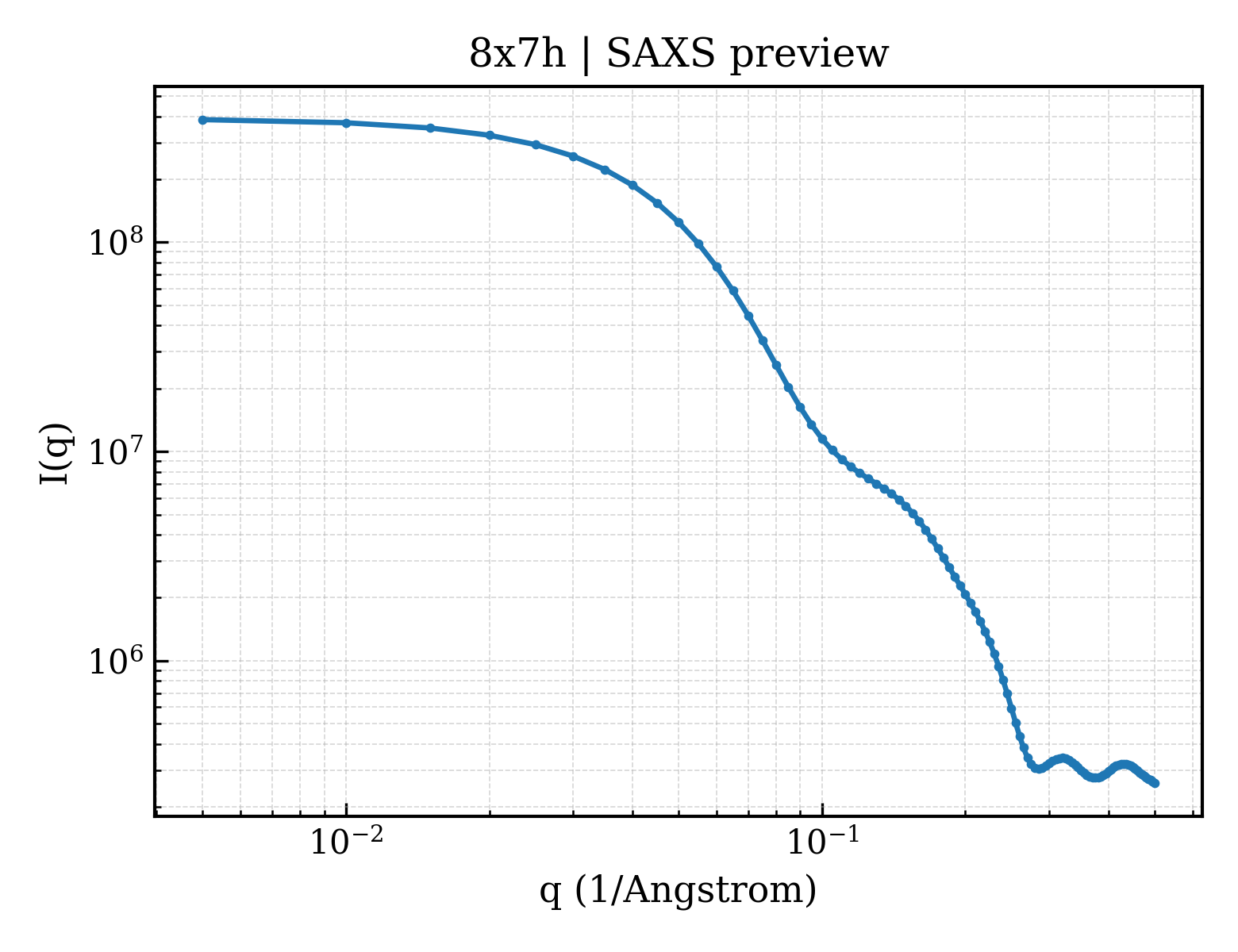

8x7h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8x7h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.71 Å
Rg (electron density)	25.47 Å
Total Rg	26.11 Å
Atom count	2083
Residues	267
Excluded volume	36051 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8x7h__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8x7h__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8x7h__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`8x7h__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glucose-induced degradation protein 4 homolog
Molecular weight formula_weight	19604.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	8411

GSGSKFRGHQKSKGNSYDVEVVLQHVDTGNSYLCGYLKIKGLTEEYPTLTTFFEGEIISKKHPFLTRKWDADEDVDRKHWGKFLAFYQYAKSFNSDDFDYEELKNGDYVFMRWKEQFLVPDHTIKDISGASFAGFYYICFQKSAASIEGYYYHRSSEWYQSLNLTHV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Bromodomain-containing protein 4
Molecular weight formula_weight	14938.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

GNPPPPETSNPNKPKRQTNQLQYLLRVVLKTLWKHQFAWPFQQPVDAVKLNLPDYYKIIKTPMDMGTIKKRLENNYYWNAQECIQDFNTMFTNCYIYNKPGDDIVLMAEALEKLFLQKINELPTEE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	;~{N}-[4-[6-[3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoyl]piperazin-1-yl]propoxy]-1~{H}-benzimidazol-2-yl]cyclohexyl]-2-(1~{H}-indol-2-ylmethylamino)ethanamide ;
Molecular weight formula_weight	926.6 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	64

▶

Unit-cell length a length_a	56.855 Å
Unit-cell length b length_b	87.613 Å
Unit-cell length c length_c	88.440 Å
Unit-cell angle α angle_alpha	103.09 °
Unit-cell angle β angle_beta	90.90 °
Unit-cell angle γ angle_gamma	106.23 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	38.460 Å
R factor r_factor	0.2388
R_work r_work	0.2355
R_free r_free	0.3010
