SAXSdb — 8x7g

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucose-induced degradation protein 4 homolog

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Bromodomain-containing protein 4 × 1 （O60885） ;2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]-~{N}-[2-[2-[[2-[4-[2-(1~{H}-indol-2-ylmethylamino)ethanoylamino]cyclohexyl]-3~{H}-benzimidazol-5-yl]oxy]ethoxy]ethyl]ethanamide ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GID4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–167； UniProt 124–289

Bromodomain-containing protein 4

Homo sapiens

UniProt O60885

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Glucose-induced degradation protein 4 homolog × 1 （Q8IVV7） ;2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]-~{N}-[2-[2-[[2-[4-[2-(1~{H}-indol-2-ylmethylamino)ethanoylamino]cyclohexyl]-3~{H}-benzimidazol-5-yl]oxy]ethoxy]ethyl]ethanamide ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRD4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–126； UniProt 44–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8x7g
Deposition date deposition_date	2023-11-24
Structure title title	Crystal structure of the ternary complex of GID4-PROTAC(NEP108)-BRD4(BD1).
Keywords keywords	PROTAC, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8x7g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8x7g__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

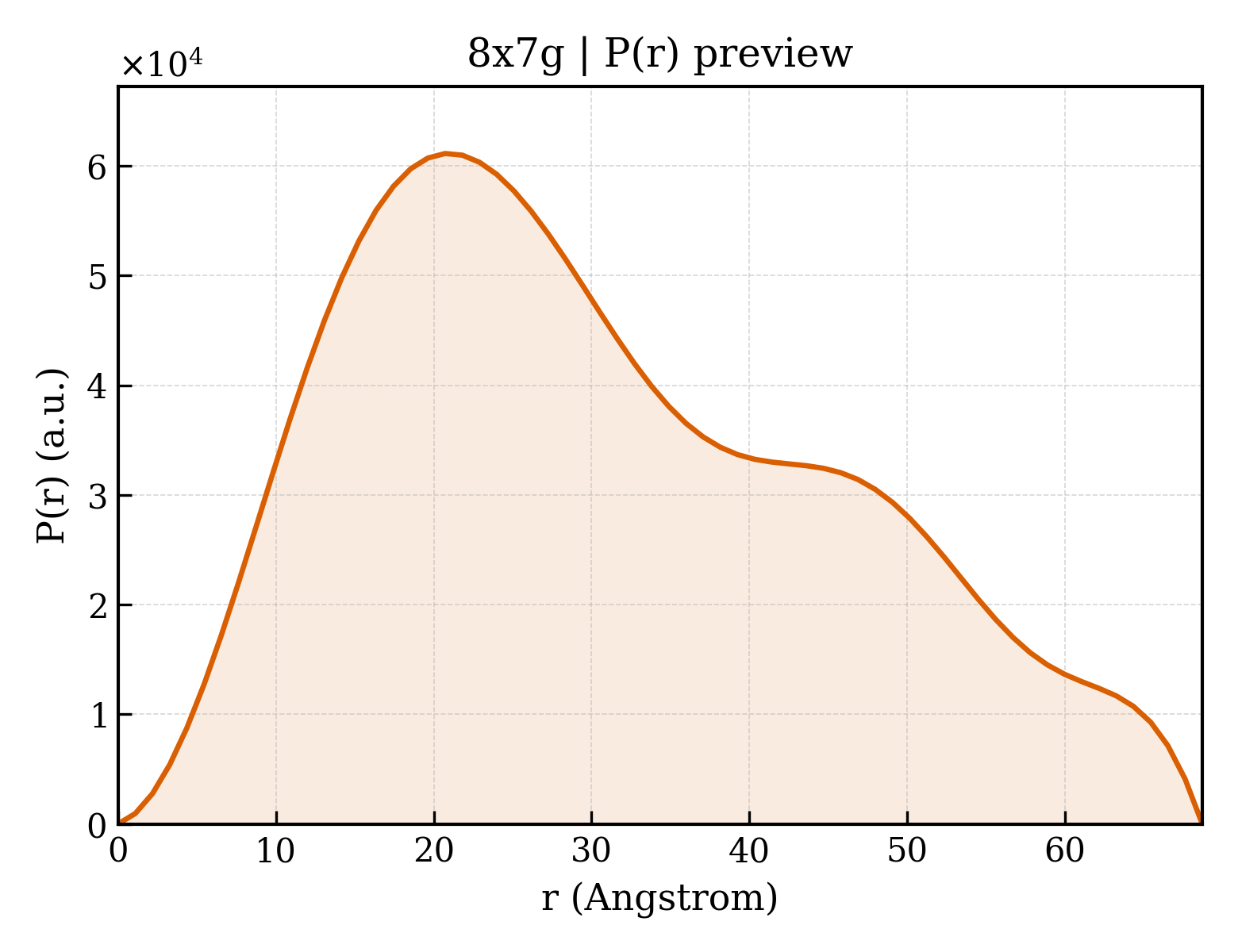

8x7g__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.91 Å
Rg (electron density)	24.76 Å
Total Rg	25.53 Å
Atom count	2244
Residues	270
Excluded volume	38524 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8x7g__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Glucose-induced degradation protein 4 homolog
Molecular weight formula_weight	19604.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2265

GSGSKFRGHQKSKGNSYDVEVVLQHVDTGNSYLCGYLKIKGLTEEYPTLTTFFEGEIISKKHPFLTRKWDADEDVDRKHWGKFLAFYQYAKSFNSDDFDYEELKNGDYVFMRWKEQFLVPDHTIKDISGASFAGFYYICFQKSAASIEGYYYHRSSEWYQSLNLTHV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Bromodomain-containing protein 4
Molecular weight formula_weight	14938.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GNPPPPETSNPNKPKRQTNQLQYLLRVVLKTLWKHQFAWPFQQPVDAVKLNLPDYYKIIKTPMDMGTIKKRLENNYYWNAQECIQDFNTMFTNCYIYNKPGDDIVLMAEALEKLFLQKINELPTEE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	;2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]-~{N}-[2-[2-[[2-[4-[2-(1~{H}-indol-2-ylmethylamino)ethanoylamino]cyclohexyl]-3~{H}-benzimidazol-5-yl]oxy]ethoxy]ethyl]ethanamide ;
Molecular weight formula_weight	887.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	21

▶

Unit-cell length a length_a	89.440 Å
Unit-cell length b length_b	97.402 Å
Unit-cell length c length_c	40.080 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	42.770 Å
R factor r_factor	0.2242
R_work r_work	0.2220
R_free r_free	0.2663

Crystal structure of the ternary complex of GID4-PROTAC(NEP108)-BRD4(BD1).
