9bpb

Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae

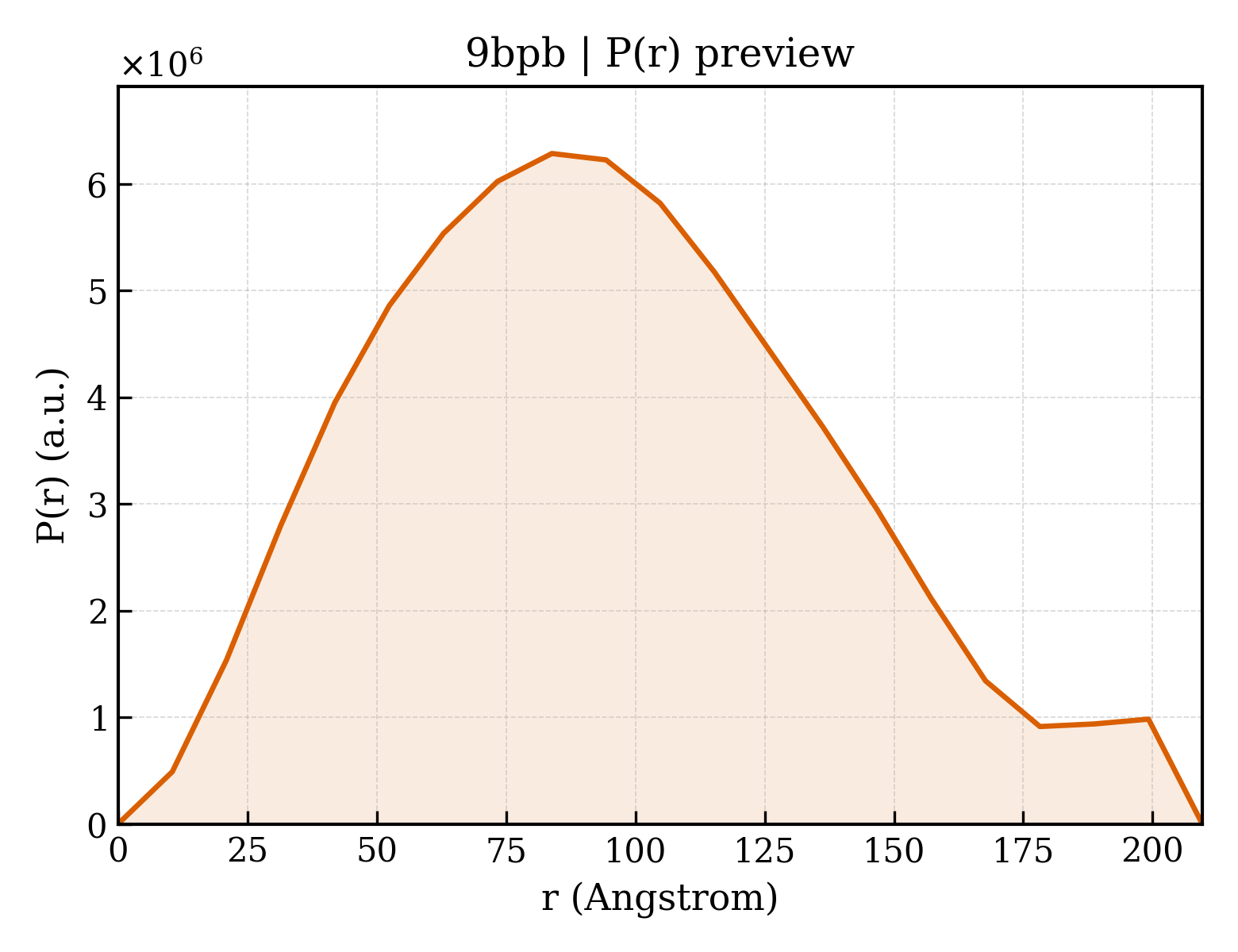

Method: ELECTRON MICROSCOPY Dmax: 209.6 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome b-c1 complex subunit 1, mitochondrial

OrganismNot specified

UniProt P07256

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain A； UniProt 1–457 Chain K； UniProt 1–457 Not recorded Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EZV STRUCTURE OF THE YEAST CYTOCHROME BC1 COMPLEX CO-CRYSTALLIZED WITH AN ANTIBODY FV-FRAGMENT Deposited 2000-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 27–457（431 aa） Fragment：RESIDUES 24-457
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SMA STIGMATELLIN A × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions microseeding；pH 8；277 K；5 % PEG 4000, 100 mM Tris, 0.05 % Undecyl-maltoside, 1 micromolar stigmatellin, pH 8.0, microseeding, temperature 277K
Resolution 2.30 Å R-free 0.254
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 24–454（431 aa） Fragment：RESIDUES 27-457
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 27–457（431 aa） Fragment：RESIDUES 27-457
Chain L 27–457（431 aa） Fragment：RESIDUES 27-457
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain A 27–457（431 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 27–457（431 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 27–457（431 aa） Fragment：UNP residues 27-457
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain A 1–457（457 aa）
Chain a 1–457（457 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain A 1–457（457 aa）
Chain a 1–457（457 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR1_YEAST
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–457； UniProt 1–457 Author chain K； PDBConstruct 1–457； UniProt 1–457

Cytochrome b-c1 complex subunit 2, mitochondrial

OrganismNot specified

UniProt P07257

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain B； UniProt 1–368 Chain L； UniProt 1–368 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain B 17–368（352 aa） Fragment：RESIDUES 17-368
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 17–368（352 aa） Fragment：RESIDUES 17-368
Chain M 17–368（352 aa） Fragment：RESIDUES 17-368
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain B 17–368（352 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain B 17–368（352 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain B 17–368（352 aa） Fragment：UNP residues 17-368
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain B 1–368（368 aa）
Chain b 1–368（368 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain B 1–368（368 aa）
Chain b 1–368（368 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR2_YEAST
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–368； UniProt 1–368 Author chain L； PDBConstruct 1–368； UniProt 1–368

Cytochrome b

OrganismNot specified

UniProt P00163

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain C； UniProt 1–385 Chain M； UniProt 1–385 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain C 1–385（385 aa）
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain C 1–385（385 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain C 1–385（385 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–385（385 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain J 1–385（385 aa）
Chain j 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain J 1–385（385 aa）
Chain j 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CYB_YEAST
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–385； UniProt 1–385 Author chain M； PDBConstruct 1–385； UniProt 1–385

Cytochrome c1, heme protein, mitochondrial

OrganismNot specified

UniProt P07143

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain D； UniProt 1–309 Chain N； UniProt 1–309 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 62–307（246 aa） Fragment：RESIDUES 62-307
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain D 62–309（248 aa） Fragment：RESIDUES 62-309
Chain O 62–309（248 aa） Fragment：RESIDUES 62-309
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain D 62–307（246 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 62–309（248 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 62–309（248 aa） Fragment：UNP residues 62-309
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain L 1–309（309 aa）
Chain l 1–309（309 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain L 1–309（309 aa）
Chain l 1–309（309 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain D 62–308（247 aa）
Chain O 62–308（247 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CY1_YEAST
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 1–309； UniProt 1–309 Author chain N； PDBConstruct 1–309； UniProt 1–309

Cytochrome b-c1 complex subunit Rieske, mitochondrial

OrganismNot specified

UniProt P08067

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain E； UniProt 1–215 Chain O； UniProt 1–215 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 31–215（185 aa） Fragment：RESIDUES 31-215
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 31–215（185 aa） Fragment：RESIDUES 31-215
Chain P 31–215（185 aa） Fragment：RESIDUES 31-215
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 31–215（185 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 31–215（185 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 31–215（185 aa） Fragment：UNP residues 31-215
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain C 1–215（215 aa）
Chain c 1–215（215 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain C 1–215（215 aa）
Chain c 1–215（215 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9GS2 Structure of the Rieske bound Apo1 state of the heptameric Bcs1 AAA-ATPase Deposited 2024-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 92–215（124 aa）
Not recorded FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCRI_YEAST
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 1–215； UniProt 1–215 Author chain O； PDBConstruct 1–215； UniProt 1–215

Cytochrome b-c1 complex subunit 6, mitochondrial

OrganismNot specified

UniProt P00127

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain F； UniProt 1–147 Chain P； UniProt 1–147 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain F 74–147（74 aa） Fragment：RESIDUES 74-147
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 75–147（73 aa） Fragment：RESIDUES 74-147
Chain Q 75–147（73 aa） Fragment：RESIDUES 74-147
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain F 74–147（74 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain H 74–147（74 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 2–147（146 aa） Fragment：RESIDUES 2-147
Chain Q 2–147（146 aa） Fragment：RESIDUES 2-147
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 2–147（146 aa） Fragment：RESIDUES 2-147
Chain Q 2–147（146 aa） Fragment：RESIDUES 2-147
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain F 74–147（74 aa） Fragment：UNP residues 74-147
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain F 1–147（147 aa）
Chain Q 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain F 1–147（147 aa）
Chain Q 1–147（147 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain F 1–147（147 aa）
Chain Q 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain F 74–147（74 aa）
Chain Q 73–147（75 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain G 1–147（147 aa）
Chain g 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain G 1–147（147 aa）
Chain g 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8ZJC Cryo-EM structure of Saccharomyces cerevisiae bc1 complex Deposited 2024-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 73–147（75 aa）
Chain Q 73–147（75 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZMT Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in Metyltetraprole-bound state Deposited 2024-05-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 73–147（75 aa）
Chain Q 73–147（75 aa）
Not recorded A1D6P 1-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 3 FES FE2/S2 (INORGANIC) CLUSTER × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain F 73–147（75 aa）
Chain Q 73–147（75 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR6_YEAST
Isoform —
PDB entities 6
Chains and sequence ranges Author chain F； PDBConstruct 1–147； UniProt 1–147 Author chain P； PDBConstruct 1–147； UniProt 1–147

Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial

Saccharomyces cerevisiae W303

UniProt P00128

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain G； UniProt 1–127 Chain Q； UniProt 1–127 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 3–127（125 aa） Fragment：RESIDUES 3-127
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 2–127（126 aa） Fragment：RESIDUES 2-127
Chain R 2–127（126 aa） Fragment：RESIDUES 2-127
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain G 3–127（125 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain F 1–127（127 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 2–127（126 aa） Fragment：RESIDUES 2-127
Chain R 2–127（126 aa） Fragment：RESIDUES 2-127
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 2–127（126 aa） Fragment：RESIDUES 2-127
Chain R 2–127（126 aa） Fragment：RESIDUES 2-127
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 2–127（126 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain G 1–127（127 aa）
Chain R 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain G 1–127（127 aa）
Chain R 1–127（127 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain G 1–127（127 aa）
Chain R 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain G 2–127（126 aa）
Chain R 2–127（126 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain F 1–127（127 aa）
Chain f 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain F 1–127（127 aa）
Chain f 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain G 2–127（126 aa）
Chain R 2–127（126 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR7_YEAST
Isoform —
PDB entities 7
Chains and sequence ranges Author chain G； PDBConstruct 1–127； UniProt 1–127 Author chain Q； PDBConstruct 1–127； UniProt 1–127

Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial

Saccharomyces cerevisiae W303

UniProt P04039

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain G； UniProt 27–78 Chain Q； UniProt 27–78 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain h 28–74（47 aa）
Chain t 28–74（47 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain h 28–78（51 aa）
Chain u 28–78（51 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain h 28–78（51 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain h 28–78（51 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain h 28–78（51 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain h 28–74（47 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain h 28–78（51 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain M 1–78（78 aa）
Chain m 1–78（78 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain M 1–78（78 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain h 28–78（51 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX8_YEAST
Isoform —
PDB entities 7
Chains and sequence ranges Author chain G； PDBConstruct 132–183； UniProt 27–78 Author chain Q； PDBConstruct 132–183； UniProt 27–78

Cytochrome b-c1 complex subunit 8, mitochondrial

OrganismNot specified

UniProt P08525

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain H； UniProt 1–94 Chain R； UniProt 1–94 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain H 2–94（93 aa） Fragment：RESIDUES 2-94
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 2–94（93 aa） Fragment：RESIDUES 2-94
Chain S 2–94（93 aa） Fragment：RESIDUES 2-94
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain H 2–94（93 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 1–94（94 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain H 2–94（93 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain H 1–94（94 aa）
Chain S 1–94（94 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain H 1–94（94 aa）
Chain S 1–94（94 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain H 1–94（94 aa）
Chain h 1–94（94 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain H 1–94（94 aa）
Chain h 1–94（94 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR8_YEAST
Isoform —
PDB entities 8
Chains and sequence ranges Author chain H； PDBConstruct 1–94； UniProt 1–94 Author chain R； PDBConstruct 1–94； UniProt 1–94

Cytochrome b-c1 complex subunit 9, mitochondrial

OrganismNot specified

UniProt P22289

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain I； UniProt 1–66 Chain S； UniProt 1–66 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EZV STRUCTURE OF THE YEAST CYTOCHROME BC1 COMPLEX CO-CRYSTALLIZED WITH AN ANTIBODY FV-FRAGMENT Deposited 2000-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa） Fragment：RESIDUES 4-58
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SMA STIGMATELLIN A × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions microseeding；pH 8；277 K；5 % PEG 4000, 100 mM Tris, 0.05 % Undecyl-maltoside, 1 micromolar stigmatellin, pH 8.0, microseeding, temperature 277K
Resolution 2.30 Å R-free 0.254
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain I 4–58（55 aa） Fragment：RESIDUES 4-58
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–57（57 aa） Fragment：RESIDUES 1-57
Chain T 1–57（57 aa） Fragment：RESIDUES 1-57
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain I 3–57（55 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
2IBZ Yeast Cytochrome BC1 Complex with Stigmatellin Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain I 0–65（66 aa）
Not recorded HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.256
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 2–66（65 aa） Fragment：RESIDUES 2-66
Chain T 2–66（65 aa） Fragment：RESIDUES 2-66
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 2–66（65 aa） Fragment：RESIDUES 2-66
Chain T 2–66（65 aa） Fragment：RESIDUES 2-66
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain I 2–58（57 aa） Fragment：UNP residues 2-58
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain I 1–66（66 aa）
Chain T 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain I 1–66（66 aa）
Chain T 1–66（66 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain I 1–66（66 aa）
Chain T 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain I 5–58（54 aa）
Chain T 4–57（54 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain E 1–66（66 aa）
Chain e 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain E 1–66（66 aa）
Chain e 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8YHQ Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in pyraclostrobin-bound state Deposited 2024-02-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain R 4–58（55 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 A1D6K methyl ~{N}-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]phenyl]-~{N}-methoxy-carbamate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.42 Å
8YIL Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in YF24228-bound state Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 86T metyltetraprole × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.58 Å
8YIN Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in YF23694-bound state Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 A1D6O 1-[2-[(4,6-dimethyl-1,3-benzothiazol-2-yl)sulfanylmethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.74 Å
8YIO Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in azoxystrobin-bound state Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded AZO METHYL (2Z)-2-(2-{[6-(2-CYANOPHENOXY)PYRIMIDIN-4-YL]OXY}PHENYL)-3-METHOXYACRYLATE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.35 Å
8ZJC Cryo-EM structure of Saccharomyces cerevisiae bc1 complex Deposited 2024-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZMT Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in Metyltetraprole-bound state Deposited 2024-05-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded A1D6P 1-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 3 FES FE2/S2 (INORGANIC) CLUSTER × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain I 2–58（57 aa）
Chain T 2–58（57 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR9_YEAST
Isoform —
PDB entities 9
Chains and sequence ranges Author chain I； PDBConstruct 1–66； UniProt 1–66 Author chain S； PDBConstruct 1–66； UniProt 1–66

Cytochrome b-c1 complex subunit 10, mitochondrial

OrganismNot specified

UniProt P37299

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain J； UniProt 1–77 Chain T； UniProt 1–77 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain J 1–77（77 aa）
Chain U 1–77（77 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain J 1–77（77 aa）
Chain U 1–77（77 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain J 1–77（77 aa）
Chain U 1–77（77 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain U 10–53（44 aa）
Chain V 11–61（51 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain D 1–77（77 aa）
Chain d 1–77（77 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8YHQ Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in pyraclostrobin-bound state Deposited 2024-02-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain S 10–61（52 aa）
Chain T 10–61（52 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 A1D6K methyl ~{N}-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]phenyl]-~{N}-methoxy-carbamate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.42 Å
8YIL Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in YF24228-bound state Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain U 10–61（52 aa）
Chain V 10–61（52 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 86T metyltetraprole × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.58 Å
8YIN Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in YF23694-bound state Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain U 10–61（52 aa）
Chain V 10–61（52 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 A1D6O 1-[2-[(4,6-dimethyl-1,3-benzothiazol-2-yl)sulfanylmethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.74 Å
8YIO Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in azoxystrobin-bound state Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain U 10–61（52 aa）
Chain V 10–61（52 aa）
Not recorded AZO METHYL (2Z)-2-(2-{[6-(2-CYANOPHENOXY)PYRIMIDIN-4-YL]OXY}PHENYL)-3-METHOXYACRYLATE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.35 Å
8ZJC Cryo-EM structure of Saccharomyces cerevisiae bc1 complex Deposited 2024-05-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain U 10–61（52 aa）
Chain V 10–61（52 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZMT Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in Metyltetraprole-bound state Deposited 2024-05-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain U 10–61（52 aa）
Chain V 10–61（52 aa）
Not recorded A1D6P 1-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 3 FES FE2/S2 (INORGANIC) CLUSTER × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain J 2–77（76 aa）
Chain U 2–77（76 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name QCR10_YEAST
Isoform —
PDB entities 10
Chains and sequence ranges Author chain J； PDBConstruct 1–77； UniProt 1–77 Author chain T； PDBConstruct 1–77； UniProt 1–77

Cytochrome c oxidase subunit 1

OrganismNot specified

UniProt P00401

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain a； UniProt 1–534 Chain m； UniProt 1–534 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6GIQ Saccharomyces cerevisiae respiratory supercomplex III2IV Deposited 2018-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain a 1–534（534 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEC HEME C × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.23 Å
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain a 1–534（534 aa）
Chain m 1–534（534 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain a 1–534（534 aa）
Chain n 1–534（534 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain a 1–534（534 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain a 5–534（530 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain a 5–534（530 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain a 1–534（534 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain a 1–534（534 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain K 1–534（534 aa）
Chain k 1–534（534 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain K 1–534（534 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain a 1–534（534 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX1_YEAST
Isoform —
PDB entities 11
Chains and sequence ranges Author chain a； PDBConstruct 1–534； UniProt 1–534 Author chain m； PDBConstruct 1–534； UniProt 1–534

Cytochrome c oxidase subunit 2

OrganismNot specified

UniProt P00410

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain b； UniProt 1–251 Chain n； UniProt 1–251 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain b 16–251（236 aa）
Chain n 16–251（236 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain b 16–251（236 aa）
Chain o 16–251（236 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain b 16–251（236 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain b 16–251（236 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain b 16–251（236 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain b 16–251（236 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain b 16–251（236 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain P 1–251（251 aa）
Chain p 1–251（251 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain P 1–251（251 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain b 16–251（236 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX2_YEAST
Isoform —
PDB entities 12
Chains and sequence ranges Author chain b； PDBConstruct 1–251； UniProt 1–251 Author chain n； PDBConstruct 1–251； UniProt 1–251

Cytochrome c oxidase subunit 3

OrganismNot specified

UniProt P00420

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain c； UniProt 1–269 Chain o； UniProt 1–269 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain c 1–269（269 aa）
Chain o 1–269（269 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain c 1–269（269 aa）
Chain p 1–269（269 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain c 1–269（269 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain c 2–269（268 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain c 2–269（268 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain c 1–269（269 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain c 1–269（269 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain O 1–269（269 aa）
Chain o 1–269（269 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain O 1–269（269 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain c 1–269（269 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX3_YEAST
Isoform —
PDB entities 13
Chains and sequence ranges Author chain c； PDBConstruct 1–269； UniProt 1–269 Author chain o； PDBConstruct 1–269； UniProt 1–269

Cytochrome c oxidase subunit 4, mitochondrial

OrganismNot specified

UniProt P04037

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain d； UniProt 1–155 Chain p； UniProt 1–155 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1HR8 Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant Complexed with Cytochrome C Oxidase IV Signal Peptide Deposited 2000-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain O 2–25（24 aa） Fragment：RESIDUES 2-25
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.264
1HR8 Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant Complexed with Cytochrome C Oxidase IV Signal Peptide Deposited 2000-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain P 2–25（24 aa） Fragment：RESIDUES 2-25
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.264
1HR8 Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant Complexed with Cytochrome C Oxidase IV Signal Peptide Deposited 2000-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Q 2–25（24 aa） Fragment：RESIDUES 2-25
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.264
1HR8 Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant Complexed with Cytochrome C Oxidase IV Signal Peptide Deposited 2000-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 2–25（24 aa） Fragment：RESIDUES 2-25
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.264
1HR8 Yeast Mitochondrial Processing Peptidase beta-E73Q Mutant Complexed with Cytochrome C Oxidase IV Signal Peptide Deposited 2000-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain O 2–25（24 aa） Fragment：RESIDUES 2-25
Chain P 2–25（24 aa） Fragment：RESIDUES 2-25
Chain Q 2–25（24 aa） Fragment：RESIDUES 2-25
Chain R 2–25（24 aa） Fragment：RESIDUES 2-25
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 ZN ZINC ION × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.264
2ODX Solution structure of Zn(II)Cox4 Deposited 2006-12-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 79–155（77 aa） Fragment：Cox4 subunit
Not recorded ZN ZINC ION × 1 SOLUTION NMR
NMR measurement conditions pH 6.9；298 K；Ionic strength (raw mmCIF value) 50 mM phosphate, 200 mM NaCl；Pressure 1
NMR sample composition 1 mM Zn(II)Cox4 U-15N, 50mM phosphate buffer NA, 200 mM NaCl, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1 mM Zn(II)Cox4 U-15N,13C, 50mM phosphate buffer NA, 200 mM NaCl, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain d 26–155（130 aa）
Chain p 26–155（130 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain d 26–155（130 aa）
Chain q 26–155（130 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain d 26–155（130 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain d 30–146（117 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain d 30–146（117 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain d 29–149（121 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain d 26–155（130 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain T 1–155（155 aa）
Chain t 1–155（155 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain T 1–155（155 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain d 30–149（120 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

12 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX4_YEAST
Isoform —
PDB entities 14
Chains and sequence ranges Author chain d； PDBConstruct 1–155； UniProt 1–155 Author chain p； PDBConstruct 1–155； UniProt 1–155

Cytochrome c oxidase subunit 5A, mitochondrial

OrganismNot specified

UniProt P00424

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain e； UniProt 1–153 Chain q； UniProt 1–153 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain e 21–153（133 aa）
Chain q 21–153（133 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain e 25–152（128 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain e 25–152（128 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain e 21–153（133 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain e 21–153（133 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain W 1–153（153 aa）
Chain w 1–153（153 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain W 1–153（153 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain e 21–153（133 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX5A_YEAST
Isoform —
PDB entities 15
Chains and sequence ranges Author chain e； PDBConstruct 1–153； UniProt 1–153 Author chain q； PDBConstruct 1–153； UniProt 1–153

Cytochrome c oxidase subunit 6, mitochondrial

OrganismNot specified

UniProt P00427

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain f； UniProt 1–148 Chain r； UniProt 1–148 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain f 41–148（108 aa）
Chain r 41–148（108 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain f 41–148（108 aa）
Chain s 41–148（108 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain f 41–148（108 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain f 47–145（99 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain f 47–145（99 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain f 45–148（104 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain f 41–148（108 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain Q 1–148（148 aa）
Chain q 1–148（148 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain Q 1–148（148 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain f 45–146（102 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX6_YEAST
Isoform —
PDB entities 16
Chains and sequence ranges Author chain f； PDBConstruct 1–148； UniProt 1–148 Author chain r； PDBConstruct 1–148； UniProt 1–148

Cytochrome c oxidase subunit 7, mitochondrial

OrganismNot specified

UniProt P10174

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain g； UniProt 1–60 Chain s； UniProt 1–60 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain g 2–60（59 aa）
Chain s 2–60（59 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain g 2–60（59 aa）
Chain t 2–60（59 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain g 2–60（59 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain g 3–57（55 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain g 3–57（55 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain g 2–60（59 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain g 2–60（59 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain N 1–60（60 aa）
Chain n 1–60（60 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain N 1–60（60 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain g 2–60（59 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX7_YEAST
Isoform —
PDB entities 17
Chains and sequence ranges Author chain g； PDBConstruct 1–60； UniProt 1–60 Author chain s； PDBConstruct 1–60； UniProt 1–60

Cytochrome c oxidase subunit 9, mitochondrial

OrganismNot specified

UniProt P07255

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain i； UniProt 1–59 Chain u； UniProt 1–59 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain i 2–56（55 aa）
Chain u 2–56（55 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain i 2–56（55 aa）
Chain v 2–56（55 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain i 2–56（55 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain i 3–55（53 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain i 2–53（52 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7Z10 Monomeric respiratory complex IV isolated from S. cerevisiae Deposited 2022-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain i 2–56（55 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 3 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters of sample applied to negatively glow discharged grig.
Resolution 3.87 Å
8DH6 Cryo-EM structure of Saccharomyces cerevisiae cytochrome c oxidase (Complex IV) extracted in lipid nanodiscs Deposited 2022-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain i 2–56（55 aa）
Not recorded CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CU COPPER (II) ION × 2 HEA HEME-A × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 10 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain R 1–59（59 aa）
Chain r 1–59（59 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain R 1–59（59 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain i 2–56（55 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX9_YEAST
Isoform —
PDB entities 18
Chains and sequence ranges Author chain i； PDBConstruct 1–59； UniProt 1–59 Author chain u； PDBConstruct 1–59； UniProt 1–59

Cytochrome c oxidase subunit 12, mitochondrial

OrganismNot specified

UniProt Q01519

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain j； UniProt 1–83 Chain v； UniProt 1–83 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain j 2–83（82 aa）
Chain v 2–83（82 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain j 2–83（82 aa）
Chain w 2–83（82 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain j 2–83（82 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain j 6–83（78 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain j 6–83（78 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain U 1–83（83 aa）
Chain u 1–83（83 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain U 1–83（83 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain j 7–81（75 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX12_YEAST
Isoform —
PDB entities 19
Chains and sequence ranges Author chain j； PDBConstruct 1–83； UniProt 1–83 Author chain v； PDBConstruct 1–83； UniProt 1–83

Cytochrome c oxidase subunit 13, mitochondrial

OrganismNot specified

UniProt P32799

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain k； UniProt 1–129 Chain w； UniProt 1–129 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 26, mitochondrial × 2 （Q2V2P9） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain k 10–129（120 aa）
Chain w 10–129（120 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain k 10–129（120 aa）
Chain x 10–129（120 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain k 10–129（120 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain k 16–129（114 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain k 16–129（114 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
6ZDB NMR structural analysis of yeast Cox13 reveals its C-terminus in interaction with ATP Deposited 2020-06-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–129（129 aa）
Chain B 1–129（129 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；313.15 K；Ionic strength (raw mmCIF value) 20；Pressure 1
NMR sample composition 0.5 mM [U-15N] Cytochrome c oxidase subunit 13, Cox13, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.5 mM [U-13C; U-15N] Cytochrome c oxidase subunit 13, Cox13, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.5 mM 50%[15N, 13C] mixed with 50% [14N, 12C] Cytochrome c oxidase subunit 13, Cox13, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain S 1–129（129 aa）
Chain s 1–129（129 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain S 1–129（129 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain k 13–125（113 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX13_YEAST
Isoform —
PDB entities 20
Chains and sequence ranges Author chain k； PDBConstruct 1–129； UniProt 1–129 Author chain w； PDBConstruct 1–129； UniProt 1–129

Cytochrome c oxidase subunit 26, mitochondrial

OrganismNot specified

UniProt Q2V2P9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 42 PDB declaration: 42-meric（42） Consistent with protein copy count Chain l； UniProt 1–66 Chain x； UniProt 1–66 Not recorded Cytochrome b-c1 complex subunit 1, mitochondrial × 2 （P07256） Cytochrome b-c1 complex subunit 2, mitochondrial × 2 （P07257） Cytochrome b × 2 （P00163） Cytochrome c1, heme protein, mitochondrial × 2 （P07143） Cytochrome b-c1 complex subunit Rieske, mitochondrial × 2 （P08067） Cytochrome b-c1 complex subunit 6, mitochondrial × 2 （P00127） Cytochrome b-c1 complex subunit 7, mitochondrial,Cytochrome c oxidase subunit 8, mitochondrial × 2 （P00128,P04039） Cytochrome b-c1 complex subunit 8, mitochondrial × 2 （P08525） Cytochrome b-c1 complex subunit 9, mitochondrial × 2 （P22289） Cytochrome b-c1 complex subunit 10, mitochondrial × 2 （P37299） Cytochrome c oxidase subunit 1 × 2 （P00401） Cytochrome c oxidase subunit 2 × 2 （P00410） Cytochrome c oxidase subunit 3 × 2 （P00420） Cytochrome c oxidase subunit 4, mitochondrial × 2 （P04037） Cytochrome c oxidase subunit 5A, mitochondrial × 2 （P00424） Cytochrome c oxidase subunit 6, mitochondrial × 2 （P00427） Cytochrome c oxidase subunit 7, mitochondrial × 2 （P10174） Cytochrome c oxidase subunit 9, mitochondrial × 2 （P07255） Cytochrome c oxidase subunit 12, mitochondrial × 2 （Q01519） Cytochrome c oxidase subunit 13, mitochondrial × 2 （P32799） CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force. Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9BPB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain l 1–66（66 aa）
Chain x 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain l 1–66（66 aa）
Chain y 1–66（66 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain l 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain m 26–63（38 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
6YMY Cytochrome c oxidase from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain m 26–63（38 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain V 1–66（66 aa）
Chain v 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain V 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain l 22–66（45 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name COX26_YEAST
Isoform —
PDB entities 21
Chains and sequence ranges Author chain l； PDBConstruct 1–66； UniProt 1–66 Author chain x； PDBConstruct 1–66； UniProt 1–66

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9bpb

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9bpb
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9bpb
Deposition date deposition_date2024-05-07
Structure title titleTethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae
Keywords keywordsComplex, Oxidoreductase, Respiration, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier77.38 Å
Radius of gyration Rg (electron density) rg_electron77.72 Å
Forward intensity I(0) i09069100000.00
Molecular weight molecular_weight862440.0 kDa
Excluded volume excluded_volume1099300 ų
Envelope volume envelope_volume1697400 ų
Hydration-shell volume shell_volume187570 ų
Envelope diameter envelope_diameter295.3 Å
Shell Rg shell_rg73.05 Å
Envelope Rg envelope_rg76.29 Å
Shape Rg shape_rg77.76 Å
Total Rg total_rg77.53 Å
Total atoms total_atoms61288
Residues n_residues7384
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax209.6 Å
Rg (real space) rg_real73.01 Å
Rg uncertainty (real space) rg_real_error0.68 Å
I(0) (real space) i0_real8.7050e+09
I(0) uncertainty (real space) i0_real_error1.6190e+08
Rg (reciprocal space) rg_reciprocal76.02 Å
I(0) (reciprocal space) i0_reciprocal9036000000.0000
Solution quality estimate total_estimate0.9242
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary83.9 Å
Skewness Skewness skewness0.335
Kurtosis Kurtosis kurtosis-0.399
Angular range angular_range— – 0.1000 Å−1
Current regularization parameter α current_alpha0.3209
Highest regularization parameter α highest_alpha696600000.0000
Real-space data points n_real_points21
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.001; Oscil: 0.983; Stabil: 0.986; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.136
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (40)

▶

8. Citations (1)

▶

9. Files and Curves (10)
