9g0a

Influenza A/H7N9 polymerase post-cleavage cap-snatching complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription elongation factor SPT5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPT5H_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain Z； PDBConstruct 1–1087； UniProt 1–1087

Transcription elongation factor SPT4

Homo sapiens

UniProt P63272

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPT4H_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain Y； PDBConstruct 1–117； UniProt 1–117

DNA-directed RNA polymerase subunit

OrganismNot specified

UniProt I3LJR4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LJR4_PIG
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–1641； UniProt 11–1649

Polymerase acidic protein

Influenza A virus (A/Zhejiang/DTID-ZJU01/2013(H7N9))

UniProt M9TI86

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	M9TI86_9INFA
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain a； PDBConstruct 2–717； UniProt 1–716

RNA-directed RNA polymerase catalytic subunit

Influenza A virus (A/Zhejiang/DTID-ZJU01/2013(H7N9))

UniProt M9TLW3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	M9TLW3_9INFA
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain b； PDBConstruct 1–757； UniProt 1–757

Polymerase basic protein 2

Influenza A virus (A/Zhejiang/DTID-ZJU01/2013(H7N9))

UniProt X5F427

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	X5F427_9INFA
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain c； PDBConstruct 1–759； UniProt 1–759

DNA-directed RNA polymerase subunit beta

OrganismNot specified

UniProt A0A0B8RVL1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0B8RVL1_PIG
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain B； PDBConstruct 1–1174； UniProt 1–1174

DNA-directed RNA polymerase II subunit RPB3

OrganismNot specified

UniProt I3LCH3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LCH3_PIG
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain C； PDBConstruct 1–275； UniProt 1–275

DNA-directed RNA polymerase II subunit E

OrganismNot specified

UniProt I3LSI7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LSI7_PIG
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain E； PDBConstruct 1–210； UniProt 1–210

DNA-directed RNA polymerases I, II, and III subunit RPABC2

OrganismNot specified

UniProt A0A4X1VEK9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1VEK9_PIG
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain F； PDBConstruct 1–127； UniProt 1–127

DNA-directed RNA polymerases I, II, and III subunit RPABC3

OrganismNot specified

UniProt I3LCB2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LCB2_PIG
Isoform	—
PDB entities	15
Chains and sequence ranges	Author chain H； PDBConstruct 1–150； UniProt 1–150

DNA-directed RNA polymerase II subunit RPB9

OrganismNot specified

UniProt P60899

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPB9_PIG
Isoform	—
PDB entities	16
Chains and sequence ranges	Author chain I； PDBConstruct 1–125； UniProt 1–125

DNA-directed RNA polymerases I, II, and III subunit RPABC5

OrganismNot specified

UniProt A0A4X1VYD0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1VYD0_PIG
Isoform	—
PDB entities	17
Chains and sequence ranges	Author chain J； PDBConstruct 1–67； UniProt 1–67

DNA-directed RNA polymerase II subunit RPB11-a

OrganismNot specified

UniProt F1RKE4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	F1RKE4_PIG
Isoform	—
PDB entities	18
Chains and sequence ranges	Author chain K； PDBConstruct 1–117； UniProt 1–117

RNA polymerase II, I and III subunit K

OrganismNot specified

UniProt A0A4X1TRS6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1TRS6_PIG
Isoform	—
PDB entities	19
Chains and sequence ranges	Author chain L； PDBConstruct 1–58； UniProt 1–58

RNA polymerase II subunit D

OrganismNot specified

UniProt A0A287ADR4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 DNA-directed RNA polymerase subunit × 1 （A0A4X1VKG7） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A287ADR4_PIG
Isoform	—
PDB entities	22
Chains and sequence ranges	Author chain D； PDBConstruct 1–184； UniProt 1–184

DNA-directed RNA polymerase subunit

OrganismNot specified

UniProt A0A4X1VKG7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 18 DNA 2 RNA 3	Transcription elongation factor SPT5 × 1 （O00267） Transcription elongation factor SPT4 × 1 （P63272） DNA-directed RNA polymerase subunit × 1 （I3LJR4） ;5' cap(1) RNA ; × 1 Polymerase acidic protein × 1 （M9TI86） RNA-directed RNA polymerase catalytic subunit × 1 （M9TLW3） Polymerase basic protein 2 × 1 （X5F427） ;3' vRNA ; × 1 ;5' vRNA ; × 1 likely linker between KOWx4 and KOW5 domains of SPT5 × 1 DNA-directed RNA polymerase subunit beta × 1 （A0A0B8RVL1） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerases I, II, and III subunit RPABC2 × 1 （A0A4X1VEK9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （I3LCB2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） DNA-directed RNA polymerase II subunit RPB11-a × 1 （F1RKE4） RNA polymerase II, I and III subunit K × 1 （A0A4X1TRS6） nontemplate DNA (43-mer) × 1 template DNA (43-mer) × 1 RNA polymerase II subunit D × 1 （A0A287ADR4） ZINC ION × 8 MAGNESIUM ION × 2 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE × 1 PHOSPHATE ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1VKG7_PIG
Isoform	—
PDB entities	23
Chains and sequence ranges	Author chain G； PDBConstruct 1–172； UniProt 1–172

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9g0a
Deposition date deposition_date	2024-07-07
Structure title title	Influenza A/H7N9 polymerase post-cleavage cap-snatching complex
Keywords keywords	Influenza virus, influenza A, cap-snatching, transcription, VIRUS; VIRUS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9g0a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

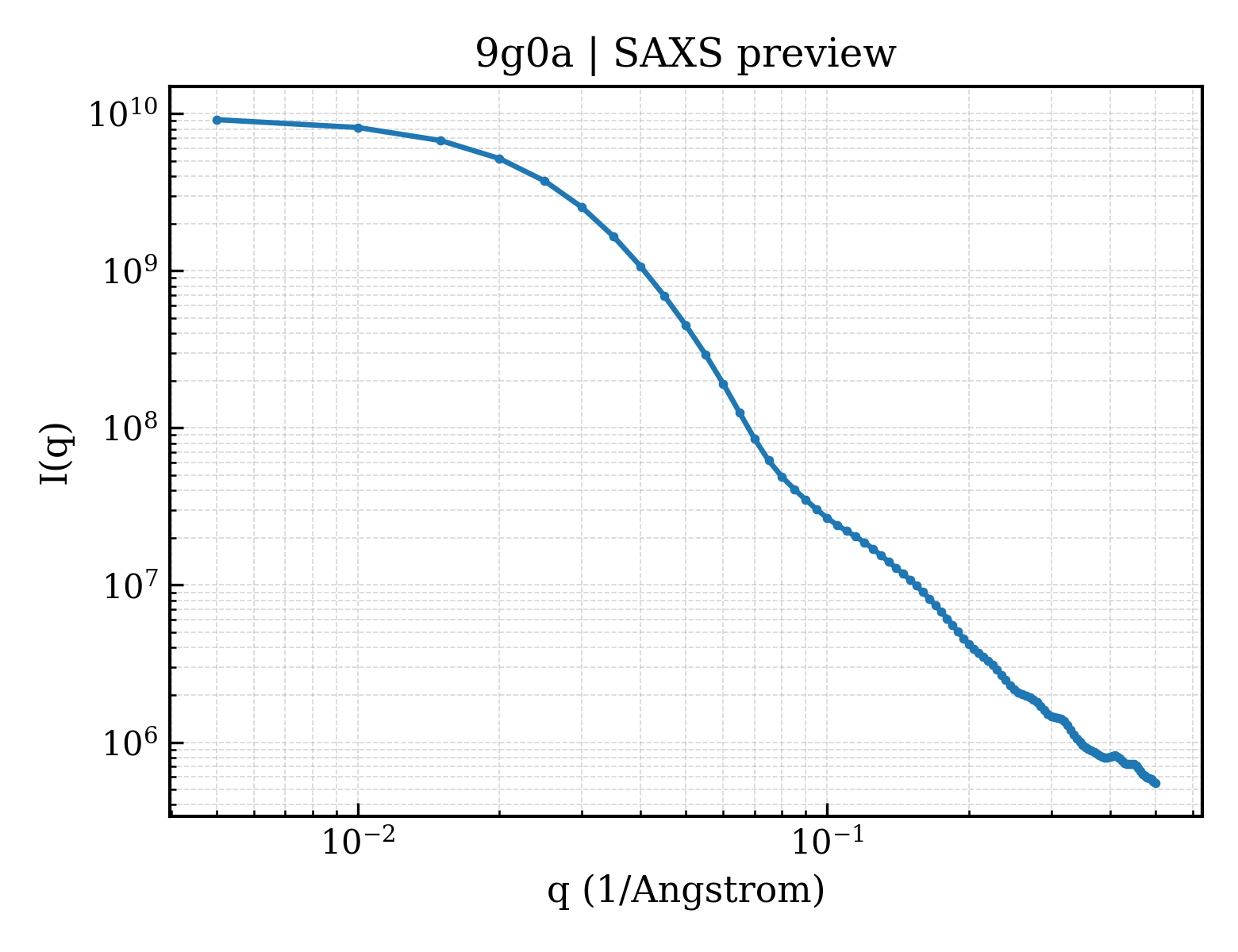

9g0a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

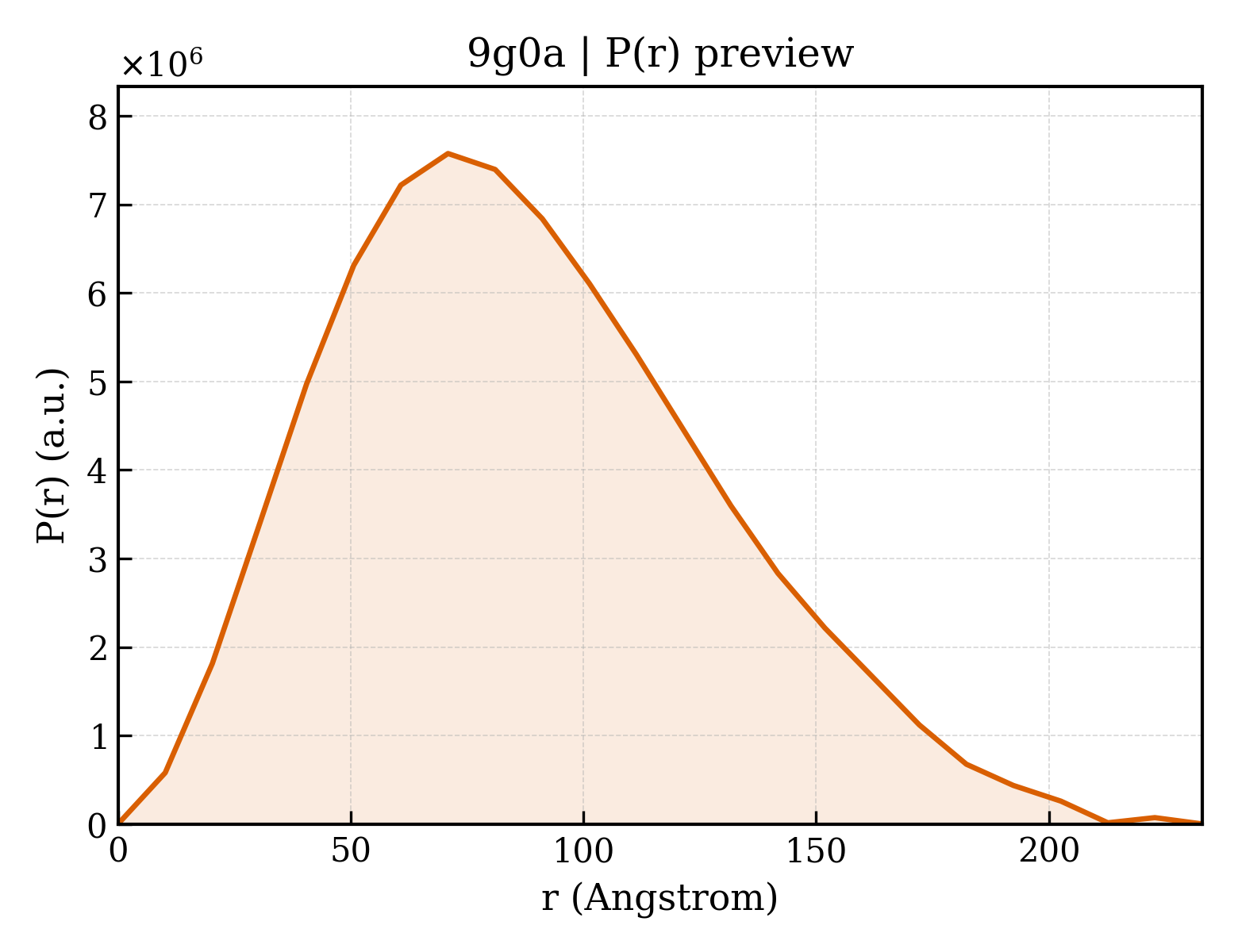

9g0a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	67.95 Å
Rg (electron density)	67.92 Å
Total Rg	67.94 Å
Atom count	55859
Residues	6803
Excluded volume	987470 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9g0a__assembly_1__model_1`	23-meric （23）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (27)

Entity 1 Entity 1 polymer

Description description	Transcription elongation factor SPT5
Molecular weight formula_weight	121145.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z
Atom count atom_count	55859

MSDSEDSNFSEEEDSERSSDGEEAEVDEERRSAAGSEKEEEPEDEEEEEEEEEYDEEEEEEDDDRPPKKPRHGGFILDEADVDDEYEDEDQWEDGAEDILEKEEIEASNIDNVVLDEDRSGARRLQNLWRDQREEELGEYYMKKYAKSSVGETVYGGSDELSDDITQQQLLPGVKDPNLWTVKCKIGEERATAISLMRKFIAYQFTDTPLQIKSVVAPEHVKGYIYVEAYKQTHVKQAIEGVGNLRLGYWNQQMVPIKEMTDVLKVVKEVANLKPKSWVRLKRGIYKDDIAQVDYVEPSQNTISLKMIPRIDYDRIKARMSLKDWFAKRKKFKRPPQRLFDAEKIRSLGGDVASDGDFLIFEGNRYSRKGFLFKSFAMSAVITEGVKPTLSELEKFEDQPEGIDLEVVTESTGKEREHNFQPGDNVEVCEGELINLQGKILSVDGNKITIMPKHEDLKDMLEFPAQELRKYFKMGDHVKVIAGRFEGDTGLIVRVEENFVILFSDLTMHELKVLPRDLQLCSETASGVDVGGQHEWGELVQLDPQTVGVIVRLERETFQVLNMYGKVVTVRHQAVTRKKDNRFAVALDSEQNNIHVKDIVKVIDGPHSGREGEIRHLFRSFAFLHCKKLVENGGMFVCKTRHLVLAGGSKPRDVTNFTVGGFAPMSPRISSPMHPSAGGQRGGFGSPGGGSGGMSRGRGRRDNELIGQTVRISQGPYKGYIGVVKDATESTARVELHSTCQTISVDRQRLTTVGSRRPGGMTSTYGRTPMYGSQTPMYGSGSRTPMYGSQTPLQDGSRTPHYGSQTPLHDGSRTPAQSGAWDPNNPNTPSRAEEEYEYAFDDEPTPSPQAYGGTPNPQTPGYPDPSSPQVNPQYNPQTPGTPAMYNTDQFSPYAAPSPQGSYQPSPSPQSYHQVAPSPAGYQNTHSPASYHPTPSPMAYQASPSPSPVGYSPMTPGAPSPGGYNPHTPGSGIEQNSSDWVTTDIQVKVRDTYLDTQVVGQTGVIRSVTGGMCSVYLKDSEKVVSISSEHLEPITPTKNNKVKVILGEDREATGVLLSIDGEDGIVRMDLDEQLKILNLRFLGKLLEA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Transcription elongation factor SPT4
Molecular weight formula_weight	13210.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

MALETVPKDLRHLRACLLCSLVKTIDQFEYDGCDNCDAYLQMKGNREMVYDCTSSSFDGIIAMMSPEDSWVSKWQRVSNFKPGVYAVSVTGRLPQGIVRELKSRGVAYKSRDTAIKT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	DNA-directed RNA polymerase subunit
Molecular weight formula_weight	183244.2 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SACPLRTIKRVQFGVLSPDELKRMSVTEGGIKYPETTEGGRPKLGGLMDPRQGVIERTGRCQTCAGNMTECPGHFGHIELAKPVFHVGFLVKTMKVLRCVCFFCSKLLVDSNNPKIKDILAKSKGQPKKRLTHVYDLCKGKNICEGGEEMDNKFGVEQPEGDEDLTKEKGHGGCGRYQPRIRRSGLELYAEWKHVNEDSQEKKILLSPERVHEIFKRISDEECFVLGMEPRYARPEWMIVTVLPVPPLSVRPAVVMQGSARNQDDLTHKLADIVKINNQLRRNEQNGAAAHVIAEDVKLLQFHVATMVDNELPGLPRAMQKSGRPLKSLKQRLKGKEGRVRGNLMGKRVDFSARTVITPDPNLSIDQVGVPRSIAANMTFAEIVTPFNIDRLQELVRRGNSQYPGAKYIIRDNGDRIDLRFHPKPSDLHLQTGYKVERHMCDGDIVIFNRQPTLHKMSMMGHRVRILPWSTFRLNLSVTTPYNADFDGDEMNLHLPQSLETRAEIQELAMVPRMIVTPQSNRPVMGIVQDTLTAVRKFTKRDVFLERGEVMNLLMFLSTWDGKVPQPAILKPRPLWTGKQIFSLIIPGHINCIRTHSTHPDDEDSGPYKHISPGDTKVVVENGELIMGILCKKSLGTSAGSLVHISYLEMGHDITRLFYSNIQTVINNWLLIEGHTIGIGDSIADSKTYQDIQNTIKKAKQDVIEVIEKAHNNELEPTPGNTLRQTFENQVNRILNDARDKTGSSAQKSLSEYNNFKSMVVSGAKGSKINISQVIAVVGQQNVEGKRIPFGFKHRTLPHFIKDDYGPESRGFVENSYLAGLTPTEFFFHAMGGREGLIDTAVKTAETGYIQRRLIKSMESVMVKYDATVRNSINQVVQLRYGEDGLAGESVEFQNLATLKPSNKAFEKKFRFDYTNERALRRTLQEDLVKDVLSNAHIQNELEREFERMREDREVLRVIFPTGDSKVVLPCNLLRMIWNAQKIFHINPRLPSDLHPIKVVEGVKELSKKLVIVNGDDPLSRQAQENATLLFNIHLRSTLCSRRMAEEFRLSGEAFDWLLGEIESKFNQAIAHPGEMVGALAAQSLGEPATQMTLNTFHYAGVSAKNVTLGVPRLKELINISKKPKTPSLTVFLLGQSARDAERAKDILCRLEHTTLRKVTANTAIYYDPNPQSTVVAEDQEWVNVYYEMPDFDVARISPWLLRVELDRKHMTDRKLTMEQIAEKINAGFGDDLNCIFNDDNAEKLVLRIRIMNSDENKMQEEEEVVDKMDDDVFLRCIESNMLTDMTLQGIEQISKVYMHLPQTDNKKKIIITEDGEFKALQEWILETDGVSLMRVLSEKDVDPVRTTSNDIVEIFTVLGIEAVRKALERELYHVISFDGSYVNYRHLALLCDTMTCRGHLMAITRHGVNRQDTGPLMKCSFEETVDVLMEAAAHGESDPMKGVSENIMLGQLAPAGTGCFDLLLDAEKCKYGMEIPTNIPGLGAAGPTGMFFGSAPSPMGGISPAMTPWNQGATPAYGAWSPSVGSGMTPGAAGFSPSAASDASGFSPGYSPAWSPTPGSPGSPGPSSPYIPSPGGAMSPSYSPTSPAYEPRSPGGYTPQSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPSYSPTSPSYS

Entity 4 Entity 4 polymer

Description description	;5' cap(1) RNA ;
Molecular weight formula_weight	11437.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	P

GAAGCGAGAAGAACACAGACAGCAGCAGACCAGGC

Entity 5 Entity 5 polymer

Description description	Polymerase acidic protein
Molecular weight formula_weight	82916.6 kDa
EC 编号 ec_number	3.1.-.-
Mutation mutation	E119D
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a

GMEDFVRQCFNPMIVELAEKAMKEYGEDPKIETNKFASICTHLEVCFMYSDFHFIDERGESTIIESGDPNVLLKHRFEIIEGRDRTMAWTVVNSICNTTGVEKPKFLPDLYDYKENRFIDIGVTRREVHIYYLEKANKIKSEKTHIHIFSFTGEEMATKADYTLDEESRARIKTRLFTIRQEMASRGLWDSFRQSERGEETIEERFEITGTMRRLADQSLPPNFSSLENFRAYVDGFEPNGCIEGKLSQMSKEVNARIEPFLRTTPRPLRLPDGPPCSQRSKFLLMDALKLSIEDPSHEGEGIPLYDAIKCMKTFFGWKEPNIIKPHEKGINPNYLLTWKQVLAELQDIENEEKIPRTKNMKKTSQLKWALGENMAPEKVDFEDCKDVNDLKQYDSDEPEPRSLACWIQSEFNKACELTDSSWVELDEIGEDVAPIEHIASMRRNYFTAEVSHCRATEYIMKGVYINTALLNASCAAMDDFQLIPMISKCRTKEGRRKTNLYGFIIKGRSHLRNDTDVVNFVSMEFSLTDPRLEPHKWEKYCVLEIGDMLLRTAVGQVSRPMFLYVRTNGTSKIKMKWGMEMRRCLLQSLQQIESMIEAESSVKEKDLTKEFFENKSETWPIGESPKGVEEGSIGKVCRTLLAKSVFNSLYASPQLEGFSAESRKLLLIVQALRDNLEPGTFDLEGLYEAIEECLINDPWVLLNASWFNSFLTHALR

Source Source

Source organism organism	Influenza A virus (A/Zhejiang/DTID-ZJU01/2013(H7N9))
NCBI taxonomy ID ncbi_taxonomy_id	1318616
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	RNA-directed RNA polymerase catalytic subunit
Molecular weight formula_weight	86496.2 kDa
EC 编号 ec_number	2.7.7.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b

MDVNPTLLFLKVPVQNAISTTFPYTGDPPYSHGTGTGYTMDTVNRTHKYSEKGKWTTNTETGAPQLNPIDGPLPEDNEPSGYAQTDCVLEAMAFLEESHPGIFENSCLETMEIVQQTRVDKLTQGRQTYDWTLNRNQPAATALANTIEVFRSNGLTANESGRLIDFLKDVMDSMDKEEMEITTHFQRKRRVRDNMTKKMVTQRTIGKKKQRLNKRSYLIRALTLNTMTKDAERGKLKRRAIATPGMQIRGFVYFVEALARSICEKLEQSGLPVGGNEKKAKLANVVRKMMTNSQDTELSFTITGDNTKWNENQNPRMFLAMITYITRNQPEWFRNVLSIAPIMFSNKMARLGKGYMFESKSMKLRTQVPAEMLANIDLKYFNKSTREKIEKIRPLLIDGTASLSPGMMMGMFNMLSTVLGVSILNLGQKKYTKTTYWWDGLQSSDDFALIVNAPNHEGIQAGVDRFYRTCKLVGINMSKKKSYINRTGTFEFTSFFYRYGFVANFSMELPSFGVSGINESADMSVGVTVIKNNMINNDLGPATAQMALQLFIKDYRYTYRCHRGDTQIQTRRAFELKKLWEQTRSKAGLLVSDGGPNLYNIRNLHIPEVCLKWELMDEDYQGRLCNPMNPFVSHKEIDSVNNAVVMPAHGPAKSMEYDAVATTHSWIPKRNRSILNTSQRGILEDEQMYQKCCNLFEKFFPSSSYRRPVGISSMVEAMVSRARIDARIDFESGRIKKEEFAEIMKICSTIEELRRQK

Source Source

Source organism organism	Influenza A virus (A/Zhejiang/DTID-ZJU01/2013(H7N9))
NCBI taxonomy ID ncbi_taxonomy_id	1318616
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 polymer

Description description	Polymerase basic protein 2
Molecular weight formula_weight	86007.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	c

MERIKELRDLMSQSRTREILTKTTVDHMAIIKKYTSGRQEKNPALRMKWMMAMKYPITADKRIMEMIPERNEQGQTLWSKTNDAGSDRVMVSPLAVTWWNRNGPTTSTVHYPKVYKTYFEKVERLKHGTFGPVHFRNQVKIRRRVDINPGHADLSAKEAQDVIMEVVFPNEVGARILTSESQLTITKEKKKELQDCKIAPLMVAYMLERELVRKTRFLPVAGGTSSVYIEVLHLTQGTCWEQMYTPGGEVRNDDVDQSLIIAARNIVRRATVSADPLASLLEMCHSTQIGGVRMVDILRQNPTEEQAVDICKAAMGLRISSSFSFGGFTFKRTSGSSVKREEEVLTGNLQTLKIRVHEGYEEFTMVGRRATAILRKATRRLIQLIVSGKDEQSIAEAIIVAMVFSQEDCMIKAVRGDLNFVNRANQRLNPMHQLLRHFQKDAKVLFQNWGIEPIDNVMGMIGILPDMTPSTEMSLRGVRVSKMGVDEYSSTERVVVSIDRFLRVRDQRGNVLLSPEEVSETQGTEKLTITYSSSMMWEINGPESVLVNTYQWIIRNWENVKIQWSQDPTMLYNKMEFEPFQSLVPKAARGQYSGFVRVLFQQMRDVLGTFDTVQIIKLLPFAAAPPEQSRMQFSSLTVNVRGSGMRIVVRGNSPVFNYNKATKRLTVLGKDAGALMEDPDEGTAGVESAVLRGFLILGKENKRYGPALSINELSNLAKGEKANVLIGQGDVVLVMKRKRDSSILTDSQTATKRIRMAIN

Source Source

Source organism organism	Influenza A virus (A/Zhejiang/DTID-ZJU01/2013(H7N9))
NCBI taxonomy ID ncbi_taxonomy_id	1318616
Host organism host_organism	Trichoplusia ni

Entity 8 Entity 8 polymer

Description description	;3' vRNA ;
Molecular weight formula_weight	4008.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	r

CUCUGCUUCUGCU

Entity 9 Entity 9 polymer

Description description	;5' vRNA ;
Molecular weight formula_weight	4557.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	v

AGUAGUAACAAGAG

Entity 10 Entity 10 polymer

Description description	likely linker between KOWx4 and KOW5 domains of SPT5
Molecular weight formula_weight	1089.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

AAAAAAFAAAAAAA

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 11 Entity 11 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	134041.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MYDADEDMQYDEDDDEITPDLWQEACWIVISSYFDEKGLVRQQLDSFDEFIQMSVQRIVEDAPPIDLQAEAQHASGEVEEPPRYLLKFEQIYLSKPTHWERDGAPSPMMPNEARLRNLTYSAPLYVDITKTVIKEGEEQLQTQHQKTFIGKIPIMLRSTYCLLNGLTDRDLCELNECPLDPGGYFIINGSEKVLIAQEKMATNTVYVFAKKDSKYAYTGECRSCLENSSRPTSTIWVSMLARGGQGAKKSAIGQRIVATLPYIKQEVPIIIVFRALGFVSDRDILEHIIYDFEDPEMMEMVKPSLDEAFVIQEQNVALNFIGSRGAKPGVTKEKRIKYAKEVLQKEMLPHVGVSDFCETKKAYFLGYMVHRLLLAALGRRELDDRDHYGNKRLDLAGPLLAFLFRGMFKNLLKEVRIYAQKFIDRGKDFNLELAIKTRIISDGLKYSLATGNWGDQKKAHQARAGVSQVLNRLTFASTLSHLRRLNSPIGRDGKLAKPRQLHNTLWGMVCPAETPEGHAVGLVKNLALMAYISVGSQPSPILEFLEEWSMENLEEISPAAIADATKIFVNGCWVGIHKDPEQLMNTLRKLRRQMDIIVSEVSMIRDIREREIRIYTDAGRICRPLLIVEKQKLLLKKRHIDQLKEREYNNYSWQDLVASGVVEYIDTLEEETVMLAMTPDDLQEKEVAYCSTYTHCEIHPSMILGVCASIIPFPDHNQSPRNTYQSAMGKQAMGVYITNFHVRMDTLAHVLYYPQKPLVTTRSMEYLRFRELPAGINSIVAIASYTGYNQEDSVIMNRSAVDRGFFRSVFYRSYKEQESKKGFDQEEVFEKPTRETCQGMRHAIYDKLDDDGLIAPGVRVSGDDVIIGKTVTLPENEDELEGTNRRYTKRDCSTFLRTSETGIVDQVMVTLNQEGYKFCKIRVRSVRIPQIGDKFASRHGQKGTCGIQYRQEDMPFTCEGITPDIIINPHAIPSRMTIGHLIECLQGKVSANKGEIGDATPFNDAVNVQKISNLLSDYGYHLRGNEVLYNGFTGRKITSQIFIGPTYYQRLKHMVDDKIHSRARGPIQILNRQPMEGRSRDGGLRFGEMERDCQIAHGAAQFLRERLFEASDPYQVHVCNLCGIMAIANTRTHTYECRGCRNKTQISLVRMPYACKLLFQELMSMSIAPRMMSV

Entity 12 Entity 12 polymer

Description description	DNA-directed RNA polymerase II subunit RPB3
Molecular weight formula_weight	31439.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MPYANQPTVRITELTDENVKFIIENTDLAVANSIRRVFIAEVPIIAIDWVQIDANSSVLHDEFIAHRLGLIPLTSDDIVDKLQYSRDCTCEEFCPECSVEFTLDVRCNEDQTRHVTSRDLISNSPRVIPVTSRNRDNDPSDYVEQDDILIVKLRKGQELRLRAYAKKGFGKEHAKWNPTAGVAFEYDPDNALRHTVYPKPEEWPKSEYSELDEDESQAPYDPNGKPERFYYNVESCGSLRPETIVLSALSGLKKKLSDLQTQLSHEIQSDVLTIN

Entity 13 Entity 13 polymer

Description description	DNA-directed RNA polymerase II subunit E
Molecular weight formula_weight	24644.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MDDEEETYRLWKIRKTIMQLCHDRGYLVTQDELDQTLEEFKAQFGDKPSEGRPRRTDLTVLVAHNDDPTDQMFVFFPEEPKVGIKTIKVYCQRMQEENITRALIVVQQGMTPSAKQSLVDMAPKYILEQFLQQELLINITEHELVPEHVVMTKEEVTELLARYKLRENQLPRIQAGDPVARYFGIKRGQVVKIIRPSETAGRYITYRLVQ

Entity 14 Entity 14 polymer

Description description	DNA-directed RNA polymerases I, II, and III subunit RPABC2
Molecular weight formula_weight	14477.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MSDNEDNFDGDDFDDVEEDEGLDDLENAEEEGQENVEILPSGERPQANQKRITTPYMTKYERARVLGTRALQIAMCAPVMVELEGETDPLLIAMKELKARKIPIIIRRYLPDGSYEDWGVDELIISD

Entity 15 Entity 15 polymer

Description description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
Molecular weight formula_weight	17162.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MAGILFEDIFDVKDIDPEGKKFDRVSRLHCESESFKMDLILDVNIQIYPVDLGDKFRLVIASTLYEDGTLDDGEYNPTDDRPSRADQFEYVMYGKVYRIEGDETSTEAATRLSAYVSYGGLLMRLQGDANNLHGFEVDSRVYLLMKKLAF

Entity 16 Entity 16 polymer

Description description	DNA-directed RNA polymerase II subunit RPB9
Molecular weight formula_weight	14541.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MEPDGTYEPGFVGIRFCQECNNMLYPKEDKENRILLYACRNCDYQQEADNSCIYVNKITHEVDELTQIIADVSQDPTLPRTEDHPCQKCGHKEAVFFQSHSARAEDAMRLYYVCTAPHCGHRWTE

Entity 17 Entity 17 polymer

Description description	DNA-directed RNA polymerases I, II, and III subunit RPABC5
Molecular weight formula_weight	7655.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MIIPVRCFTCGKIVGNKWEAYLGLLQAEYTEGDALDALGLKRYCCRRMLLAHVDLIEKLLNYAPLEK

Entity 18 Entity 18 polymer

Description description	DNA-directed RNA polymerase II subunit RPB11-a
Molecular weight formula_weight	13310.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MNAPPAFESFLLFEGEKKITINKDTKVPNACLFTINKEDHTLGNIIKSQLLKDPQVLFAGYKVPHPLEHKIIIRVQTTPDYSPQEAFTNAITDLISELSLLEERFRVAIKDKQEGIE

Entity 19 Entity 19 polymer

Description description	RNA polymerase II, I and III subunit K
Molecular weight formula_weight	7018.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MDTQKDVQPPKQQPMIYICGECHTENEIKSRDPIRCRECGYRIMYKKRTKRLVVFDAR

Entity 20 Entity 20 polymer

Description description	nontemplate DNA (43-mer)
Molecular weight formula_weight	13303.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N

GGCAGTACTAGTATTCTAGTATTGAAAGTACTTGAGCTTGATC

Entity 21 Entity 21 polymer

Description description	template DNA (43-mer)
Molecular weight formula_weight	13193.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

GATCAAGCTCAAGTACTTAAGTCTGGTCTATACTAGTACTGCC

Entity 22 Entity 22 polymer

Description description	RNA polymerase II subunit D
Molecular weight formula_weight	20962.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MWGPAQPYSDSALSPKPRPFRAVFRGSALPFPAVRVEVRGRSMAAGGSDPRAGDVEEDASQLIFPKEFETAETLLNSEVHMLLEHRKQQNESAEDEQELSEVFMKTLNYTARFSRFKNRETIASVRSLLLQKKLHKFELACLANLCPETAEESKALIPSLEGRFEDEELQQILDDIQTKRSFQY

Entity 23 Entity 23 polymer

Description description	DNA-directed RNA polymerase subunit
Molecular weight formula_weight	19314.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MFYHISLEHEILLHPRYFGPNLLNTVKQKLFTEVEGTCTGKYGFVIAVTTIDNIGAGVIQPGRGFVLYPVKYKAIVFRPFKGEVVDAVVTQVNKVGLFTEIGPMSCFISRHSIPSEMEFDPNSNPPCYKTMDEDIVIQQDDEIRLKIVGTRVDKNDIFAIGSLMDDYLGLVS

Entity 24 Entity 24 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 25 Entity 25 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 26 Entity 26 non-polymer

Description description	7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-(2'-O-METHYL)-GUANOSINE
Molecular weight formula_weight	817.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 27 Entity 27 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	63230

Influenza A/H7N9 polymerase post-cleavage cap-snatching complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription elongation factor SPT5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Transcription elongation factor SPT4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Polymerase acidic protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RNA-directed RNA polymerase catalytic subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Polymerase basic protein 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit RPB3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit E

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerases I, II, and III subunit RPABC2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
