9g8r

human SKI7-SKI238 complex in the open state

Method: ELECTRON MICROSCOPY D_max: 164.9 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Superkiller complex protein 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 1–1564	Not recorded	WD repeat-containing protein 61 × 2 （Q9GZS3） Isoform 2 of HBS1-like protein × 1 （Q9Y450） Superkiller complex protein 2 × 1 （Q15477）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9G8R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7QDR Apo human SKI complex in the closed state Deposited 2021-11-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–1564（1564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
7QDS Apo human SKI complex in the open state Deposited 2021-11-30	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–1564（1564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
7QDY RNA-bound human SKI complex Deposited 2021-12-01	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain B 1–1564（1564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
7QDZ 80S-bound human SKI complex in the closed state Deposited 2021-12-01	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain B 1–1564（1564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain B 1–1564（1564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8Q 40S-bound human SKI238 complex in the open state (Gatekeeping module) Deposited 2024-07-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–1564（1564 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.10 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SKI3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 5–1568； UniProt 1–1564

WD repeat-containing protein 61

Homo sapiens

UniProt Q9GZS3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain C； UniProt 1–305 Chain D； UniProt 1–305	Not recorded	Superkiller complex protein 3 × 1 （Q6PGP7） Isoform 2 of HBS1-like protein × 1 （Q9Y450） Superkiller complex protein 2 × 1 （Q15477）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9G8R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3OW8 Crystal Structure of the WD repeat-containing protein 61 Deposited 2010-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–305（304 aa）	Not recorded	UNX UNKNOWN LIGAND × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Mix 0.5uL precipitant (6% PEG20000, 8% PEG-MME550, 0.2M calcium acetate), 0.5uL protein stock solution (11 mg/mL protein), 0.2 uL additive (5% w/v polyvinylpyrrolidine K15), vapor diffusion, sitting drop, temperature 291K	Resolution 2.30 Å R-free 0.277
3OW8 Crystal Structure of the WD repeat-containing protein 61 Deposited 2010-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–305（304 aa）	Not recorded	UNX UNKNOWN LIGAND × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Mix 0.5uL precipitant (6% PEG20000, 8% PEG-MME550, 0.2M calcium acetate), 0.5uL protein stock solution (11 mg/mL protein), 0.2 uL additive (5% w/v polyvinylpyrrolidine K15), vapor diffusion, sitting drop, temperature 291K	Resolution 2.30 Å R-free 0.277
3OW8 Crystal Structure of the WD repeat-containing protein 61 Deposited 2010-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–305（304 aa）	Not recorded	UNX UNKNOWN LIGAND × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Mix 0.5uL precipitant (6% PEG20000, 8% PEG-MME550, 0.2M calcium acetate), 0.5uL protein stock solution (11 mg/mL protein), 0.2 uL additive (5% w/v polyvinylpyrrolidine K15), vapor diffusion, sitting drop, temperature 291K	Resolution 2.30 Å R-free 0.277
3OW8 Crystal Structure of the WD repeat-containing protein 61 Deposited 2010-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2–305（304 aa）	Not recorded	UNX UNKNOWN LIGAND × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Mix 0.5uL precipitant (6% PEG20000, 8% PEG-MME550, 0.2M calcium acetate), 0.5uL protein stock solution (11 mg/mL protein), 0.2 uL additive (5% w/v polyvinylpyrrolidine K15), vapor diffusion, sitting drop, temperature 291K	Resolution 2.30 Å R-free 0.277
6GMH Structure of activated transcription complex Pol II-DSIF-PAF-SPT6 Deposited 2018-05-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: heptadecameric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；10s wait prior to blotting, blotting 8.5s	Resolution 3.10 Å
6TED Structure of complete, activated transcription complex Pol II-DSIF-PAF-SPT6 uncovers allosteric elongation activation by RTF1 Deposited 2019-11-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 21 PDB declaration: 24-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；2 microliters applied to both sides of grid. Sample incubated on grid for 10s prior to blotting. Blotting for 8.5s.	Resolution 3.10 Å
7OOP Pol II-CSB-CSA-DDB1-UVSSA-PAF-SPT6 (Structure 3) Deposited 2021-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric	Chain Y 1–305（305 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7OPC Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 4) Deposited 2021-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric	Chain Y 1–305（305 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7OPD Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 5) Deposited 2021-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric	Chain Y 1–305（305 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7QDR Apo human SKI complex in the closed state Deposited 2021-11-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–305（305 aa） Chain D 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
7QDS Apo human SKI complex in the open state Deposited 2021-11-30	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–305（305 aa） Chain D 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
7QDY RNA-bound human SKI complex Deposited 2021-12-01	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain C 1–305（305 aa） Chain D 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
7QDZ 80S-bound human SKI complex in the closed state Deposited 2021-12-01	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain C 1–305（305 aa） Chain D 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
7UNC Pol II-DSIF-SPT6-PAF1c-TFIIS complex with rewrapped nucleosome Deposited 2022-04-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 29 PDB declaration: 32-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7UND Pol II-DSIF-SPT6-PAF1c-TFIIS-nucleosome complex (stalled at +38) Deposited 2022-04-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 33-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8A3Y Structure of mammalian Pol II-DSIF-SPT6-PAF1-TFIIS-hexasome elongation complex Deposited 2022-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 27 PDB declaration: 30-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EGX RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-hexasome, bp +27 Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 29 PDB declaration: 32-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9EGY RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-nucleosome, bp +27 Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9EGZ RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, bp +27 Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 12 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9EH0 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, 30 bp upstream Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9EH1 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, 20 bp upstream Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain W 5–304（300 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EH2 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-FACT nucleosome upstream Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain C 1–305（305 aa） Chain D 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8Q 40S-bound human SKI238 complex in the open state (Gatekeeping module) Deposited 2024-07-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–305（305 aa） Chain D 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.10 Å
9HVQ Structure of the transcribing Pol II-DSIF-PAF-SPT6-RECQL5 complex Deposited 2024-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 21 PDB declaration: 24-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50 mM KCl, 4 mM MgCl2, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.00 Å
9MLC Pol II-DSIF-SPT6-PAF1c-TFIIS-IWS1-ELOF1-LEDGF-nucleosome activated elongation complex Composite map T Deposited 2024-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 27-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9RTT Activated Elongation Complex with IWS1 and ELOF1 Deposited 2025-07-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 22 PDB declaration: 25-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.01 Å
9RZE State 2 MAP 3 RNA Pol II activated elongation complex with SETD2 bound to proximal upstream H3 Deposited 2025-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.53 Å
9S0U State 3 MAP 3 RNA Pol II activated elongation complex with SETD2 bound to distal upstream H3 Deposited 2025-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.72 Å
9S3G State 1 MAP3 RNA Pol II activated elongation complex with SETD2 and upstream hexasome Deposited 2025-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain W 1–305（305 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å

27 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	WDR61_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–305； UniProt 1–305 Author chain D； PDBConstruct 1–305； UniProt 1–305

Isoform 2 of HBS1-like protein

Homo sapiens

UniProt Q9Y450

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 372–546	Not recorded	Superkiller complex protein 3 × 1 （Q6PGP7） WD repeat-containing protein 61 × 2 （Q9GZS3） Superkiller complex protein 2 × 1 （Q15477）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9G8R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
10AY Cryo-EM structure of CRBN-DDB1 in complex with HBS1L and TNG961 Deposited 2026-01-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 478–684（207 aa） Fragment：domain 2 + domain 3 Chain D 478–684（207 aa） Fragment：domain 2 + domain 3	Not recorded	A1C4S N-{6-[(3R)-2,6-dioxopiperidin-3-yl]naphthalen-1-yl}-N'-{2-[6-(trifluoromethyl)-1-benzothiophen-2-yl]propan-2-yl}urea × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；0.1 M HEPES (pH 7.5), 0.24 M sodium chloride, 3 mM TCEP, 0.2 % n-octylglucoside cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
11MR Cryo-EM structure of CRBN in complex with HBS1L and TNG-4857 (focused refinement) Deposited 2026-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 478–684（207 aa） Fragment：domain 2 + domain 3 Chain C 478–684（207 aa） Fragment：domain 2 + domain 3	Not recorded	ZN ZINC ION × 2 A1C9W N-[(3S)-2,6-dioxopiperidin-3-yl]-2-fluoro-3-[(2-{4-[1-(trifluoromethyl)cyclopropyl]phenyl}propan-2-yl)carbamamido]benzamide × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；10 mM HEPES (pH 7.5), 240 mM NaCl, 3 mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
5LZW Structure of the mammalian rescue complex with Pelota and Hbs1l assembled on a truncated mRNA. Deposited 2016-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 80 PDB declaration: 87-meric	Chain jj 1–684（684 aa）	Not recorded	MG MAGNESIUM ION × 281 ZN ZINC ION × 8 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 ul aliquots were applied to the grid and incubated for 30 s, before blotting for 3s to remove excess solution.	Resolution 3.53 Å
5LZX Structure of the mammalian rescue complex with Pelota and Hbs1l assembled on a UGA stop codon. Deposited 2016-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 80 PDB declaration: 87-meric	Chain jj 1–684（684 aa）	Not recorded	MG MAGNESIUM ION × 264 ZN ZINC ION × 8 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 ul aliquots were applied to the grid and incubated for 30 s, before blotting for 3s to remove excess solution.	Resolution 3.67 Å
5LZY Structure of the mammalian rescue complex with Pelota and Hbs1l assembled on a polyadenylated mRNA. Deposited 2016-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 79 PDB declaration: 86-meric	Chain jj 1–684（684 aa）	Not recorded	MG MAGNESIUM ION × 236 ZN ZINC ION × 8 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 ul aliquots were applied to the grid and incubated for 30 s, before blotting for 3s to remove excess solution.	Resolution 3.99 Å
5LZZ Structure of the mammalian rescue complex with Pelota and Hbs1l (combined) Deposited 2016-10-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 80 PDB declaration: 87-meric	Chain jj 1–684（684 aa）	Not recorded	MG MAGNESIUM ION × 264 ZN ZINC ION × 8 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 ul aliquots were applied to the grid and incubated for 30 s, before blotting for 3s to remove excess solution.	Resolution 3.47 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain E 369–632（264 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain E 369–632（264 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain E 369–632（264 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain E 369–632（264 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HBS1L_HUMAN
Isoform	Q9Y450-2
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 5–179； UniProt 372–546

Superkiller complex protein 2

Homo sapiens

UniProt Q15477

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–774 Chain A； UniProt 1049–1246	Not recorded	Superkiller complex protein 3 × 1 （Q6PGP7） WD repeat-containing protein 61 × 2 （Q9GZS3） Isoform 2 of HBS1-like protein × 1 （Q9Y450）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9G8R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7QDR Apo human SKI complex in the closed state Deposited 2021-11-29	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
7QDS Apo human SKI complex in the open state Deposited 2021-11-30	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
7QDY RNA-bound human SKI complex Deposited 2021-12-01	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
7QDZ 80S-bound human SKI complex in the closed state Deposited 2021-12-01	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
7QE0 80S-bound human SKI complex in the open state Deposited 2021-12-01	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.50 Å
9G8M human 80S ribosome bound by a SKI2-exosome complex Deposited 2024-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 87 PDB declaration: 92-meric	Chain A 1–1246（1246 aa）	Not recorded	MG MAGNESIUM ION × 232 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9G8N 80S-bound human Ski2-exosome complex Deposited 2024-07-23	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
9G8O human 40S ribosome bound by a SKI238-exosome complex Deposited 2024-07-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
9G8P 40S-bound human SKI2-exosome complex Deposited 2024-07-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 13-meric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 7.00 Å
9G8Q 40S-bound human SKI238 complex in the open state (Gatekeeping module) Deposited 2024-07-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1246（1246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.10 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SKI2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–774； UniProt 1–774 Author chain A； PDBConstruct 779–976； UniProt 1049–1246

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

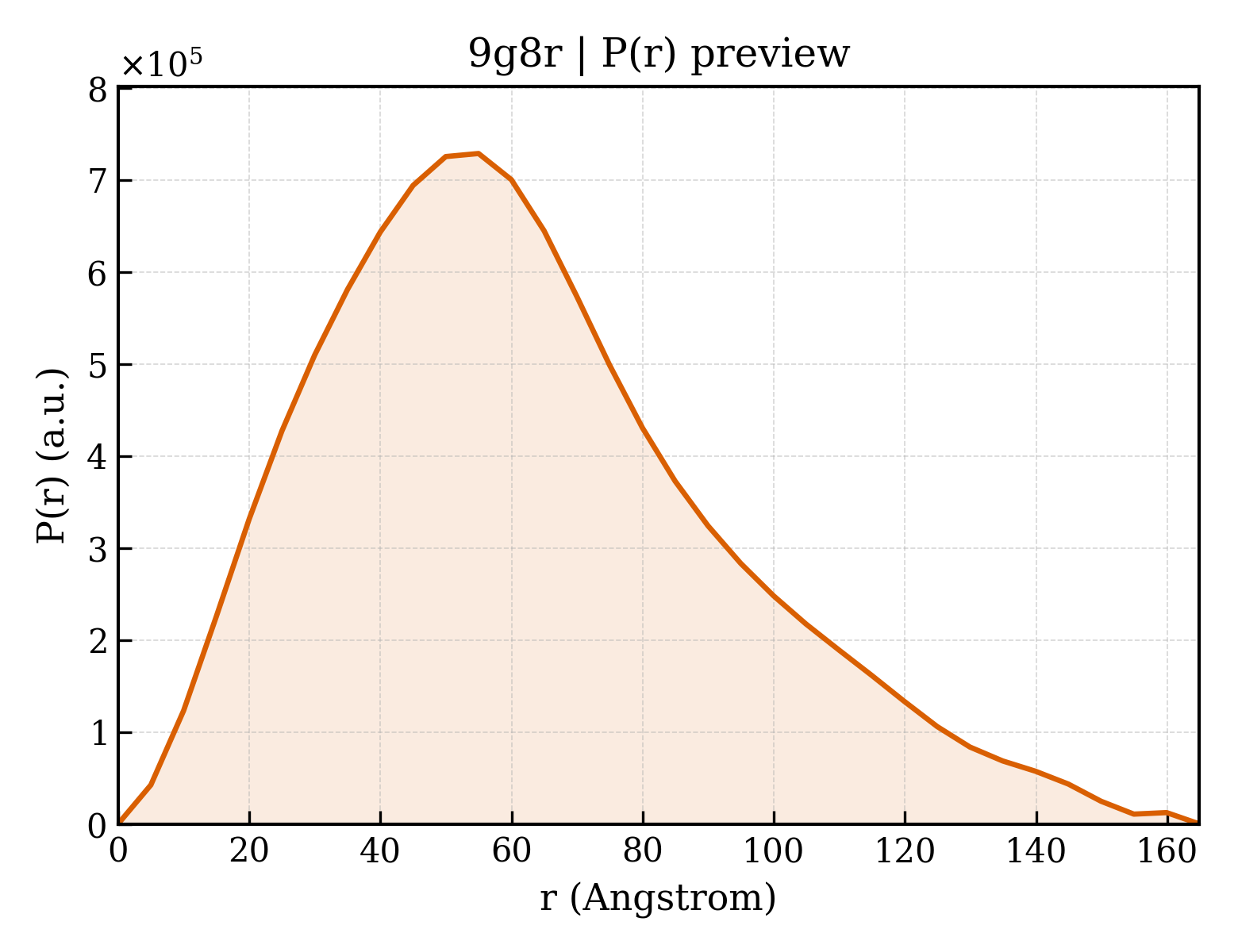

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9g8r
Deposition date deposition_date	2024-07-23
Structure title title	human SKI7-SKI238 complex in the open state
Keywords keywords	Helicase, RNA-binding, RNA-degradation, cytoplasm, HYDROLASE; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	48.10 Å
Radius of gyration Rg (electron density) rg_electron	48.51 Å
Forward intensity I(0) i0	641407000.00
Molecular weight molecular_weight	210690.0 kDa
Excluded volume excluded_volume	264430 Å³
Envelope volume envelope_volume	382700 Å³
Hydration-shell volume shell_volume	69613 Å³
Envelope diameter envelope_diameter	178.2 Å
Shell Rg shell_rg	48.85 Å
Envelope Rg envelope_rg	48.61 Å
Shape Rg shape_rg	48.48 Å
Total Rg total_rg	48.61 Å
Total atoms total_atoms	14837
Residues n_residues	1900
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	164.9 Å
Rg (real space) rg_real	48.58 Å
Rg uncertainty (real space) rg_real_error	1.63 Å
I(0) (real space) i0_real	6.4140e+08
I(0) uncertainty (real space) i0_real_error	1.3010e+07
Rg (reciprocal space) rg_reciprocal	48.11 Å
I(0) (reciprocal space) i0_reciprocal	641000000.0000
Solution quality estimate total_estimate	0.8237
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	55.0 Å
Skewness Skewness skewness	0.602
Kurtosis Kurtosis kurtosis	-0.012
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	44570000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.767; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.424

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Superkiller complex protein 3
Molecular weight formula_weight	176064.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	14837

GPDSMSSKEVKTALKSARDAIRNKEYKEALKHCKTVLKQEKNNYNAWVFIGVAAAELEQPDQAQSAYKKAAELEPDQLLAWQGLANLYEKYNHINAKDDLPGVYQKLLDLYESVDKQKWCDVCKKLVDLYYQEKKHLEVARTWHKLIKTRQEQGAENEELHQLWRKLTQFLAESTEDQNNETQQLLFTAFENALGLSDKIPSEDHQVLYRHFIQSLSKFPHESARLKKACEGMINIYPTVQYPLEVLCLHLIESGNLTDEGQQYCCRLVEMDSKSGPGLIGLGIKALQDKKYEDAVRNLTEGLKESPVCTSGWYHLAEAQVKMHRPKEAVLSCSQALKIVDNLGASGNSLYQRNLCLHLKAEALIKLSDYDSSEEAIRTLDQISDADNIPGLLVLKSLAYRNKGSFDEAAKIMEDLLSSYPDLAEVHALEALIHFTKKDYLQAEKCFQRALEKDTEVAEYHYQLGLTYWFMGEETRKDKTKALTHFLKAARLDTYMGKVFCYLGHYYRDVVGDKNRARGCYRKAFELDDTDAESGAAAVDLSVELEDMEMALAILTTVTQKASAGTAKWAWLRRGLYYLKAGQHSQAVADLQAALRADPKDFNCWESLGEAYLSRGGYTTALKSFTKASELNPESIYSVFKVAAIQQILGKYKEAVAQYQMIIKKKEDYVPALKGLGECHLMMAKAALVDYLDGKAVDYIEKALEYFTCALQHRADVSCLWKLAGDACTCLYAVAPSKVNVHVLGVLLGQKEGKQVLKKNELLHLGGRCYGRALKLMSTSNTWCDLGINYYRQAQHLAETGSNMNDLKELLEKSLHCLKKAVRLDSNNHLYWNALGVVACYSGIGNYALAQHCFIKSIQSEQINAVAWTNLGVLYLTNENIEQAHEAFKMAQSLDPSYLMCWIGQALIAEAVGSYDTMDLFRHTTELNMHTEGALGYAYWVCTTLQDKSNRETELYQYNILQMNAIPAAQVILNKYVERIQNYAPAFTMLGYLNEHLQLKKEAANAYQRAILLLQTAEDQDTYNVAIRNYGRLLCSTGEYDKAIQAFKSTPLEVLEDIIGFALALFMKGLYKESSKAYERALSIVESEQDKAHILTALAITEYKQGKTDVAKTLLFKCSILKEPTTESLQALCALGLAMQDATLSKAALNELLKHIKHKDSNYQRCLLTSAIYALQGRSVAVQKQISKAVHSNPGDPALWSLLSRVVAQYAQRNAKGGVVAGNVAHILDSNHGKKALLYTAVNQLAMGSSSAEDEKNTALKTIQKAALLSPGDPAIWAGLMAACHADDKLALVNNTQPKRIDLYLALLSAVSASIKDEKFFENYNQSLEKWSLSQAVTGLIDTGRISEAETLCTKNLKSNPDQPAVILLLRQVQCKPLLESQKPLPDAVLEELQKTVMSNSTSVPAWQWLAHVYQSQGMMRAAEMCYRKSLQLASQRGSWSGKLSSLLRLALLALKVCMANISNDHWPSLVQEATTEALKLCFCPLAVLLQALLQFKRKMGARETRRLLERVVYQPGYPKSIASTARWYLLRHLYAKDDYELIDVLVNNAKTHGDTRALELNQRLSSQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	WD repeat-containing protein 61
Molecular weight formula_weight	33617.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MTNQYGILFKQEQAHDDAIWSVAWGTNKKENSETVVTGSLDDLVKVWKWRDERLDLQWSLEGHQLGVVSVDISHTLPIAASSSLDAHIRLWDLENGKQIKSIDAGPVDAWTLAFSPDSQYLATGTHVGKVNIFGVESGKKEYSLDTRGKFILSIAYSPDGKYLASGAIDGIINIFDIATGKLLHTLEGHAMPIRSLTFSPDSQLLVTASDDGYIKIYDVQHANLAGTLSGHASWVLNVAFCPDDTHFVSSSSDKSVKVWDVGTRTCVHTFFDHQDQVWGVKYNGNGSKIVSVGDDQEIHIYDCPI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Isoform 2 of HBS1-like protein
Molecular weight formula_weight	19333.5 kDa
EC 编号 ec_number	3.6.5.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

GPDSESPSLTELFQEHKENNISQCFTLSDLCNQSSASFTDLSLGSFPLSQLANRCQSSPGISELTGSLSSLAFHKASPTRDLENLSLSELIAETIDVDNSQIKKESFEVSLSEVRSPGIDSNIDLSVLIKNPDFVPKPVVDPSIAPSSRTKVLSSKLGKNSNFAKDNKKNNKGSLTRKP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Superkiller complex protein 2
Molecular weight formula_weight	107617.4 kDa
EC 编号 ec_number	3.6.4.13
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MMETERLVLPPPDPLDLPLRAVELGCTGHWELLNLPGAPESSLPHGLPPCAPDLQQEAEQLFLSSPAWLPLHGVEHSARKWQRKTDPWSLLAVLGAPVPSDLQAQRHPTTGQILGYKEVLLENTNLSATTSLSLRRPPGPASQSLWGNPTQYPFWPGGMDEPTITDLNTREEAEEEIDFEKDLLTIPPGFKKGMDFAPKDCPTPAPGLLSLSCMLEPLDLGGGDEDENEAVGQPGGPRGDTVSASPCSAPLARASSLEDLVLKEASTAVSTPEAPEPPSQEQWAIPVDATSPVGDFYRLIPQPAFQWAFEPDVFQKQAILHLERHDSVFVAAHTSAGKTVVAEYAIALAQKHMTRTIYTSPIKALSNQKFRDFRNTFGDVGLLTGDVQLHPEASCLIMTTEILRSMLYSGSDVIRDLEWVIFDEVHYINDVERGVVWEEVLIMLPDHVSIILLSATVPNALEFADWIGRLKRRQIYVISTVTRPVPLEHYLFTGNSSKTQGELFLLLDSRGAFHTKGYYAAVEAKKERMSKHAQTFGAKQPTHQGGPAQDRGVYLSLLASLRTRAQLPVVVFTFSRGRCDEQASGLTSLDLTTSSEKSEIHLFLQRCLARLRGSDRQLPQVLHMSELLNRGLGVHHSGILPILKEIVEMLFSRGLVKVLFATETFAMGVNMPARTVVFDSMRKHDGSTFRDLLPGEYVQMAGRAGRRGLDPTGTVILLCKGRVPEMADLHRMMMGKPSQLQSQFRLTYTMILNLLRVDALRVEDMMKRSFSEFPGSRGLLLLPEYHQRVEVLRTLGYVDEAGTVKLAGRVACAMSSHELLLTELMFDNALSTLRPEEIAALLSGLVCQSPGDAGDQLPNTLKQGIERVRAVAKRIGEVQVACGLNQTVEEFVGELNFGLVEVVYEWARGMPFSELAGLSGTPEGLVVRCIQRLAEMCRSLRGAARLVGEPVLGAKMETAATLLRRDIVFAASLYTQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	151860

fit	/app/data/saxs_computation/g8/9g8r/9g8r.fit
pddf	/app/data/pr_computation/g8/9g8r/9g8r.pr.out
profile	/app/data/saxs_computation/g8/9g8r/9g8r.dat

human SKI7-SKI238 complex in the open state

1. Protein Identity and Related Structures Protein Identity & Related Structures

Superkiller complex protein 3

State in the Current Structure

Other States of the Same Protein in the Database

WD repeat-containing protein 61

State in the Current Structure

Other States of the Same Protein in the Database

Isoform 2 of HBS1-like protein

State in the Current Structure

Other States of the Same Protein in the Database

Superkiller complex protein 2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
