SAXSdb — 8c07

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase UBR5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Polyubiquitin-B × 1 （P0CG47） Polyubiquitin-B × 1 （P0CG47） 5-azanylpentan-2-one × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBR5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 8–2806； UniProt 1–2799 Author chain J； PDBConstruct 8–2806； UniProt 1–2799

Polyubiquitin-B

Homo sapiens

UniProt P0CG47

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	E3 ubiquitin-protein ligase UBR5 × 2 （O95071） 5-azanylpentan-2-one × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBB_HUMAN
Isoform	—
PDB entities	2, 3
Chains and sequence ranges	Author chain I； PDBConstruct 1–76； UniProt 1–76 Author chain K； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8c07
Deposition date deposition_date	2022-12-16
Structure title title	Structure of HECT E3 UBR5 forming K48 linked Ubiquitin chains
Keywords keywords	E3 ligase, UBR5, Ubiquitination, UBQ, Ubiquitin, HECT, K48, UBQ-chain, polyubiquitylation, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8c07__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8c07__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

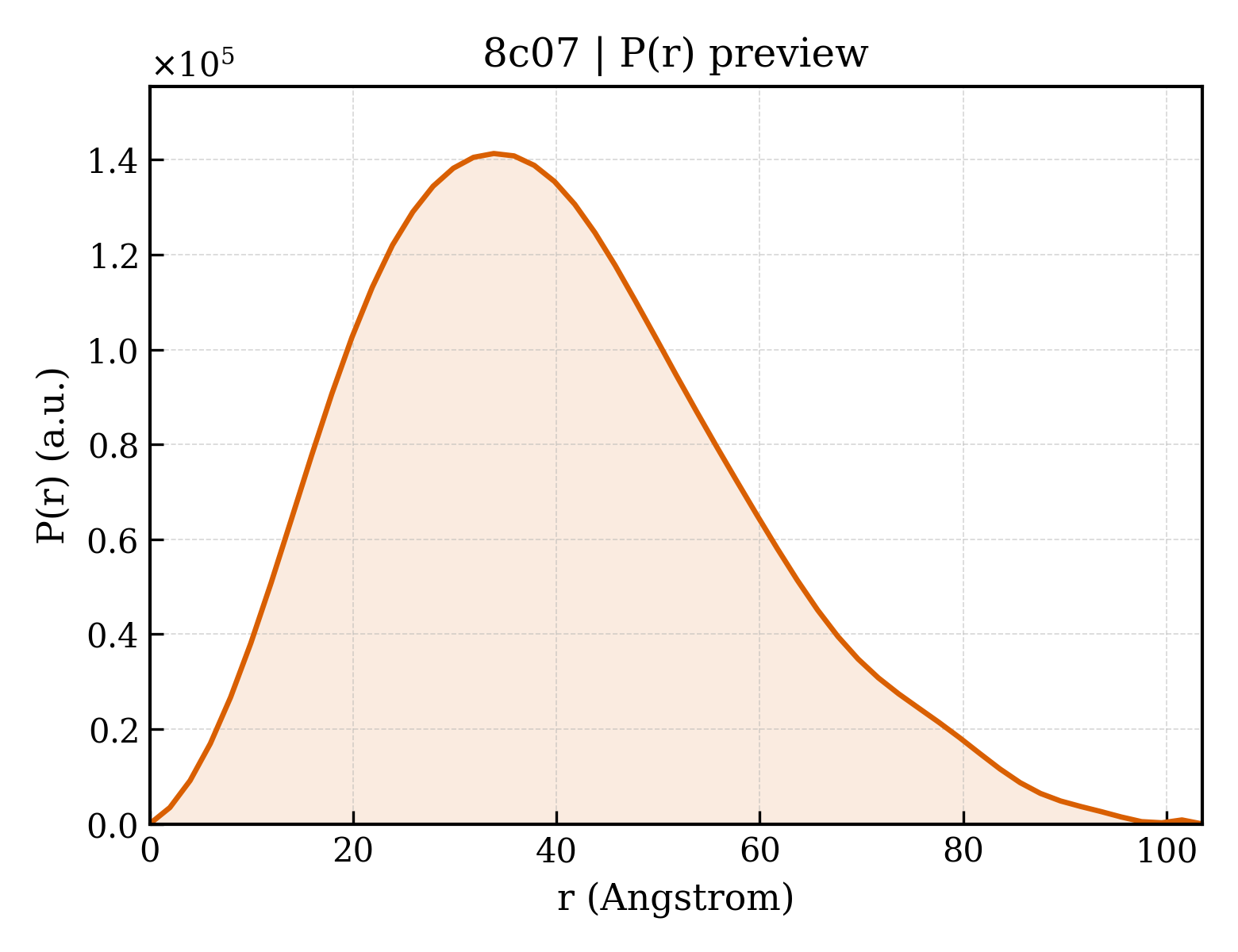

8c07__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.45 Å
Rg (electron density)	29.79 Å
Total Rg	30.40 Å
Atom count	4974
Residues	644
Excluded volume	88625 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8c07__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase UBR5
Molecular weight formula_weight	310266.2 kDa
EC 编号 ec_number	2.3.2.26
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,J
Atom count atom_count	4974

GSGSGAPMTSIHFVVHPLPGTEDQLNDRLREVSEKLNKYNLNSHPPLNVLEQATIKQCVVGPNHAAFLLEDGRVCRIGFSVQPDRLELGKPDNNDGSKLNSNSGAGRTSRPGRTSDSPWFLSGSETLGRLAGNTLGSRWSSGVGGSGGGSSGRSSAGARDSRRQTRVIRTGRDRGSGLLGSQPQPVIPASVIPEELISQAQVVLQGKSRSVIIRELQRTNLDVNLAVNNLLSRDDEDGDDGDDTASESYLPGEDLMSLLDADIHSAHPSVIIDADAMFSEDISYFGYPSFRRSSLSRLGSSRVLLLPLERDSELLRERESVLRLRERRWLDGASFDNERGSTSKEGEPNLDKKNTPVQSPVSLGEDLQWWPDKDGTKFICIGALYSELLAVSSKGELYQWKWSESEPYRNAQNPSLHHPRATFLGLTNEKIVLLSANSIRATVATENNKVATWVDETLSSVASKLEHTAQTYSELQGERIVSLHCCALYTCAQLENSLYWWGVVPFSQRRKMLEKARAKNKKPKSSAGISSMPNITVGTQVCLRNNPLYHAGAVAFSISAGIPKVGVLMESVWNMNDSCRFQLRSPESLKNMEKASKTTEAKPESKQEPVKTEMGPPPSPASTCSDASSIASSASMPYKRRRSTPAPKEEEKVNEEQWSLREVVFVEDVKNVPVGKVLKVDGAYVAVKFPGTSSNTNCQNSSGPDADPSSLLQDCRDLRIDELQVVKTGGTPKVPDCFQRTPKKLCIPEKTEILAVNVDSKGVHAVLKTGNWVRYCIFDLATGKAEQENNFPTSSIAFLGQNERNVAIFTAGQESPIILRDGNGTIYPMAKDCMGGIRDPDWLDLPPISSLGMGVHSLINLPANSTIKKKAAVIIMAVEKQTLMQHILRCDYEACRQYLMNLEQAVVLEQNLQMLQTFISHRCDGNRNILHACVSVCFPTSNKETKEEEEAERSERNTFAERLSAVEAIANAISVVSSNGPGNRAGSSSSRSLRLREMMRRSLRAAGLGRHEAGASSSDHQDPVSPPIAPPSWVPDPPAMDPDGDIDFILAPAVGSLTTAATGTGQGPSTSTIPGPSTEPSVVESKDRKANAHFILKLLCDSVVLQPYLRELLSAKDARGMTPFMSAVSGRAYPAAITILETAQKIAKAEISSSEKEEDVFMGMVCPSGTNPDDSPLYVLCCNDTCSFTWTGAEHINQDIFECRTCGLLESLCCCTECARVCHKGHDCKLKRTSPTAYCDCWEKCKCKTLIAGQKSARLDLLYRLLTATNLVTLPNSRGEHLLLFLVQTVARQTVEHCQYRPPRIREDRNRKTASPEDSDMPDHDLEPPRFAQLALERVLQDWNALKSMIMFGSQENKDPLSASSRIGHLLPEEQVYLNQQSGTIRLDCFTHCLIVKCTADILLLDTLLGTLVKELQNKYTPGRREEAIAVTMRFLRSVARVFVILSVEMASSKKKNNFIPQPIGKCKRVFQALLPYAVEELCNVAESLIVPVRMGIARPTAPFTLASTSIDAMQGSEELFSVEPLPPRPSSDQSSSSSQSQSSYIIRNPQQRRISQSQPVRGRDEEQDDIVSADVEEVEVVEGVAGEEDHHDEQEEHGEENAEAEGQHDEHDEDGSDMELDLLAAAETESDSESNHSNQDNASGRRSVVTAATAGSEAGASSVPAFFSEDDSQSNDSSDSDSSSSQSDDIEQETFMLDEPLERTTNSSHANGAAQAPRSMQWAVRNTQHQRAASTAPSSTSTPAASSAGLIYIDPSNLRRSGTISTSAAAAAAALEASNASSYLTSASSLARAYSIVIRQISDLMGLIPKYNHLVYSQIPAAVKLTYQDAVNLQNYVEEKLIPTWNWMVSIMDSTEAQLRYGSALASAGDPGHPNHPLHASQNSARRERMTAREEASLRTLEGRRRATLLSARQGMMSARGDFLNYALSLMRSHNDEHSDVLPVLDVCSLKHVAYVFQALIYWIKAMNQQTTLDTPQLERKRTRELLELGIDNEDSEHENDDDTNQSATLNDKDDDSLPAETGQNHPFFRRSDSMTFLGCIPPNPFEVPLAEAIPLADQPHLLQPNARKEDLFGRPSQGLYSSSASSGKCLMEVTVDRNCLEVLPTKMSYAANLKNVMNMQNRQKKEGEEQPVLPEETESSKPGPSAHDLAAQLKSSLLAEIGLTESEGPPLTSFRPQCSFMGMVISHDMLLGRWRLSLELFGRVFMEDVGAEPGSILTELGGFEVKESKFRREMEKLRNQQSRDLSLEVDRDRDLLIQQTMRQLNNHFGRRCATTPMAVHRVKVTFKDEPGEGSGVARSFYTAIAQAFLSNEKLPNLECIQNANKGTHTSLMQRLRNRGERDREREREREMRRSSGLRAGSRRDRDRDFRRQLSIDTRPFRPASEGNPSDDPEPLPAHRQALGERLYPRVQAMQPAFASKITGMLLELSPAQLLLLLASEDSLRARVDEAMELIIAHGRENGADSILDLGLVDSSEKVQQENRKRHGSSRSVVDMDLDDTDDGDDNAPLFYQPGKRGFYTPRPGKNTEARLNCFRNIGRILGLCLLQNELCPITLNRHVIKVLLGRKVNWHDFAFFDPVMYESLRQLILASQSSDADAVFSAMDLAFAIDLCKEEGGGQVELIPNGVNIPVTPQNVYEYVRKYAEHRMLVVAEQPLHAMRKGLLDVLPKNSLEDLTAEDFRLLVNGCGEVNVQMLISFTSFNDESGENAEKLLQFKRWFWSIVEKMSMTERQDLVYFWTSSPSLPASEEGFQPMPSITIRPPDDQHLPTANTCISRLYVPLYSSKQILKQKLLLAIKTKNFGFV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Polyubiquitin-B
Molecular weight formula_weight	8550.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGCQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Polyubiquitin-B
Molecular weight formula_weight	8576.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	5-azanylpentan-2-one
Molecular weight formula_weight	101.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	8c07I01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	8c07K01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	141034
