8qpe

Cryo-EM Structure of Pre-B-like Complex (core part)

Method: ELECTRON MICROSCOPY D_max: 255.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qpe
沉积日期 deposition_date	2023-10-01
结构标题 title	Cryo-EM Structure of Pre-B-like Complex (core part)
关键词 keywords	spliceosome, SPLICING; SPLICING
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	70.08 Å
回转半径 Rg (电子) rg_electron	69.57 Å
零角强度 I(0) i0	9680270000.00
分子量 molecular_weight	779380.0 kDa
排除体积 excluded_volume	953050 Å³
包络体积 envelope_volume	1516800 Å³
水化壳体积 shell_volume	178040 Å³
包络直径 envelope_diameter	242.4 Å
壳层 Rg shell_rg	70.54 Å
包络 Rg envelope_rg	69.79 Å
形状 Rg shape_rg	69.57 Å
总 Rg total_rg	69.60 Å
总原子数 total_atoms	54566
残基数 n_residues	6487
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

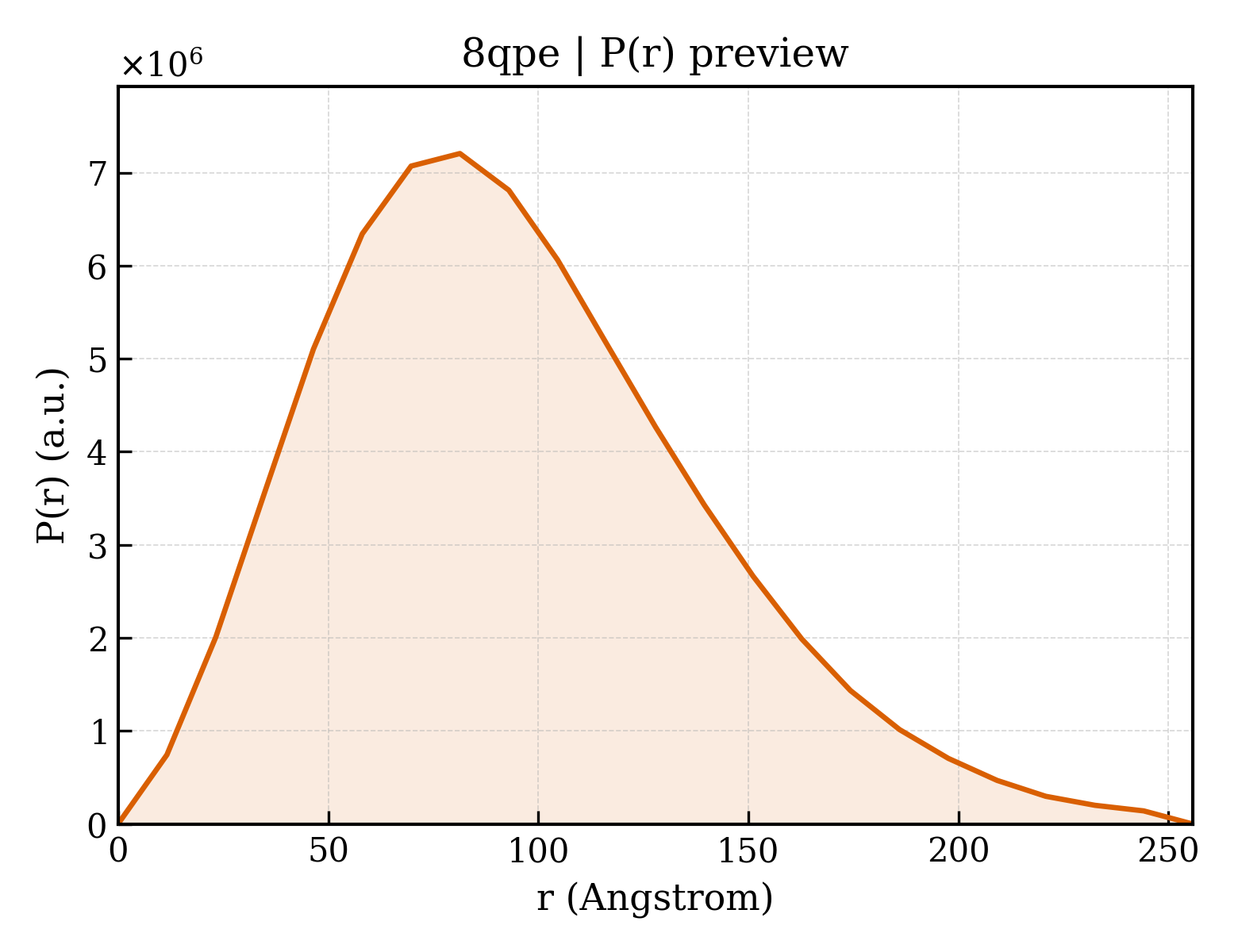

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	255.7 Å
Rg (实空间) rg_real	73.75 Å
Rg 误差 (实空间) rg_real_error	1.68 Å
I(0) (实空间) i0_real	9.7410e+09
I(0) 误差 (实空间) i0_real_error	2.2040e+08
Rg (倒空间) rg_reciprocal	69.87 Å
I(0) (倒空间) i0_reciprocal	9675000000.0000
解质量估计 total_estimate	0.8784
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	81.4 Å
偏度 Skewness skewness	0.581
峰度 Kurtosis kurtosis	0.082
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.9793
最高正则化参数 α highest_alpha	702400000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.766; Stabil: 0.866; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.603

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (21)

Entity 1 polymer

描述 description	U4 snRNA
分子量 formula_weight	46181.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	4
原子数 atom_count	54566

AGCUUUGCGCAGUGGCAGUAUCGUAGCCAAUGAGGUCUAUCCGAGGCGCGAUUAUUGCUAAUUGAAAACUUUUCCCAAUACCCCGCCGUGACGACUUGCAAUAUAGUCGGCACUGGCAAUUUUUGACAGUCUCUACGGAGACUG

Entity 2 polymer

描述 description	U5 snRNA
分子量 formula_weight	37254.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	5

AUACUCUGGUUUCUCUUCAGAUCGCAUAAAUCUUUCGCCUUUUACUAAAGAUUUCCGUGGAGAGGAACAACUCUGAGUCUUAACCCAAUUUUUUGAGGCCUUGCUUUGGCAAGGCUA

Entity 3 polymer

描述 description	U6 snRNA
分子量 formula_weight	34098.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	6

GUGCUCGCUUCGGCAGCACAUAUACUAAAAUUGGAACGAUACAGAGAAGAUUAGCAUGGCCCCUGCGCAAGGAUGACACGCAAAUUCGUGAAGCGUUCCAUAUUUU

Entity 4 polymer

描述 description	Splicing factor 3A subunit 1
分子量 formula_weight	88991.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MPAGPVQAVPPPPPVPTEPKQPTEEEASSKEDSAPSKPVVGIIYPPPEVRNIVDKTASFVARNGPEFEARIRQNEINNPKFNFLNPNDPYHAYYRHKVSEFKEGKAQEPSAAIPKVMQQQQQTTQQQLPQKVQAQVIQETIVPKEPPPEFEFIADPPSISAFDLDVVKLTAQFVARNGRQFLTQLMQKEQRNYQFDFLRPQHSLFNYFTKLVEQYTKILIPPKGLFSKLKKEAENPREVLDQVCYRVEWAKFQERERKKEEEEKEKERVAYAQIDWHDFVVVETVDFQPNEQGNFPPPTTPEELGARILIQERYEKFGESEEVEMEVESDEEDDKQEKAEEPPSQLDQDTQVQDMDEGSDDEEEGQKVPPPPETPMPPPLPPTPDQVIVRKDYDPKASKPLPPAPAPDEYLVSPITGEKIPASKMQEHMRIGLLDPRWLEQRDRSIREKQSDDEVYAPGLDIESSLKQLAERRTDIFGVEETAIGKKIGEEEIQKPEEKVTWDGHSGSMARTQQAAQANITLQEQIEAIHKAKGLVPEDDTKEKIGPSKPNEIPQQPPPPSSATNIPSSAPPITSVPRPPTMPPPVRTTVVSAVPVMPRPPMASVVRLPPGSVIAPMPPIIHAPRINVVPMPPSAPPIMAPRPPPMIVPTAFVPAPPVAPVPAPAPMPPVHPPPPMEDEPTSKKLKTEDSLMPEEEFLRRNKGPVSIKVQVPNMQDKTEWKLNGQVLVFTLPLTDQVSVIKVKIHEATGMPAGKQKLQYEGIFIKDSNSLAYYNMANGAVIHLALKERGGRKK

Entity 5 polymer

描述 description	116 kDa U5 small nuclear ribonucleoprotein component
分子量 formula_weight	109560.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MDTDLYDEFGNYIGPELDSDEDDDELGRETKDLDEMDDDDDDDDVGDHDDDHPGMEVVLHEDKKYYPTAEEVYGPEVETIVQEEDTQPLTEPIIKPVKTKKFTLMEQTLPVTVYEMDFLADLMDNSELIRNVTLCGHLHHGKTCFVDCLIEQTHPEIRKRYDQDLCYTDILFTEQERGVGIKSTPVTVVLPDTKGKSYLFNIMDTPGHVNFSDEVTAGLRISDGVVLFIDAAEGVMLNTERLIKHAVQERLAVTVCINKIDRLILELKLPPTDAYYKLRHIVDEVNGLISMYSTDENLILSPLLGNVCFSSSQYSICFTLGSFAKIYADTFGDINYQEFAKRLWGDIYFNPKTRKFTKKAPTSSSQRSFVEFILEPLYKILAQVVGDVDTSLPRTLDELGIHLTKEELKLNIRPLLRLVCKKFFGEFTGFVDMCVQHIPSPKVGAKPKIEHTYTGGVDSDLGEAMSDCDPDGPLMCHTTKMYSTDDGVQFHAFGRVLSGTIHAGQPVKVLGENYTLEDEEDSQICTVGRLWISVARYHIEVNRVPAGNWVLIEGVDQPIVKTATITEPRGNEEAQIFRPLKFNTTSVIKIAVEPVNPSELPKMLDGLRKVNKSYPSLTTKVEESGEHVILGTGELYLDCVMHDLRKMYSEIDIKVADPVVTFCETVVETSSLKCFAETPNKKNKITMIAEPLEKGLAEDIENEVVQITWNRKKLGEFFQTKYDWDLLAARSIWAFGPDATGPNILVDDTLPSEVDKALLGSVKDSIVQGFQWGTREGPLCDELIRNVKFKILDAVVAQEPLHRGGGQIIPTARRVVYSAFLMATPRLMEPYYFVEVQAPADCVSAVYTVLARRRGHVTQDAPIPGSPLYTIKAFIPAIDSFGFETDLRTHTQGQAFSLSVFHHWQIVPGDPLDKSIVIRPLEPQPAPHLAREFMIKTRRRKGLSEDVSISKFFDDPMLLELAKQDVVLNYPM

Entity 6 polymer

描述 description	Thioredoxin-like protein 4A
分子量 formula_weight	16807.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSYMLPHLHNGWQVDQAILSEEDRVVVIRFGHDWDPTCMKMDEVLYSIAEKVKNFAVIYLVDITEVPDFNKMYELYDPCTVMFFFRNKHIMIDLGTGNNNKINWAMEDKQEMVDIIETVYRGARKGRGLVVSPKDYSTKYRY

Entity 7 polymer

描述 description	Pre-mRNA-splicing factor 38A
分子量 formula_weight	37563.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MANRTVKDAHSIHGTNPQYLVEKIIRTRIYESKYWKEECFGLTAELVVDKAMELRFVGGVYGGNIKPTPFLCLTLKMLQIQPEKDIIVEFIKNEDFKYVRMLGALYMRLTGTAIDCYKYLEPLYNDYRKIKSQNRNGEFELMHVDEFIDELLHSERVCDIILPRLQKRYVLEEAEQLEPRVSALEEDMDDVESSEEEEEEDEKLERVPSPDHRRRSYRDLDKPRRSPTLRYRRSRSRSPRRRSRSPKRRSPSPRRERHRSKSPRRHRSRSRDRRHRSRSKSPGHHRSHRHRSHSKSPERSKKSHKKSRRGNE

Entity 8 polymer

描述 description	Microfibrillar-associated protein 1
分子量 formula_weight	52050.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MSVPSALMKQPPIQSTAGAVPVRNEKGEISMEKVKVKRYVSGKRPDYAPMESSDEEDEEFQFIKKAKEQEAEPEEQEEDSSSDPRLRRLQNRISEDVEERLARHRKIVEPEVVGESDSEVEGDAWRMEREDSSEEEEEEIDDEEIERRRGMMRQRAQERKNEEMEVMEVEDEGRSGEESESESEYEEYTDSEDEMEPRLKPVFIRKKDRVTVQEREAEALKQKELEQEAKRMAEERRKYTLKIVEEETKKELEENKRSLAALDALNTDDENDEEEYEAWKVRELKRIKRDREDREALEKEKAEIERMRNLTEEERRAELRANGKVITNKAVKGKYKFLQKYYHRGAFFMDEDEEVYKRDFSAPTLEDHFNKTILPKVMQVKNFGRSGRTKYTHLVDQDTTSFDSAWGQESAQNTKFFKQKAAGVRDVFERPSAKKRKTT

Entity 9 polymer

描述 description	NHP2-like protein 1, N-terminally processed
分子量 formula_weight	14191.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MTEADVNPKAYPLADAHLTKKLLDLVQQSCNYKQLRKGANEATKTLNRGISEFIVMAADAEPLEIILHLPLLCEDKNVPYVFVRSKQALGRACGVSRPVIACSVTIKEGSQLKQQIQSIQQSIERLLV

Entity 10 polymer

描述 description	Ubiquitin carboxyl-terminal hydrolase 39
分子量 formula_weight	65481.4 kDa
EC 编号 ec_number	3.4.19.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MSGRSKRESRGSTRGKRESESRGSSGRVKRERDREREPEAASSRGSPVRVKREFEPASAREAPASVVPFVRVKREREVDEDSEPEREVRAKNGRVDSEDRRSRHCPYLDTINRSVLDFDFEKLCSISLSHINAYACLVCGKYFQGRGLKSHAYIHSVQFSHHVFLNLHTLKFYCLPDNYEIIDSSLEDITYVLKPTFTKQQIANLDKQAKLSRAYDGTTYLPGIVGLNNIKANDYANAVLQALSNVPPLRNYFLEEDNYKNIKRPPGDIMFLLVQRFGELMRKLWNPRNFKAHVSPHEMLQAVVLCSKKTFQITKQGDGVDFLSWFLNALHSALGGTKKKKKTIVTDVFQGSMRIFTKKLPHPDLPAEEKEQLLHNDEYQETMVESTFMYLTLDLPTAPLYKDEKEQLIIPQVPLFNILAKFNGITEKEYKTYKENFLKRFQLTKLPPYLIFCIKRFTKNNFFVEKNPTIVNFPITNVDLREYLSEEVQAVHKNTTYDLIANIVHDGKPSEGSYRIHVLHHGTGKWYELQDLQVTDILPQMITLSEAYIQIWKRRDNDETNQQGA

Entity 11 polymer

描述 description	WW domain-binding protein 4
分子量 formula_weight	42575.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MADYWKSQPKKFCDYCKCWIADNRPSVEFHERGKNHKENVAKRISEIKQKSLDKAKEEEKASKEFAAMEAAALKAYQEDLKRLGLESEILEPSITPVTSTIPPTSTSNQQKEKKEKKKRKKDPSKGRWVEGITSEGYHYYYDLISGASQWEKPEGFQGDLKKTAVKTVWVEGLSEDGFTYYYNTETGESRWEKPDDFIPHTSDLPSSKVNENSLGTLDESKSSDSHSDSDGEQEAEEGGVSTETEKPKIKFKEKNKNSDGGSDPETQKEKSIQKQNSLGSNEEKSKTLKKSNPYGEWQEIKQEVESHEEVDLELPSTENEYVSTSEADGGGEPKVVFKEKTVTSLGVMADGVAPVFKKRRTENGKSRNLRQRGDDQ

Entity 12 polymer

描述 description	Zinc finger matrin-type protein 2
分子量 formula_weight	23664.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MASGSGTKNLDFRRKWDKDEYEKLAEKRLTEEREKKDGKPVQPVKRELLRHRDYKVDLESKLGKTIVITKTTPQSEMGGYYCNVCDCVVKDSINFLDHINGKKHQRNLGMSMRVERSTLDQVKKRFEVNKKKMEEKQKDYDFEERMKELREEEEKAKAYKKEKQKEKKRRAEEDLTFEEDDEMAAVMGFSGFGSTKKSY

Entity 13 polymer

描述 description	oligo1
分子量 formula_weight	3555.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	z1

AAGGUAAGUAU

Entity 14 polymer

描述 description	oligo2
分子量 formula_weight	1303.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	z2

AAGG

Entity 15 polymer

描述 description	U4/U6 small nuclear ribonucleoprotein Prp3
分子量 formula_weight	77669.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MALSKRELDELKPWIEKTVKRVLGFSEPTVVTAALNCVGKGMDKKKAADHLKPFLDDSTLRFVDKLFEAVEEGRSSRHSKSSSDRSRKRELKEVFGDDSEISKESSGVKKRRIPRFEEVEEEPEVIPGPPSESPGMLTKLQIKQMMEAATRQIEERKKQLSFISPPTPQPKTPSSSQPERLPIGNTIQPSQAATFMNDAIEKARKAAELQARIQAQLALKPGLIGNANMVGLANLHAMGIAPPKVELKDQTKPTPLILDEQGRTVDATGKEIELTHRMPTLKANIRAVKREQFKQQLKEKPSEDMESNTFFDPRVSIAPSQRQRRTFKFHDKGKFEKIAQRLRTKAQLEKLQAEISQAARKTGIHTSTRLALIAPKKELKEGDIPEIEWWDSYIIPNGFDLTEENPKREDYFGITNLVEHPAQLNPPVDNDTPVTLGVYLTKKEQKKLRRQTRREAQKELQEKVRLGLMPPPEPKVRISNLMRVLGTEAVQDPTKVEAHVRAQMAKRQKAHEEANAARKLTAEQRKVKKIKKLKEDISQGVHISVYRVRNLSNPAKKFKIEANAGQLYLTGVVVLHKDVNVVVVEGGPKAQKKFKRLMLHRIKWDEQTSNTKGDDDEESDEEAVKKTNKCVLVWEGTAKDRSFGEMKFKQCPTENMAREHFKKHGAEHYWDLALSESVLESTD

Entity 16 polymer

描述 description	U4/U6 small nuclear ribonucleoprotein Prp31
分子量 formula_weight	55529.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSLADELLADLEEAAEEEEGGSYGEEEEEPAIEDVQEETQLDLSGDSVKTIAKLWDSKMFAEIMMKIEEYISKQAKASEVMGPVEAAPEYRVIVDANNLTVEIENELNIIHKFIRDKYSKRFPELESLVPNALDYIRTVKELGNSLDKCKNNENLQQILTNATIMVVSVTASTTQGQQLSEEELERLEEACDMALELNASKHRIYEYVESRMSFIAPNLSIIIGASTAAKIMGVAGGLTNLSKMPACNIMLLGAQRKTLSGFSSTSVLPHTGYIYHSDIVQSLPPDLRRKAARLVAAKCTLAARVDSFHESTEGKVGYELKDEIERKFDKWQEPPPVKQVKPLPAPLDGQRKKRGGRRYRKMKERLGLTEIRKQANRMSFGEIEEDAYQEDLGFSLGHLGKSGSGRVRQTQVNEATKARISKTLQRTLQKQSVVYGGKSTIRDRSSGTASSVAFTPLQGLEIVNPQAAEKKVAEANQKYFSSMAEFLKVKGEKSGLMST

Entity 17 polymer

描述 description	U4/U6 small nuclear ribonucleoprotein Prp4
分子量 formula_weight	58536.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MASSRASSTQATKTKAPDDLVAPVVKKPHIYYGSLEEKERERLAKGESGILGKDGLKAGIEAGNINITSGEVFEIEEHISERQAEVLAEFERRKRARQINVSTDDSEVKACLRALGEPITLFGEGPAERRERLRNILSVVGTDALKKTKKDDEKSKKSKEEYQQTWYHEGPNSLKVARLWIANYSLPRAMKRLEEARLHKEIPETTRTSQMQELHKSLRSLNNFCSQIGDDRPISYCHFSPNSKMLATACWSGLCKLWSVPDCNLLHTLRGHNTNVGAIVFHPKSTVSLDPKDVNLASCAADGSVKLWSLDSDEPVADIEGHTVRVARVMWHPSGRFLGTTCYDRSWRLWDLEAQEEILHQEGHSMGVYDIAFHQDGSLAGTGGLDAFGRVWDLRTGRCIMFLEGHLKEIYGINFSPNGYHIATGSGDNTCKVWDLRQRRCVYTIPAHQNLVTGVKFEPIHGNFLLTGAYDNTAKIWTHPGWSPLKTLAGHEGKVMGLDISSDGQLIATCSYDRTFKLWMAE

Entity 18 polymer

描述 description	Pre-mRNA-processing factor 6
分子量 formula_weight	107092.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MNKKKKPFLGMPAPLGYVPGLGRGATGFTTRSDIGPARDANDPVDDRHAPPGKRTVGDQMKKNQAADDDDEDLNDTNYDEFNGYAGSLFSSGPYEKDDEEADAIYAALDKRMDERRKERREQREKEEIEKYRMERPKIQQQFSDLKRKLAEVTEEEWLSIPEVGDARNKRQRNPRYEKLTPVPDSFFAKHLQTGENHTSVDPRQTQFGGLNTPYPGGLNTPYPGGMTPGLMTPGTGELDMRKIGQARNTLMDMRLSQVSDSVSGQTVVDPKGYLTDLNSMIPTHGGDINDIKKARLLLKSVRETNPHHPPAWIASARLEEVTGKLQVARNLIMKGTEMCPKSEDVWLEAARLQPGDTAKAVVAQAVRHLPQSVRIYIRAAELETDIRAKKRVLRKALEHVPNSVRLWKAAVELEEPEDARIMLSRAVECCPTSVELWLALARLETYENARKVLNKARENIPTDRHIWITAAKLEEANGNTQMVEKIIDRAITSLRANGVEINREQWIQDAEECDRAGSVATCQAVMRAVIGIGIEEEDRKHTWMEDADSCVAHNALECARAIYAYALQVFPSKKSVWLRAAYFEKNHGTRESLEALLQRAVAHCPKAEVLWLMGAKSKWLAGDVPAARSILALAFQANPNSEEIWLAAVKLESENDEYERARRLLAKARSSAPTARVFMKSVKLEWVQDNIRAAQDLCEEALRHYEDFPKLWMMKGQIEEQKEMMEKAREAYNQGLKKCPHSTPLWLLLSRLEEKIGQLTRARAILEKSRLKNPKNPGLWLESVRLEYRAGLKNIANTLMAKALQECPNSGILWSEAIFLEARPQRRTKSVDALKKCEHDPHVLLAVAKLFWSQRKITKAREWFHRTVKIDSDLGDAWAFFYKFELQHGTEEQQEEVRKRCESAEPRHGELWCAVSKDIANWQKKIGDILRLVAGRIKNTF

Entity 19 polymer

描述 description	Pre-mRNA-processing-splicing factor 8
分子量 formula_weight	273974.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MAGVFPYRGPGNPVPGPLAPLPDYMSEEKLQEKARKWQQLQAKRYAEKRKFGFVDAQKEDMPPEHVRKIIRDHGDMTNRKFRHDKRVYLGALKYMPHAVLKLLENMPMPWEQIRDVPVLYHITGAISFVNEIPWVIEPVYISQWGSMWIMMRREKRDRRHFKRMRFPPFDDEEPPLDYADNILDVEPLEAIQLELDPEEDAPVLDWFYDHQPLRDSRKYVNGSTYQRWQFTLPMMSTLYRLANQLLTDLVDDNYFYLFDLKAFFTSKALNMAIPGGPKFEPLVRDINLQDEDWNEFNDINKIIIRQPIRTEYKIAFPYLYNNLPHHVHLTWYHTPNVVFIKTEDPDLPAFYFDPLINPISHRHSVKSQEPLPDDDEEFELPEFVEPFLKDTPLYTDNTANGIALLWAPRPFNLRSGRTRRALDIPLVKNWYREHCPAGQPVKVRVSYQKLLKYYVLNALKHRPPKAQKKRYLFRSFKATKFFQSTKLDWVEVGLQVCRQGYNMLNLLIHRKNLNYLHLDYNFNLKPVKTLTTKERKKSRFGNAFHLCREVLRLTKLVVDSHVQYRLGNVDAFQLADGLQYIFAHVGQLTGMYRYKYKLMRQIRMCKDLKHLIYYRFNTGPVGKGPGCGFWAAGWRVWLFFMRGITPLLERWLGNLLARQFEGRHSKGVAKTVTKQRVESHFDLELRAAVMHDILDMMPEGIKQNKARTILQHLSEAWRCWKANIPWKVPGLPTPIENMILRYVKAKADWWTNTAHYNRERIRRGATVDKTVCKKNLGRLTRLYLKAEQERQHNYLKDGPYITAEEAVAVYTTTVHWLESRRFSPIPFPPLSYKHDTKLLILALERLKEAYSVKSRLNQSQREELGLIEQAYDNPHEALSRIKRHLLTQRAFKEVGIEFMDLYSHLVPVYDVEPLEKITDAYLDQYLWYEADKRRLFPPWIKPADTEPPPLLVYKWCQGINNLQDVWETSEGECNVMLESRFEKMYEKIDLTLLNRLLRLIVDHNIADYMTAKNNVVINYKDMNHTNSYGIIRGLQFASFIVQYYGLVMDLLVLGLHRASEMAGPPQMPNDFLSFQDIATEAAHPIRLFCRYIDRIHIFFRFTADEARDLIQRYLTEHPDPNNENIVGYNNKKCWPRDARMRLMKHDVNLGRAVFWDIKNRLPRSVTTVQWENSFVSVYSKDNPNLLFNMCGFECRILPKCRTSYEEFTHKDGVWNLQNEVTKERTAQCFLRVDDESMQRFHNRVRQILMASGSTTFTKIVNKWNTALIGLMTYFREAVVNTQELLDLLVKCENKIQTRIKIGLNSKMPSRFPPVVFYTPKELGGLGMLSMGHVLIPQSDLRWSKQTDVGITHFRSGMSHEEDQLIPNLYRYIQPWESEFIDSQRVWAEYALKRQEAIAQNRRLTLEDLEDSWDRGIPRINTLFQKDRHTLAYDKGWRVRTDFKQYQVLKQNPFWWTHQRHDGKLWNLNNYRTDMIQALGGVEGILEHTLFKGTYFPTWEGLFWEKASGFEESMKWKKLTNAQRSGLNQIPNRRFTLWWSPTINRANVYVGFQVQLDLTGIFMHGKIPTLKISLIQIFRAHLWQKIHESIVMDLCQVFDQELDALEIETVQKETIHPRKSYKMNSSCADILLFASYKWNVSRPSLLADSKDVMDSTTTQKYWIDIQLRWGDYDSHDIERYARAKFLDYTTDNMSIYPSPTGVLIAIDLAYNLHSAYGNWFPGSKPLIQQAMAKIMKANPALYVLRERIRKGLQLYSSEPTEPYLSSQNYGELFSNQIIWFVDDTNVYRVTIHKTFEGNLTTKPINGAIFIFNPRTGQLFLKIIHTSVWAGQKRLGQLAKWKTAEEVAALIRSLPVEEQPKQIIVTRKGMLDPLEVHLLDFPNIVIKGSELQLPFQACLKVEKFGDLILKATEPQMVLFNLYDDWLKTISSYTAFSRLILILRALHVNNDRAKVILKPDKTTITEPHHIWPTLTDEEWIKVEVQLKDLILADYGKKNNVNVASLTQSEIRDIILGMEISAPSQQRQQIAEIEKQTKEQSQLTATQTRTVNKHGDEIITSTTSNYETQTFSSKTEWRVRAISAANLHLRTNHIYVSSDDIKETGYTYILPKNVLKKFICISDLRAQIAGYLYGVSPPDNPQVKEIRCIVMVPQWGTHQTVHLPGQLPQHEYLKEMEPLGWIHTQPNESPQLSPQDVTTHAKIMADNPSWDGEKTIIITCSFTPGSCTLTAYKLTPSGYEWGRQNTDKGNNPKGYLPSHYERVQMLLSDRFLGFFMVPAQSSWNYNFMGVRHDPNMKYELQLANPKEFYHEVHRPSHFLNFALLQEGEVYSADREDLYA

Entity 20 polymer

描述 description	U4/U6.U5 tri-snRNP-associated protein 1
分子量 formula_weight	90414.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MGSSKKHRGEKEAAGTTAAAGTGGATEQPPRHREHKKHKHRSGGSGGSGGERRKRSRERGGERGSGRRGAEAEARSSTHGRERSQAEPSERRVKREKRDDGYEAAASSKTSSGDASSLSIEETNKLRAKLGLKPLEVNAIKKEAGTKEEPVTADVINPMALRQREELREKLAAAKEKRLLNQKLGKIKTLGEDDPWLDDTAAWIERSRQLQKEKDLAEKRAKLLEEMDQEFGVSTLVEEEFGQRRQDLYSARDLQGLTVEHAIDSFREGETMILTLKDKGVLQEEEDVLVNVNLVDKERAEKNVELRKKKPDYLPYAEDESVDDLAQQKPRSILSKYDEELEGERPHSFRLEQGGTADGLRERELEEIRAKLRLQAQSLSTVGPRLASEYLTPEEMVTFKKTKRRVKKIRKKEKEVVVRADDLLPLGDQTQDGDFGSRLRGRGRRRVSEVEEEKEPVPQPLPSDDTRVENMDISDEEEGGAPPPGSPQVLEEDEAELELQKQLEKGRRLRQLQQLQQLRDSGEKVVEIVKKLESRQRGWEEDEDPERKGAIVFNATSEFCRTLGEIPTYGLAGNREEQEELMDFERDEERSANGGSESDGEENIGWSTVNLDEEKQQQDFSASSTTILDEEPIVNRGLAAALLLCQNKGLLETTVQKVARVKAPNKSLPSAVYCIEDKMAIDDKYSRREEYRGFTQDFKEKDGYKPDVKIEYVDETGRKLTPKEAFRQLSHRFHGKGSGKMKTERRMKKLDEEALLKKMSSSDTPLGTVALLQEKQKAQKTPYIVLSGSGKSMNANTITK

Entity 21 non-polymer

描述 description	INOSITOL HEXAKISPHOSPHATE
分子量 formula_weight	660.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	334084

fit	/app/data/saxs_computation/qp/8qpe/8qpe.fit
pddf	/app/data/pr_computation/qp/8qpe/8qpe.pr.out
profile	/app/data/saxs_computation/qp/8qpe/8qpe.dat
