9ynh

Full-length human cytoplasmic dynein-1 in phi-like state bound to dynactin-p150glued and LIS1

Method: ELECTRON MICROSCOPY Dmax: 397.2 Å Quality: GOOD

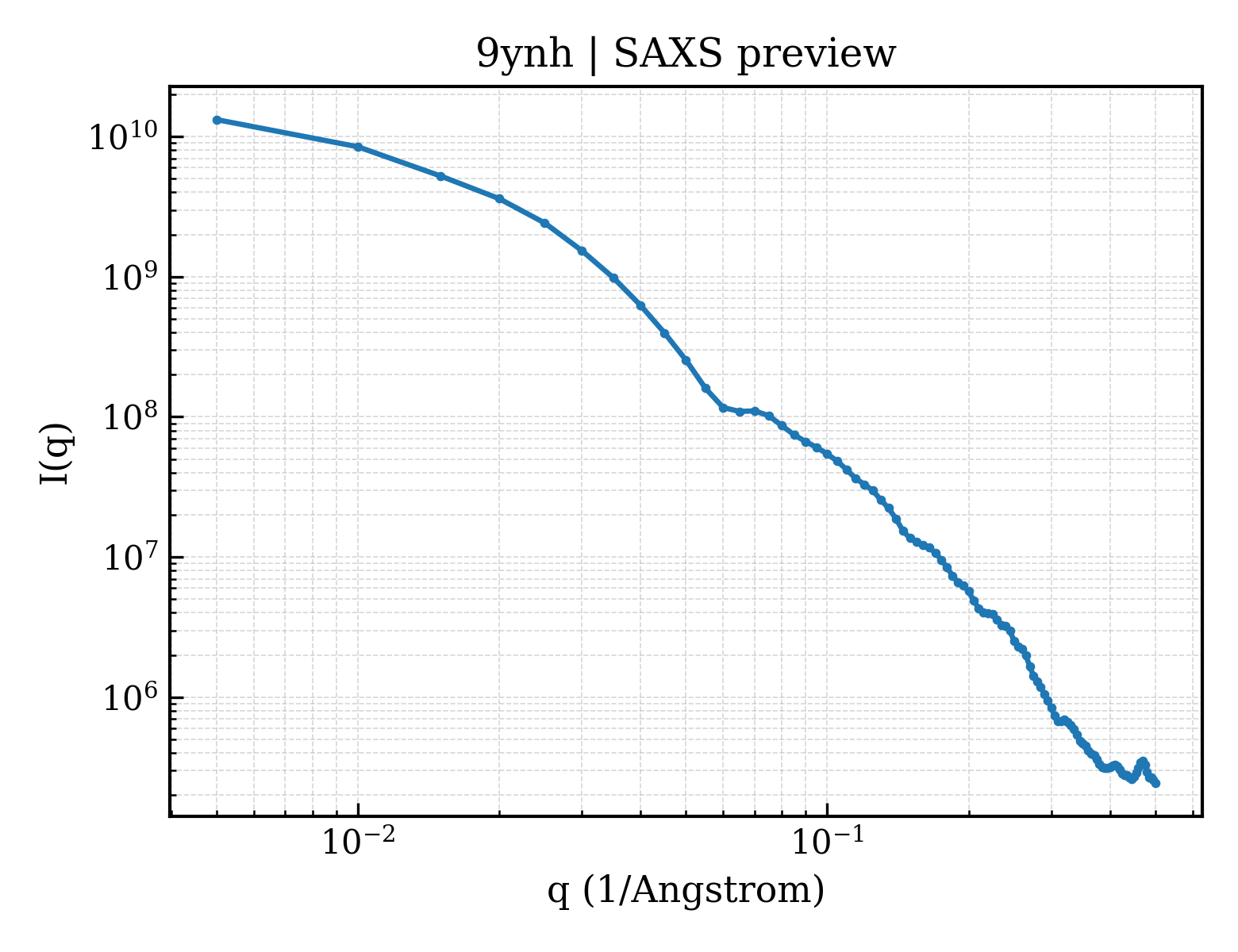

SAXS Profile

SAXS profile for 9ynh

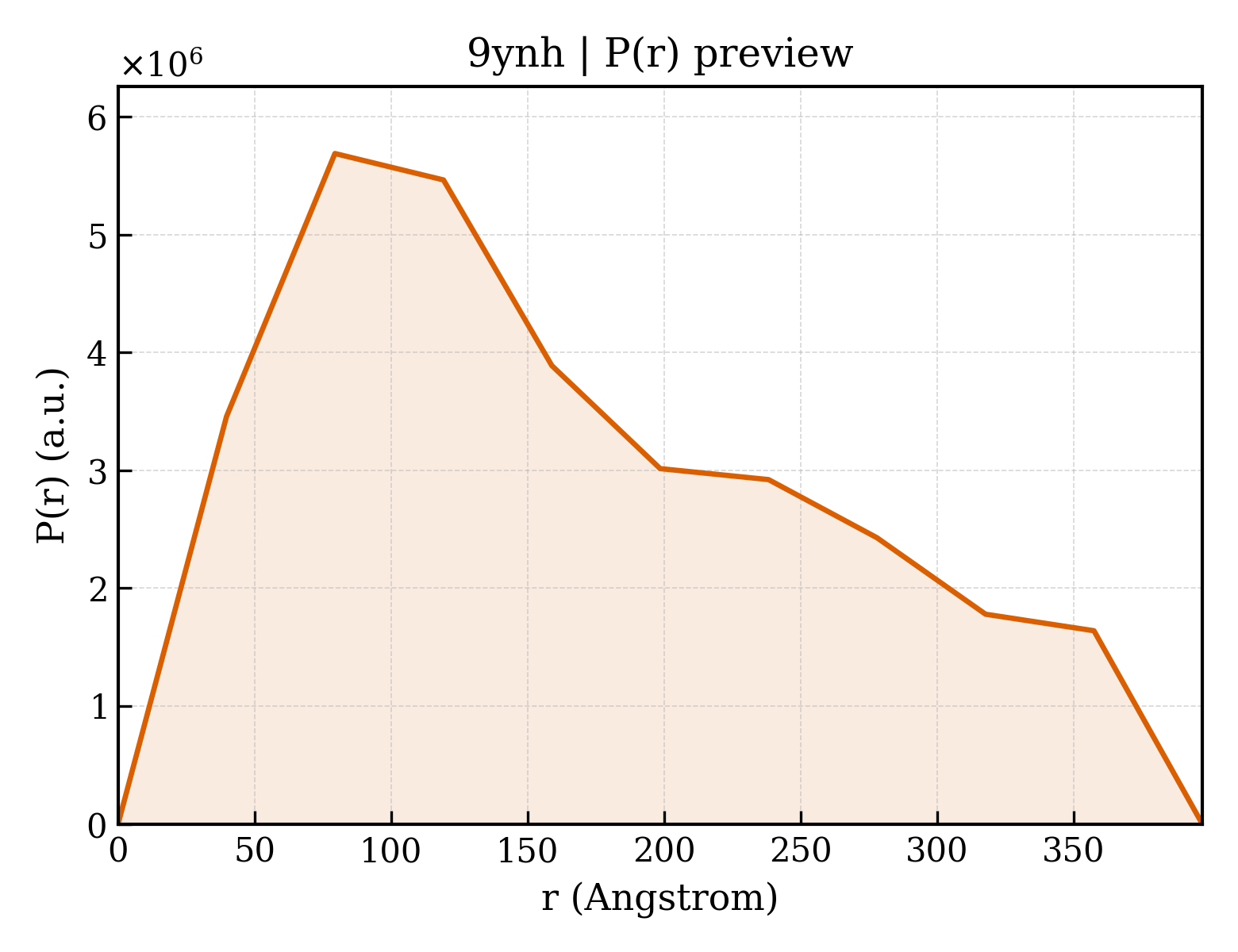

P(r) Distribution

P(r) distribution for 9ynh
▼

1. Structure Basics

entry_id9ynh
deposition_date2025-10-10
titleFull-length human cytoplasmic dynein-1 in phi-like state bound to dynactin-p150glued and LIS1
keywordsDynein-1, phi-like conformation, MOTOR PROTEIN, p150, Lis1; MOTOR PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier— Å
rg_electron147.60 Å
i015732500000.00
molecular_weight875080.0 kDa
excluded_volume1006800 ų
envelope_volume3181400 ų
shell_volume204890 ų
envelope_diameter548.3 Å
shell_rg105.30 Å
envelope_rg140.70 Å
shape_rg147.60 Å
total_rg147.30 Å
total_atoms62503
n_residues12571
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax397.2 Å
rg_real133.50 Å
rg_real_error3.22 Å
i0_real1.5110e+10
i0_real_error3.6060e+08
rg_reciprocal104.80 Å
i0_reciprocal13880000000.0000
total_estimate0.8647
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary79.4 Å
skewness0.513
kurtosis-0.798
angular_range— – 0.0500 Å−1
current_alpha0.2417
highest_alpha537100000.0000
n_real_points11
gnom_version4.1.3
quality_criteria AN1: 0.048; Oscil: 0.753; Stabil: 0.971; Sysdev: 1.000; Positv: 1.000; Valcen: 0.897; Smooth: 0.176
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

▶

6. Citations (1)

▶

7. Files & Curves (10)
