1uor

;X-RAY STUDY OF RECOMBINANT HUMAN SERUM ALBUMIN. PHASES DETERMINED BY MOLECULAR REPLACEMENT METHOD, USING LOW RESOLUTION STRUCTURE MODEL OF TETRAGONAL FORM OF HUMAN SERUM ALBUMIN ;

Method: X-RAY DIFFRACTION D_max: 88.0 Å Quality: EXCELLENT

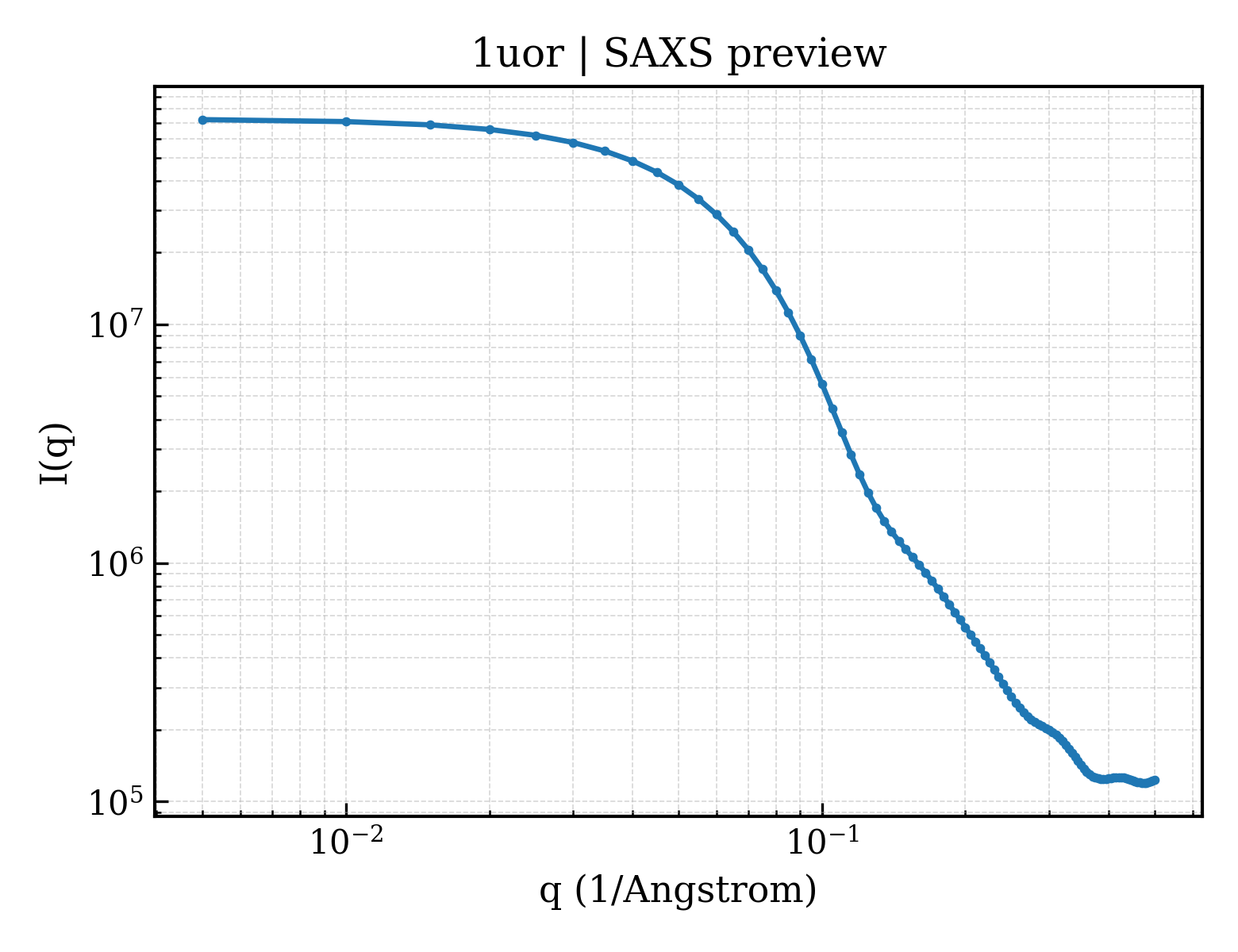

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1uor
沉积日期 deposition_date	1998-03-10
结构标题 title	;X-RAY STUDY OF RECOMBINANT HUMAN SERUM ALBUMIN. PHASES DETERMINED BY MOLECULAR REPLACEMENT METHOD, USING LOW RESOLUTION STRUCTURE MODEL OF TETRAGONAL FORM OF HUMAN SERUM ALBUMIN ;
关键词 keywords	PLASMA PROTEIN, METAL-BINDING PROTEIN, METAL BINDING PROTEIN; METAL BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.53 Å
回转半径 Rg (电子) rg_electron	26.63 Å
零角强度 I(0) i0	72655500.00
分子量 molecular_weight	65948.0 kDa
排除体积 excluded_volume	82338 Å³
包络体积 envelope_volume	105290 Å³
水化壳体积 shell_volume	33039 Å³
包络直径 envelope_diameter	92.2 Å
壳层 Rg shell_rg	33.81 Å
包络 Rg envelope_rg	26.67 Å
形状 Rg shape_rg	26.62 Å
总 Rg total_rg	27.43 Å
总原子数 total_atoms	4616
残基数 n_residues	580
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	88.0 Å
Rg (实空间) rg_real	27.42 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	7.2660e+07
I(0) 误差 (实空间) i0_real_error	1.1330e+06
Rg (倒空间) rg_reciprocal	27.46 Å
I(0) (倒空间) i0_reciprocal	72660000.0000
解质量估计 total_estimate	0.9030
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.4 Å
偏度 Skewness skewness	0.216
峰度 Kurtosis kurtosis	-0.443
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9994000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.986

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1uora1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d1uora2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d1uora3
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

CATH v4.4 (6 domains)

结构域编号 domain_id	1uorA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uorA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uorA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uorA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uorA05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uorA06
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	58.860 Å
晶胞边长 b length_b	88.280 Å
晶胞边长 c length_c	60.680 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.85 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	6.000 Å
R 因子 r_factor	0.2310
R_work r_work	0.2310
R_free r_free	—

描述 description	SERUM ALBUMIN
分子量 formula_weight	66571.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4616

;X-RAY STUDY OF RECOMBINANT HUMAN SERUM ALBUMIN. PHASES DETERMINED BY MOLECULAR REPLACEMENT METHOD, USING LOW RESOLUTION STRUCTURE MODEL OF TETRAGONAL FORM OF HUMAN SERUM ALBUMIN ;

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (1)

Entity 1 polymer

聚合体 Polymer

来源 Source

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

CATH v4.4 (6 domains)

7. 引用文献 (4)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Saccharomyces cerevisiae

fit	/app/data/saxs_computation/uo/1uor/1uor.fit
pddf	/app/data/pr_computation/uo/1uor/1uor.pr.out
profile	/app/data/saxs_computation/uo/1uor/1uor.dat
