9dgt

structure of dynactin, dynein tail with one BICDR from dynein-dynactin-BICDR on microtubules

Method: ELECTRON MICROSCOPY D_max: 294.1 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dgt
沉积日期 deposition_date	2024-09-03
结构标题 title	structure of dynactin, dynein tail with one BICDR from dynein-dynactin-BICDR on microtubules
关键词 keywords	dynein, dynactin, microtubule, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

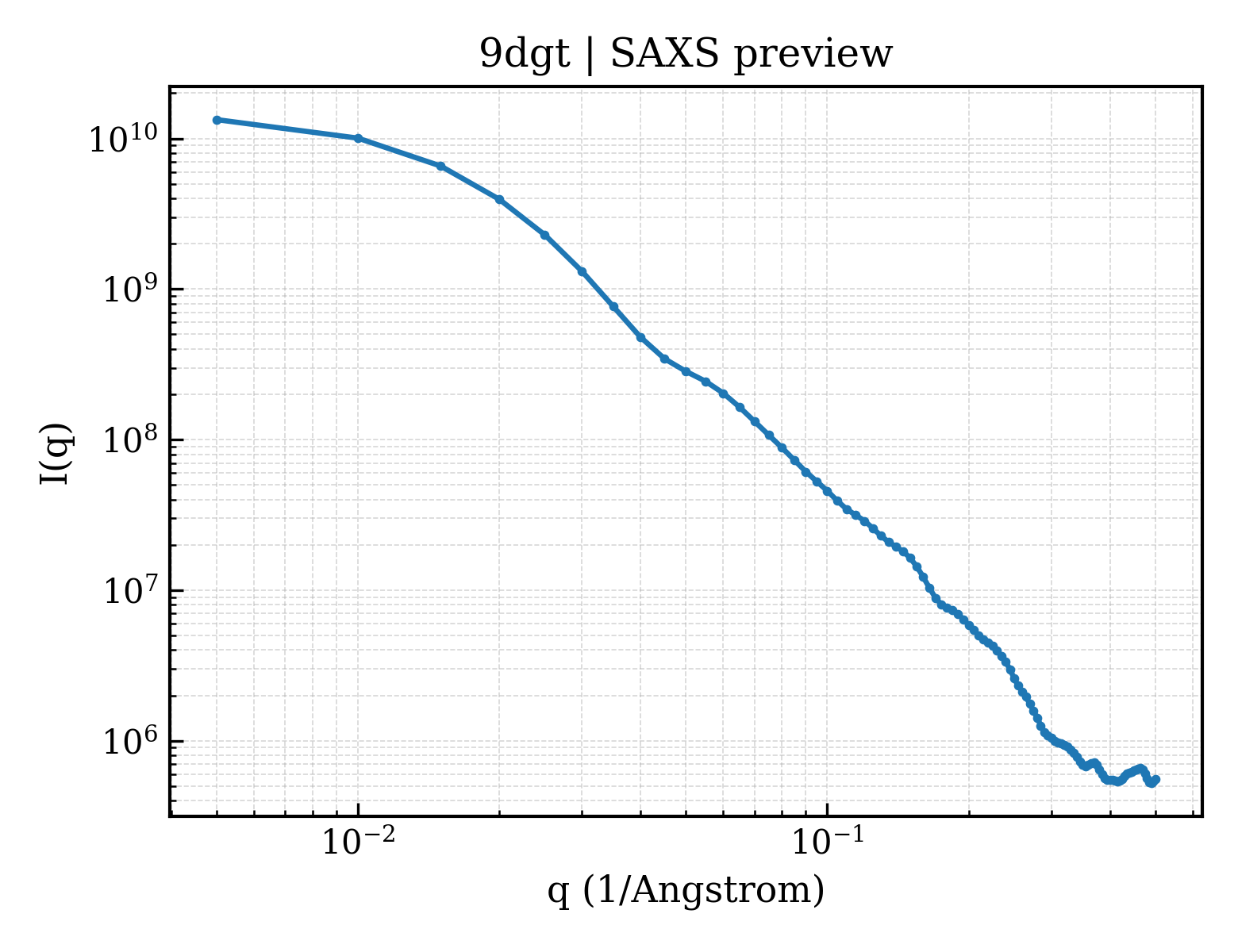

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	110.00 Å
零角强度 I(0) i0	14718600000.00
分子量 molecular_weight	833810.0 kDa
排除体积 excluded_volume	954740 Å³
包络体积 envelope_volume	2579600 Å³
水化壳体积 shell_volume	222680 Å³
包络直径 envelope_diameter	452.1 Å
壳层 Rg shell_rg	85.02 Å
包络 Rg envelope_rg	105.50 Å
形状 Rg shape_rg	110.00 Å
总 Rg total_rg	109.80 Å
总原子数 total_atoms	59534
残基数 n_residues	12051
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

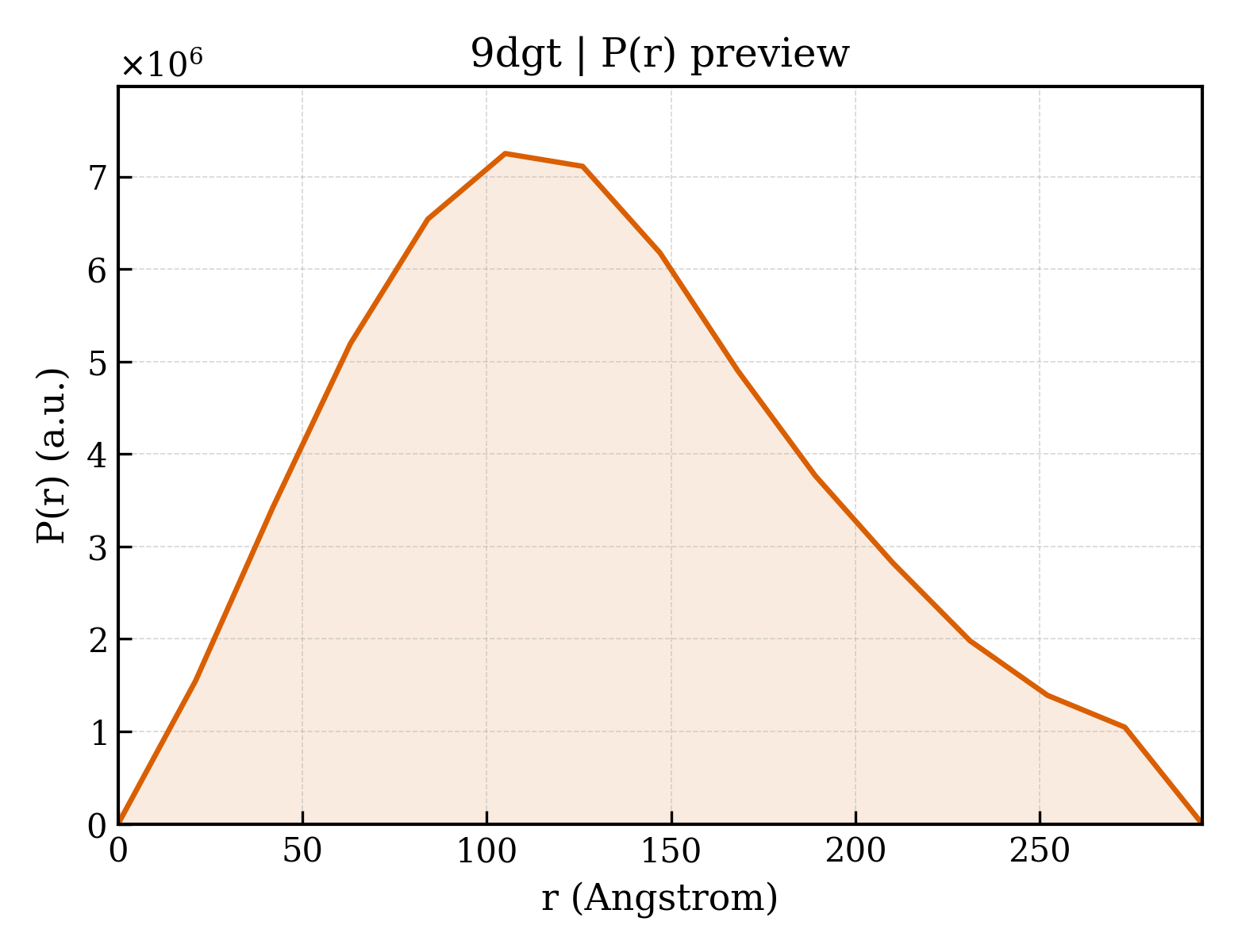

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	294.1 Å
Rg (实空间) rg_real	100.30 Å
Rg 误差 (实空间) rg_real_error	1.31 Å
I(0) (实空间) i0_real	1.4030e+10
I(0) 误差 (实空间) i0_real_error	3.0260e+08
Rg (倒空间) rg_reciprocal	99.43 Å
I(0) (倒空间) i0_reciprocal	14330000000.0000
解质量估计 total_estimate	0.9178
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	105.0 Å
偏度 Skewness skewness	0.376
峰度 Kurtosis kurtosis	-0.463
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.7030
最高正则化参数 α highest_alpha	674100000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.027; Oscil: 0.995; Stabil: 0.982; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.007

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (18)

Entity 1 polymer

描述 description	Alpha-centractin
分子量 formula_weight	42670.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,I
原子数 atom_count	59534

MESYDVIANQPVVIDNGSGVIKAGFAGDQIPKYCFPNYVGRPKHVRVMAGALEGDIFIGPKAEEHRGLLSIRYPMEHGIVKDWNDMERIWQYVYSKDQLQTFSEEHPVLLTEAPLNPRKNRERAAEVFFETFNVPALFISMQAVLSLYATGRTTGVVLDSGDGVTHAVPIYEGFAMPHSIMRIDIAGRDVSRFLRLYLRKEGYDFHSSSEFEIVKAIKERACYLSINPQKDETLETEKAQYYLPDGSTIEIGPSRFRAPELLFRPDLIGEESEGIHEVLVFAIQKSDMDLRRTLFSNIVLSGGSTLFKGFGDRLLSEVKKLAPKDVKIRISAPQERLYSTWIGGSILASLDTFKKMWVSKKEYEEDGARSIHRKTF

Entity 2 polymer

描述 description	Actin, cytoplasmic 1
分子量 formula_weight	41782.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MDDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 3 polymer

描述 description	Actin-related protein 10
分子量 formula_weight	46250.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MPLYEGLGSGGEKTAVVIDLGEAFTKCGFAGETGPRCIIPSVIKKAGMPKPIKVVQYNINTEELYSYLKEFIHILYFRHLLVNPRDRRVVVIESVLCPSHFRETLTRVLFKYFEVPSVLLAPSHLMALLTLGINSAMVLDCGYRESLVLPIYEGIPVLNCWGALPLGGKALHKELETQLLEQCTVDTGAAKEQSLPSVMGSIPEGVLEDIKVRTCFVSDLTRGLKIQAAKFNIDGNTERPSPPPNVDYPLDGEKILHVLGSIRDSVVEILFEQDNEEKSVATLILDSLMQCPIDTRKQLAENLVIIGGTSMLPGFLHRLLAEIRYLVEKPKYKKTLGTKTFRIHTPPAKANCVAWLGGAIFGALQDILGSRSVSKEYYNQTGRIPDWCSLNNPPLEMVFDVGKSQPPLMKRAFSTEK

Entity 4 polymer

描述 description	F-actin-capping protein subunit alpha-1
分子量 formula_weight	33059.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MADFEDRVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYEDQVLITEHGDLGNSRFLDPRNKISFKFDHLRKEASDPQPEEVDGSLKSWRESCDSALRAYVKDHYSNGFCTVYAKNIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVVGVLKIQVHYYEDGNVQLVSHKDVQDSVTVSNEAQTAKEFIKIIEHAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGKEMQNA

Entity 5 polymer

描述 description	F-actin-capping protein subunit beta
分子量 formula_weight	30669.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKSGSGTMNLGGSLTRQMEKDETVSDCSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLRSVQTFADKSKQEALKNDLVEALKRKQQC

Entity 6 polymer

描述 description	Dynactin subunit 2
分子量 formula_weight	44704.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,P,Q

MADPKYADLPGIARNEPDVYETSDLPEDDQAEFDAELEELTSTSVEHIIVNPNAAYDKFKDKRVGTKGLDFSDRIGKTKRTGYESGEYEMLGEGLGVKETPQQKYQRLLHEVQELTTEVEKIKMTVKESATEEKLTPVVLAKQLAALKQQLVASHLEKLLGPDAAINLTDPDGALAKRLLLQLEATKNTKGAGSGGKTTSGSPPDSSLVTYELHSRPEQDKFSQAAKVAELEKRLTELEATVRCDQDAQNPLSAGLQGACLMETVELLQAKVSALDLAVLDQVEARLQSVLGKVNEIAKHKASVEDADTQSKVHQLYETIQRWSPIASTLPELVQRLVTIKQLHEQAMQFGQLLTHLDTTQQMIACSLKDNATLLTQVQTTMRENLSTVEGNFANIDERMKKLGK

Entity 7 polymer

描述 description	Dynactin subunit 3
分子量 formula_weight	21192.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,R

MAGVTDVQRLQARLEELERWVYGPGGSRGSRKVADGLVKVQVALGNIASKRERVKILYKKIEDLIKYLDPEYMDRIAIPDASKLQFILAEEQFILSQVALLEQVEALVPMLDSAHIKAVPEHAARLQRLAQIHIQQQDQCVEITEESKALLEEYNKTTMLLSKQFVQWDELLCQLEAAKQVKPAEE

Entity 8 polymer

描述 description	Dynactin subunit 6
分子量 formula_weight	20703.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MAEKTQKSVKIAPGAVVCVESEIRGDVTIGPRTVIHPKARIIAEAGPIVIGEGNLIEEQALIINAHPDNITPDAEDSEPKPMIIGTNNVFEVGCYSQAMKMGDNNVIESKAYVGRNVILTSGCIIGACCNLNTFEVIPENTVIYGADCLRRVQTERPQPQTLQLDFLMKILPNYHHLKKTMKGSSTPVKN

Entity 9 polymer

描述 description	Dynactin subunit 5
分子量 formula_weight	20150.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MELGELLYNKSEYIETASGNKVSRQSVLCGSQNIVLNGKTIVMNDCIIRGDLANVRVGRHCVVKSRSVIRPPFKKFSKGVAFFPLHIGDHVFIEEDCVVNAAQIGSYVHVGKNCVIGRRCVLKDCCKILDNTVLPPETVVPPFTVFSGCPGLFSGELPECTQELMIDVTKSYYQKFLPLTQV

Entity 10 polymer

描述 description	Dynactin subunit 1
分子量 formula_weight	142015.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W,Z

MAQSKRHVYSRTPSGSRMSAEASARPLRVGSRVEVIGKGHRGTVAYVGATLFATGKWVGVILDEAKGKNDGTVQGRKYFTCDEGHGIFVRQSQIQVFEDGADTTSPETPDSSASKVLRREGTDSNAKTSKLRGPKPKKAPTARKTTTRRPKPTRPASTGVAGASSSLGPSGSASAGELSSSEPSTPAQTPLAAPIIPTPALTSPGAAPPLPSPSKEEEGLRAQVRDLEEKLETLRLKRAEDKAKLKELEKHKIQLEQVQEWKSKMQEQQADLQRRLKEARKEAKEALEAKERYMEEMADTADAIEMATLDKEMAEERAESLQQEVEALKERVDELTTDLEILKAEIEEKGSDGAASSYQLKQLEEQNARLKDALVRMRDLSSSEKQEHVKLQKLMEKKNQELEVVRQQRERLQEELSQAESTIDELKEQVDAALGAEEMVEMLTDRNLNLEEKVRELRETVGDLEAMNEMNDELQENARETELELREQLDMAGARVREAQKRVEAAQETVADYQQTIKKYRQLTAHLQDVNRELTNQQEASVERQQQPPPETFDFKIKFAETKAHAKAIEMELRQMEVAQANRHMSLLTAFMPDSFLRPGGDHDCVLVLLLMPRLICKAELIRKQAQEKFDLSENCSERPGLRGAAGEQLSFAAGLVYSLSLLQATLHRYEHALSQCSVDVYKKVGSLYPEMSAHERSLDFLIELLHKDQLDETVNVEPLTKAIKYYQHLYSIHLAEQPEDSTMQLADHIKFTQSALDCMSVEVGRLRAFLQGGQEASDIALLLRDLETSCSDIRQFCKKIRRRMPGTDAPGIPAALAFGAQVSDTLLDCRKHLTWVVAVLQEVAAAAAQLIAPLAENEGLPVAALEELAFKASEQIYGTPSSSPYECLRQSCNILISTMNKLATAMQEGEYDAERPPSKPPPVELRAAALRAEITDAEGLGLKLEDRETVIKELKKSLKIKGEELSEANVRLSLLEKKLDSAAKDADERIEKVQTRLEETQALLRKKEKEFEETMDALQADIDQLEAEKAELKQRLNSQSKRTIEGIRGPPPSGIATLVSGIAGEEQQRGGAPGQAPGIVPGPGLVKDSPLLLQQISAMRLHISQLQHENSVLKGAQMKASLAALPPLHVAKLSLPPHEGPGSELAAGALYRKTNQLLETLNQLSTHTHVVDITRSSPAAKSPSAQLLEQVTQLKSLSDTIEKLKDEVLKETVSQRPGATVPTDFATFPSSAFLRAKEEQQDDTVYMGKVTFSCAAGLGQRHRLVLTQEQLHQLHDRLIS

Entity 11 polymer

描述 description	Dynactin subunit 4
分子量 formula_weight	52920.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MASLLQSERVLYLVQGEKKVRAPLSQLYFCRYCSELRSLECVSHEVDSHYCPSCLENMPSAEAKLKKNRCANCFDCPGCMHTLSTRATSISTQLPDDPAKTAVKKAYYLACGFCRWTSRDVGMADKSVASGGWQEPDHPHTQRMNKLIEYYQQLAQKEKVERDRKKLARRRNYMPLAFSQHTIHVVDKYGLGTRLQRPRAGTTITALAGLSLKEGEDQKEIKIEPAQAVDEVEPLPEDYYTRPVNLTEVTTLQQRLLQPDFQPICASQLYPRHKHLLIKRSLRCRQCEHNLSKPEFNPTSIKFKIQLVAVNYIPEVRIMSIPNLRYMKESQVLLTLTNPVENLTHVTLLECEEGDPDDTNSTAKVSVPPTELVLAGKDAAAEYDELAEPQDFPDDPDVVAFRKANKVGVFIKVTPQREEGDVTVCFKLKHDFKNLAAPIRPVEEADPGAEVSWLTQHVELSLGPLLP

Entity 12 polymer

描述 description	BICD family-like cargo adapter 1
分子量 formula_weight	65377.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,d

MSAFCLGLAGRASAPAEPDSACCMELPAGAGDAVRSPATAAALVSFPGGPGELELALEEELALLAAGERSSEPGEHPQAEPESPVEGHGPPLPPPPTQDPELLSVIRQKEKDLVLAARLGKALLERNQDMSRQYEQMHKELTDKLEHLEQEKHELRRRFENREGEWEGRVSELETDVKQLQDELERQQLHLREADREKTRAVQELSEQNQRLLDQLSRASEVERQLSMQVHALKEDFREKNSSTNQHIIRLESLQAEIKMLSDRKRELEHRLSATLEENDLLQGTVEELQDRVLILERQGHDKDLQLHQSQLELQEVRLSYRQLQGKVEELTEERSLQSSAATSTSLLSEIEQSMEAEELEQEREQLRLQLWEAYCQVRYLCSHLRGNDSADSAVSTDSSMDESSETSSAKDVPAGSLRTALNDLKRLIQSIVDGVEPTVTLLSVEMTALKEERDRLRVTSEDKEPKEQLQKAIRDRDEAIAKKNAVELELAKCKMDMMSLNSQLLDAIQQKLNLSQQLEAWQDDMHRVIDRQLMDTHLKEQSRPAAAAFPRGHGVGRGQEPSTADGKRLFSFFRKI

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Spodoptera frugiperda

Entity 13 polymer

描述 description	Cytoplasmic dynein 1 heavy chain 1
分子量 formula_weight	532739.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e,f,m,n

MSEPGGGGGEDGSAGLEVSAVQNVADVSVLQKHLRKLVPLLLEDGGEAPAALEAALEEKSALEQMRKFLSDPQVHTVLVERSTLKEDVGDEGEEEKEFISYNINIDIHYGVKSNSLAFIKRAPVIDADKPVSSQLRVLTLSEDSPYETLHSFISNAVAPFFKSYIRESGKADRDGDKMAPSVEKKIAELEMGLLHLQQNIEIPEISLPIHPIITNVAKQCYERGEKPKVTDFGDKVEDPTFLNQLQSGVNRWIREIQKVTKLDRDPASGTALQEISFWLNLERALYRIQEKRESPEVLLTLDILKHGKRFHATVSFDTDTGLKQALETVNDYNPLMKDFPLNDLLSATELDKIRQALVAIFTHLRKIRNTKYPIQRALRLVEAISRDLSSQLLKVLGTRKLMHVAYEEFEKVMVACFEVFQTWDDEYEKLQVLLRDIVKRKREENLKMVWRINPAHRKLQARLDQMRKFRRQHEQLRAVIVRVLRPQVTAVAQQNQGEAPEPQDMKVAEVLFDAADANAIEEVNLAYENVKEVDGLDVSKEGTEAWEAAMKRYDERIDRVETRITARLRDQLGTAKNANEMFRIFSRFNALFVRPHIRGAIREYQTQLIQRVKDDIESLHDKFKVQYPQSQACKMSHVRDLPPVSGSIIWAKQIDRQLTAYMKRVEDVLGKGWENHVEGQKLKQDGDSFRMKLNTQEIFDDWARKVQQRNLGVSGRIFAIESTRVRGRSGNVLKLKVNFLPEIITLSKEVRNLKWLGFRVPLAIVNKAHQANQLYPFAISLIESVRTYERTCEKVEERNTISLLVAGLKKEVQALIAEGIALVWESYKLDPYVQRLAETVFNFQEKVDDLLIIEEKIDLEVRSLETCVYDHKTFSEILNRVQKAVDDLNLHSYSNLPIWVNKLDMEIERILGVRLQAGLRAWTQVLLGQAEDKAEVDMDTDAPQVSHKPGGEPKIKNVVHELRITNQVIYLNPPIEECRYKLYQEMFAWKMVVLSLPRIQSQRYQVGVHYELTEEEKFYRNALTRMPDGPVALEESYSAVMGIVTEVEQYVKVWLQYQCLWDMQAENIYNRLGEDLNKWQALLVQIRKARGTFDNAETKKEFGPVVIDYGKVQSKVNLKYDSWHKEVLSKFGQMLGSNMTEFHSQISKSRQELEQHSVDTASTSDAVTFITYVQSLKRKIKQFEKQVELYRNGQRLLEKQRFQFPPSWLYIDNIEGEWGAFNDIMRRKDSAIQQQVANLQMKIVQEDRAVESRTTDLLADWEKTKPVTGNLRPEEALQALTIYEGKFGRLKDDREKCAKAKEALELTETGLLSGSEERVQVALEELQDLKGVWSELSKIWEQIDQMKEQPWVSVQPRKLRQNLDGLLNQLKNFPARLRQYASYEFVQRLLKGYLKINMLVIELKSEALKDRHWKQLMKRLHVNWVVSELTLGQIWDVDLQKNEAVVKDVLLVAQGEMALEEFLKQIREVWNTYELDLVNYQNKCRLIRGWDDLFNKVKEHINSVSAMKLSPYYKVFEEDALSWEDKLNRIMALFDVWIDVQRRWVYLEGIFTGSADIKHLLPVETQRFQSISTEFLALMKKVSKSPLVMDVLNIQGVQRSLERLADLLGKIQKALGEYLERERSSFPRFYFVGDEDLLEIIGNSKNVAKLQKHFKKMFAGVSSIILSEDNSVVLGISSREGEEVTFKTPVSITEHPKINEWLTLVEKEMRVTLAKLLAESVTEVEIFGKATSIDPNTYITWIDKYQAQLVVLSAQIAWSENVEAALSSIGGSGDSAPLQSVLSNVEVTLNVLADSVLMEQPPLRRRKLEHLITELVHQRDVTRSLIKSKIDNAKSFEWLSQMRFYFDPKQTDVLQQLSIQMANAKFNYGFEYLGVQDKLVQTPLTDRCYLTMTQALEARLGGSPFGPAGTGKTESVKALGHQLGRFVLVFNCDETFDFQAMGRIFVGLCQVGAWGCFDEFNRLEERMLSAVSQQVQCIQEALREHSSPNHDKASAPITCELLNKQVKVSPDMAIFITMNPGYAGRSNLPDNLKKLFRSLAMTKPDRQLIAQVMLYSQGFRTAEVLANKIVPFFKLCDEQLSSQSHYDFGLRALKSVLVSAGNVKRERIQKIKREKEERGEAVDEGEIAENLPEQEILIQSVCETMVPKLVAEDIPLLFSLLSDVFPGVQYHRGEMTALREELKKVCQEMYLTYGDGEEVGGMWVEKVLQLYQITQINHGLMMVGPSGSGKSMAWRVLLKALERLEGVEGVAHIIDPKAISKDHLYGTLDPNTREWTDGLFTHVLRKIIDNVRGELQKRQWIVFDGDVDPEWVENLNSVLDDNKLLTLPNGERLSLPPNVRIMFEVQDLKYATLATVSRCGMVWFSEDVLSTDMIFNNFLARLRSIPLDEGEDEAQRRRKGKEDEGEEAASPMLQIQRDAATTLQPYFTPNGLVTKALEHAFKLEHIMDLTRLRCLGSLFSMLHQACRNVAQYNANHPDFPMQMEQLERYIQRYLVYAILWSLSGDSRLKMRAELGEYIRRITTVPLPAAPNIPIIDYEVSISGEWSPWQAKVPQIEVETHKVAAPDVVVPTLDTVRHEALLYTWLAEHKPLVLCGPPGSGKTMTLFSALRALPDMEVVGLNFSSATTPELLLKTFDHYCEYRRTPNGVVLAPVQLGKWLVLFCDEINLPDMDKYGTQRVISFIRQMVEHGGFYRTSDQTWVKLERIQFVGACNPPTDPGRKPLSHRFLRHVPVVYVDYPGPASLTQIYGTFNRAMLRLVPSLRTYAEPLTAAMVEFYTMSQERFTQDTQPHYIYSPREMTRWVRGIFEALRPLETLPVEGLIRIWAHEALRLFQDRLVEDEERRWTDENIDLVALKHFPNIDKEKAMSRPILYSNWLSKDYIPVDQEELRDYVKARLKVFYEEELDVPLVLFNEVLDHVLRIDRIFRQPQGHLLLIGVSGAGKTTLSRFVAWMNGLSVYQIKVHRKYTGEDFDEDLRTVLRRSGCKNEKIAFIMDESNVLDSGFLERMNTLLANGEVPGLFEGDEYATLMTQCKEGAQKEGLMLDSHEELYKWFTSQVIRNLHVVFTMNPSSEGLKDRAATSPALFNRCVLNWFGDWSTEALYQVGKEFTSKMDLEKPNYVVPDYMPVVYDKLPQPPSHREAIVNSCVFVHQTLHQANARLAKRGGRTMAITPRHYLDFINHYANLFHEKRSELEEQQMHLNVGLRKIKETVDQVEELRRDLRIKSQELEVKNAAANDKLKKMVKDQQEAEKKKVMSQEIQEQLHKQQEVIADKQMSVKEDLDKVEPAVIEAQNAVKSIKKQHLVEVRSMANPPAAVKLALESICLLLGESTTDWKQIRSIIMRENFIPTIVNFSAEEISDAIREKMKKNYMSNPSYNYEIVNRASLACGPMVKWAIAQLNYADMLKRVEPLRNELQKLEDDAKDNQQKANEVEQMIRDLEASIARYKEEYAVLISEAQAIKADLAAVEAKVNRSTALLKSLSAERERWEKTSETFKNQMSTIAGDCLLSAAFIAYAGYFDQQMRQNLFTTWSHHLQQANIQFRTDIARTEYLSNADERLRWQASSLPADDLCTENAIMLKRFNRYPLIIDPSGQATEFIMNEYKDRKITRTSFLDDAFRKNLESALRFGNPLLVQDVESYDPVLNPVLNREVRRTGGRVLITLGDQDIDLSPSFVIFLSTRDPTVEFPPDLCSRVTFVNFTVTRSSLQSQCLNEVLKAERPDVDEKRSDLLKLQGEFQLRLRQLEKSLLQALNEVKGRILDDDTIITTLENLKREAAEVTRKVEETDIVMQEVETVSQQYLPLSTACSSIYFTMESLKQIHFLYQYSLQFFLDIYHNVLYENPNLKGVTDHTQRLCIITKDLFQVAFNRVARGMLHQDHITFAMLLARIKLKGTVGEPTYEAEFQHFLRGKEIVLSAGSTPKIPGLTVEQAEAVVRLSCLPAFKDLIAKVQADEQFSIWLDSSSPEQTVPHLWSEENPATPIGQAIHRLLLIQAFRPDRLLAMAHVFVSTNLGESFMSIMEQPLDLTHIVDTEVKPNTPVLMCSVPGYDASGHVEDLAAEQNTQITSIAIGSAEGFNQADKAINTAVKSGRWVMLKNVHLAPGWLMQLEKKLHSLQPHACFRLFLTMEINPKVPVNLLRAGRIFVFEPPPGVKANMLRTFSSVPVSRICKSPNERARLYFLLAWFHAIIQERLRYAPLGWSKKYEFGESDLRSACDTVDTWLDDTAKGRQNISPDKIPWSALKTLMAQSIYGGRVDNEFDQRLLNTFLERLFTTRSFDSEFKLACKVDGHKDIQMPDGIRREEFVQWVELLPDTQTPSWLGLPNNAERVLLTTQGVDMISKMLKMQMLEDEDDLAYAETEKKTRTDSTADGRPAWMRTLHTTASNWLHLIPQTLSHLKRTVDNIKDPLFRFFEREVKMGARLLQDVRQDLADVVQVCEGKKKQTNYLRTLINELVKGILPRSWSHYTVPAGMTVIQWVSDFSERIKQLQSVSQAAASGGAKELKNIHVCLGGLFVPEAYITATRQYVAQANSWSLEELCLEVIVTTSQSATLDACSFGVTGLKLQGATCSNNKLSLSNAISTVLPLTQLRWVKQTNAEKKANVVTLPVYLNFTRADLIFTVDFEIATKEDPRSFYERGVAVLCTE

Entity 14 polymer

描述 description	Cytoplasmic dynein 1 intermediate chain 2
分子量 formula_weight	68567.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,h,o,p

MSDKSELKAELERKKQRLAQIREEKKRKEEERKKKETDQKKEAVTSVQEESDLEKKRREAEALLQSMGLTPESPIVPPPMSPSSKSVSTPSEAGSQDSGDGAVGSRRGPIKLGMAKITQVDFPPREIVTYTKETQTPVMAQPKEDEEEEDDVVTPKPPIEPEEEKTLKKDEESDSKAPPHELTEEEKQQILHSEEFLSFFDHSTRIVERALSEQINIFFDYSGRDLEDKEGEIQAGAKLSLNRQFFDERWSKHRVVSCLDWSSQYPELLVASYNNNEDAPHEPDGVALVWNMKYKKTTPEYVFHCQSAVMSATFAKFHPNLVVGGTYSGQIVLWDNRSNKRTPVQRTPLSAAAHTHPVYCVNVVGTQNAHNLISISTDGKICSWSLDMLSHPQDSMELVHKQSKAVAVTSMSFPVGDVNNFVVGSEEGSVYTACRHGSKAGISEMFEGHQGPITGIHCHAAVGAVDFSHLFVTSSFDWTVKLWTTKNNKPLYSFEDNSDYVYDVMWSPTHPALFACVDGMGRLDLWNLNNDTEVPTASISVEGNPALNRVRWTHSGREIAVGDSEGQIVIYDVGEQIAVPRNDEWARFGRTLAEINANRADAEEEAATRIPA

Entity 15 polymer

描述 description	Dynein light intermediate chain
分子量 formula_weight	54227.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j,q

MAPVGVEKKLLLGPNGPAVAAAGDLTSEEEEGQSLWSSILSEVSTRARSKLPSGKNILVFGEDGSGKTTLMTKLQGAEHGKKGRGLEYLYLSIHDEDRDDHTRCNVWILDGDLYHKGLLKFAVSAESLPETLVIFVADMSRPWTVMESLQKWASVLREHIDKMKIPPEEMRELERKFMKDFQDYIEPEEGSQGSPQRRGPLTSGPDEENVALPLGDNVLTHNLGVPVLVVCTKCDAVSVLEKEHDYRDEHFDFIQSHLRRFCLQYGAALIYTSVKEEKNLDLLYKYIVHKTYGFHFTTPALVVEKEAVFIPAGWDNEKKIAILHENFTTVKPEDAYEDFIVKPPVRKLVHDKELAAEDEQVFLMKQQSLLAKQPATPTRASESPARGPSGSPRTQGRGGPASVPSASPGTSVKKPDPNIKNNAASEGVLASFFNSLLSKKTGSPGSPGAGGVQSTAKKSGQKTVLTNVQEELDRMTRKPDSMVTNSSTENEA

Entity 16 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	9

Entity 17 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 18 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (2)

▶

分辨率 resolution	7.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	10750

fit	/app/data/saxs_computation/dg/9dgt/9dgt.fit
pddf	/app/data/pr_computation/dg/9dgt/9dgt.pr.out
profile	/app/data/saxs_computation/dg/9dgt/9dgt.dat
