5afu

Cryo-EM structure of dynein tail-dynactin-BICD2N complex

Method: ELECTRON MICROSCOPY D_max: 266.9 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DYNACTIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 33 PDB declaration: 33-meric（33） Consistent with protein copy count	Chain A； UniProt 7–376 Chain B； UniProt 7–376 Chain C； UniProt 7–376 Chain D； UniProt 7–376 Chain E； UniProt 7–376 Chain F； UniProt 7–376 Chain G； UniProt 7–376 Chain I； UniProt 7–376	Not recorded	DYNEIN TAIL × 1 DYNEIN TAIL × 1 DYNEIN TAIL × 2 DYNEIN TAIL × 2 ACTIN, CYTOPLASMIC 1 × 1 （Q6QAQ1） DYNACTIN × 1 （I3LHK5） CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1 × 1 （A0PFK5） F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II × 1 （D2JYW4） DYNACTIN × 1 DYNACTIN 6 × 1 DYNACTIN × 2 DYNACTIN × 2 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT；pH 7.4；150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 8.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5AFU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ADX CryoEM structure of dynactin complex at 4.0 angstrom resolution Deposited 2015-08-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain A 7–376（370 aa） Chain B 7–376（370 aa） Chain C 7–376（370 aa） Chain D 7–376（370 aa） Chain E 7–376（370 aa） Chain F 7–376（370 aa） Chain G 7–376（370 aa） Chain I 7–376（370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT；pH 6.5；50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ENTHANE	Resolution 4.00 Å
5NW4 Human cytoplasmic dynein-1 bound to dynactin and an N-terminal construct of BICD2 Deposited 2017-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain G 1–376（376 aa） Chain H 1–376（376 aa） Chain O 1–376（376 aa） Chain P 1–376（376 aa） Chain Q 1–376（376 aa） Chain T 1–376（376 aa） Chain U 1–376（376 aa） Chain W 1–376（376 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
6F1T Cryo-EM structure of two dynein tail domains bound to dynactin and BICDR1 Deposited 2017-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6F1U N terminal region of dynein tail domains in complex with dynactin filament and BICDR-1 Deposited 2017-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain B 1–376（376 aa） Chain D 1–376（376 aa） Chain F 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6F38 Cryo-EM structure of two dynein tail domains bound to dynactin and HOOK3 Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
6F3A Cryo-EM structure of a single dynein tail domain bound to dynactin and BICD2N Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
6ZNL Cryo-EM structure of the dynactin complex Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6ZNM The pointed end complex of dynactin bound to BICDR1 Deposited 2020-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6ZNN The pointed end complex of dynactin bound to Hook3 Deposited 2020-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
6ZNO The pointed end complex of dynactin with the p150 projection docked Deposited 2020-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.80 Å
6ZO4 The pointed end complex of dynactin bound to BICD2 Deposited 2020-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
7Z8F Composite structure of dynein-dynactin-BICDR on microtubules Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 43 PDB declaration: 43-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 13 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 20.00 Å
7Z8I The barbed end complex of dynactin bound to BICDR1 and the cytoplasmic dynein tails (A2, B1, B2) Deposited 2022-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 3.30 Å
7Z8K Cytoplasmic dynein (A1) bound to BICDR1 Deposited 2022-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain F 1–376（376 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 4.37 Å
7Z8M The pointed end complex of dynactin bound to BICDR1 Deposited 2022-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 3.37 Å
8PTK Composite structure of Dynein-Dynactin-JIP3-LIS1 Deposited 2023-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 53 PDB declaration: 53-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 16 ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ZN ZINC ION × 3 MG MAGNESIUM ION × 6 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.00 Å
9HHL Structure of Dynein-Dynactin-NuMA-LIS1 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 41 PDB declaration: 41-meric	Chain A 1–376（376 aa） Chain B 1–376（376 aa） Chain C 1–376（376 aa） Chain D 1–376（376 aa） Chain E 1–376（376 aa） Chain F 1–376（376 aa） Chain G 1–376（376 aa） Chain I 1–376（376 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.53 Å

17 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	F2Z5G5_PIG
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 1–370； UniProt 7–376 Author chain B； PDBConstruct 1–370； UniProt 7–376 Author chain C； PDBConstruct 1–370； UniProt 7–376 Author chain D； PDBConstruct 1–370； UniProt 7–376 Author chain E； PDBConstruct 1–370； UniProt 7–376 Author chain F； PDBConstruct 1–370； UniProt 7–376 Author chain G； PDBConstruct 1–370； UniProt 7–376 Author chain I； PDBConstruct 1–370； UniProt 7–376

ACTIN, CYTOPLASMIC 1

OrganismNot specified

UniProt Q6QAQ1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 33 PDB declaration: 33-meric（33） Consistent with protein copy count	Chain H； UniProt 6–375	Not recorded	DYNEIN TAIL × 1 DYNEIN TAIL × 1 DYNEIN TAIL × 2 DYNEIN TAIL × 2 DYNACTIN × 8 （F2Z5G5） DYNACTIN × 1 （I3LHK5） CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1 × 1 （A0PFK5） F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II × 1 （D2JYW4） DYNACTIN × 1 DYNACTIN 6 × 1 DYNACTIN × 2 DYNACTIN × 2 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT；pH 7.4；150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 8.20 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5AFU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ADX CryoEM structure of dynactin complex at 4.0 angstrom resolution Deposited 2015-08-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain H 6–375（370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT；pH 6.5；50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ENTHANE	Resolution 4.00 Å
6F1T Cryo-EM structure of two dynein tail domains bound to dynactin and BICDR1 Deposited 2017-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6F38 Cryo-EM structure of two dynein tail domains bound to dynactin and HOOK3 Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
6F3A Cryo-EM structure of a single dynein tail domain bound to dynactin and BICD2N Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
6ZNL Cryo-EM structure of the dynactin complex Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6ZNM The pointed end complex of dynactin bound to BICDR1 Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6ZNN The pointed end complex of dynactin bound to Hook3 Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
6ZNO The pointed end complex of dynactin with the p150 projection docked Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.80 Å
6ZO4 The pointed end complex of dynactin bound to BICD2 Deposited 2020-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
7Z8F Composite structure of dynein-dynactin-BICDR on microtubules Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 43 PDB declaration: 43-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 13 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 20.00 Å
7Z8M The pointed end complex of dynactin bound to BICDR1 Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain H 1–375（375 aa）	Not recorded	ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 3.37 Å
8IAH Structure of mammalian spectrin-actin junctional complex of membrane skeleton, State I, Global map Deposited 2023-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain A 1–375（375 aa） Chain B 1–375（375 aa） Chain C 1–375（375 aa） Chain D 1–375（375 aa） Chain E 1–375（375 aa） Chain F 1–375（375 aa） Chain G 1–375（375 aa） Chain H 1–375（375 aa） Chain I 1–375（375 aa） Chain J 1–375（375 aa） Chain K 1–375（375 aa） Chain L 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8IAI Structure of mammalian spectrin-actin junctional complex of membrane skeleton, State II, Global map Deposited 2023-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain A 1–375（375 aa） Chain B 1–375（375 aa） Chain C 1–375（375 aa） Chain D 1–375（375 aa） Chain E 1–375（375 aa） Chain F 1–375（375 aa） Chain G 1–375（375 aa） Chain H 1–375（375 aa） Chain I 1–375（375 aa） Chain J 1–375（375 aa） Chain K 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8IB2 Structure of mammalian spectrin-actin junctional complex of membrane skeleton, Pointed-end segment, headpiece domain of dematin optimized Deposited 2023-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–375（375 aa） Chain C 1–375（375 aa） Chain D 1–375（375 aa） Chain E 1–375（375 aa） Chain F 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8P94 Cryo-EM structure of cortactin stabilized Arp2/3-complex nucleated actin branches Deposited 2023-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain H 1–375（375 aa） Chain J 1–375（375 aa） Chain K 1–375（375 aa） Chain N 1–375（375 aa） Chain O 1–375（375 aa） Chain P 1–375（375 aa） Chain Q 1–375（375 aa） Chain R 1–375（375 aa） Chain S 1–375（375 aa） Chain W 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50mM KCl, 1mM EGTA, 1mM MgCl2, 0.2 mM ATP and 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE；Back blotting	Resolution 3.30 Å
8PTK Composite structure of Dynein-Dynactin-JIP3-LIS1 Deposited 2023-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 53 PDB declaration: 53-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 16 ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ZN ZINC ION × 3 MG MAGNESIUM ION × 6 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.00 Å
9DGR Composite structure of dynein-dynactin on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain H 1–375（375 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 15.00 Å
9DGS Dynactin and dynein tail region of dynein-dynactin complex on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9DGT structure of dynactin, dynein tail with one BICDR from dynein-dynactin-BICDR on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
9DGU structure of dynactin, dynein tail with two BICDR from dynein-dynactin-BICDR on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.10 Å
9DGV structure of dynactin, dynein tail with TRAK2 from dynein-dynactin-TRAK2 on microtubules Deposited 2024-09-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.80 Å
9HHL Structure of Dynein-Dynactin-NuMA-LIS1 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 41 PDB declaration: 41-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.53 Å
9I2B SPIN90-Arp2/3 nucleated bidirectional actin filaments Deposited 2025-01-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain I 1–375（375 aa） Chain J 1–375（375 aa） Chain S 1–375（375 aa） Chain T 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 MG MAGNESIUM ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9YNG Dynactin and dynein-1 tail region of dynein-dynactin complex on microtubule in the presence of LIS1 Deposited 2025-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å

24 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACTB_PIG
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain H； PDBConstruct 1–370； UniProt 6–375

DYNACTIN

OrganismNot specified

UniProt I3LHK5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 33 PDB declaration: 33-meric（33） Consistent with protein copy count	Chain J； UniProt 12–390	Not recorded	DYNEIN TAIL × 1 DYNEIN TAIL × 1 DYNEIN TAIL × 2 DYNEIN TAIL × 2 DYNACTIN × 8 （F2Z5G5） ACTIN, CYTOPLASMIC 1 × 1 （Q6QAQ1） CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1 × 1 （A0PFK5） F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II × 1 （D2JYW4） DYNACTIN × 1 DYNACTIN 6 × 1 DYNACTIN × 2 DYNACTIN × 2 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT；pH 7.4；150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 8.20 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5AFU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ADX CryoEM structure of dynactin complex at 4.0 angstrom resolution Deposited 2015-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain J 1–417（417 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT；pH 6.5；50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ENTHANE	Resolution 4.00 Å
5NW4 Human cytoplasmic dynein-1 bound to dynactin and an N-terminal construct of BICD2 Deposited 2017-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain X 1–417（417 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
6F1T Cryo-EM structure of two dynein tail domains bound to dynactin and BICDR1 Deposited 2017-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain J 1–390（390 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6F38 Cryo-EM structure of two dynein tail domains bound to dynactin and HOOK3 Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain J 1–390（390 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
6F3A Cryo-EM structure of a single dynein tail domain bound to dynactin and BICD2N Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain J 1–390（390 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
6ZNL Cryo-EM structure of the dynactin complex Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6ZNM The pointed end complex of dynactin bound to BICDR1 Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6ZNN The pointed end complex of dynactin bound to Hook3 Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
6ZNO The pointed end complex of dynactin with the p150 projection docked Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.80 Å
6ZO4 The pointed end complex of dynactin bound to BICD2 Deposited 2020-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
7Z8F Composite structure of dynein-dynactin-BICDR on microtubules Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 43 PDB declaration: 43-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 13 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 20.00 Å
7Z8M The pointed end complex of dynactin bound to BICDR1 Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain J 1–417（417 aa）	Not recorded	ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 3.37 Å
8PR4 Dynactin pointed end bound to JIP3 Deposited 2023-07-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain J 1–417（417 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8PTK Composite structure of Dynein-Dynactin-JIP3-LIS1 Deposited 2023-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 53 PDB declaration: 53-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 16 ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ZN ZINC ION × 3 MG MAGNESIUM ION × 6 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.00 Å
9DGR Composite structure of dynein-dynactin on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain J 1–417（417 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 15.00 Å
9DGS Dynactin and dynein tail region of dynein-dynactin complex on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9DGT structure of dynactin, dynein tail with one BICDR from dynein-dynactin-BICDR on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
9DGU structure of dynactin, dynein tail with two BICDR from dynein-dynactin-BICDR on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.10 Å
9DGV structure of dynactin, dynein tail with TRAK2 from dynein-dynactin-TRAK2 on microtubules Deposited 2024-09-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.80 Å
9HHL Structure of Dynein-Dynactin-NuMA-LIS1 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 41 PDB declaration: 41-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.53 Å
9YNG Dynactin and dynein-1 tail region of dynein-dynactin complex on microtubule in the presence of LIS1 Deposited 2025-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain J 1–417（417 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	I3LHK5_PIG
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain J； PDBConstruct 1–379； UniProt 12–390

CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1

OrganismNot specified

UniProt A0PFK5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 33 PDB declaration: 33-meric（33） Consistent with protein copy count	Chain K； UniProt 7–281	Not recorded	DYNEIN TAIL × 1 DYNEIN TAIL × 1 DYNEIN TAIL × 2 DYNEIN TAIL × 2 DYNACTIN × 8 （F2Z5G5） ACTIN, CYTOPLASMIC 1 × 1 （Q6QAQ1） DYNACTIN × 1 （I3LHK5） F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II × 1 （D2JYW4） DYNACTIN × 1 DYNACTIN 6 × 1 DYNACTIN × 2 DYNACTIN × 2 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT；pH 7.4；150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 8.20 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5AFU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ADX CryoEM structure of dynactin complex at 4.0 angstrom resolution Deposited 2015-08-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain K 7–281（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT；pH 6.5；50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ENTHANE	Resolution 4.00 Å
5NW4 Human cytoplasmic dynein-1 bound to dynactin and an N-terminal construct of BICD2 Deposited 2017-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain Y 1–286（286 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
6F1T Cryo-EM structure of two dynein tail domains bound to dynactin and BICDR1 Deposited 2017-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6F1U N terminal region of dynein tail domains in complex with dynactin filament and BICDR-1 Deposited 2017-11-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6F38 Cryo-EM structure of two dynein tail domains bound to dynactin and HOOK3 Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
6F3A Cryo-EM structure of a single dynein tail domain bound to dynactin and BICD2N Deposited 2017-11-28	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
6ZNL Cryo-EM structure of the dynactin complex Deposited 2020-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7Z8F Composite structure of dynein-dynactin-BICDR on microtubules Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 43 PDB declaration: 43-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 13 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 20.00 Å
7Z8I The barbed end complex of dynactin bound to BICDR1 and the cytoplasmic dynein tails (A2, B1, B2) Deposited 2022-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；20 second incubation	Resolution 3.30 Å
8PTK Composite structure of Dynein-Dynactin-JIP3-LIS1 Deposited 2023-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 53 PDB declaration: 53-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 16 ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ZN ZINC ION × 3 MG MAGNESIUM ION × 6 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.00 Å
9DGR Composite structure of dynein-dynactin on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain K 1–286（286 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 15.00 Å
9DGS Dynactin and dynein tail region of dynein-dynactin complex on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9DGT structure of dynactin, dynein tail with one BICDR from dynein-dynactin-BICDR on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
9DGU structure of dynactin, dynein tail with two BICDR from dynein-dynactin-BICDR on microtubules Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.10 Å
9DGV structure of dynactin, dynein tail with TRAK2 from dynein-dynactin-TRAK2 on microtubules Deposited 2024-09-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.80 Å
9HHL Structure of Dynein-Dynactin-NuMA-LIS1 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 41 PDB declaration: 41-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.53 Å
9YNG Dynactin and dynein-1 tail region of dynein-dynactin complex on microtubule in the presence of LIS1 Deposited 2025-10-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain K 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å

17 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0PFK5_PIG
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain K； PDBConstruct 1–275； UniProt 7–281

F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II

OrganismNot specified

UniProt D2JYW4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 33 PDB declaration: 33-meric（33） Consistent with protein copy count	Chain L； UniProt 2–271	Not recorded	DYNEIN TAIL × 1 DYNEIN TAIL × 1 DYNEIN TAIL × 2 DYNEIN TAIL × 2 DYNACTIN × 8 （F2Z5G5） ACTIN, CYTOPLASMIC 1 × 1 （Q6QAQ1） DYNACTIN × 1 （I3LHK5） CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1 × 1 （A0PFK5） DYNACTIN × 1 DYNACTIN 6 × 1 DYNACTIN × 2 DYNACTIN × 2 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 DYNACTIN × 1 F-ACTIN-CAPPING PROTEIN SUBUNIT BETA × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT；pH 7.4；150MM KCL, 25MM HEPES-KOH, 1MM MGCL2, 0.1MM MGATP, 5MM DTT cryo-EM vitrification conditions：Cryogen ETHANE；LIQUID ETHANE	Resolution 8.20 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5AFU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ADX CryoEM structure of dynactin complex at 4.0 angstrom resolution Deposited 2015-08-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain L 2–271（270 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT；pH 6.5；50MM KCL, 25MM K2HPO4- KH2PO4, 1MM MGCL2,5MM DTT cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ENTHANE	Resolution 4.00 Å
5NW4 Human cytoplasmic dynein-1 bound to dynactin and an N-terminal construct of BICD2 Deposited 2017-05-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 39 PDB declaration: 39-meric	Chain Z 2–277（276 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	D2JYW4_PIG
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain L； PDBConstruct 1–270； UniProt 2–271

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

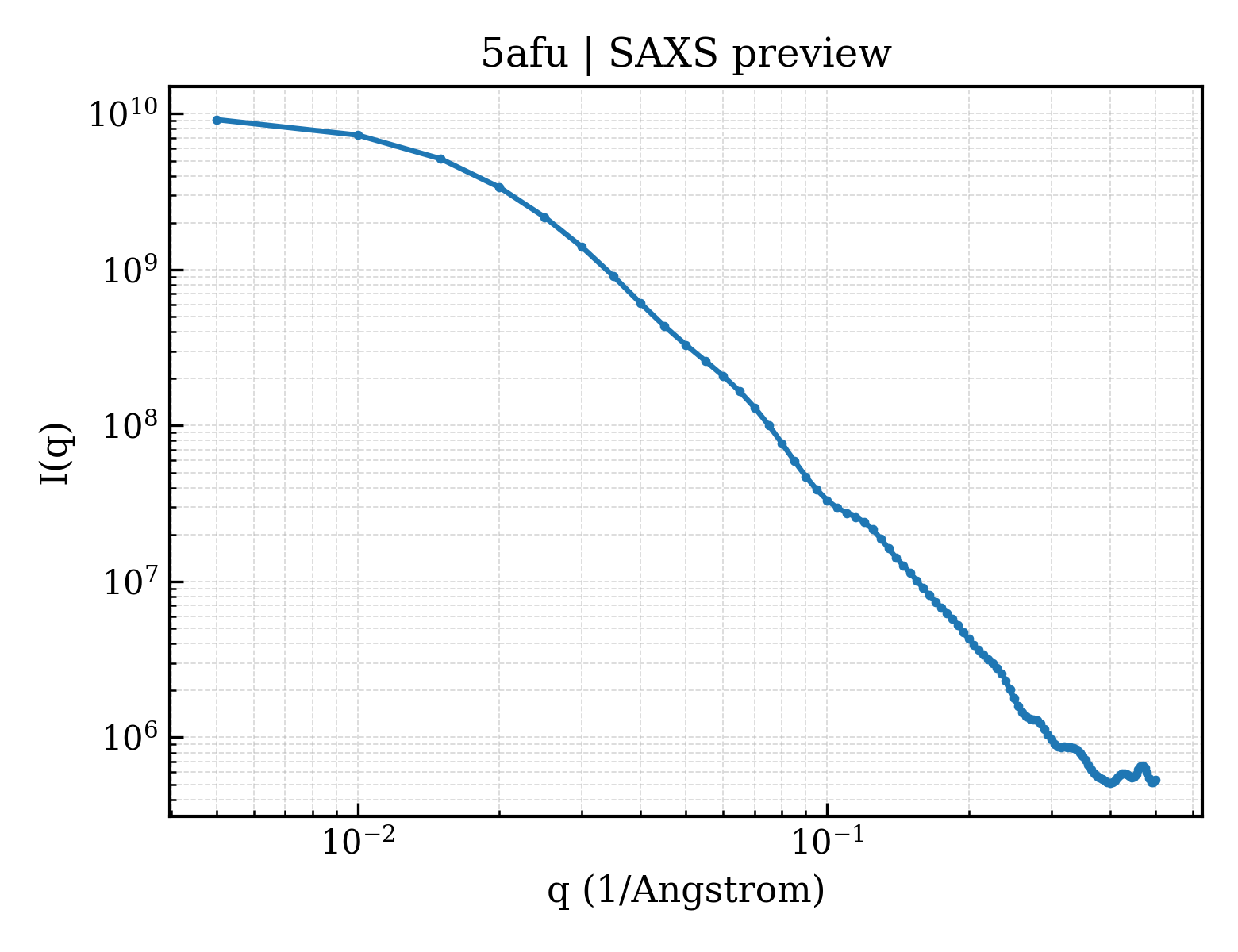

SAXS scattering curve SAXS Profile

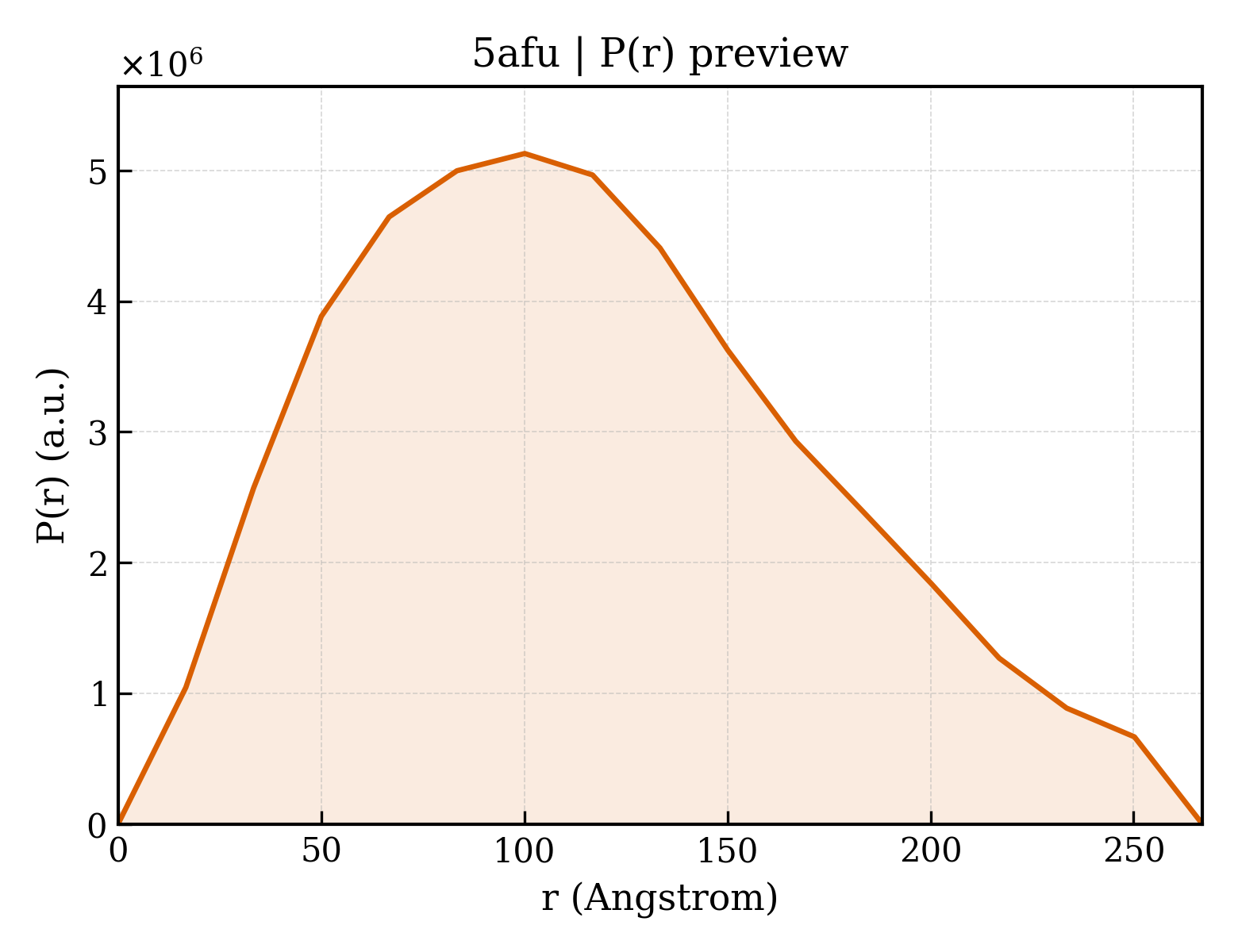

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5afu
Deposition date deposition_date	2015-01-26
Structure title title	Cryo-EM structure of dynein tail-dynactin-BICD2N complex
Keywords keywords	DYNEIN, DYNACTIN, BICD2, MOTOR, TRANSPORT, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	96.22 Å
Radius of gyration Rg (electron density) rg_electron	97.59 Å
Forward intensity I(0) i0	9926840000.00
Molecular weight molecular_weight	790350.0 kDa
Excluded volume excluded_volume	964020 Å³
Envelope volume envelope_volume	1934300 Å³
Hydration-shell volume shell_volume	184560 Å³
Envelope diameter envelope_diameter	390.7 Å
Shell Rg shell_rg	75.84 Å
Envelope Rg envelope_rg	96.02 Å
Shape Rg shape_rg	97.66 Å
Total Rg total_rg	97.09 Å
Total atoms total_atoms	55952
Residues n_residues	8572
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	266.9 Å
Rg (real space) rg_real	89.99 Å
Rg uncertainty (real space) rg_real_error	1.32 Å
I(0) (real space) i0_real	9.4870e+09
I(0) uncertainty (real space) i0_real_error	2.1760e+08
Rg (reciprocal space) rg_reciprocal	89.99 Å
I(0) (reciprocal space) i0_reciprocal	9731000000.0000
Solution quality estimate total_estimate	0.9159
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	100.1 Å
Skewness Skewness skewness	0.385
Kurtosis Kurtosis kurtosis	-0.522
Angular range angular_range	— – 0.0800 Å⁻¹
Current regularization parameter α current_alpha	0.7057
Highest regularization parameter α highest_alpha	352500000.0000
Real-space data points n_real_points	17
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.031; Oscil: 0.993; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.005

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (24)

Entity 1 Entity 1 polymer

Description description	DYNEIN TAIL
Molecular weight formula_weight	30740.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1
Atom count atom_count	55952

Entity 2 Entity 2 polymer

Description description	DYNEIN TAIL
Molecular weight formula_weight	30570.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2

Entity 3 Entity 3 polymer

Description description	DYNEIN TAIL
Molecular weight formula_weight	38900.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	3,4

HYLVPYNQRANHSKPIPPFLLDLDSQSVPDALKKQTNDYYILYNPALPREIDVELHKSLDHTSVVCCVKFSNDGEYLATGCNKTTQVYRVSDGSLVARLSDSSDLYIRSVCFSPDGKFLATGAEDRLIRIWDIENRKIVMILQGHEQDIYSLDYFPSGDKLVSGSGDRTVRIWDLRTGQCSLTLSIEDGVTTVAVSPGDGKYIAAGSLDRAVRVWDSETGFLVERLDTGHKDSVYSVVFTRDGQSVVSGSLDRSVKLWNLTCEVTYIGHKDFVLSVATTQNDEYILSGSKDRGVLFWDKKSGNPLLMLQGHRNSVISVAVANGSSLGPEYNVFATGSGDCKARIWKYKKI

Entity 4 Entity 4 polymer

Description description	DYNEIN TAIL
Molecular weight formula_weight	23421.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	5,6

Entity 5 Entity 5 polymer

Description description	DYNACTIN
Molecular weight formula_weight	41959.9 kDa
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,I

IANQPVVIDNGSGVIKAGFAGDQIPKYCFPNYVGRPKHVRVMAGALEGDIFIGPKAEEHRGLLSIRYPMEHGIVKDWNDMERIWQYVYSKEQLQTFSEEHPVLLTEAPLNPRKNRERAAEVFFETFNVPALFISMQAVLSLYATGRTTGVVLDSGDGVTHAVPIYEGFAMPHSIMRIDIAGRDVSRFLRLYLRKEGYDFHSSSEFEIVKAIKERACYLSINPQKDETLETEKAQYYLPDGSTIEIGPSRFRAPELLFRPDLIGEESEGIHEVLVFAIQKSDMDLRRTLFSNIVLSGGSTLFKGFGDRLLSEVKKLAPKDVKIRISAPQERLYSTWIGGSILASLDTFKKMWVSKKEYEEDGARSIHRKTF

Entity 6 Entity 6 polymer

Description description	ACTIN, CYTOPLASMIC 1
Molecular weight formula_weight	41193.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

AALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 7 Entity 7 polymer

Description description	DYNACTIN
Molecular weight formula_weight	42141.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

EKTAVVIDLGEAFTKCGFAGETGPRCIIPSVIKKAGMPKPIKVVQYNINTEELYSYLKEFIHILYFRHLLVNPRDRRVVVIESVLCPSHFRETLTRVLFKYFEVPSVLLAPSHLMALLTLGINSAMVLDCGYRESLVLPIYEGIPVLNCWGALPLGGKALHKELETQLLEQCTVDTGAAKEQSLPSVMGSIPEGVLEDIKVRTCFVSDLTRGLKIQAAKFNIDGNTERPSPPPNVDYPLDGEKILHVLGSIRDSVVEILFEQDNEEKSVATLILDSLMQCPIDTRKQLAENLVIIGGTSMLPGFLHRLLAEIRYLVEKPKYKKTLGTKTFRIHTPPAKANCVAWLGGAIFGALQDILGSRSVSKEYYNQTGRIPDWCSL

Entity 8 Entity 8 polymer

Description description	CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1
Molecular weight formula_weight	31777.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

RVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYEDQVLITEHGDLGNSRFLDPRNKISFKFDHLRKEASDPQPEEVDGSLKSWRESCDSALRAYVKDHYSNGFCTVYAKNIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVVGVLKIQVHYYEDGNVQLVSHKDVQDSVTVSNEAQTAKEFIKIIEHAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGK

Entity 9 Entity 9 polymer

Description description	F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II
Molecular weight formula_weight	30509.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKSGSGTMNLGGSLTRQMEKDETVSDCSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLRSVDVIPDNPKFQQLQRELSQVLTQRQI

Entity 10 Entity 10 polymer

Description description	DYNACTIN
Molecular weight formula_weight	49974.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 11 Entity 11 polymer

Description description	DYNACTIN 6
Molecular weight formula_weight	52442.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

Entity 12 Entity 12 polymer

Description description	DYNACTIN
Molecular weight formula_weight	5549.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,P

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 13 Entity 13 polymer

Description description	DYNACTIN
Molecular weight formula_weight	7422.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,R

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 14 Entity 14 polymer

Description description	DYNACTIN
Molecular weight formula_weight	18343.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U

PGAVVCVESEIRGDVTIGPRTVIHPKARIIAEAGPIVIGEGNLIEEQALIINAYPDNITPDTEKPMIIGTNNVFEVGCYSQAMKMGDNNVIESKAYVGRNVILTSGCIIGACCNLNTFEVIPENTVIYGADCLRRVQTERPQPTLQLDFLMKILPNYHHLKKTMKGSS

Entity 15 Entity 15 polymer

Description description	DYNACTIN
Molecular weight formula_weight	18178.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V

SGNKVSRQSVLCGSQNIVLNGKTIIMNDCIIRGDLANVRVGRHCVVKSRSVIRPPFKKFSKGVAFFPLHIGDHVFIEEDCVVNAAQIGSYVHVGKNCVIGRRCVLKDCCKILDNTVLPPETVVPPFTVFSGCPGLFSGELPECTQELMIDVTKSYYQKFLPLTQV

Entity 16 Entity 16 polymer

Description description	F-ACTIN-CAPPING PROTEIN SUBUNIT BETA
Molecular weight formula_weight	20698.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

Entity 17 Entity 17 polymer

Description description	F-ACTIN-CAPPING PROTEIN SUBUNIT BETA
Molecular weight formula_weight	4443.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 18 Entity 18 polymer

Description description	DYNACTIN
Molecular weight formula_weight	5400.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a

MADPKYADLPGIARNEPDVYLEELTSTSVEHAIVNPNAAYDKFKDKRV

Entity 19 Entity 19 polymer

Description description	DYNACTIN
Molecular weight formula_weight	7931.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b

MADPKYADLPGIARNEPDVYLEELTSTSVEHIIVNPNAAYDKFKDKRVGTKGLDFSDRIGKTKRTGYESGE

Entity 20 Entity 20 polymer

Description description	DYNACTIN
Molecular weight formula_weight	3019.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	c

MADPKYADLPGIARNEPDVYAAAAAAAAAAA

Entity 21 Entity 21 polymer

Description description	DYNACTIN
Molecular weight formula_weight	2237.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	d

MADPKYADLPGIARNEPDVY

Entity 22 Entity 22 polymer

Description description	F-ACTIN-CAPPING PROTEIN SUBUNIT BETA
Molecular weight formula_weight	4528.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	z

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 23 Entity 23 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 24 Entity 24 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 35 domains

CATH v4.4 (35 domains)

Domain ID domain_id	5afu300
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	5afu400
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	5afuA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuB03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuC03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuD03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuE03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuF03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuG03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuH03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuI01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuI02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	5afuI03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	5afuK01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1140 — Ribosomal protein S3 C-terminal domain
Homologous superfamily homologous superfamily	60 — F-actin capping protein, alpha subunit

Domain ID domain_id	5afuK02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	210 — F-actin capping protein, beta subunit

Domain ID domain_id	5afuL01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	570 — F-actin capping protein, alpha/beta subunit, N-terminal domain

Domain ID domain_id	5afuL02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	210 — F-actin capping protein, beta subunit

Domain ID domain_id	5afuU00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

Domain ID domain_id	5afuV00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	10 — UDP N-Acetylglucosamine Acyltransferase; domain 1
Homologous superfamily homologous superfamily	10 — Hexapeptide repeat proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	8.200 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	8.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	85744

fit	/app/data/saxs_computation/af/5afu/5afu.fit
pddf	/app/data/pr_computation/af/5afu/5afu.pr.out
profile	/app/data/saxs_computation/af/5afu/5afu.dat

Cryo-EM structure of dynein tail-dynactin-BICD2N complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

DYNACTIN

State in the Current Structure

Other States of the Same Protein in the Database

ACTIN, CYTOPLASMIC 1

State in the Current Structure

Other States of the Same Protein in the Database

DYNACTIN

State in the Current Structure

Other States of the Same Protein in the Database

CAPPING PROTEIN (ACTIN FILAMENT) MUSCLE Z-LINE, ALPHA 1

State in the Current Structure

Other States of the Same Protein in the Database

F-ACTIN CAPPING PROTEIN BETA SUBUNIT VARIANT II

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (24)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 polymer

Polymer Polymer

Entity 7 Entity 7 polymer

Polymer Polymer

Entity 8 Entity 8 polymer

Polymer Polymer

Entity 9 Entity 9 polymer

Polymer Polymer

Entity 10 Entity 10 polymer

Polymer Polymer

Entity 11 Entity 11 polymer

Polymer Polymer

Entity 12 Entity 12 polymer

Polymer Polymer

Entity 13 Entity 13 polymer

Polymer Polymer

Entity 14 Entity 14 polymer

Polymer Polymer

Entity 15 Entity 15 polymer

Polymer Polymer

Entity 16 Entity 16 polymer

Polymer Polymer

Entity 17 Entity 17 polymer

Polymer Polymer

Entity 18 Entity 18 polymer

Polymer Polymer

Entity 19 Entity 19 polymer

Polymer Polymer

Entity 20 Entity 20 polymer

Polymer Polymer

Entity 21 Entity 21 polymer

Polymer Polymer

Entity 22 Entity 22 polymer

Polymer Polymer

Entity 23 Entity 23 non-polymer

Entity 24 Entity 24 non-polymer

7. Fold Classification (SCOP + CATH) 35 domains

CATH v4.4 (35 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
