9qt7
Crystal structure of affitin C10 fused to a coiled-coil domain in complex with a quinoline oligoamide foldamer

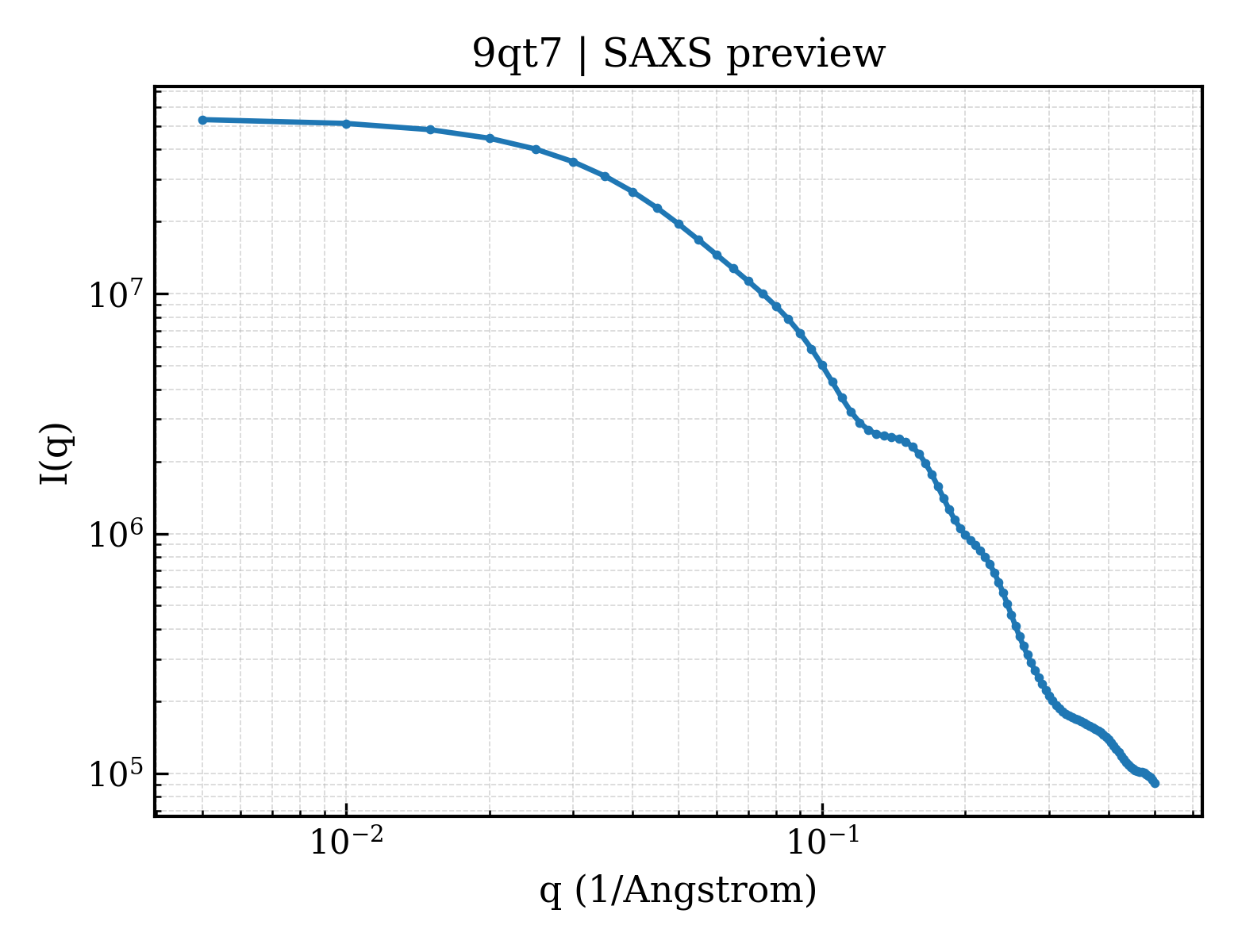

SAXS Profile

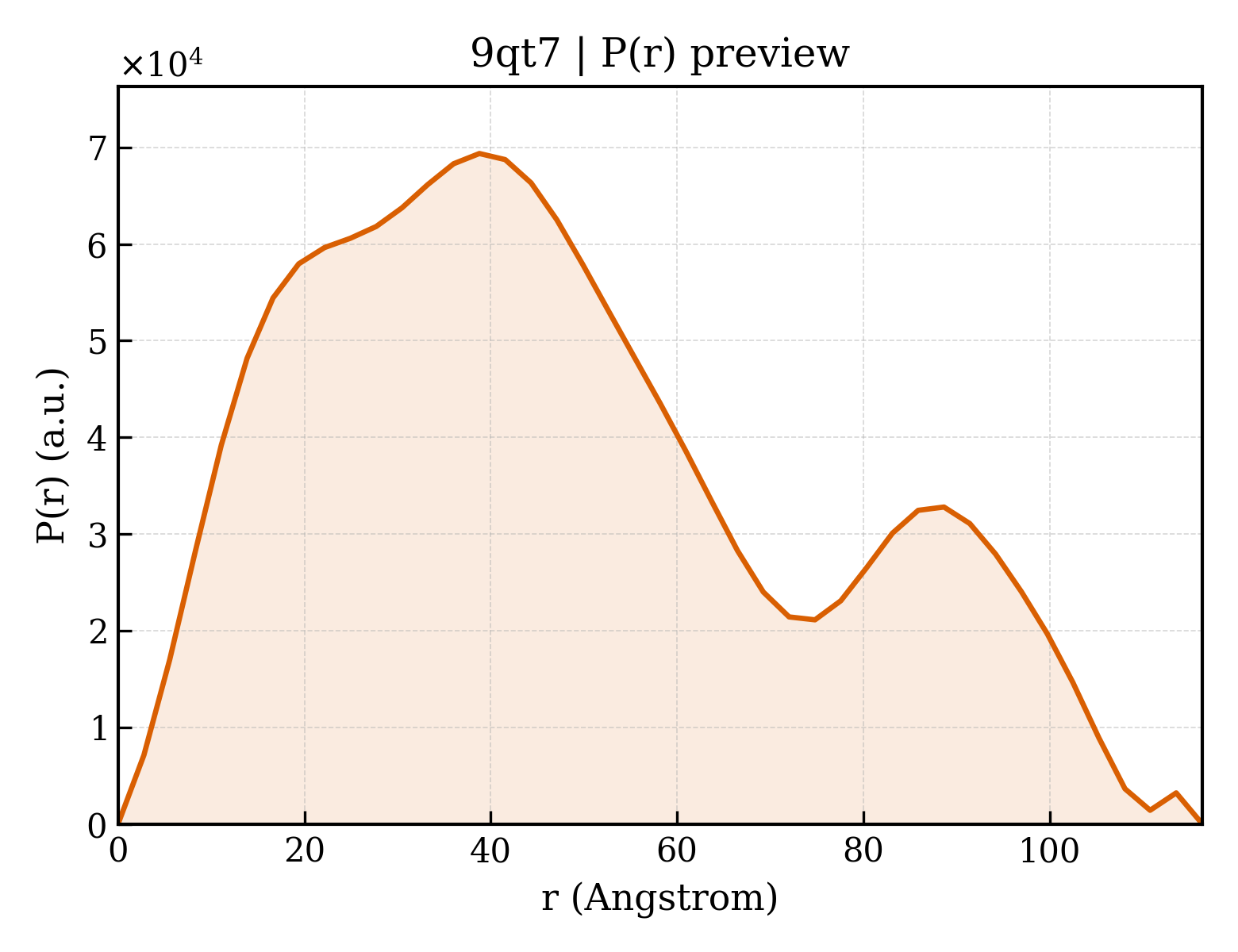

P(r) Distribution
1. Structure Basics
| entry_id | 9qt7 |
| deposition_date | 2025-04-08 |
| last_revision | 2026-04-22 |
| title | Crystal structure of affitin C10 fused to a coiled-coil domain in complex with a quinoline oligoamide foldamer |
| keywords | Coiled coil, foldamer, design, nanofitin, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 37.57 Å |
| rg_electron | 38.63 Å |
| i0 | 53917700.00 |
| molecular_weight | 38766.0 kDa |
| excluded_volume | 37487 ų |
| envelope_volume | 87337 ų |
| shell_volume | 22924 ų |
| envelope_diameter | 122.9 Å |
| shell_rg | 36.20 Å |
| envelope_rg | 37.17 Å |
| shape_rg | 38.65 Å |
| total_rg | 38.43 Å |
| total_atoms | 2943 |
| n_residues | 382 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 116.4 Å |
| rg_real | 38.18 Å |
| rg_real_error | 1.23 Å |
| i0_real | 5.3920e+07 |
| i0_real_error | 9.7190e+05 |
| rg_reciprocal | 37.81 Å |
| i0_reciprocal | 53900000.0000 |
| total_estimate | 0.7273 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 38.8 Å |
| skewness | 0.497 |
| kurtosis | -0.670 |
| angular_range | — – 0.2100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1241000.0000 |
| n_real_points | 43 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.651; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.506; Smooth: 0.000 |
