8v4m

CCP5 in complex with microtubules class3

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin alpha-1B chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Tubulin beta chain × 2 （P02554） Cytosolic carboxypeptidase-like protein 5 × 1 （Q8NDL9） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 2 PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 GLUTAMIC ACID × 1 ZINC ION × 1	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA1B_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–451； UniProt 1–451 Author chain C； PDBConstruct 1–451； UniProt 1–451

Tubulin beta chain

OrganismNot specified

UniProt P02554

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Tubulin alpha-1B chain × 2 （Q2XVP4） Cytosolic carboxypeptidase-like protein 5 × 1 （Q8NDL9） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 2 PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 GLUTAMIC ACID × 1 ZINC ION × 1	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBB_PIG
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–445； UniProt 1–445 Author chain D； PDBConstruct 1–445； UniProt 1–445

Cytosolic carboxypeptidase-like protein 5

Homo sapiens

UniProt Q8NDL9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Tubulin alpha-1B chain × 2 （Q2XVP4） Tubulin beta chain × 2 （P02554） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 2 PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 GLUTAMIC ACID × 1 ZINC ION × 1	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CBPC5_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 2–605； UniProt 2–605

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8v4m
Deposition date deposition_date	2023-11-29
Structure title title	CCP5 in complex with microtubules class3
Keywords keywords	;carboxypeptidase deglutamylation branch glutamate removal microtubule, HYDROLASE, HYDROLASE-SUBSTRATE complex, HYDROLASE-SUBSTRATE, STRUCTURAL PROTEIN complex ;; HYDROLASE/SUBSTRATE,STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8v4m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8v4m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

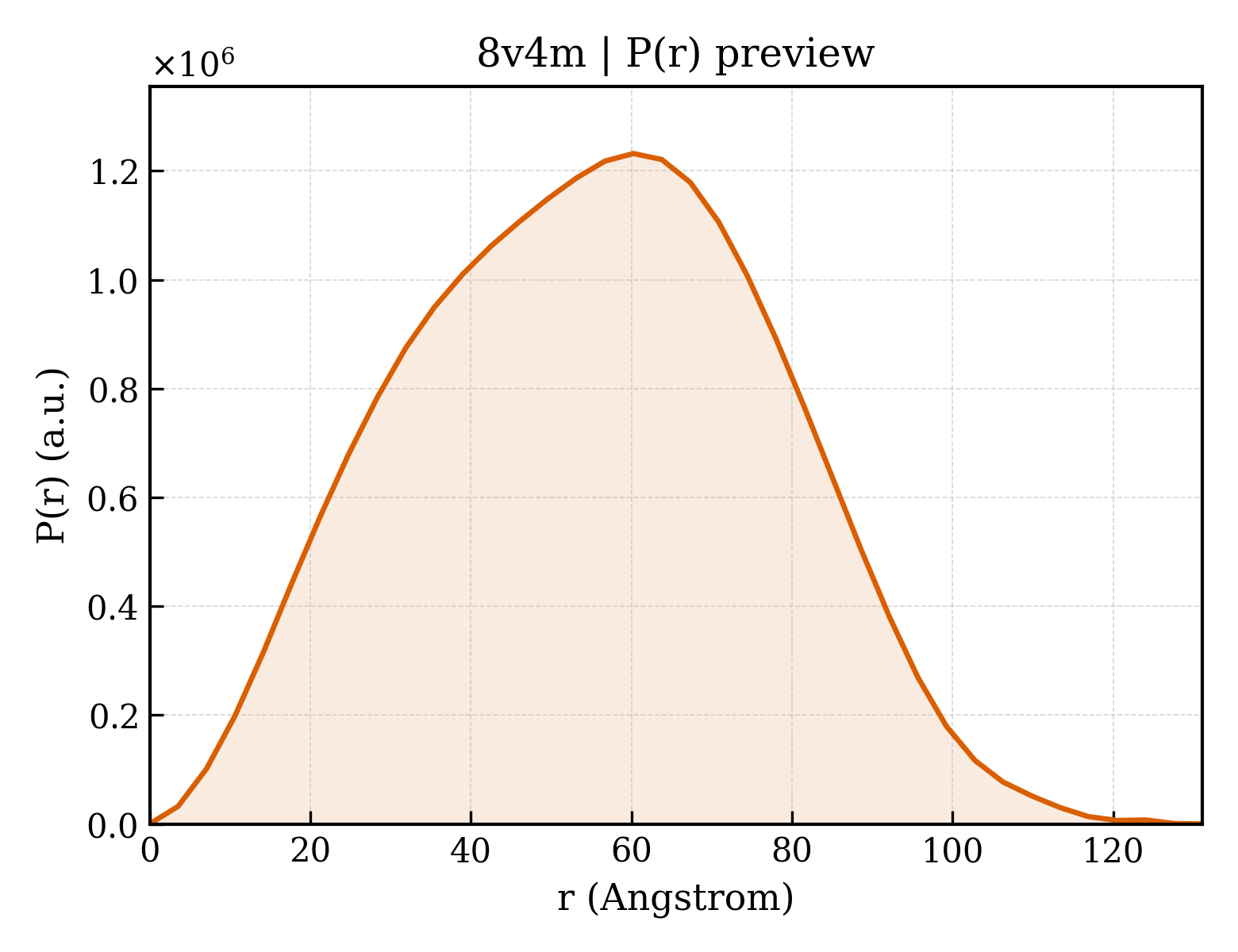

8v4m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.28 Å
Rg (electron density)	41.68 Å
Total Rg	41.95 Å
Atom count	17431
Residues	2230
Excluded volume	307260 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8v4m__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Tubulin alpha-1B chain
Molecular weight formula_weight	50204.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17431

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLISQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRSIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

Entity 2 Entity 2 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	50377.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEAAGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEGEEDEAXXEXX

Entity 3 Entity 3 polymer

Description description	Cytosolic carboxypeptidase-like protein 5
Molecular weight formula_weight	68229.5 kDa
Mutation mutation	E516A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

NELRCGGLLFSSRFDSGNLAHVEKVESLSSDGEGVGGGASALTSGIASSPDYEFNVWTRPDCAETEFENGNRSWFYFSVRGGMPGKLIKINIMNMNKQSKLYSQGMAPFVRTLPTRPRWERIRDRPTFEMTETQFVLSFVHRFVEGRGATTFFAFCYPFSYSDCQELLNQLDQRFPENHPTHSSPLDTIYYHRELLCYSLDGLRVDLLTITSCHGLREDREPRLEQLFPDTSTPRPFRFAGKRIFFLSSRVHPGETPSSFVFNGFLDFILRPDDPRAQTLRRLFVFKLIPMLNPDGVVRGHYRTDSRGVNLNRQYLKPDAVLHPAIYGAKAVLLYHHVHSRLNSQSSSEHQPSSCLPPDAPVSDLEKANNLQNEAQCGHSADRHNAEAWKQTEPAEQKLNSVWIMPQQSAGLEESAPDTIPPKESGVAYYVDLHGHASKRGCFMYGNSFSDESTQVENMLYPKLISLNSAHFDFQGCNFSEKNMYARDRRDGQSKEGSGRVAIYKASGIIHSYTLACNYNTGRSVNSIPAACHDNGRASPPPPPAFPSRYTVELFEQVGRAMAIAALDMAECNPWPRIVLSEHSSLTNLRAWMLKHVRNSRGLSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
Molecular weight formula_weight	521.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	GLUTAMIC ACID
Molecular weight formula_weight	147.1 kDa
Source method src_method	nat
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	80027
