9rm1

13S+Beta1+Beta5 proteasome precursor complex

Method: ELECTRON MICROSCOPY Dmax: 143.5 Å Quality: GOOD

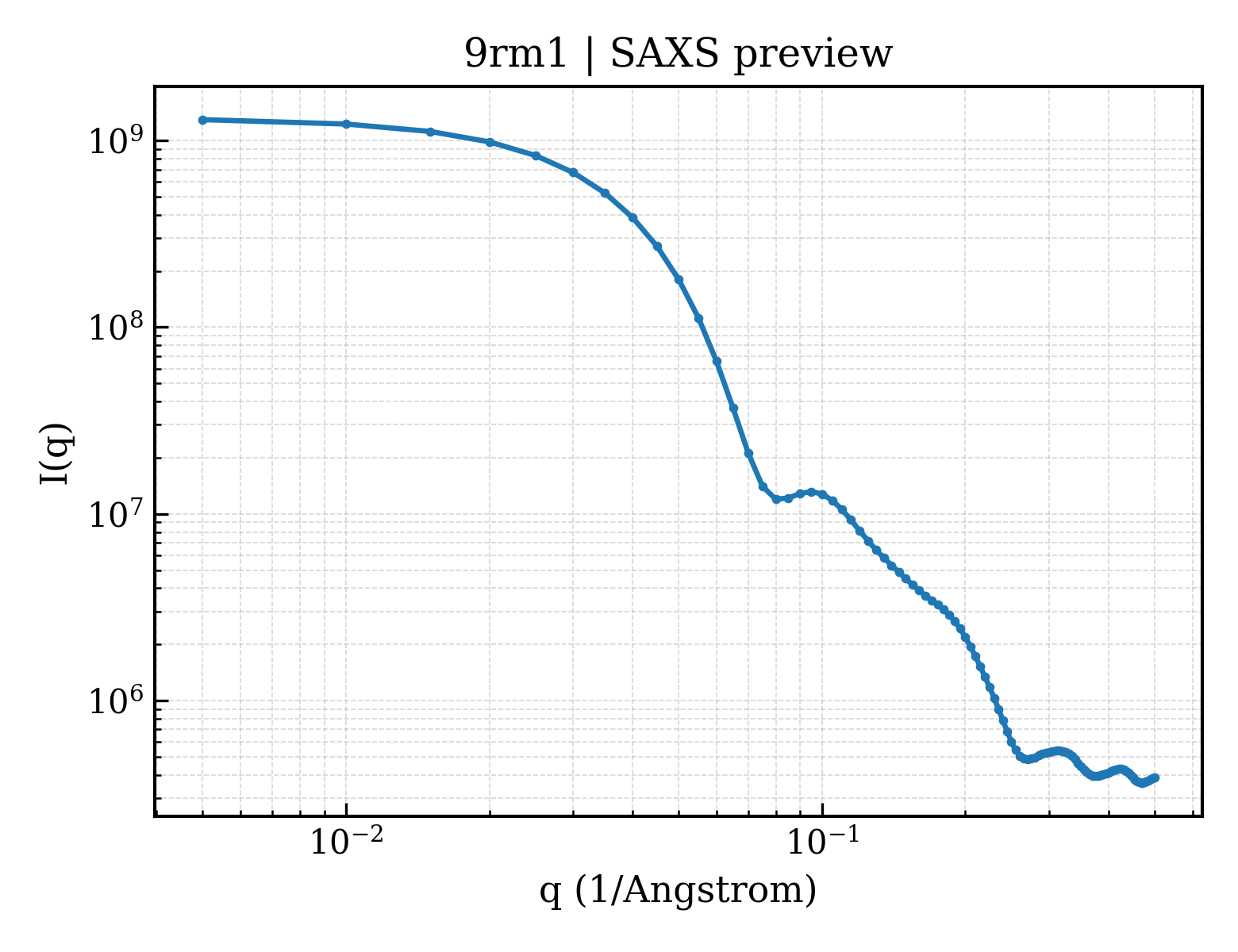

SAXS Profile

SAXS profile for 9rm1

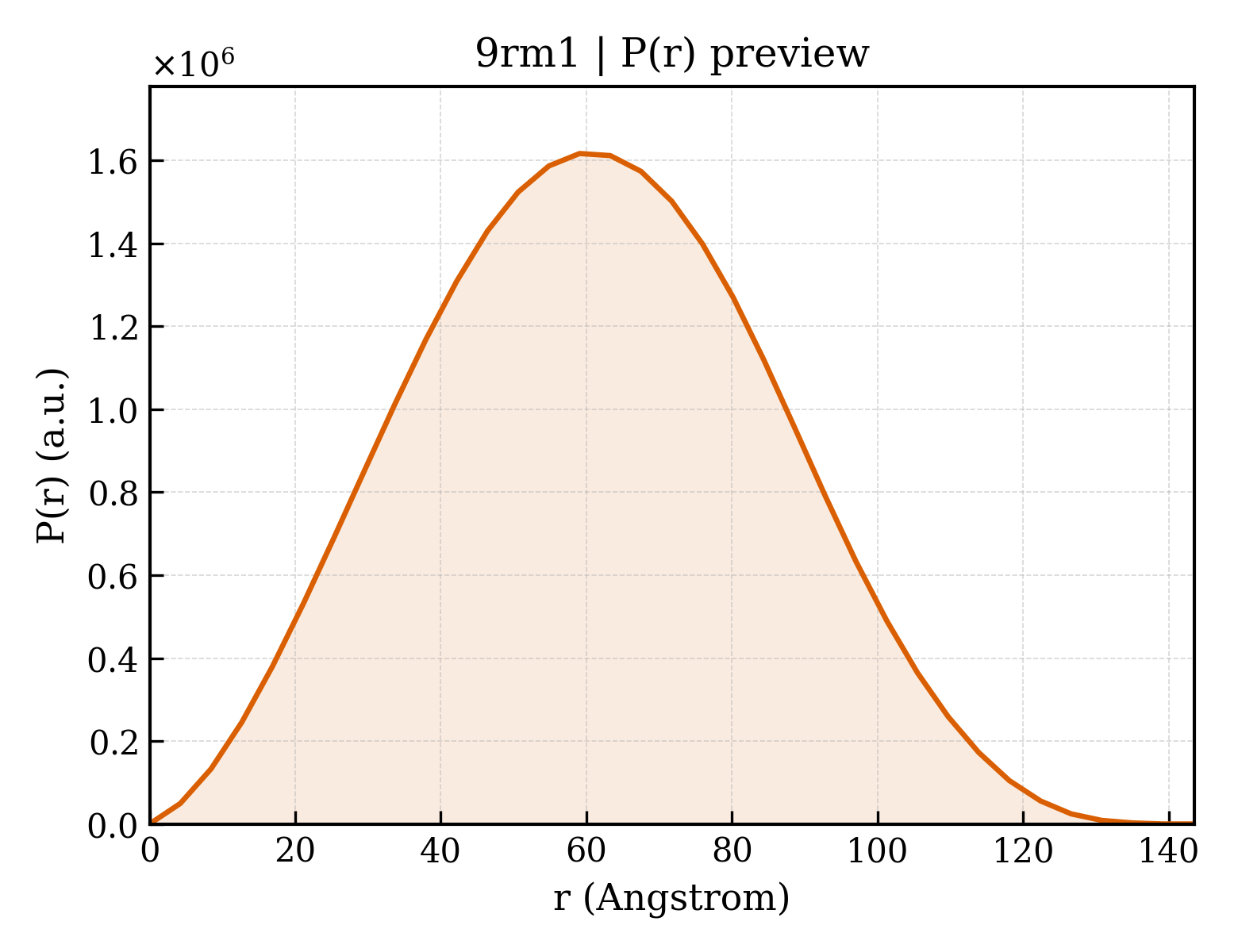

P(r) Distribution

P(r) distribution for 9rm1

1. Structure Basics

entry_id9rm1
deposition_date2025-06-17
title13S+Beta1+Beta5 proteasome precursor complex
keywordsproteasome biogenesis, Ump1, Pba1-2, cryo-EM, HYDROLASE; HYDROLASE
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier46.79
rg_electron46.25
i01318570000.00
molecular_weight185360.0 kDa
excluded_volume182470 ų
envelope_volume501500 ų
shell_volume89493 ų
envelope_diameter142.7
shell_rg52.39
envelope_rg43.96
shape_rg46.25
total_rg46.48
total_atoms13220
n_residues3305
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax143.5
rg_real46.45
rg_real_error0.74
i0_real1.3190e+09
i0_real_error2.0880e+07
rg_reciprocal46.79
i0_reciprocal1319000000.0000
total_estimate0.8874
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary59.1
skewness0.085
kurtosis-0.507
angular_range— – 0.1700 −1
current_alpha0.0001
highest_alpha159700000.0000
n_real_points35
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.923; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.806

4. Crystallography & Experiment

5. Entities & Polymer Info (15)

6. Citations (1)

7. Files & Curves (10)
