7bdi

Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and ATPgammaS

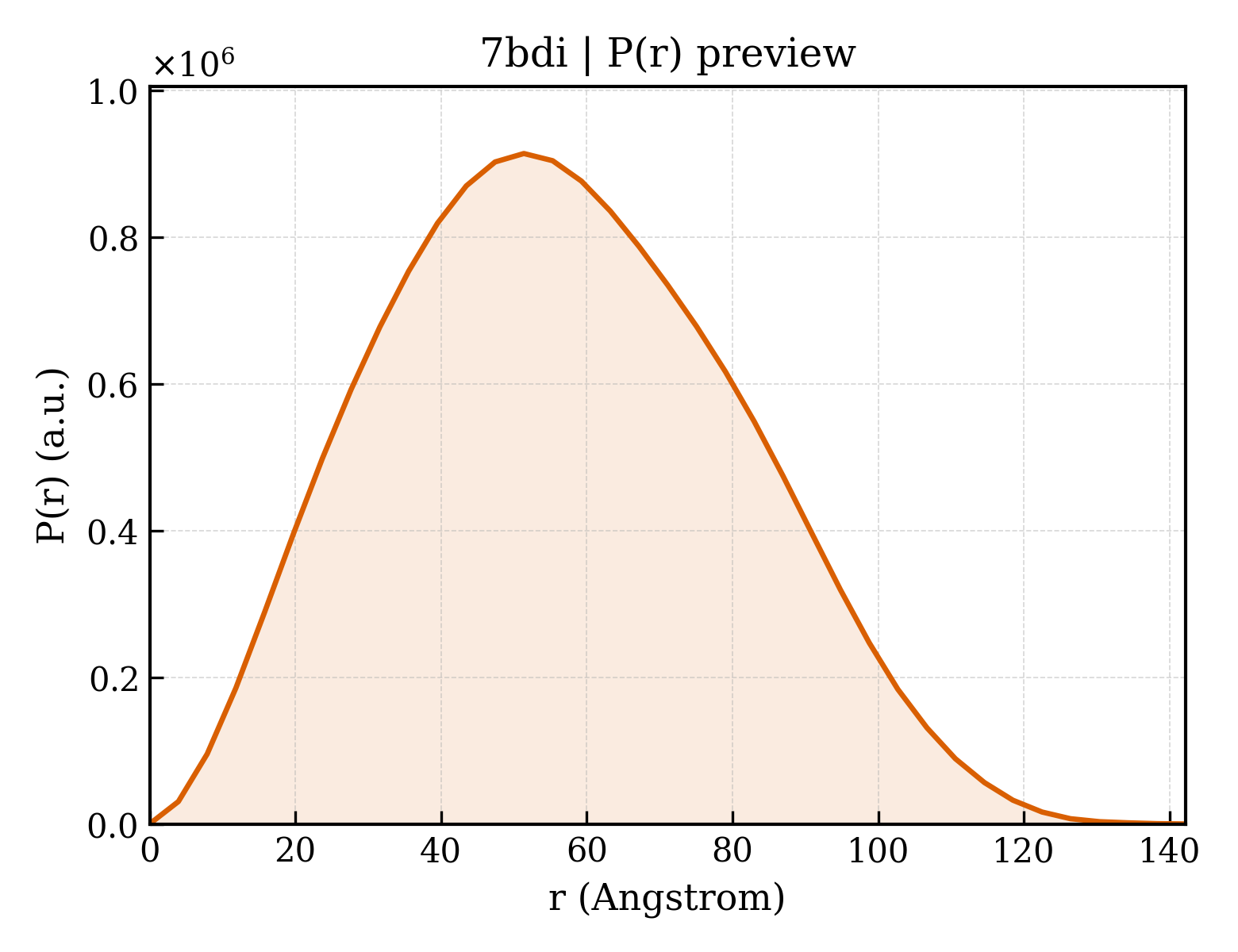

Method: X-RAY DIFFRACTION Dmax: 142.2 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

U5 small nuclear ribonucleoprotein 200 kDa helicase

Homo sapiens

UniProt O75643

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 394–2136 Not recorded Pre-mRNA-processing-splicing factor 8 × 1 （Q6P2Q9） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350 Resolution 2.80 Å R-free 0.297

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BDI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3JCR 3D structure determination of the human*U4/U6.U5* tri-snRNP complex Deposited 2016-01-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 33 PDB declaration: 36-meric
Chain C 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 mM HEPES, pH 7.9, 100 mM KCl, 5 mM MgCl2, 0.1 mM EDTA；pH 7.9；20 mM HEPES, pH 7.9, 100 mM KCl, 5 mM MgCl2, 0.1 mM EDTA
cryo-EM vitrification conditions Cryogen ETHANE；Plunged into liquid ethane (FEI VITROBOT MARK IV).
Resolution 7.00 Å
4F91 Brr2 Helicase Region Deposited 2012-05-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 402–2125（1724 aa） Fragment：Brr2 Helicase Region
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293.15 K；0.1 M sodium citrate, 1.2 M sodium Malonate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K
Resolution 2.70 Å R-free 0.272
4F92 Brr2 Helicase Region S1087L Deposited 2012-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 402–2125（1724 aa） Fragment：Brr2 Helicase Region
Mutation：S1087L SAN SULFANILAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293.15 K；0.1 M sodium citrate, 1.2 M sodium Malonate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K
Resolution 2.66 Å R-free 0.259
4F93 Brr2 Helicase Region S1087L, Mg-ATP Deposited 2012-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 402–2125（1724 aa） Fragment：Brr2 Helicase Region
Mutation：S1087L ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 SAN SULFANILAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293.15 K；0.1 M sodium citrate, 1.2 M sodium Malonate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K
Resolution 2.92 Å R-free 0.248
4KIT Crystal structure of human Brr2 in complex with the Prp8 Jab1/MPN domain Deposited 2013-05-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 395–2129（1735 aa） Fragment：helicase region (UNP residues 395-2129)
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；277 K；0.1 M HEPES-NaOH, pH 7.9, 0.2 M magnesium chloride, 12% ethanol, Silver Bullets Bio condition 91 (Hampton Research) as additive, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.60 Å R-free 0.235
5O9Z Cryo-EM structure of a pre-catalytic human spliceosome primed for activation (B complex) Deposited 2017-06-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain C 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
5URJ Crystal structure of human BRR2 in complex with T-3905516 Deposited 2017-02-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 395–2129（1735 aa） Fragment：UNP residues 395-2129
Not recorded GOL GLYCEROL × 1 8LS 6-benzyl-3-[(2R)-2-(3-fluoropyridin-2-yl)-6-methyl-3,4-dihydro-2H-1-benzopyran-7-yl]-4,6-dihydropyrido[4,3-d]pyrimidine-2,7(3H,8H)-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.25-1.5M sodium malonate, 100mM sodium citrate pH 5.0-5.3, 10mg/ml BRR2
Resolution 2.75 Å R-free 0.286
5URK Crystal structure of human BRR2 in complex with T-3935799 Deposited 2017-02-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 395–2129（1735 aa） Fragment：UNP residues 395-2129
Not recorded GOL GLYCEROL × 1 8LP 6-benzyl-3-[3-(benzyloxy)phenyl]-4,6-dihydropyrido[4,3-d]pyrimidine-2,7(1H,3H)-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.25-1.5 M sodium malonate, 100 mM sodium citrate pH 5.0-5.3, 10mg/ml BRR2
Resolution 2.95 Å R-free 0.277
5URM Crystal structure of human BRR2 in complex with T-1206548 Deposited 2017-02-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 395–2129（1735 aa） Fragment：UNP residues 395-2129
Not recorded 8LV 3-(5-{[(2R)-5-amino-2-cyclohexyl-7-oxo-2,3-dihydro-7H-[1,3,4]thiadiazolo[3,2-a]pyrimidin-6-yl]methyl}furan-2-yl)benzoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.25-1.5M sodium malonate, 100mM sodium citrate pH 5.0-5.3, 10mg/ml BRR2
Resolution 2.80 Å R-free 0.260
5URM Crystal structure of human BRR2 in complex with T-1206548 Deposited 2017-02-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 395–2129（1735 aa） Fragment：UNP residues 395-2129
Not recorded 8LV 3-(5-{[(2R)-5-amino-2-cyclohexyl-7-oxo-2,3-dihydro-7H-[1,3,4]thiadiazolo[3,2-a]pyrimidin-6-yl]methyl}furan-2-yl)benzoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.25-1.5M sodium malonate, 100mM sodium citrate pH 5.0-5.3, 10mg/ml BRR2
Resolution 2.80 Å R-free 0.260
5XJC Cryo-EM structure of the human spliceosome just prior to exon ligation at 3.6 angstrom Deposited 2017-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 50-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5YZG The Cryo-EM Structure of Human Catalytic Step I Spliceosome (C complex) at 4.1 angstrom resolution Deposited 2017-12-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 55-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
5Z56 cryo-EM structure of a human activated spliceosome (mature Bact) at 5.1 angstrom. Deposited 2018-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 13 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；20 mM HEPES-KOH, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
5Z57 Cryo-EM structure of the human activated spliceosome (late Bact) at 6.5 angstrom Deposited 2018-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 57-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ALA ALANINE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；20 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.50 Å
5Z58 Cryo-EM structure of a human activated spliceosome (early Bact) at 4.9 angstrom. Deposited 2018-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 42 PDB declaration: 46-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；20 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
6AH0 The Cryo-EM Structure of the Precusor of Human Pre-catalytic Spliceosome (pre-B complex) Deposited 2018-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
6AHD The Cryo-EM Structure of Human Pre-catalytic Spliceosome (B complex) at 3.8 angstrom resolution Deposited 2018-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6FF7 human Bact spliceosome core structure Deposited 2018-01-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 57 PDB declaration: 61-meric
Chain r 1–2136（2136 aa）
Not recorded ZN ZINC ION × 11 MG MAGNESIUM ION × 5 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6ICZ Cryo-EM structure of a human post-catalytic spliceosome (P complex) at 3.0 angstrom Deposited 2018-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 51-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 9 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6QDV Human post-catalytic P complex spliceosome Deposited 2019-01-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain B 404–2125（1722 aa）
Not recorded MG MAGNESIUM ION × 7 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 7 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；3 uL sample was applied to the grid, left for 25s, then blotted for 2.5-3.5s and immediately plunged into liquid ethane.
Resolution 3.30 Å
6QW6 Structure of the human U5.U4/U6 tri-snRNP at 2.9A resolution. Deposited 2019-03-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 36 PDB declaration: 39-meric
Chain 5B 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Wait 30s, blot for 2s to 3s.
Resolution 2.92 Å
6QX9 Structure of a human fully-assembled precatalytic spliceosome (pre-B complex). Deposited 2019-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 65 PDB declaration: 71-meric
Chain 5B 1–2136（2136 aa）
Not recorded ZN ZINC ION × 6 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
6S8O Human Brr2 Helicase Region M641C/A1582C Deposited 2019-07-10 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 394–2136（1743 aa）
Mutation：M641C, A1582C No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291.15 K；0.1M sodium citrate, 1.5M sodium malonate
Resolution 3.17 Å R-free 0.318
6S8Q Human Brr2 Helicase Region in complex with C-tail deleted Jab1 Deposited 2019-07-10 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.39 Å R-free 0.253
6S9I Human Brr2 Helicase Region D534C/N1866C in complex with C-tail deleted Jab1 Deposited 2019-07-13 Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Mutation：D534C, N1866C No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.60 Å R-free 0.278
7A5P Human C Complex Spliceosome - Medium-resolution PERIPHERY Deposited 2020-08-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 48-meric
Chain q 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7ABG Human pre-Bact-1 spliceosome Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 58-meric
Chain s 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTG 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-GUANOSINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.80 Å
7ABI Human pre-Bact-2 spliceosome Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric
Chain s 1–2136（2136 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
7BDJ Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and mant-ATPgammaS Deposited 2020-12-21 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded TGB [[[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3-[2-(methylamino)phenyl]carbonyloxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-sulfanyl-phosphinic acid × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.59 Å R-free 0.289
7BDK Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and ADP Deposited 2020-12-21 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.52 Å R-free 0.284
7BDL Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and mant-ADP Deposited 2020-12-21 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded TG8 [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-2-[[oxidanyl(phosphonooxy)phosphoryl]oxymethyl]oxolan-3-yl] 2-(methylamino)benzoate × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.69 Å R-free 0.292
7DVQ Cryo-EM Structure of the Activated Human Minor Spliceosome (minor Bact Complex) Deposited 2021-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 45 PDB declaration: 49-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 K POTASSIUM ION × 2 G5J 5'-O-[(S)-hydroxy{[(R)-hydroxy{[(S)-hydroxy(methoxy)phosphoryl]oxy}phosphoryl]oxy}phosphoryl]guanosine × 1 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
7OS1 Cryo-EM structure of Brr2 in complex with Fbp21 Deposited 2021-06-07 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 395–2129（1735 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7OS2 Cryo-EM structure of Brr2 in complex with Jab1/MPN and C9ORF78 Deposited 2021-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 394–2129（1736 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.76 Å
7PX3 Structure of U5 snRNP assembly and recycling factor TSSC4 in complex with BRR2 and Jab1 domain of PRPF8 Deposited 2021-10-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 394–2136（1743 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
7W5B The cryo-EM structure of human C* complex Deposited 2021-11-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 9 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8BC8 Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 18 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded QB6 3-azanyl-4-oxidanyl-benzenesulfonamide × 4 EDO 1,2-ETHANEDIOL × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.39 Å R-free 0.245
8BC9 Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 24 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded A09 N-hydroxybenzenesulfonamide × 1 EDO 1,2-ETHANEDIOL × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.30 Å R-free 0.249
8BCA Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 26 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded Q96 3-azanyl-~{N}-methyl-4-(methylamino)benzenesulfonamide × 2 EDO 1,2-ETHANEDIOL × 9 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.80 Å R-free 0.258
8BCB Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 34 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded EDO 1,2-ETHANEDIOL × 16 SAN SULFANILAMIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.38 Å R-free 0.258
8BCC Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 39 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded QAU 3-oxidanylbenzenesulfonamide × 3 EDO 1,2-ETHANEDIOL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.35 Å R-free 0.258
8BCD Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 50 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded QB0 phenylsulfonylcarbamodithioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 3.50 Å R-free 0.279
8BCE Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 76 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded B09 N-methoxybenzenesulfonamide × 1 EDO 1,2-ETHANEDIOL × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.05 Å R-free 0.267
8BCF Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 78 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded EDO 1,2-ETHANEDIOL × 10 Q8Z ~{N}-methoxy-~{N}-methyl-benzenesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.42 Å R-free 0.275
8BCG Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 86 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 394–2136（1743 aa）
Not recorded Q9I 4-chloranyl-~{N}-methoxy-~{N}-methyl-benzenesulfonamide × 1 EDO 1,2-ETHANEDIOL × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.39 Å R-free 0.269
8BCH Human Brr2 Helicase Region in complex with Sulfaguanidine Deposited 2022-10-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 394–2136（1743 aa）
Not recorded QA9 1-(4-aminophenyl)sulfonylguanidine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291.15 K；0.1M sodium citrate, 1.5M sodium malonate
Resolution 2.87 Å R-free 0.337
8C6J Human spliceosomal PM5 C* complex Deposited 2023-01-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain B 1–2136（2136 aa）
Not recorded K POTASSIUM ION × 2 MG MAGNESIUM ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8CH6 Structure of a late-stage activated spliceosome (BAqr) arrested with a dominant-negative Aquarius mutant (state B complex). Deposited 2023-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric
Chain c 1–2136（2136 aa）
Not recorded ZN ZINC ION × 12 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；All solutions were sterile-filtered using a 0.22um vacuum filtration unit.
cryo-EM vitrification conditions Cryogen ETHANE；Volumes of 4 ul of the concentrated sample were applied to one side of glow-discharged UltrAuFoil 200 2/2 grids (Quantifoil) in a Vitrobot Mark IV (FEI), operated at 4 degrees Celsius and 100% humidity. The grids were blotted for 2s with blotting force 5 and immediately frozen by plunging into liquid ethane.
Resolution 5.90 Å
8H6E Cryo-EM structure of human exon-defined spliceosome in the late pre-B state. Deposited 2022-10-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 61-meric
Chain 5D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8H6J Cryo-EM structure of human exon-defined spliceosome in the mature pre-B state. Deposited 2022-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 61-meric
Chain 5D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8H6K Cryo-EM structure of human exon-defined spliceosome in the mature B state. Deposited 2022-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain 5D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8H6L Cryo-EM structure of human exon-defined spliceosome in the early B state. Deposited 2022-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 59-meric
Chain 5D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8I0P The cryo-EM structure of human pre-Bact complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 51-meric
Chain D 1–2136（2136 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8I0R The cryo-EM structure of human Bact-I complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 55-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I0S The cryo-EM structure of human Bact-II complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 50-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8I0T The cryo-EM structure of human Bact-III complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I0W The cryo-EM structure of human C complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain D 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8Q7Q Structure of the recycling U5 snRNP bound to chaperones CD2BP2 and TSSC4 (State 2) Deposited 2023-08-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain B 1–2136（2136 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8Q7V Structure of the recycling U5 snRNP bound to chaperones CD2BP2 and TSSC4 (State 1) Deposited 2023-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain B 1–2136（2136 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8Q7W Structure of the recycling U5 snRNP bound to chaperone CD2BP2 (State 3) Deposited 2023-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain B 1–2136（2136 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8Q7X Structure of the recycling U5 snRNP bound to chaperone CD2BP2 (State 4) Deposited 2023-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain B 1–2136（2136 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8Q91 Structure of the human 20S U5 snRNP core Deposited 2023-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 14-meric
Chain B 1–2136（2136 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8QO9 Cryo-EM structure of a human spliceosomal B complex protomer Deposited 2023-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 66 PDB declaration: 71-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.29 Å
8QOZ Cryo-EM Structure of Pre-B+5'ss+ATPgammaS Complex (core part) Deposited 2023-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 17-meric
Chain B 1–160（160 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8QP9 Cryo-EM Structure of Pre-B+AMPPNP Complex (core part) Deposited 2023-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 16-meric
Chain B 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8QPA Cryo-EM Structure of Pre-B+5'ssLNG Complex (core part) Deposited 2023-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: heptadecameric
Chain B 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8QPB Cryo-EM Structure of Pre-B+ATP Complex (core part) Deposited 2023-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 17-meric
Chain B 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8QPK Cryo-EM Structure of Pre-B+5'ss Complex (core part) Deposited 2023-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: hexadecameric
Chain B 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8QXD Cryo-EM structure of the cross-exon pre-B complex Deposited 2023-10-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 61-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.60 Å
8QZS Cryo-EM structure of the cross-exon B-like complex Deposited 2023-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 61 PDB declaration: 68-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8R08 Cryo-EM structure of the cross-exon pre-B+AMPPNP complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 64 PDB declaration: 71-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.10 Å
8R09 Cryo-EM structure of the cross-exon pre-B+5'ss+ATPgammaS complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8R0A Cryo-EM structure of the cross-exon pre-B+5'ss complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 62-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.80 Å
8R0B Cryo-EM structure of the cross-exon pre-B+ATP complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RC0 Structure of the human 20S U5 snRNP Deposited 2023-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain B 1–60（60 aa）
Chain B 61–2136（2076 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8RM5 Cryo-EM structure of the cross-exon pre-B+5'ssLNG+ATPyS complex Deposited 2024-01-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
8Y6O Cryo-EM Structure of the human minor pre-B complex (pre-precatalytic spliceosome) U11 and tri-snRNP part Deposited 2024-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 46-meric
Chain E 1–2136（2136 aa）
Not recorded MG MAGNESIUM ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.38 Å
9FMD Integrative model of the human post-catalytic spliceosome (P-complex) Deposited 2024-06-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain B 1–2136（2136 aa）
Not recorded MG MAGNESIUM ION × 6 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9R3D Cryo-EM structure of the human pre-Bact-OTS complex (whole map) Deposited 2025-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 17-meric
Chain B 1–2136（2136 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å
9R8V Cryo-EM structure of the human pre-Bact-OTS complex (whole map) Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 59 PDB declaration: 63-meric
Chain B 1–2136（2136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.50 Å

79 other PDB entries and 80 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name U520_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain B； PDBConstruct 5–1747； UniProt 394–2136

Pre-mRNA-processing-splicing factor 8

Homo sapiens

UniProt Q6P2Q9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain J； UniProt 2064–2320 Not recorded U5 small nuclear ribonucleoprotein 200 kDa helicase × 1 （O75643） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350 Resolution 2.80 Å R-free 0.297

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BDI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3E9L Crystal Structure of Human Prp8, Residues 1755-2016 Deposited 2008-08-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1760–2016（257 aa） Fragment：endonuclease domain
Not recorded NA SODIUM ION × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.95 Å R-free 0.248
3ENB Crystal Structure of PRP8 core domain IV Deposited 2008-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：UNP residues 1769-1990
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；2.5 M NaCl, 100 mM Tris-HCl pH 7.0, 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 1.85 Å R-free 0.243
3ENB Crystal Structure of PRP8 core domain IV Deposited 2008-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：UNP residues 1769-1990
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；2.5 M NaCl, 100 mM Tris-HCl pH 7.0, 100 mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 1.85 Å R-free 0.243
3JCR 3D structure determination of the human*U4/U6.U5* tri-snRNP complex Deposited 2016-01-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 33 PDB declaration: 36-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 20 mM HEPES, pH 7.9, 100 mM KCl, 5 mM MgCl2, 0.1 mM EDTA；pH 7.9；20 mM HEPES, pH 7.9, 100 mM KCl, 5 mM MgCl2, 0.1 mM EDTA
cryo-EM vitrification conditions Cryogen ETHANE；Plunged into liquid ethane (FEI VITROBOT MARK IV).
Resolution 7.00 Å
3LRU hPRP8 Non-Native Subdomain Deposited 2010-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1831–1990（160 aa） Fragment：UNP residues 1831-1990
Chain B 1831–1990（160 aa） Fragment：UNP residues 1831-1990
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions vapour diffusion；pH 6；298 K；12% PEG4000, Tris Ph8, 1,3 diamino-propane, pH 6, vapour diffusion, temperature 298K
Resolution 1.85 Å R-free 0.254
4JK7 Open and closed forms of wild-type human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Not recorded GOL GLYCEROL × 2 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 1.40 Å R-free 0.177
4JK7 Open and closed forms of wild-type human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Not recorded CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 1.40 Å R-free 0.177
4JK8 Open and closed forms of R1865A human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：R1865A GOL GLYCEROL × 2 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.15 Å R-free 0.160
4JK8 Open and closed forms of R1865A human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：R1865A CL CHLORIDE ION × 3 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.15 Å R-free 0.160
4JK9 Open and closed forms of wild-type human PRP8 RNase H-like domain with bound Co ion Deposited 2013-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Not recorded CO COBALT (II) ION × 2 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.50 Å R-free 0.205
4JK9 Open and closed forms of wild-type human PRP8 RNase H-like domain with bound Co ion Deposited 2013-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Not recorded CO COBALT (II) ION × 4 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.50 Å R-free 0.205
4JKA Open and closed forms of R1865A human PRP8 RNase H-like domain with bound Co ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：R1865A CO COBALT (II) ION × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.32 Å R-free 0.166
4JKA Open and closed forms of R1865A human PRP8 RNase H-like domain with bound Co ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：R1865A CO COBALT (II) ION × 3 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.32 Å R-free 0.166
4JKB Open and closed forms of V1788D human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：V1788D GOL GLYCEROL × 2 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.30 Å R-free 0.145
4JKB Open and closed forms of V1788D human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：V1788D GOL GLYCEROL × 1 CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.30 Å R-free 0.145
4JKC Open and closed forms of T1800E human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：T1800E CL CHLORIDE ION × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.50 Å R-free 0.164
4JKC Open and closed forms of T1800E human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：T1800E CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.50 Å R-free 0.164
4JKD Open and closed forms of I1790Y human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：I1790Y MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.55 Å R-free 0.188
4JKD Open and closed forms of I1790Y human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：I1790Y MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.55 Å R-free 0.188
4JKE Open and closed forms of T1789P human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：T1789P No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.65 Å R-free 0.203
4JKE Open and closed forms of T1789P human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：T1789P MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.65 Å R-free 0.203
4JKF Open and closed forms of T1791P+R1865A human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：T1791P R1865A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.95 Å R-free 0.226
4JKF Open and closed forms of T1791P+R1865A human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：T1791P R1865A MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.95 Å R-free 0.226
4JKG Open and closed forms of mixed T1789P+R1865A and R1865A human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：R1865A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.80 Å R-free 0.234
4JKG Open and closed forms of mixed T1789P+R1865A and R1865A human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：PRP8 RNase H-like domain, UNP residues 1769-1990
Mutation：T1789P, R1865A MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.80 Å R-free 0.234
4JKH Open and closed forms of D1781E human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：D1781E CL CHLORIDE ION × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.80 Å R-free 0.219
4JKH Open and closed forms of D1781E human PRP8 RNase H-like domain with bound Mg ion Deposited 2013-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1769–1990（222 aa） Fragment：;PRP8 RNase H-like domain, UNP residues 1769-1990' ;
Mutation：D1781E CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 4000, 300mM MgCl2, 100mM Tris, pH 7.5, vapor diffusion, temperature 298K
Resolution 1.80 Å R-free 0.219
4KIT Crystal structure of human Brr2 in complex with the Prp8 Jab1/MPN domain Deposited 2013-05-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2064–2335（272 aa） Fragment：Jab1/MPN domain (UNP residues 2064-2335)
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；277 K；0.1 M HEPES-NaOH, pH 7.9, 0.2 M magnesium chloride, 12% ethanol, Silver Bullets Bio condition 91 (Hampton Research) as additive, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.60 Å R-free 0.235
5MQF Cryo-EM structure of a human spliceosome activated for step 2 of splicing (C* complex) Deposited 2016-12-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 41-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
5O9Z Cryo-EM structure of a pre-catalytic human spliceosome primed for activation (B complex) Deposited 2017-06-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
5XJC Cryo-EM structure of the human spliceosome just prior to exon ligation at 3.6 angstrom Deposited 2017-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 50-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 11 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5YZG The Cryo-EM Structure of Human Catalytic Step I Spliceosome (C complex) at 4.1 angstrom resolution Deposited 2017-12-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 55-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
5Z56 cryo-EM structure of a human activated spliceosome (mature Bact) at 5.1 angstrom. Deposited 2018-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 13 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；20 mM HEPES-KOH, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
5Z57 Cryo-EM structure of the human activated spliceosome (late Bact) at 6.5 angstrom Deposited 2018-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 57-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ALA ALANINE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；20 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.50 Å
5Z58 Cryo-EM structure of a human activated spliceosome (early Bact) at 4.9 angstrom. Deposited 2018-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 42 PDB declaration: 46-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；20 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
6AH0 The Cryo-EM Structure of the Precusor of Human Pre-catalytic Spliceosome (pre-B complex) Deposited 2018-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
6AHD The Cryo-EM Structure of Human Pre-catalytic Spliceosome (B complex) at 3.8 angstrom resolution Deposited 2018-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6FF4 human Bact spliceosome core structure Deposited 2018-01-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 24 PDB declaration: 28-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 4 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；blot with blotting sensor
Resolution 3.40 Å
6FF7 human Bact spliceosome core structure Deposited 2018-01-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 57 PDB declaration: 61-meric
Chain A 1–2335（2335 aa）
Not recorded ZN ZINC ION × 11 MG MAGNESIUM ION × 5 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6ICZ Cryo-EM structure of a human post-catalytic spliceosome (P complex) at 3.0 angstrom Deposited 2018-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 51-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 9 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6ID0 Cryo-EM structure of a human intron lariat spliceosome prior to Prp43 loaded (ILS1 complex) at 2.9 angstrom resolution Deposited 2018-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 42-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6ID1 Cryo-EM structure of a human intron lariat spliceosome after Prp43 loaded (ILS2 complex) at 2.9 angstrom resolution Deposited 2018-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 43-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
6QDV Human post-catalytic P complex spliceosome Deposited 2019-01-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 7 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 7 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；3 uL sample was applied to the grid, left for 25s, then blotted for 2.5-3.5s and immediately plunged into liquid ethane.
Resolution 3.30 Å
6QW6 Structure of the human U5.U4/U6 tri-snRNP at 2.9A resolution. Deposited 2019-03-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 36 PDB declaration: 39-meric
Chain 5A 25–2335（2311 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Wait 30s, blot for 2s to 3s.
Resolution 2.92 Å
6QX9 Structure of a human fully-assembled precatalytic spliceosome (pre-B complex). Deposited 2019-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 65 PDB declaration: 71-meric
Chain 5A 25–2335（2311 aa）
Not recorded ZN ZINC ION × 6 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
6S8Q Human Brr2 Helicase Region in complex with C-tail deleted Jab1 Deposited 2019-07-10 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.39 Å R-free 0.253
6S9I Human Brr2 Helicase Region D534C/N1866C in complex with C-tail deleted Jab1 Deposited 2019-07-13 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.60 Å R-free 0.278
6ZYM Human C Complex Spliceosome - High-resolution CORE Deposited 2020-08-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 26-meric
Chain A 1–1755（1755 aa）
Not recorded MG MAGNESIUM ION × 5 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7A5P Human C Complex Spliceosome - Medium-resolution PERIPHERY Deposited 2020-08-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 48-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
7AAV Human pre-Bact-2 spliceosome core structure Deposited 2020-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: heptadecameric
Chain A 1–2335（2335 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 KGN D-chiro inositol hexakisphosphate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7ABF Human pre-Bact-1 spliceosome core structure Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: pentadecameric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7ABG Human pre-Bact-1 spliceosome Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 58-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTG 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-GUANOSINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.80 Å
7ABI Human pre-Bact-2 spliceosome Deposited 2020-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric
Chain A 1–2335（2335 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
7BDJ Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and mant-ATPgammaS Deposited 2020-12-21 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded TGB [[[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3-[2-(methylamino)phenyl]carbonyloxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-sulfanyl-phosphinic acid × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.59 Å R-free 0.289
7BDK Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and ADP Deposited 2020-12-21 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.52 Å R-free 0.284
7BDL Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and mant-ADP Deposited 2020-12-21 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded TG8 [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-2-[[oxidanyl(phosphonooxy)phosphoryl]oxymethyl]oxolan-3-yl] 2-(methylamino)benzoate × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.69 Å R-free 0.292
7DVQ Cryo-EM Structure of the Activated Human Minor Spliceosome (minor Bact Complex) Deposited 2021-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 45 PDB declaration: 49-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 K POTASSIUM ION × 2 G5J 5'-O-[(S)-hydroxy{[(R)-hydroxy{[(S)-hydroxy(methoxy)phosphoryl]oxy}phosphoryl]oxy}phosphoryl]guanosine × 1 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
7OS2 Cryo-EM structure of Brr2 in complex with Jab1/MPN and C9ORF78 Deposited 2021-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 2064–2335（272 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.76 Å
7PJH Crystal structure of the human spliceosomal maturation factor AAR2 bound to the RNAse H domain of PRPF8 Deposited 2021-08-24 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1758–2016（259 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M HEPES pH 7.0, 10% PEG 6000, 5%(v/v) 2-methyl-2,4- pentanediol
Resolution 2.35 Å R-free 0.235
7PX3 Structure of U5 snRNP assembly and recycling factor TSSC4 in complex with BRR2 and Jab1 domain of PRPF8 Deposited 2021-10-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 2064–2320（257 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
7QTT Structural organization of a late activated human spliceosome (Baqr, core region) Deposited 2022-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 33 PDB declaration: 37-meric
Chain a 1–2335（2335 aa）
Not recorded ZN ZINC ION × 12 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；All solutions were sterile filtered using a 0.22um vacuum filtration unit.
cryo-EM vitrification conditions Cryogen ETHANE；Volumes of 4 ul of the concentrated sample were applied to one side of glow-discharged UltrAuFoil 200 2/2 grids (Quantifoil) in a Vitrobot Mark IV (FEI) operating at 4 degrees Celsius and 100% humidity. The grids were blotted for 2s with blotting force 5 and immediately frozen by plunging into liquid ethane.
Resolution 3.10 Å
7W59 The cryo-EM structure of human pre-C*-I complex Deposited 2021-11-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 45 PDB declaration: 50-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 9 ZN ZINC ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7W5A The cryo-EM structure of human pre-C*-II complex Deposited 2021-11-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 9 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7W5B The cryo-EM structure of human C* complex Deposited 2021-11-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 9 ZN ZINC ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8BC8 Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 18 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded QB6 3-azanyl-4-oxidanyl-benzenesulfonamide × 4 EDO 1,2-ETHANEDIOL × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.39 Å R-free 0.245
8BC9 Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 24 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded A09 N-hydroxybenzenesulfonamide × 1 EDO 1,2-ETHANEDIOL × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.30 Å R-free 0.249
8BCA Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 26 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded Q96 3-azanyl-~{N}-methyl-4-(methylamino)benzenesulfonamide × 2 EDO 1,2-ETHANEDIOL × 9 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.80 Å R-free 0.258
8BCB Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 34 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded EDO 1,2-ETHANEDIOL × 16 SAN SULFANILAMIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.38 Å R-free 0.258
8BCC Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 39 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded QAU 3-oxidanylbenzenesulfonamide × 3 EDO 1,2-ETHANEDIOL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.35 Å R-free 0.258
8BCD Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 50 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded QB0 phenylsulfonylcarbamodithioic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 3.50 Å R-free 0.279
8BCE Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 76 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded B09 N-methoxybenzenesulfonamide × 1 EDO 1,2-ETHANEDIOL × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.05 Å R-free 0.267
8BCF Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 78 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded EDO 1,2-ETHANEDIOL × 10 Q8Z ~{N}-methoxy-~{N}-methyl-benzenesulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.42 Å R-free 0.275
8BCG Human Brr2 Helicase Region in complex with C-tail deleted Jab1 and compound 86 Deposited 2022-10-15 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2064–2320（257 aa）
Not recorded Q9I 4-chloranyl-~{N}-methoxy-~{N}-methyl-benzenesulfonamide × 1 EDO 1,2-ETHANEDIOL × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291.15 K；0.1M Hepes-NaOH, 0.1M MgCl2, 8% PEG 3350
Resolution 2.39 Å R-free 0.269
8C6J Human spliceosomal PM5 C* complex Deposited 2023-01-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain A 1–2335（2335 aa）
Not recorded K POTASSIUM ION × 2 MG MAGNESIUM ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8CH6 Structure of a late-stage activated spliceosome (BAqr) arrested with a dominant-negative Aquarius mutant (state B complex). Deposited 2023-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric
Chain a 1–2335（2335 aa）
Not recorded ZN ZINC ION × 12 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；All solutions were sterile-filtered using a 0.22um vacuum filtration unit.
cryo-EM vitrification conditions Cryogen ETHANE；Volumes of 4 ul of the concentrated sample were applied to one side of glow-discharged UltrAuFoil 200 2/2 grids (Quantifoil) in a Vitrobot Mark IV (FEI), operated at 4 degrees Celsius and 100% humidity. The grids were blotted for 2s with blotting force 5 and immediately frozen by plunging into liquid ethane.
Resolution 5.90 Å
8H6E Cryo-EM structure of human exon-defined spliceosome in the late pre-B state. Deposited 2022-10-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 61-meric
Chain 5B 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8H6J Cryo-EM structure of human exon-defined spliceosome in the mature pre-B state. Deposited 2022-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 61-meric
Chain 5B 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8H6K Cryo-EM structure of human exon-defined spliceosome in the mature B state. Deposited 2022-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain 5B 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8H6L Cryo-EM structure of human exon-defined spliceosome in the early B state. Deposited 2022-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 59-meric
Chain 5B 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8I0P The cryo-EM structure of human pre-Bact complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 51-meric
Chain A 1–2335（2335 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8I0R The cryo-EM structure of human Bact-I complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 55-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I0S The cryo-EM structure of human Bact-II complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 50-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8I0T The cryo-EM structure of human Bact-III complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I0U The cryo-EM structure of human Bact-IV complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 53-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8I0V The cryo-EM structure of human post-Bact complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 51-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 7 ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I0W The cryo-EM structure of human C complex Deposited 2023-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8Q7N cryo-EM structure of the human spliceosomal B complex protomer (tri-snRNP core region) Deposited 2023-08-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 17 PDB declaration: 21-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8Q7Q Structure of the recycling U5 snRNP bound to chaperones CD2BP2 and TSSC4 (State 2) Deposited 2023-08-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8Q7V Structure of the recycling U5 snRNP bound to chaperones CD2BP2 and TSSC4 (State 1) Deposited 2023-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8Q7W Structure of the recycling U5 snRNP bound to chaperone CD2BP2 (State 3) Deposited 2023-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8Q7X Structure of the recycling U5 snRNP bound to chaperone CD2BP2 (State 4) Deposited 2023-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8Q91 Structure of the human 20S U5 snRNP core Deposited 2023-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 14-meric
Chain A 1–2335（2335 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8QO9 Cryo-EM structure of a human spliceosomal B complex protomer Deposited 2023-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 66 PDB declaration: 71-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.29 Å
8QOZ Cryo-EM Structure of Pre-B+5'ss+ATPgammaS Complex (core part) Deposited 2023-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 17-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8QP8 Cryo-EM Structure of Pre-B Complex (core part) Deposited 2023-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: 15-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8QP9 Cryo-EM Structure of Pre-B+AMPPNP Complex (core part) Deposited 2023-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 16-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8QPA Cryo-EM Structure of Pre-B+5'ssLNG Complex (core part) Deposited 2023-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: heptadecameric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8QPB Cryo-EM Structure of Pre-B+ATP Complex (core part) Deposited 2023-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 13 PDB declaration: 17-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8QPE Cryo-EM Structure of Pre-B-like Complex (core part) Deposited 2023-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 15 PDB declaration: 20-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8QPK Cryo-EM Structure of Pre-B+5'ss Complex (core part) Deposited 2023-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 12 PDB declaration: hexadecameric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8QXD Cryo-EM structure of the cross-exon pre-B complex Deposited 2023-10-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 61-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.60 Å
8QZS Cryo-EM structure of the cross-exon B-like complex Deposited 2023-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 61 PDB declaration: 68-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8R08 Cryo-EM structure of the cross-exon pre-B+AMPPNP complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 64 PDB declaration: 71-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.10 Å
8R09 Cryo-EM structure of the cross-exon pre-B+5'ss+ATPgammaS complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8R0A Cryo-EM structure of the cross-exon pre-B+5'ss complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 62-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.80 Å
8R0B Cryo-EM structure of the cross-exon pre-B+ATP complex Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8RC0 Structure of the human 20S U5 snRNP Deposited 2023-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 15-meric
Chain A 1–2335（2335 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8RM5 Cryo-EM structure of the cross-exon pre-B+5'ssLNG+ATPyS complex Deposited 2024-01-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric
Chain A 1–2335（2335 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
8RO2 Integrative Structure of the human intron lariat Spliceosome (ILS'') Deposited 2024-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 36 PDB declaration: 40-meric
Chain A 1–2335（2335 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8Y6O Cryo-EM Structure of the human minor pre-B complex (pre-precatalytic spliceosome) U11 and tri-snRNP part Deposited 2024-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 46-meric
Chain C 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.38 Å
9FMD Integrative model of the human post-catalytic spliceosome (P-complex) Deposited 2024-06-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric
Chain A 1–2335（2335 aa）
Not recorded MG MAGNESIUM ION × 6 K POTASSIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9R3D Cryo-EM structure of the human pre-Bact-OTS complex (whole map) Deposited 2025-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: 17-meric
Chain A 1–2335（2335 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å

100 other PDB entries and 112 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PRP8_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain J； PDBConstruct 7–263； UniProt 2064–2320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7bdi

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7bdi
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7bdi
Deposition date deposition_date2020-12-21
Structure title titleHuman Brr2 Helicase Region in complex with C-tail deleted Jab1 and ATPgammaS
Keywords keywords;RNP REMODELING, PRE-MRNA SPLICING, SPLICEOSOME CATALYTIC ACTIVATION, DEXD/H-BOX RNA HELICASE, RNA AND ATP BINDING, NUCLEUS, HYDROLASE ;; HYDROLASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier43.45 Å
Radius of gyration Rg (electron density) rg_electron42.85 Å
Forward intensity I(0) i0743288000.00
Molecular weight molecular_weight228230.0 kDa
Excluded volume excluded_volume287300 ų
Envelope volume envelope_volume386030 ų
Hydration-shell volume shell_volume73996 ų
Envelope diameter envelope_diameter149.1 Å
Shell Rg shell_rg48.65 Å
Envelope Rg envelope_rg42.43 Å
Shape Rg shape_rg42.86 Å
Total Rg total_rg43.13 Å
Total atoms total_atoms16052
Residues n_residues1987
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax142.2 Å
Rg (real space) rg_real43.33 Å
Rg uncertainty (real space) rg_real_error1.03 Å
I(0) (real space) i0_real7.4330e+08
I(0) uncertainty (real space) i0_real_error1.2150e+07
Rg (reciprocal space) rg_reciprocal43.45 Å
I(0) (reciprocal space) i0_reciprocal743400000.0000
Solution quality estimate total_estimate0.8975
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary51.4 Å
Skewness Skewness skewness0.206
Kurtosis Kurtosis kurtosis-0.536
Angular range angular_range— – 0.1800 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha78780000.0000
Real-space data points n_real_points37
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.942
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd7bdij1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.97 — Cytidine deaminase-like
Superfamily Superfamily superfamilyc.97.3 — JAB1/MPN domain
Family Family familyc.97.3.0 — automated matches
Domain ID domain_idd7bdij2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id7bdiB01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain
Domain ID domain_id7bdiB02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id7bdiB03
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id7bdiB04
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily150 — C2 domain
Domain ID domain_id7bdiB05
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id7bdiB06
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
▶

8. Citations (1)

▶

9. Files and Curves (10)
