9rbg

X-ray structure of decavanadate/lysozyme adduct obtained when the protein is treated with Cs2[V(V)2O4(mal)2]2H2O (structure A)

Method: X-RAY DIFFRACTION Dmax: 51.0 Å Quality: GOOD

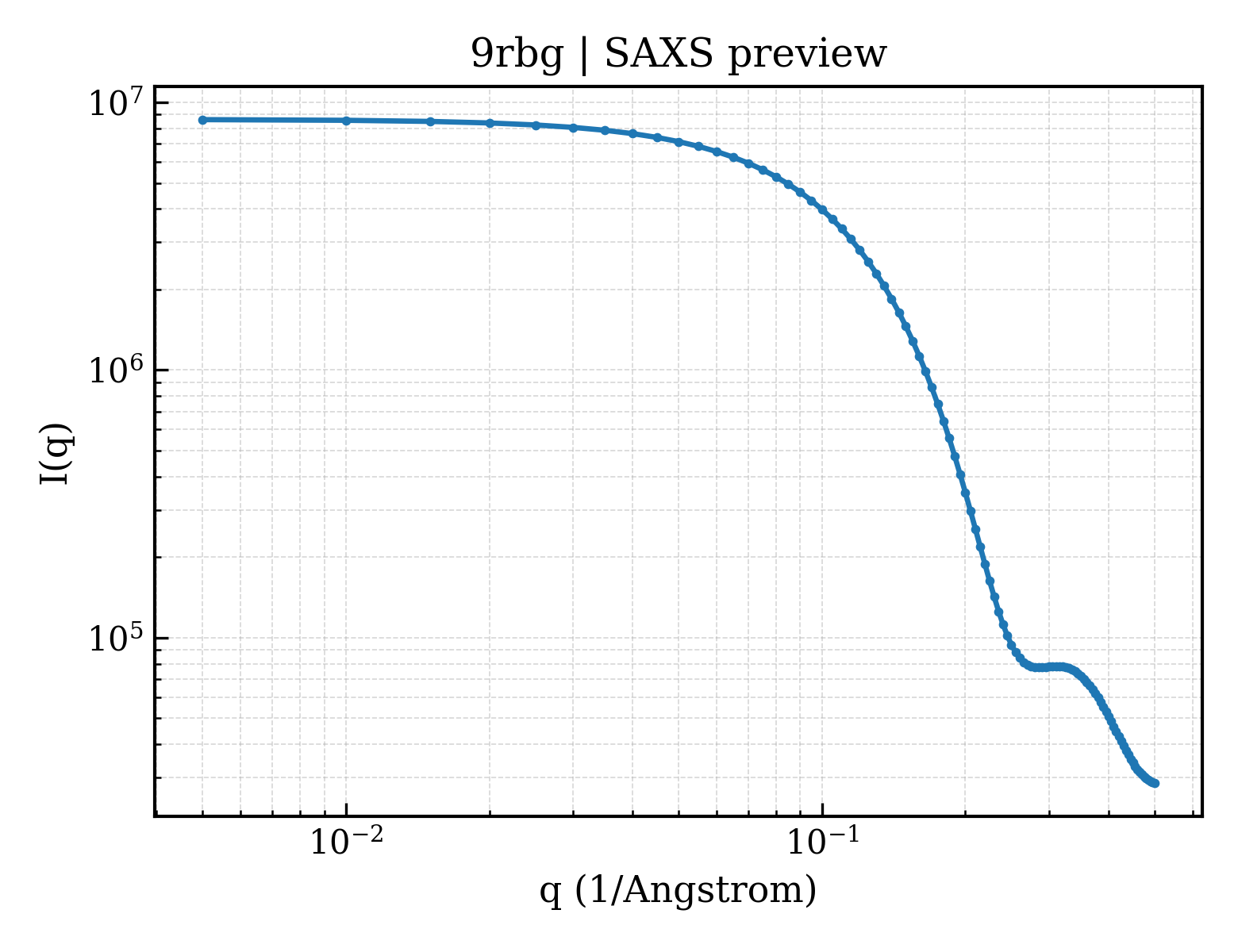

SAXS Profile

SAXS profile for 9rbg

P(r) Distribution

P(r) distribution for 9rbg

1. Structure Basics

entry_id9rbg
deposition_date2025-05-26
titleX-ray structure of decavanadate/lysozyme adduct obtained when the protein is treated with Cs2[V(V)2O4(mal)2]2H2O (structure A)
keywordsVanadium compounds, decavanadate, lysozyme, protein metalation, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier15.17
rg_electron14.08
i08635750.00
molecular_weight13782.0 kDa
excluded_volume12858 ų
envelope_volume19610 ų
shell_volume12037 ų
envelope_diameter51.6
shell_rg19.59
envelope_rg14.33
shape_rg13.99
total_rg14.98
total_atoms1021
n_residues129
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax51.0
rg_real15.11
rg_real_error0.32
i0_real8.6360e+06
i0_real_error1.0880e+05
rg_reciprocal15.12
i0_reciprocal8636000.0000
total_estimate0.8732
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary19.4
skewness0.291
kurtosis-0.183
angular_range— – 0.5000 −1
current_alpha0.0000
highest_alpha1393000.0000
n_real_points80
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.788; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.992

4. Crystallography & Experiment

5. Entities & Polymer Info (7)

6. Citations (1)

7. Files & Curves (10)
