9nmh

;SARS-CoV-2 3CLPro in complex with 2-hydroxy-3-(4-isoquinolyl)-8-(1,2,3,6-tetrahydropyridin-4-yl)-6-(trifluoromethyl)-1H-quinolin-4-one ;

Method: X-RAY DIFFRACTION D_max: 78.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

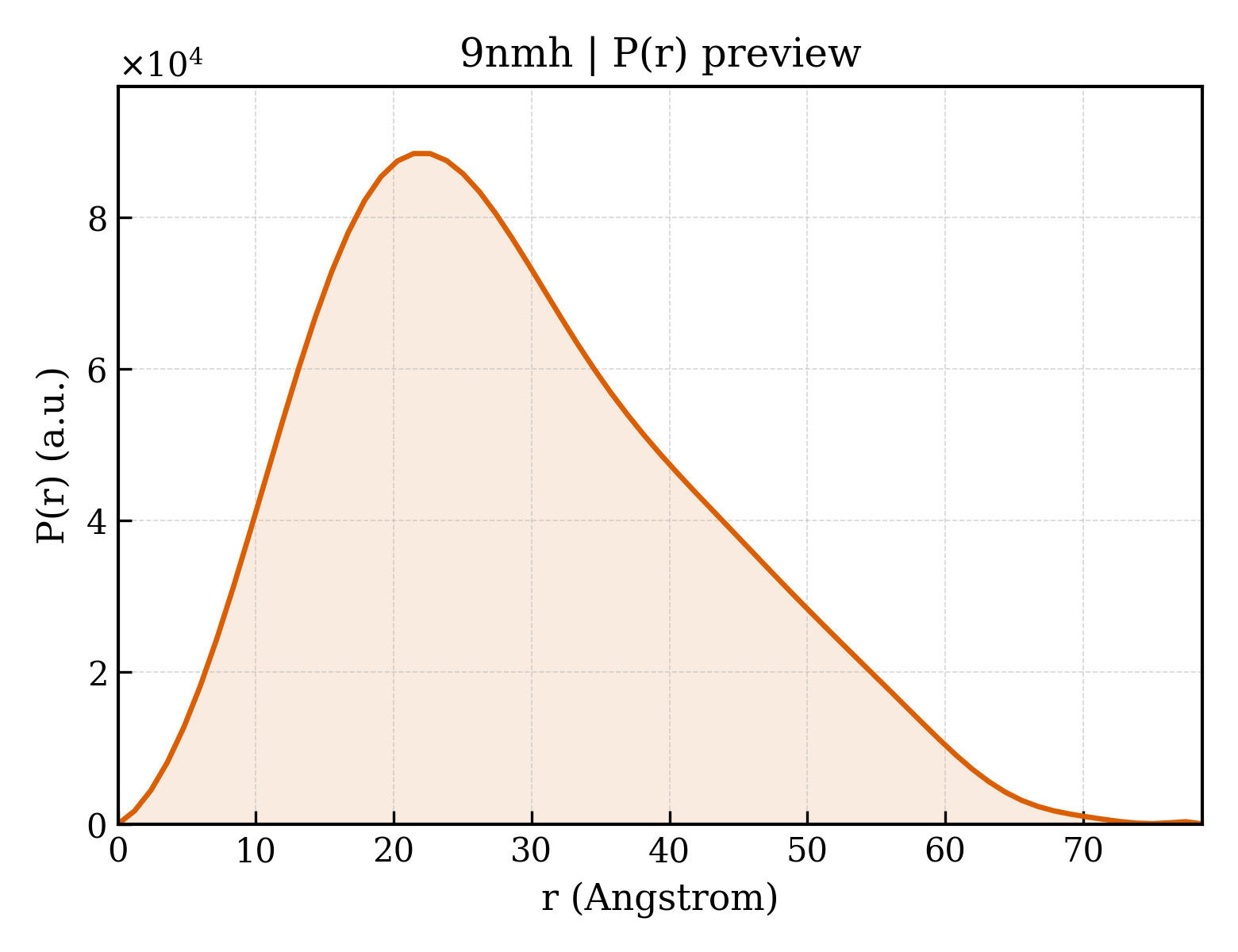

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nmh
沉积日期 deposition_date	2025-03-04
最后修订 last_revision	2026-03-18
结构标题 title	;SARS-CoV-2 3CLPro in complex with 2-hydroxy-3-(4-isoquinolyl)-8-(1,2,3,6-tetrahydropyridin-4-yl)-6-(trifluoromethyl)-1H-quinolin-4-one ;
关键词 keywords	Protease, Inhibitor, VIRAL PROTEIN, HYDROLASE-HYDROLASE INHIBITOR complex; VIRAL PROTEIN,HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	22.41 Å
回转半径 Rg (电子) rg_electron	21.85 Å
零角强度 I(0) i0	36335000.00
分子量 molecular_weight	30993.0 kDa
排除体积 excluded_volume	29878 Å³
包络体积 envelope_volume	49149 Å³
水化壳体积 shell_volume	19709 Å³
包络直径 envelope_diameter	79.9 Å
壳层 Rg shell_rg	27.54 Å
包络 Rg envelope_rg	22.11 Å
形状 Rg shape_rg	21.85 Å
总 Rg total_rg	22.39 Å
总原子数 total_atoms	2332
残基数 n_residues	301
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.7 Å
Rg (实空间) rg_real	22.52 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	3.6340e+07
I(0) 误差 (实空间) i0_real_error	5.2070e+05
Rg (倒空间) rg_reciprocal	22.50 Å
I(0) (倒空间) i0_reciprocal	36330000.0000
解质量估计 total_estimate	0.8360
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	21.4 Å
偏度 Skewness skewness	0.492
峰度 Kurtosis kurtosis	-0.346
角度范围 angular_range	— – 0.3550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11860000.0000
实空间数据点数 n_real_points	67
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.688; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.833; Smooth: 0.968

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Glutathione S-transferase class-mu 26 kDa isozyme,Replicase polyprotein 1ab
分子量 formula_weight	62080.1 kDa
EC 编号 ec_number	2.5.1.18
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2384

MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKKFELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRYGVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVLYMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPKSDLEVLFQGPLGSAVLQSGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSCGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFVDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCSGVTFQGPHHHHHH

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Escherichia coli BL21

Entity 2 non-polymer

描述 description	(3P,8P)-2-hydroxy-3-(isoquinolin-4-yl)-8-(1,2,3,6-tetrahydropyridin-4-yl)-6-(trifluoromethyl)quinolin-4(1H)-one
分子量 formula_weight	437.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	52

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	115.780 Å
晶胞边长 b length_b	54.230 Å
晶胞边长 c length_c	44.970 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	100.93 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	48.950 Å
R 因子 r_factor	0.1928
R_work r_work	0.1888
R_free r_free	0.2741
